Description:

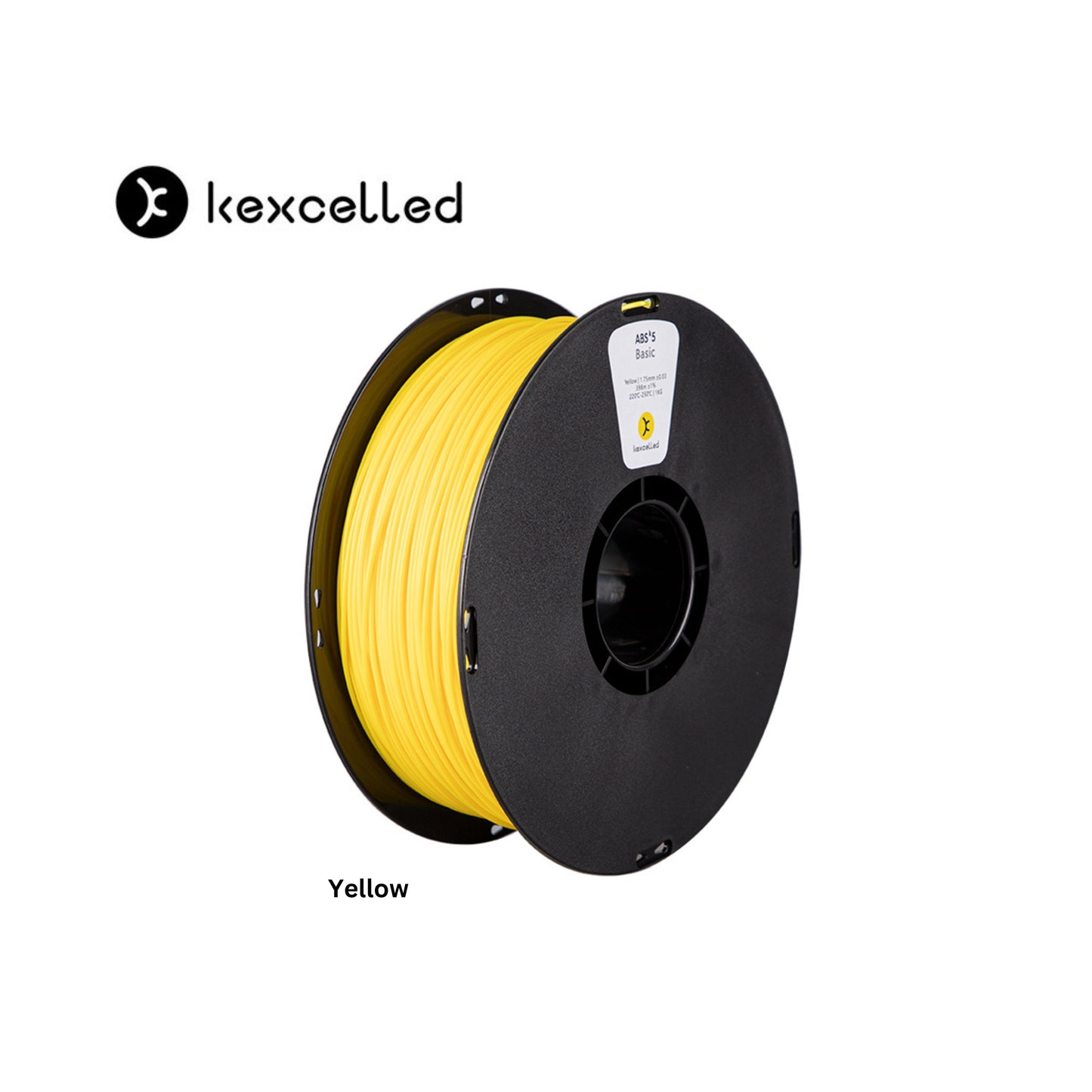

Kexcelled's K5™ ABS is a general 3D printing filament renowned for its durability, strength, and heat resistance. This versatile material is ideal for a wide range of applications, from functional prototypes to intricate models.
Features:
Low Warpage & Low Shrinkage: Molecular-level modifications reduce thermal stress, resulting in less warping and cracking compared to standard ABS.
High Strength & Durability: Provides superior impact resistance and mechanical stability for robust, long-lasting parts.
Excellent Interlayer Adhesion: Improved Z-axis strength ensures printed layers bond securely, enhancing the overall mechanical integrity of the model.
High Heat Resistance: Suitable for applications that require temperature stability, with a heat deflection temperature of approximately 85 °C.
Stable Printing Performance: Features excellent process stability, good flow behavior, and minimal risk of tangles, bubbles, or clogs.
Low VOC Formulation: Treated to produce a lower odor during printing, contributing to a safer printing environment.
Specifications:
Material: ABS (Acrylonitrile Butadiene Styrene)
Series: K5
Filament Diameter: 1.75 mm (Standard) or 2.85 mm (Available)
Diameter Tolerance: ±0.03 mm
Net Weight: 1 kg per Spool (Standard)
Printing Temperature: 220°C−250°C
Recommended Bed Temp.: 80°C−100°C (Enclosure Recommended)
Printing Speed (Typical): 40 mm/s−80 mm/s (Can vary based on printer)
Heat Deflection Temp.: ≈85°C
Material Density: ≈1.05 g/cm3
Tensile Strength: ≈40 MPa−42 MPa (at 100% infill)
Safety Precautions:
- Always print in a well-ventilated area.
- Avoid breathing the fumes while printing.
- Do not touch the nozzle, heated bed, or printed object right after printing — let it cool down first before handling.
- Keep the printer and filament away from children and pets.
- Unplug the printer when not in use.
- Store the filament in a cool, dry place to avoid moisture.
- Wear gloves and a mask when sanding, cutting, or handling printed parts.
- Keep away from open flames — most filaments are flammable.
ABS
- Produces strong fumes while printing — always print in a well-ventilated area or enclosed
printer.
- Avoid touching the print until it has cooled down.
- Keep away from open flames.
Safety Data Sheet
Kexcelled K5 ABS Filament
