L298N Dual H-Bridge Motor Driver Module

L298N Dual H-Bridge Motor Driver Module

In stock

SKU:MLE00418

Regular price ₱75.00
Regular price Sale price ₱75.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
L298N
View full details

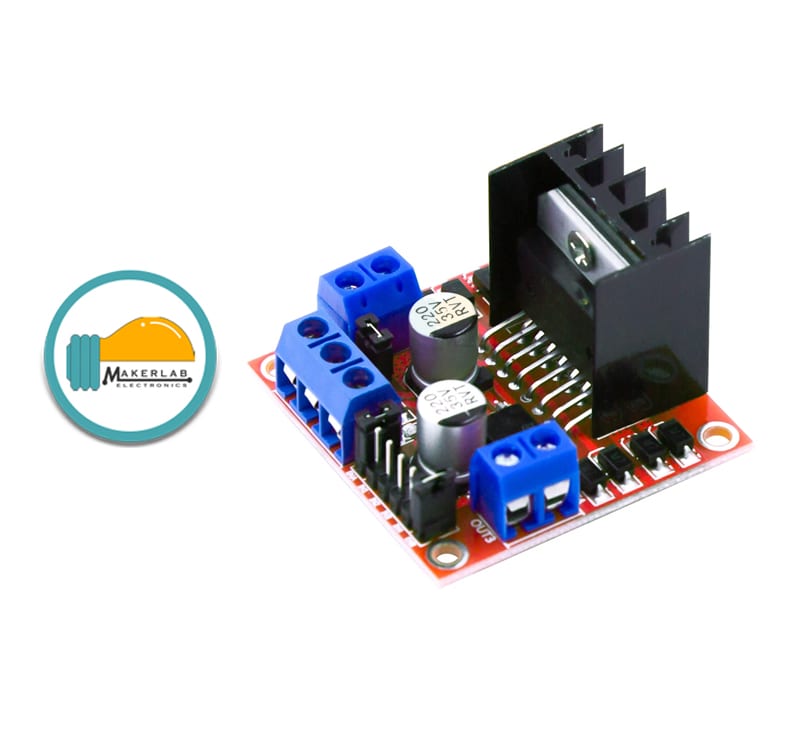

L298N Motor Driver Dual H-Bridge

The L298N Motor Driver Module is a high voltage Dual H-Bridge manufactured by ST company. It is designed to accept standard TTL voltage levels. H-bridge drivers are used to drive inductive loads that requires forward and reverse function with speed control such as DC Motors, and Stepper Motors. This Dual H-Bridge driver is capable of driving voltages up to 46V and continuous current up to 2A in each channels.

Note: Adequate cooling should be installed when using the driver at its maximum capacity.

Specifications

  • Driver: L298 Dual H Bridge DC Motor Driver IC
  • Operating Voltage: 7 to 35V
  • Peak current: 2A
  • Maximum power consumption: 20W (when the temperature T = 75 °C)
  • Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
  • Driver Board Weight: 33g

Datasheet:
