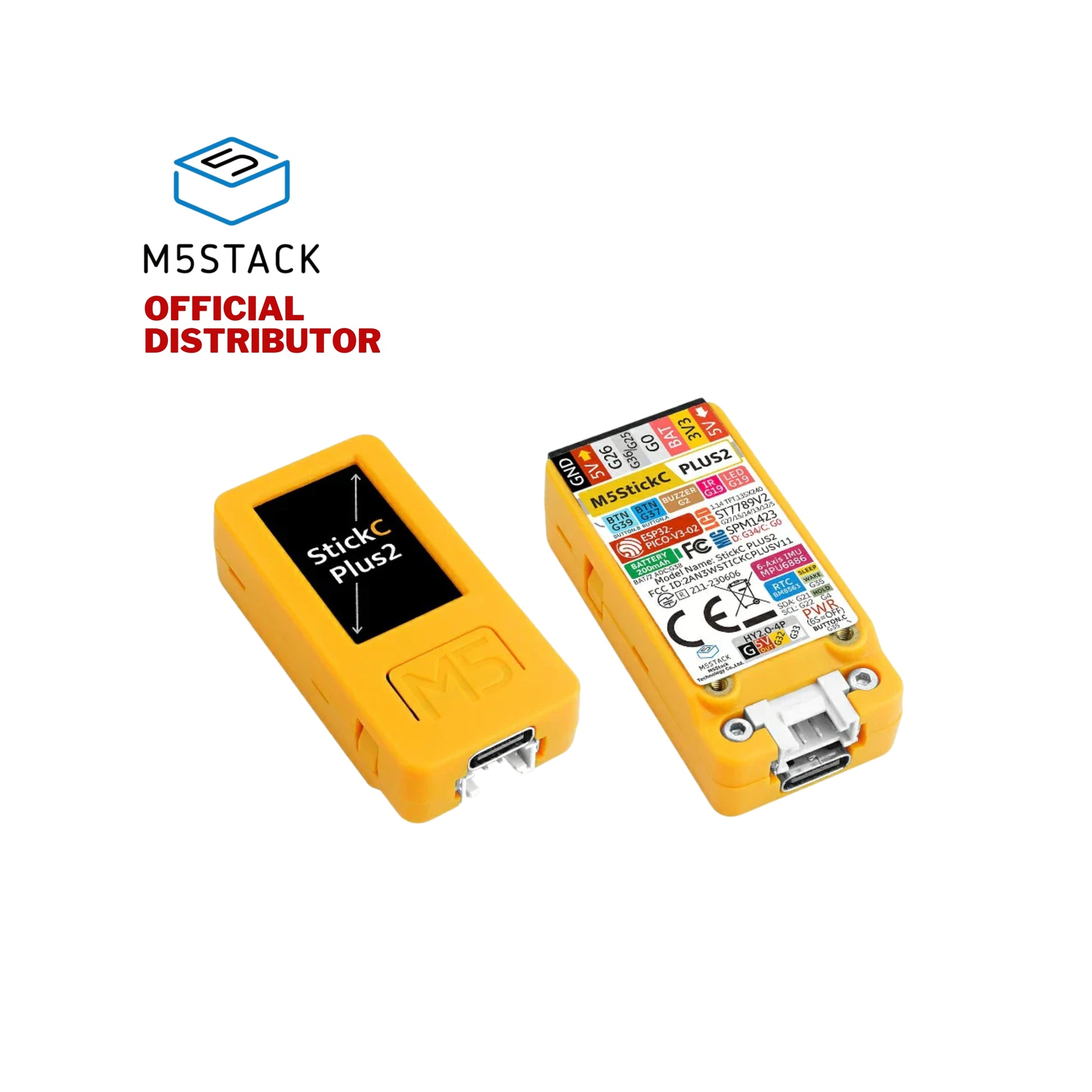

M5Stack M5StickC PLUS2 ESP32 Mini IoT Development Kit

Description:

M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in Wi-Fi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.

M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.

Features:

• ESP32-­PICO-­V3-­02-Base, support WiFi

• Built-in 6-Axis IMU

• IR transmitter

• Microphone

• RTC

• Buttons, LCD (1.14 inch)

• Built-in Lithium Polymer Battery@200mAh

• Extendable Socket

• Built-in Passive Buzzer

• Wearable & Wall mounted
• Compatible with multi-platform development:
  • UIFlow

  • MicroPython

  • Arduino

  • .NET nanoFramework

Specifications:

• ESP32: ESP32-PICO-V3-02 240MHz dual core,support wifi,2 MB SPI PSRAM,8 MB SPI flash
• PSRAM: 2 MB PSRAM
• Flash: 8 MB flash
• Power Input: 5V @ 500mA

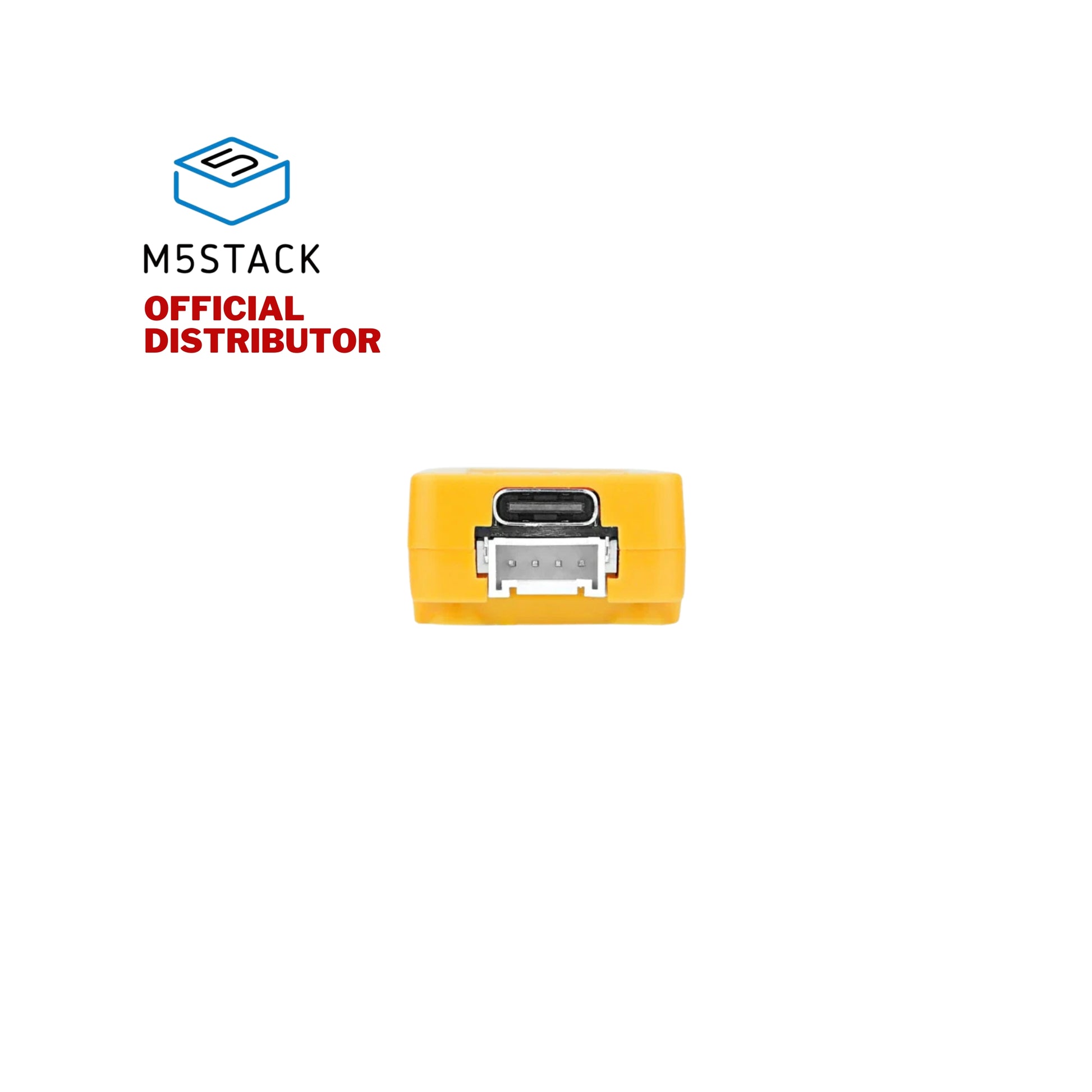

• Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1

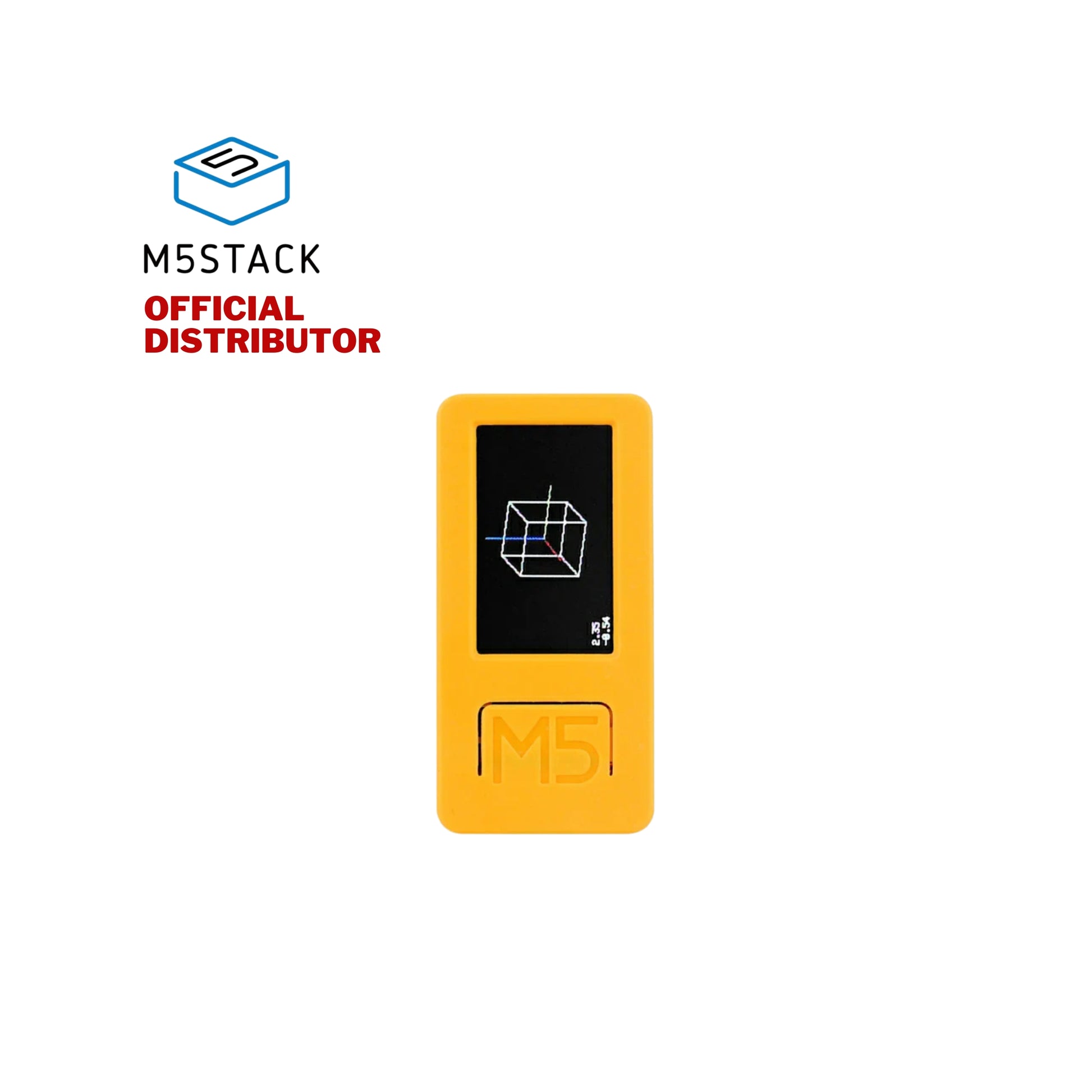

• LCD screen: 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
• Button: Custom button x 3
• LED: Green LED x 1(non-programmable) (sleep status indicator)
  Red LED X 1(same control pin G19 as infrared transmitter tube)
• IMU: MPU6886
• Buzzer: built-in buzzer
• MIC: SPM1423
• RTC: BM8563
• Battery: 200mAh @ 3.7V
• Antenna: 2.4G 3D Antenna
• PIN port: G0, G25/G36, G26, G32, G33
• Operating Temperature: 0°C to 40°C
• Case Material: Plastic ( PC )
• Product Size: 48 x 25 x 13mm

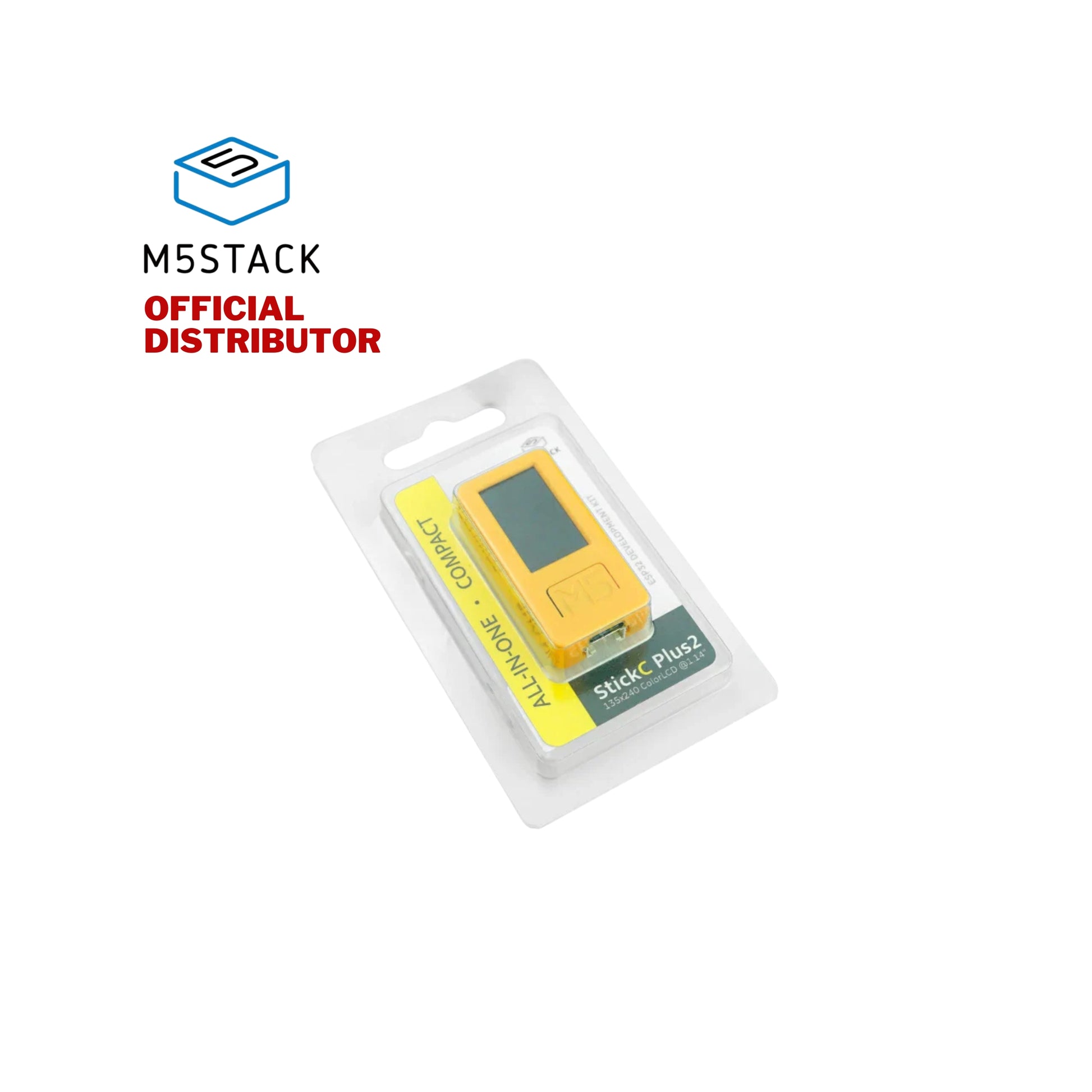

• Package Size: 114 x 64 x 23mm
• Product Weight: 17g
• Package Weight: 24.8g

Applications:

• Internet of Things terminal controller

• Wearable devices

• Stem education product

• DIY creation
• Smart home devices

Part List:

• 1x M5StickC Plus2
