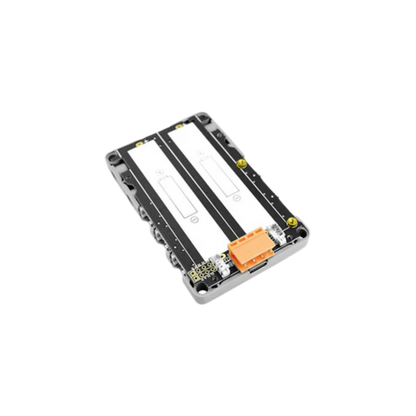

M5Stack Station ESP32 IoT Development Kit RS485 Version | Battery Version

Description:

M5Station-485 is a versatile industrial-level programmable embedded iot development kit powered by the Espressif ESP32 SOC. With its integrated Wi-Fi solution and dual-core low-power Xtensa® 32-bit LX6 microprocessor running at a main frequency of up to 240MHz, M5Station-485 offers powerful performance for a wide range of applications.

Power Management:

Operation:
Power on: Click the central power button.
Power off: Press and hold the central power button for 4 seconds.

Specifications:

• ESP32-D0WDQ6-V3: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
• Flash: 16MB
• USB powered: 5V@1A
• RS485 power supply: 9~24V@1A
• Interface: Type-C * 1, GROVE(I2C+I/0+UART) * 6, Full-Size USB TypeA(OUTPUT),PWR485
• LEDs: SK6812 * 7
• Pushbuttons: Power Button, Physical Button \ 3
• IPS LCD Screen: 1.14"@240*135 ST7789V2
• RTC: BM8563
• PMU: AXP192
• Voltage/Current Collector: INA3221 + INA199
• USB Chips: CH9102F
• Step-Down Chips: SY8303
• DC/DC Boost: SCT12A0DHKR
• Power Distribution Switch: SGM2553D
• Antenna: 2.4G 3D Antenna
• Operating Temperature: 0°C to 60°C
• Base Screw Specification: Hexagon socket cup head M2*8 screw
• Internal PCB reserved interface: Battery interface (Specification:1.25mm-4P) USB line interface (Specification:1.25mm-4P)
• Net Weight: 63.1g

• Gross Weight: 108.1g
• Product Dimensions: 92 x 64.5 x 35 mm
• Package Size: 104.5 x 70.5 x 50mm
• Case Material: ABS+PC

Applications:

• Industrial Controller
• Multi-channel data acquisition
• IoT product prototyping
• DIY/Prototyping

Part List:

• 1x M5Station-485
• 1x Type-C USB (100cm)
• 1x HEX Key

Description:

M5Station-BAT is a versatile industrial-level programmable embedded iot developmet kit powered by the Espressif ESP32 SOC. With its integrated Wi-Fi solution and dual-core low-power Xtensa® 32-bit LX6 microprocessor running at a main frequency of up to 240MHz, the M5Station-BAT offers powerful performance to meet the demanding needs of industrial control, intelligent buildings, data acquisition, and prototyping applications.

Power Management:

Operations:
Power on:Click the central power button
Power off:Press and hold the central power button for 4 seconds

Specifications:

• ESP32-D0WDQ6-V3: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
• Flash: 16MB
• USB powered: 5V@1A
• Battery Specification: 18650 x 2 (parallel)
• Interface: Type-C * 1, GROVE(I2C+I/0+UART) * 6, Full-Size USB Type-A(OUTPUT)
• LEDs: SK6812 * 7
• Pushbuttons: Power Button, Physical Button \ 3
• IPS LCD Screen: 1.14"@240*135 ST7789V2
• IMU: MPU6686
• RTC: BM8563
• PMU: AXP192
• Voltage/Current Collector: INA3221 + INA199
• USB Chips: CH9102F
• DC/DC Boost: SCT12A0DHKR
• Power Distribution Switch: SGM2553D
• Antenna: 2.4G 3D Antenna
• Operating Temperature: 0°C to 60°C
• Base Screw: Hexagon socket cup head M2*8 screw
• Net Weight: 79.5g
• Gross Weight: 126.6g
• Product Dimensions: 92 x 64.5 x 35 mm
• Package Size: 104.5 x 70.5 x 50mm
• Case Material: ABS+PC

Applications:

• IoT controllers
• STEM Education
• DIY creations
• Smart Home Devices
• IoT product prototyping

Part List:

• 1x M5Station-BAT
• 1x Type-C USB (100cm)
• 1x Allen Wrench
