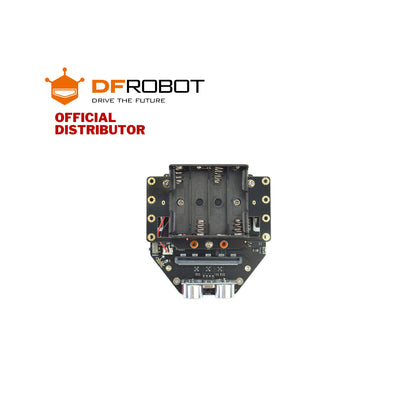

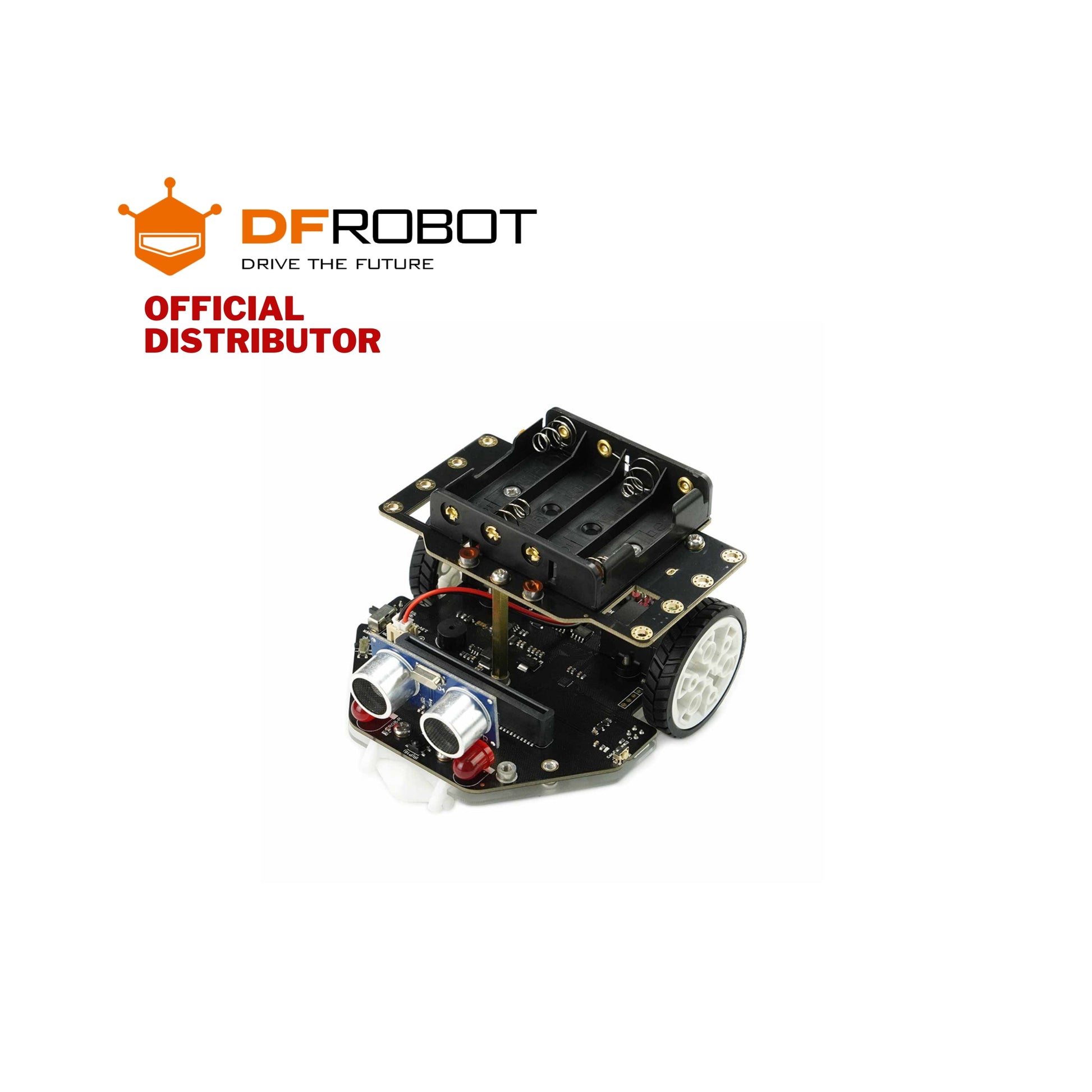

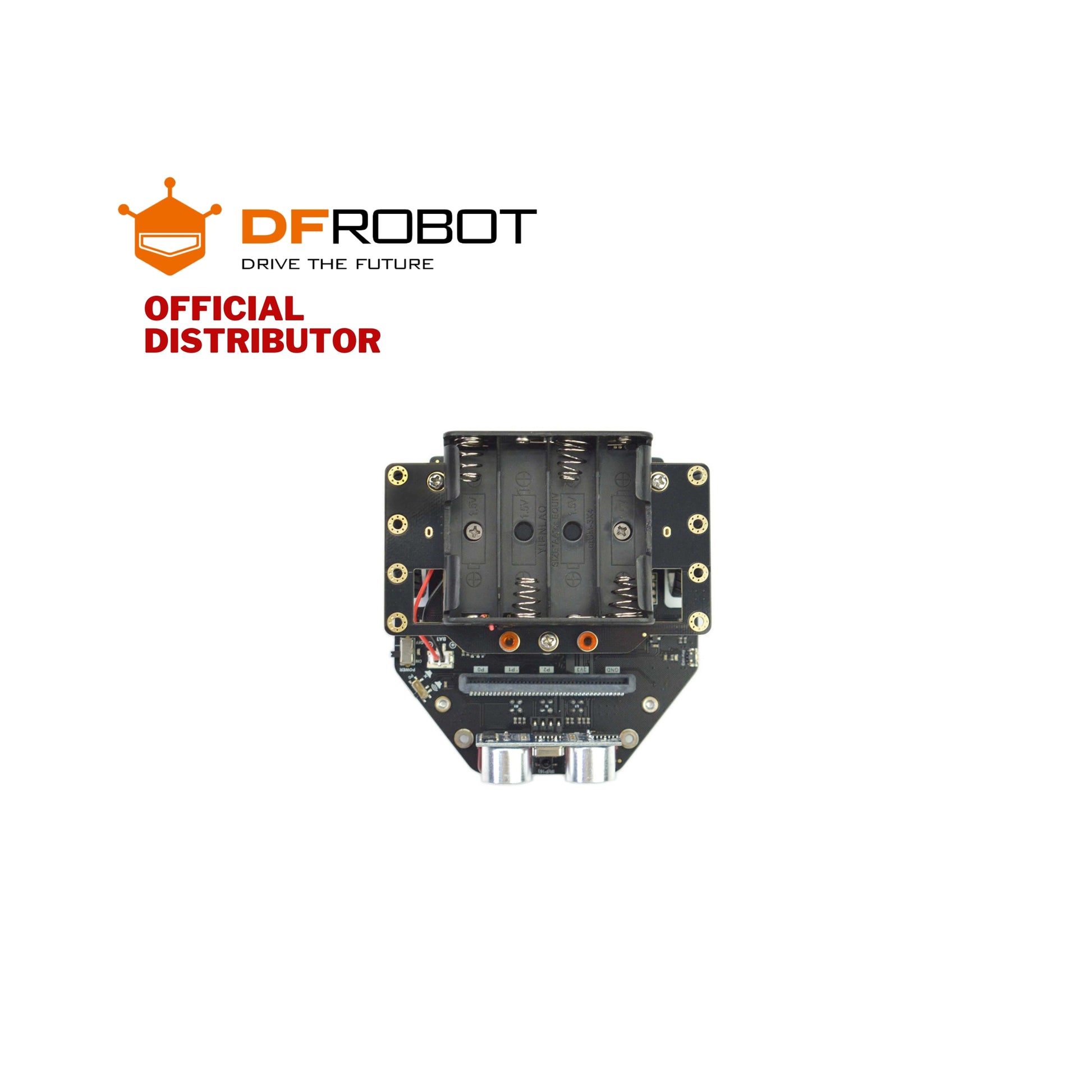

DFRobot micro:Maqueen Plus - an Advanced STEM Education Robot for micro:bit | MBT0021-EN
₱2,800.00
₱2,800.00
₱3,499.75
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
Couldn't load pickup availability
Product Description
Description:
Maqueen Plus V2 is the latest version of the STEAM educational robot Maqueen Plus. Optimized with more expansion ports, larger capacity power supply, and larger body, it is fully compatible with more peripheral components like HuskyLens AI camera, Maqueen Mechanic Kits, which makes it an accessible STEAM robot teaching tool for primary and secondary students. Maqueen Plus V2 is not only suitable for classroom teaching, but also can be used for after-school extended exercises and robot competitions.
Note: Batteries are not included.
Features:
- No complex assembly, get started in minutes
- More IO expansion ports: 3.3V IO×7, 5V IO×3, I2C×3
- 5 line-tracking sensors, reliable and flexible
- Larger body, more flexible expansion methods
- Two versions to choose from: AA battery and 18650 battery AA battery version supports 1.2V Ni MH battery or 1.5V alkaline battery, while 18650 battery version supports 3.7V 18650 battery
- Works well with HuskyLens AI camera
- Rich peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, etc.

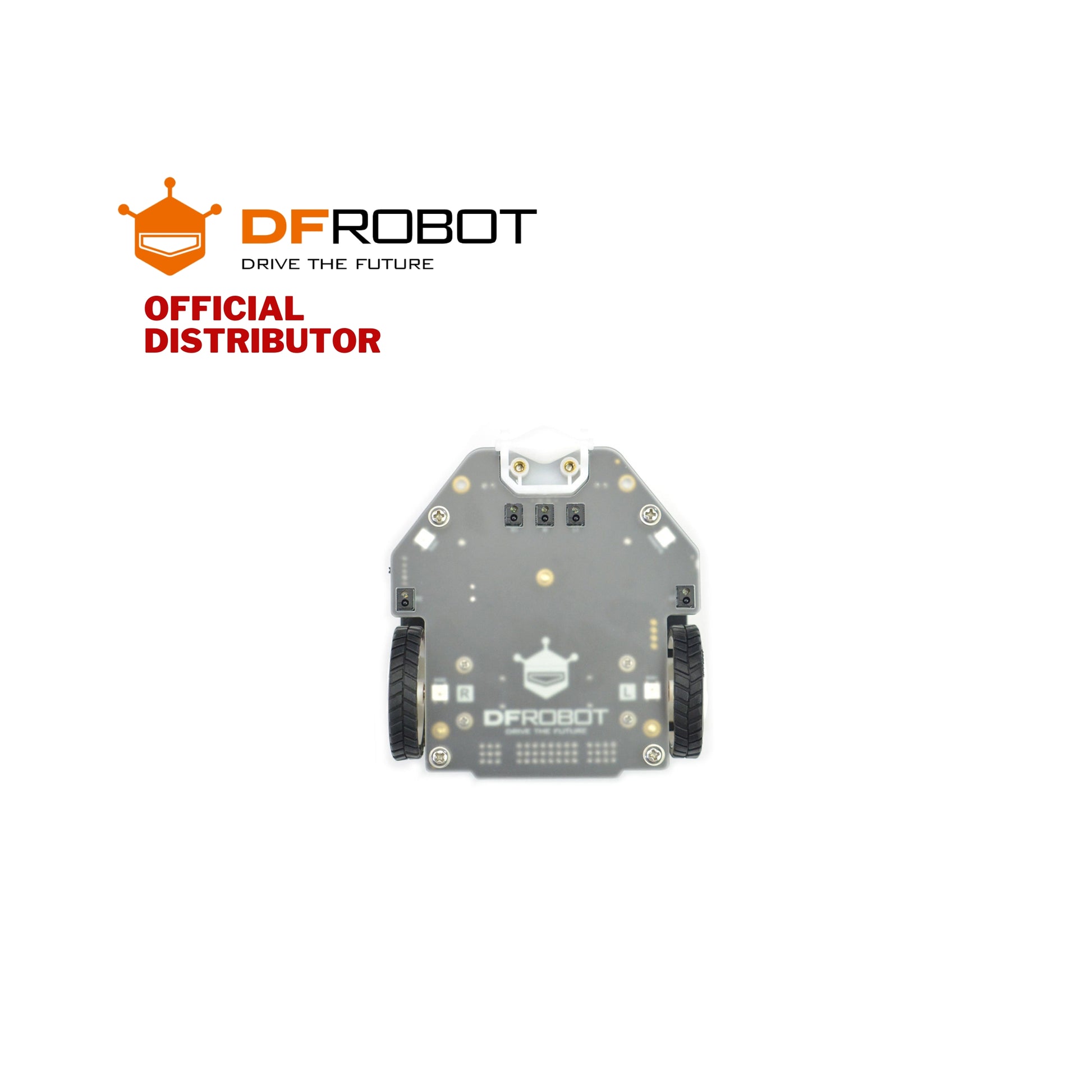

- Frosted acrylic protective plate at the bottom

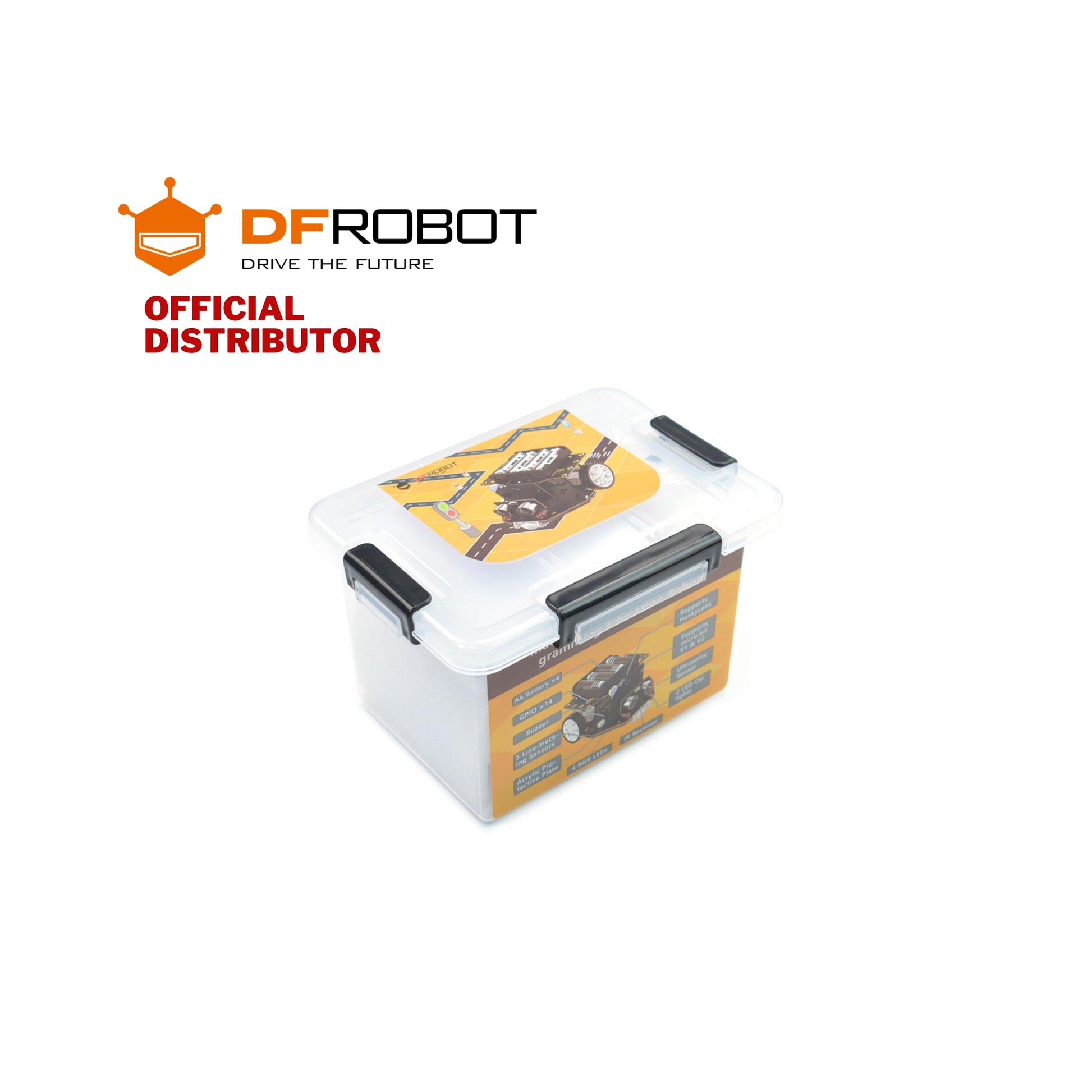

- Storage box with a deeper base to provide enough room for the assembled Maqueen Plus car
Applications:
- STEM Education
Specifications:
- Power Supply:MBT0021-EN: 1.5V AA alkaline battery x 4 or 1.2V AA Ni-MH battery x 4
- Support micro: bit V1 and V2
- N20 All-metal Gear Motor x 2
- Buzzer x 15V IO (P0 P1 P2) x 3
- 3.3V IO (P0 P1 P2 P8 P12 P13 P14 P15)
- 3.3V I2C x 2
- 5V I2C x 1
- Large Size LED Car Lights x 2
- RGB Ambient Lights x 4
- Line-tracking Sensor x 5
- Line-tracking Sensor with One-key CalibrationIR Receiver x 1
- SRO4 Ultrasonic Module x 1
- Dimension: 136mm×65mm/5.35×2.56"
- Programming Platform: Mind+, MakeCode
- MakeCode Library Address: https://github.com/DFRobot/pxt-DFRobot_MaqueenPlus_v20
Part List:
- Maqueen Plus V2 (AA battery) Vehicle body x 1
(Note: the motor, vehicle wheel, support wheel, and battery panel have been installed before delivery)
- H-SR04 Ultrasonic Sensor x 1
- Line-tracking Map x 1
