SKU:MLE03836

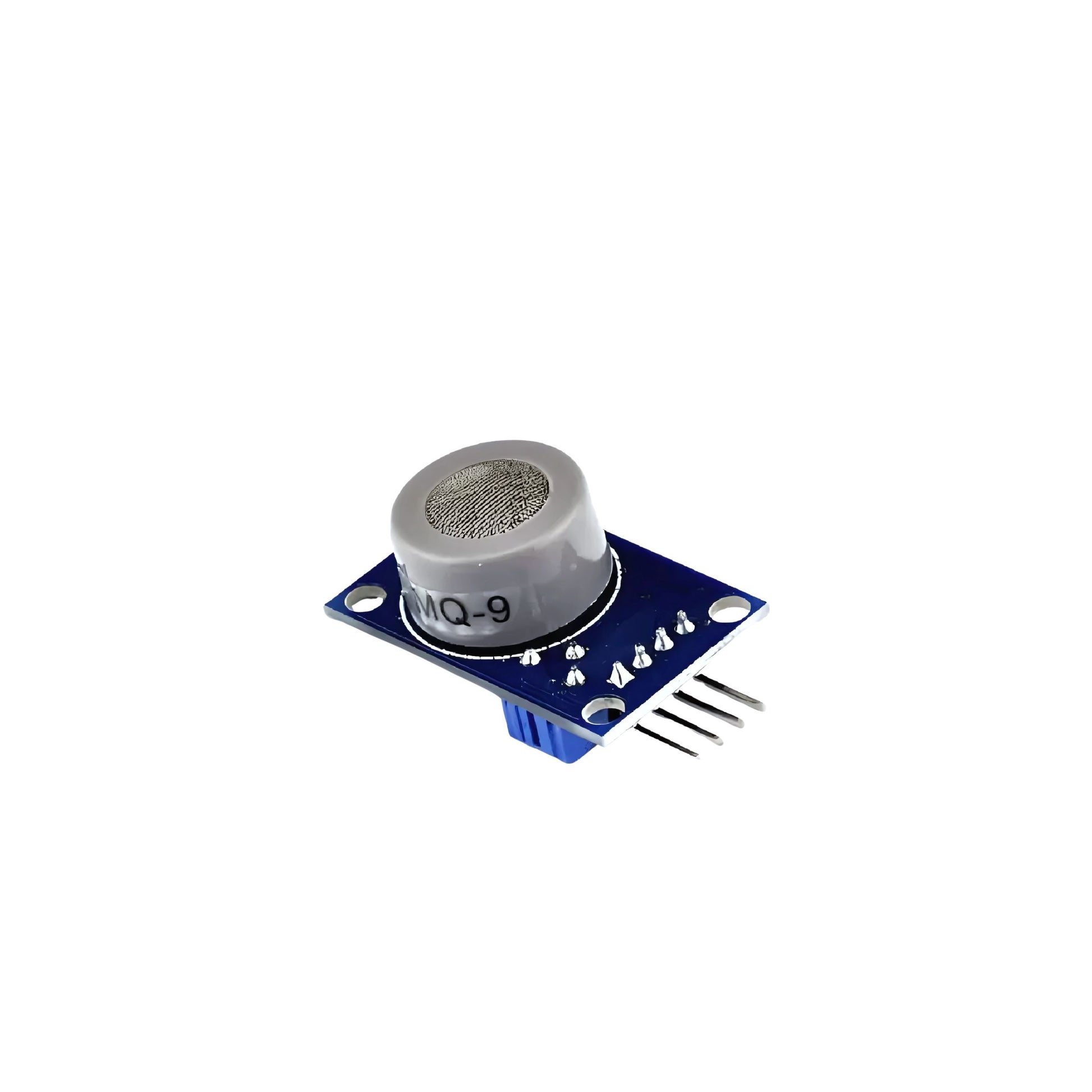

MQ-9 Gas Sensor
₱100.00
₱100.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Couldn't load pickup availability
About the Product
Description:
The MQ-9 Gas Sensor is a versatile sensor designed to detect both carbon monoxide (CO) and a range of combustible gases, including LPG (propane and butane), methane (natural gas), and coal gas.It utilizes a tin dioxide (SnO2) semiconductor material as its sensitive layer. The sensor operates by cycling through high and low temperatures. At a low temperature (achieved by a lower heater voltage), it is more sensitive to detecting CO. At a high temperature (achieved by a higher heater voltage), it detects combustible gases like methane and propane and also cleans any other gases adsorbed at a low temperature. The change in the sensor's conductivity due to the presence of these gases is converted into an analog voltage output proportional to the gas concentration.
Features:
- High Sensitivity to Both CO and Combustible Gases
- Good Sensitivity in a Wide Range
- Fast Response and Recovery
- Stable and Long Lifespan
- Low Cost
- Simple Drive Circuit
Specifications:
Target Gases: Carbon Monoxide, Methane, LPG, Propane, Coal Gas
Detection Range: 10 ppm -1000 ppm (CO); 100 ppm - 10000 ppm (Combustible Gases)
Operating Voltage: 5.0V ± 0.1V AC/DC
Heater Voltage: 5.0V ± 0.1V AC/DC (high); 1.4V ± 0.1V AC/DC (low)
Heater Time: 60 ± 1s (high); 90 ± 1s (low)
Load Resistance: Adjustable
Heater Resistance: 31 Ω ± 3 Ω (Room Temperature)
Heater Consumption: ≤ 350 mW
Operating Temperature: -20°C ± 2°C
Operating Humidity: < 95% RH
Preheat Time: Over 48 hours
Standard Condition: Temperature: 20°C ± 2°C; Humidity: 65% ± 5% RH
Application:
Domestic Gas Leakage Detection
Industrial Safety Monitoring
Portable Gas Detectors
Air Quality Monitoring
Ventilation Control Systems
Educational and Hobbyist Projects
