Description:

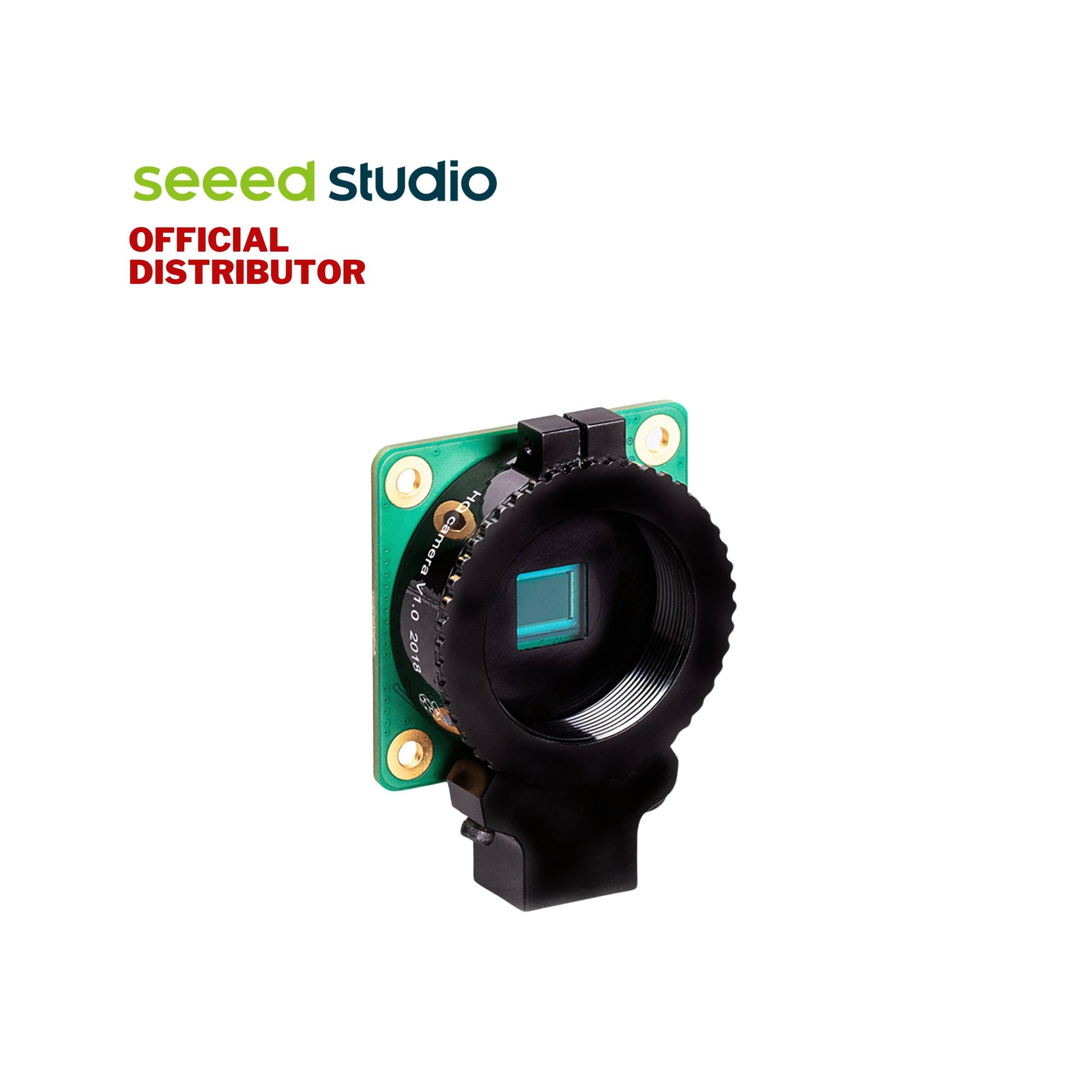

The Raspberry Pi High Quality Camera is the latest version of the camera module from Raspberry Pi. It offers higher resolution (an impressive 12.3-megapixel high-resolution camera compared to the 8-megapixel camera on the Camera Module v2), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2, and is designed to work with interchangeable lenses in both C- and CS-mount form factors.
This camera has a higher sensitivity than the existing Camera Module v2, with a pixel size of 1.55μm × 1.55μm, which is double the pixel area of IMX219 found on the Camera Module V2, and this can result in improved low-light performance. The Raspberry Pi High Quality Camera is designed to accept CS-mount lenses, and, with the supplied adapter, it can support C-mount lenses as well. The High Quality camera provides an alternative to the Camera Module v2 for industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialized optics.
Features:
- 12.3-Megapixel high-resolution Sony IMX477 sensor
- 1.55μm × 1.55μm Pixel Size – doubles the pixel area of IMX219 for improved low-light performance
- Back-illuminated sensor architecture for improved sensitivity
- Support for different C- and CS-mount lenses

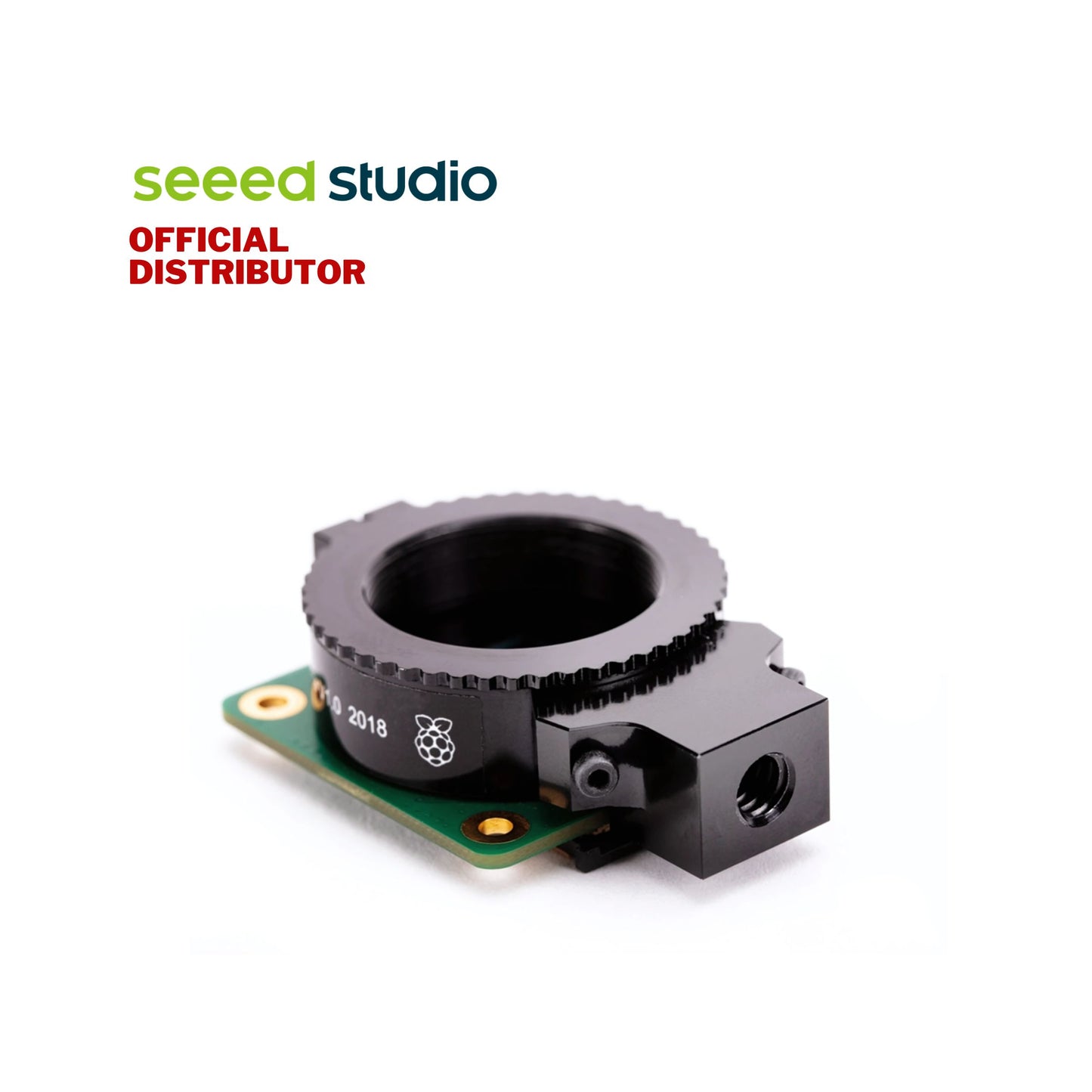

- Integrated back-focus adjustment ring and tripod mount
Specifications:
Video Modes: 1080p@30fps; 720p@60fps; 640×480p@60/90fps
Sensor: Sony IMX477 stacked, back-illuminated sensor
Still Resolution: 12.3 Megapixels
Sensor Resolution: 4056 x 3040 pixels
Sensor Image Area: 6.287mm x 4.712 mm (7.9mm diagonal)
Pixel Size: 1.55 µm x 1.55 µm
Focal Length: depends on lens
Horizontal Field of View: depends on lens
Vertical Field of View: depends on lens
Focal Ratio (F-Stop): depends on lens
Size: 38 x 38 x 18.4mm (excluding lens)
Output: RAW12/10/8, COMP8
Back Focus: Adjustable (12.5 mm – 22.4 mm)
Lens Standards: CS-mount; C-mount (C-CS adapter included)
IR Cut Filter: Integrated
Ribbon Cable Length: 200 mm
Tripod Mount: 1/4” - 20
Production Lifetime: The Raspberry Pi High Quality Camera will remain in production until at least January 2026
Compliance:
- FCC 47 CFR Part 15, Subpart B, Class B Digital Device
- Electromagnetic Compatibility Directive (EMC) 2014/30/EU
- Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
Hardware Overview:
Documents:
Part List:
1 x Raspberry Pi High Quality Camera
1 x C-mount to CS-mount adapter
1 x Dust Cap
1 x 200mm Ribbon Cable
1 x Back focus adjustment tool
