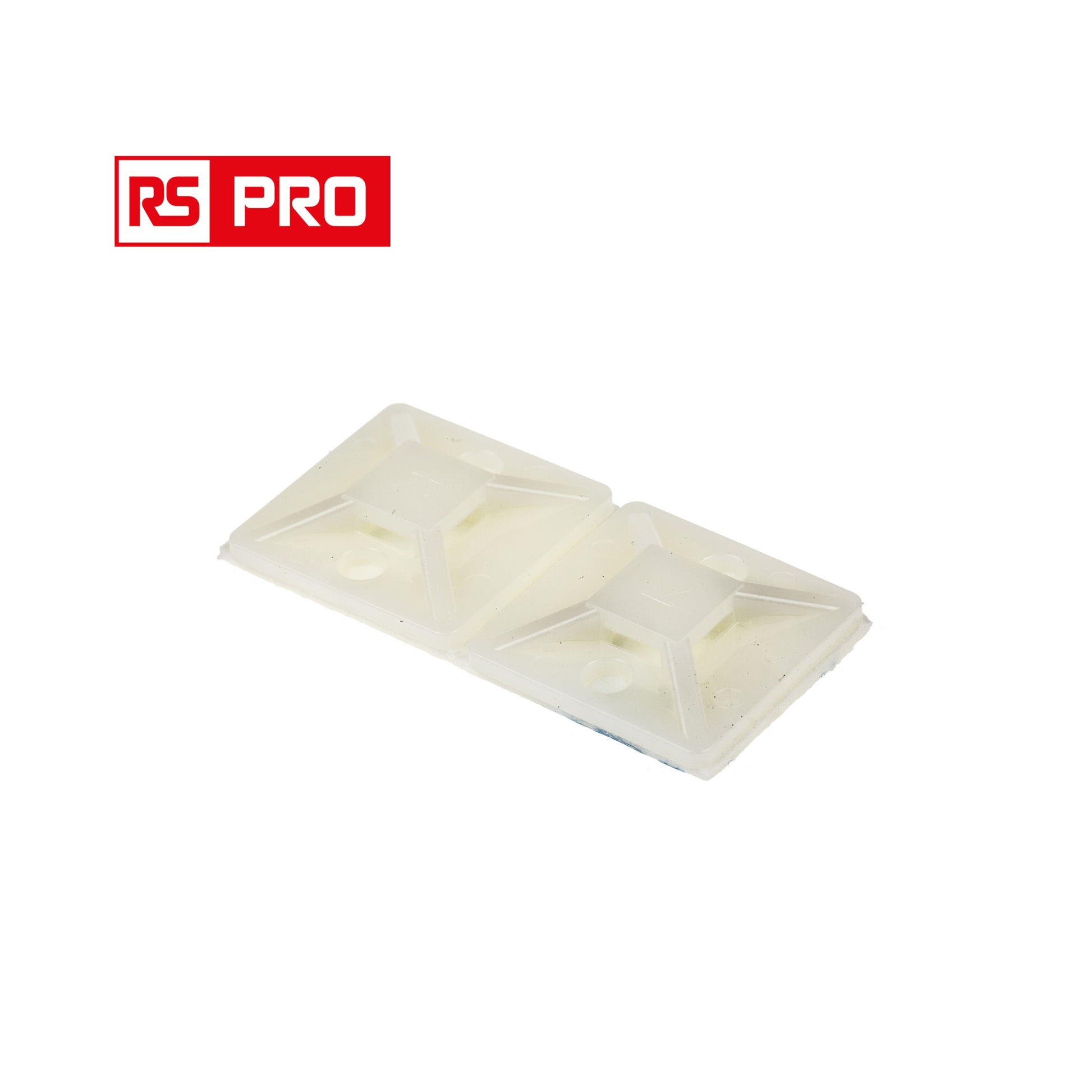

RS PRO Self Adhesive Cable Tie Mount

Description:

This adhesive cable tie base is designed as an anchor point to attach cables to another surface using a cable tie. For increased support, mounting holes are provided for screws. Its 4-way design enables you to thread cable ties either vertically or horizontally once mounted.

The cable tie holders are manufactured from chemically resistant Nylon 6.6 (also known as Nylon 66) classified to UL 94V-2, making them ideal for use where fire resistance is critical. Cable tie mounts have been designed specifically to be used with cables and wires to secure, identify and tidy cables.

Features:

Cable tie mount
Dimensions of 19.5 x 19.5 x 3.9mm
Suitable for cable ties up to 4.6mm in width
Thread cable ties vertically or horizontally
Strong adhesive foam base
Screw holes for additional support
Natural colouring
Self-extinguishing UL 94 V-2

Specifications:

Brand: RS PRO
Color: Natural
Length: 19.5 mm
Width: 19.5 mm
Height (Thickness): Approximately 3.9 mm
Max. Cable Tie Width Acceptance: 4.6 mm
Fixing Hole Diameter: 3.2 mm (for additional screw mounting)
Material: Nylon 66 (Polyamide 66 / PA 66)
Self-Adhesive: Yes (strong adhesive foam base)
Operating Temperature Range:
Minimum Operating Temperature: -28°C
Maximum Operating Temperature: +48°C
