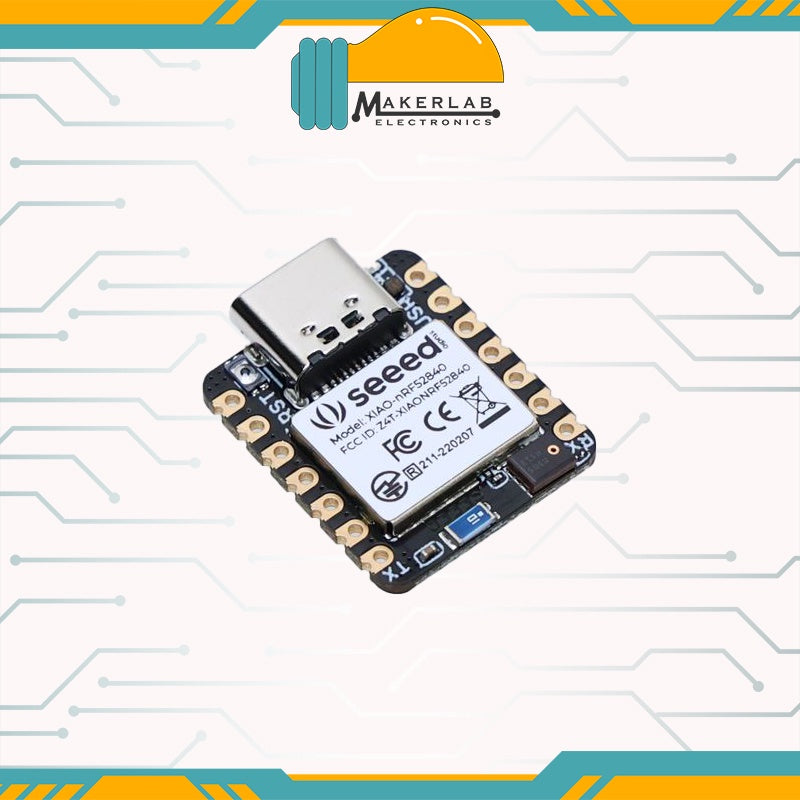

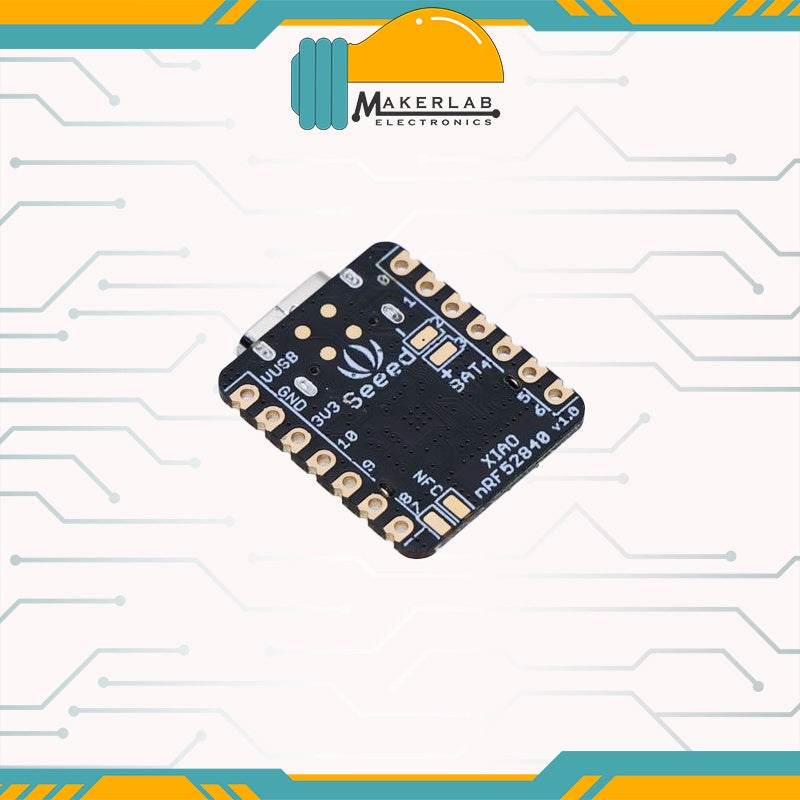

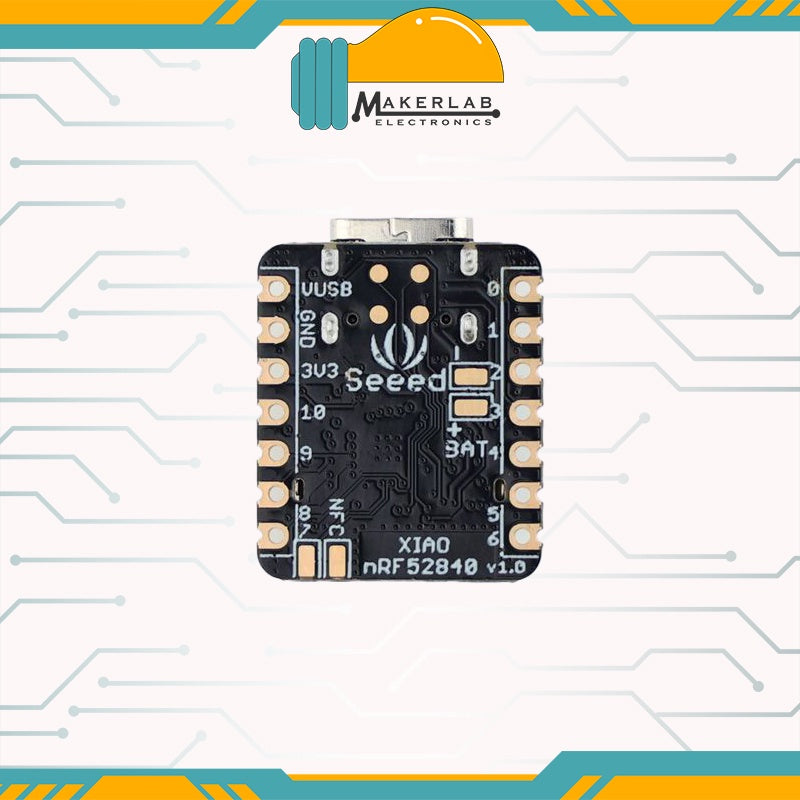

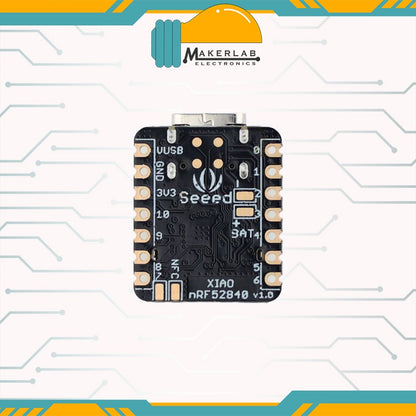

Seeed Studio XIAO nRF52840 Sense Supports Arduino/CircuitPython Bluetooth5.0 NFC w/ Onboard Antenna

Seeed Studio XIAO nRF52840 Sense Supports Arduino/CircuitPython Bluetooth5.0 NFC w/ Onboard Antenna

In stock

SKU:MLE04211

Regular price ₱1,500.00
Regular price ₱1,875.00 Sale price ₱1,500.00
Sale Sold out
Model:
View full details

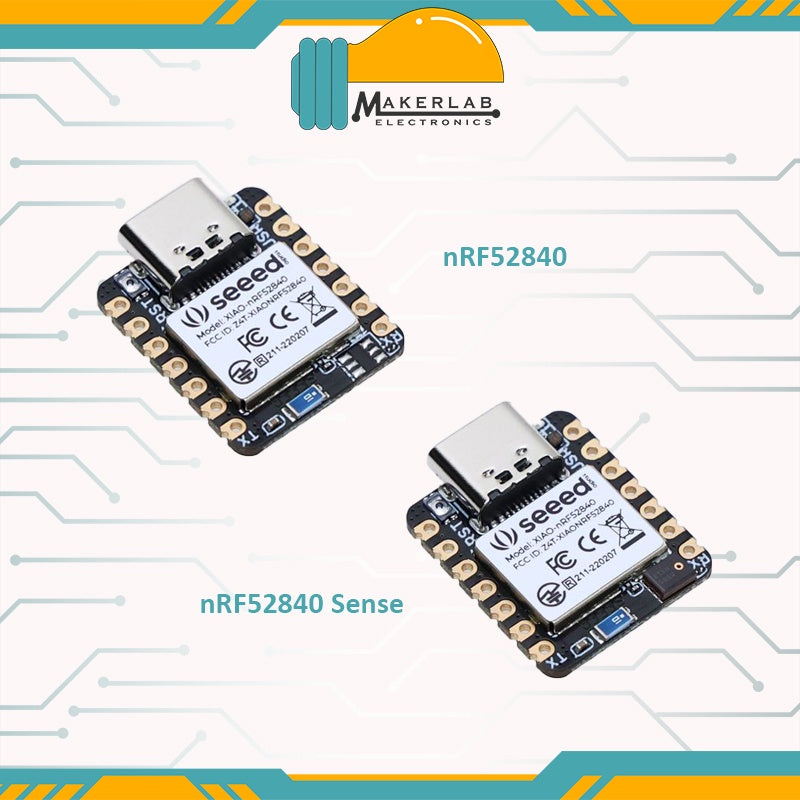

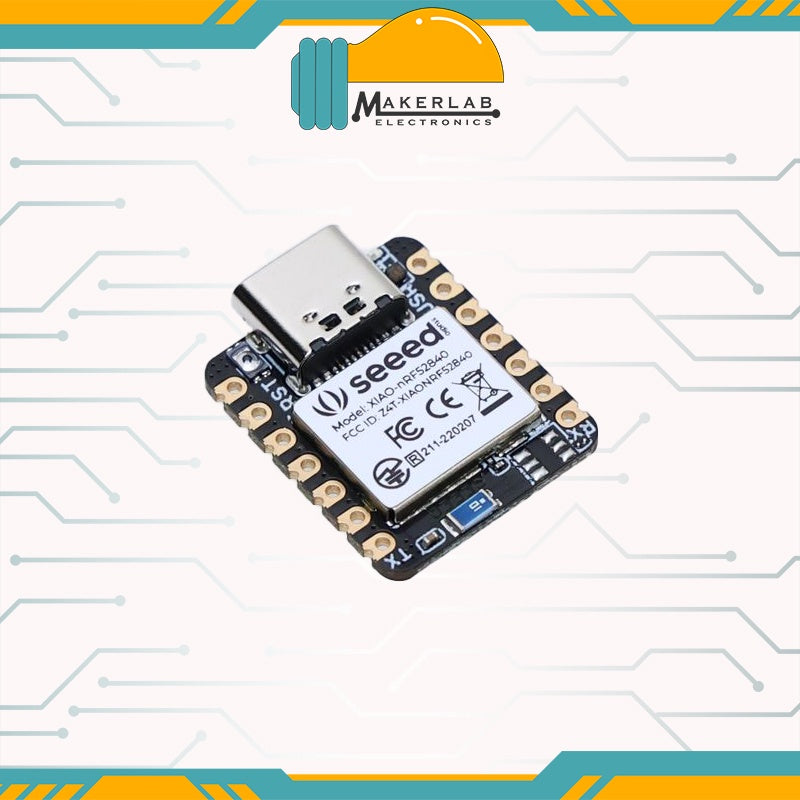

XIAO nRF52840 - Supports Arduino / Circuit Python- Bluetooth 5.0 with Onboard Antenna
XIAO nRF52840 Sense - TinyML/TensorFlow Lite- IMU / Microphone - Bluetooth 5.0

PRODUCT DETAILS
Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name "XIAO" here represents its half feature "Tiny", and the other half will be "Puissant".

Seeed Studio XIAO nRF52840 Sense is carrying Bluetooth 5.0 wireless capability and is able to operate with low power consumption. Featuring onboard IMU and PDM, it can be your best tool for embedded Machine Learning projects.

Features
Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython
Wireless Capabilities: Implement Bluetooth 5.0, BLE functions with onboard antenna, also provide NFC connectivity
Elaborate Power Design: Provide ultra-low power consumption as 5 μA in deep sleep mode while supporting lithium battery charge management
Advanced onboard Functionality: Assemble additional digital microphone and 6-axis IMU in the tiny board for embedded Machine Learning applications
Thumb-sized Design: 21 x 17.5mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices

Seeed Studio XIAO nRF52840 Sense has an ultra-low power consumption of only 5 μA in the deep sleep mode, the embedded BQ25101 chip supports battery charge management which prolongs its use time. Moreover, Seeed Studio XIAO nRF52840 Sense supports the USB Type-C interface which can supply power and download code. It also has rich On-chip Memory of 1 MB flash and 256 kB RAM, and an Onboard Memory of 2 MB QSPI flash. There are 11 digital i/o that can be used as PWM pins and 6 analog i/o that can be used as ADC pins. It supports UART, IIC, and SPI all three common serial ports. 1 Reset button, 1 3-in-one LED, 1 Charge LED, and 1 Bluetooth antenna are on board, allowing developers to debug their code very easily.

As the advanced yet smaller version of the Seeed Studio XIAO nRF52840, it carries two extra onboard sensors. One of them is a digital microphone created through Pulse Density Modulation(PDM) module on the nRF52840 chip. It can receive audio data in real-time which allows it can be used for audio recognition. The board can receive audio data through the MSM261D3526H1CPM microphone. The other one is 6-axis Inertial Measurement Unit(IMU) which can be applied in TinyML projects like gesture recognition.
