Description:
The SenseCAP S2110 Sensor Builder is an open-source tool to build RS485 sensors with Grove sensors. It has Seeed Studio XIAO RP2040 as the dual-core ARM Cortex M0+ processor, and has one Grove and one RS485 connector, enabling developers to connect with 500+ Grove sensors and various MODBUS RS485 sensors to develop custom industrial-grade MODBUS RS485 sensors for various IoT applications. For the LoRaWAN application, developers could easily connect it with a SenseCAP LoRaWAN Data Logger (Grove sensors and data logger are not included in the product) to transfer the data to SenseCAP Cloud, which only takes a 5-minute simple BLE configuration in the SenseCAP Mate App. Clear data results and further analysis could be easily obtained from the SenseCAP Dashboard and the SenseCAP Mate App. IoT platforms such as Helium, TTN, LORIOT, etc. are also supported. The product also comes with an IP66 industrial-grade enclosure, mounting pads, and screws set, which enables you to deploy the sensor outdoors easily and safely.
Features:
Easily build MODBUS RS485 Industrial-grade Sensors: With open-source code and IP66 enclosure, easily convert over 500+ existing Grove sensors to MODBUS RS485 industrial-grade sensors. 6 of the most popular environmental Grove sensors are already fully compatible with native firmware, with more to come.
SenseCAP Data Logger and IoT Platform Compatible: Convert to a SenseCAP LoRaWAN® sensor with SenseCAP Data Logger and take advantage of quick and easy set-up in just 5 minutes with the SenseCAP Mate APP.
Supports Third-party Data Loggers and IoT Platforms: Besides the SenseCAP Data Logger, developers could connect to other data loggers that support the MODBUS RS485 protocol and third-party IoT platforms.

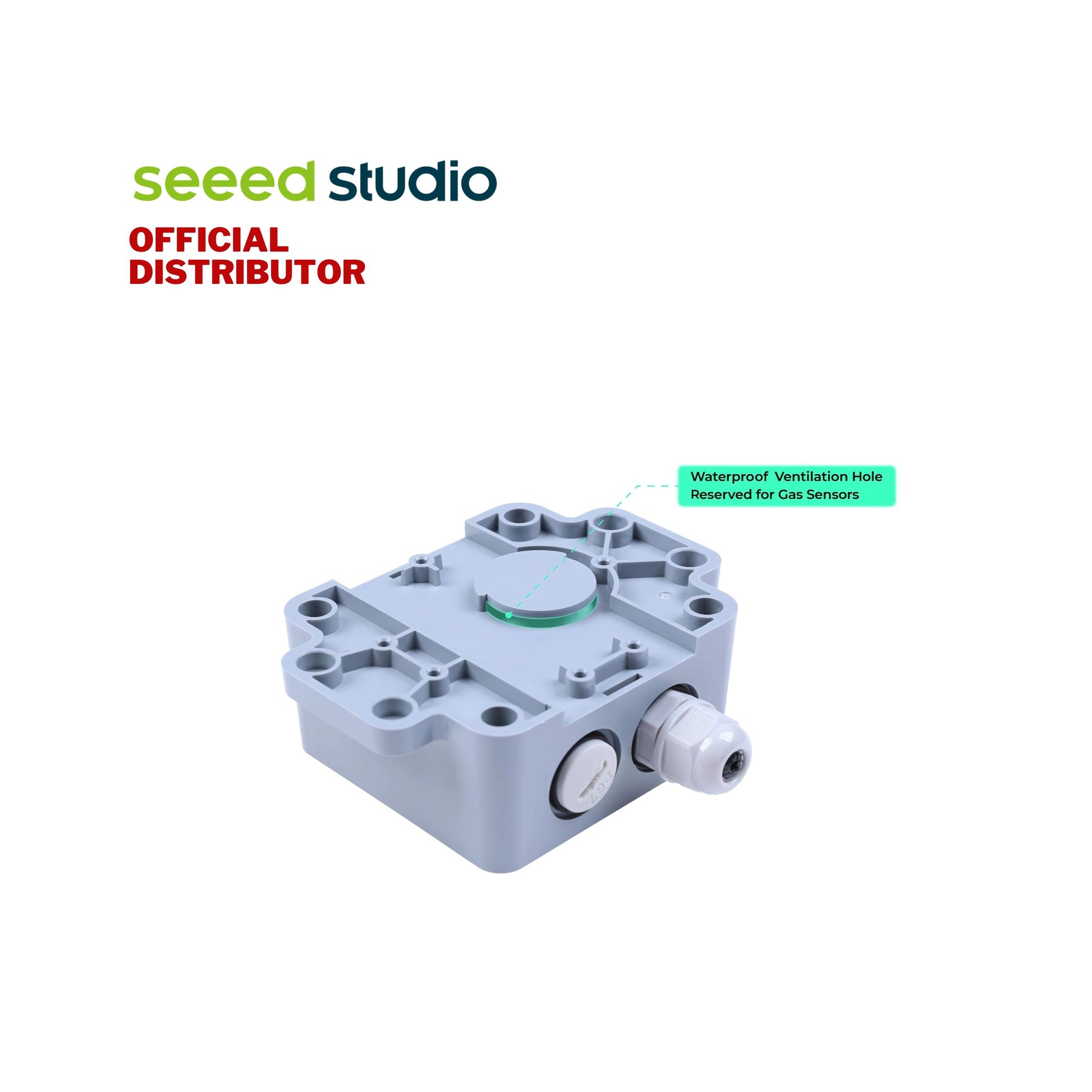

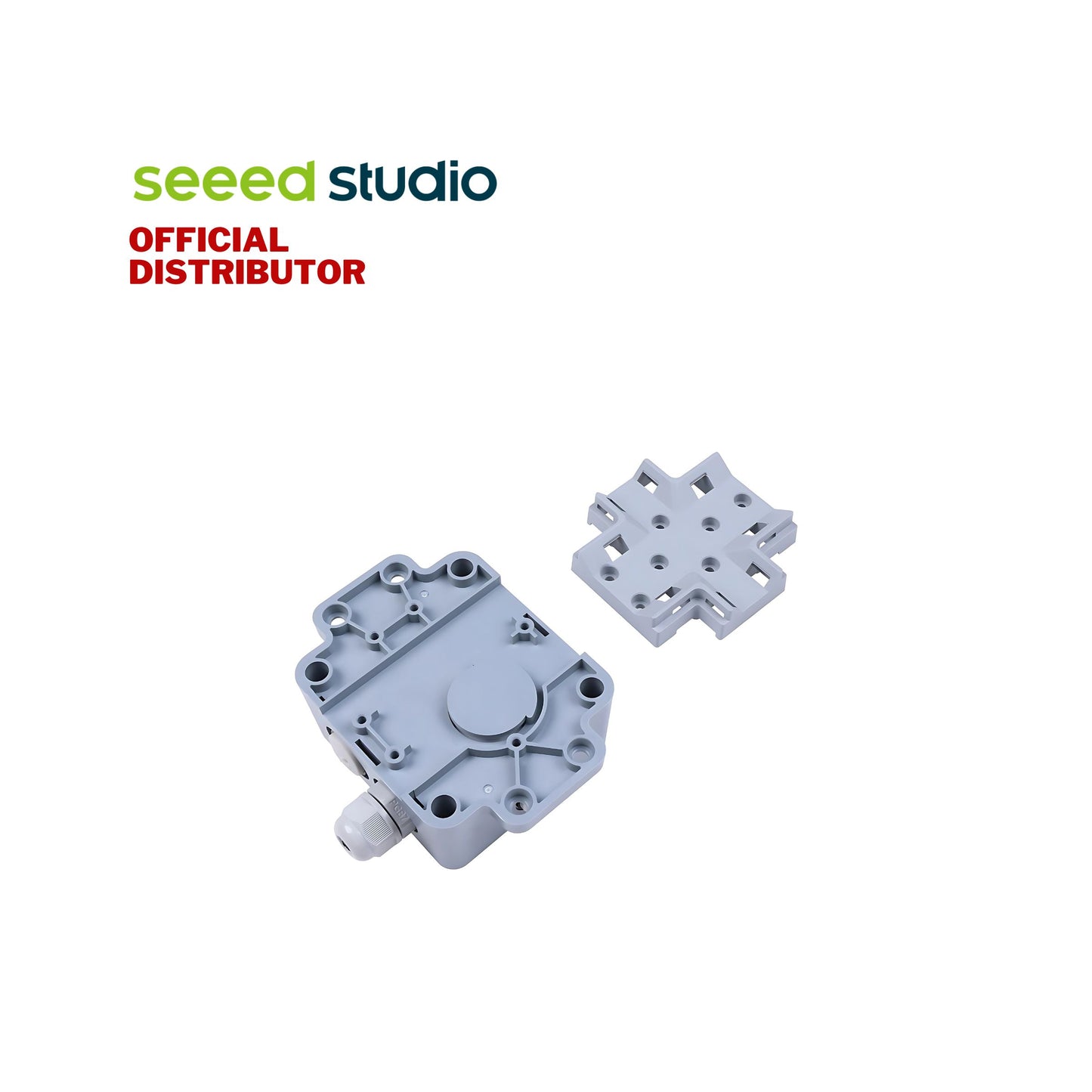

Ready-to-deploy Industrial-grade Outdoor Enclosure: IP66 waterproof rate outdoor enclosure with window and waterproof ventilation hole reserved for light and gas sensors, also comes with a customized mounting panel, suitable for pole and wall installation.

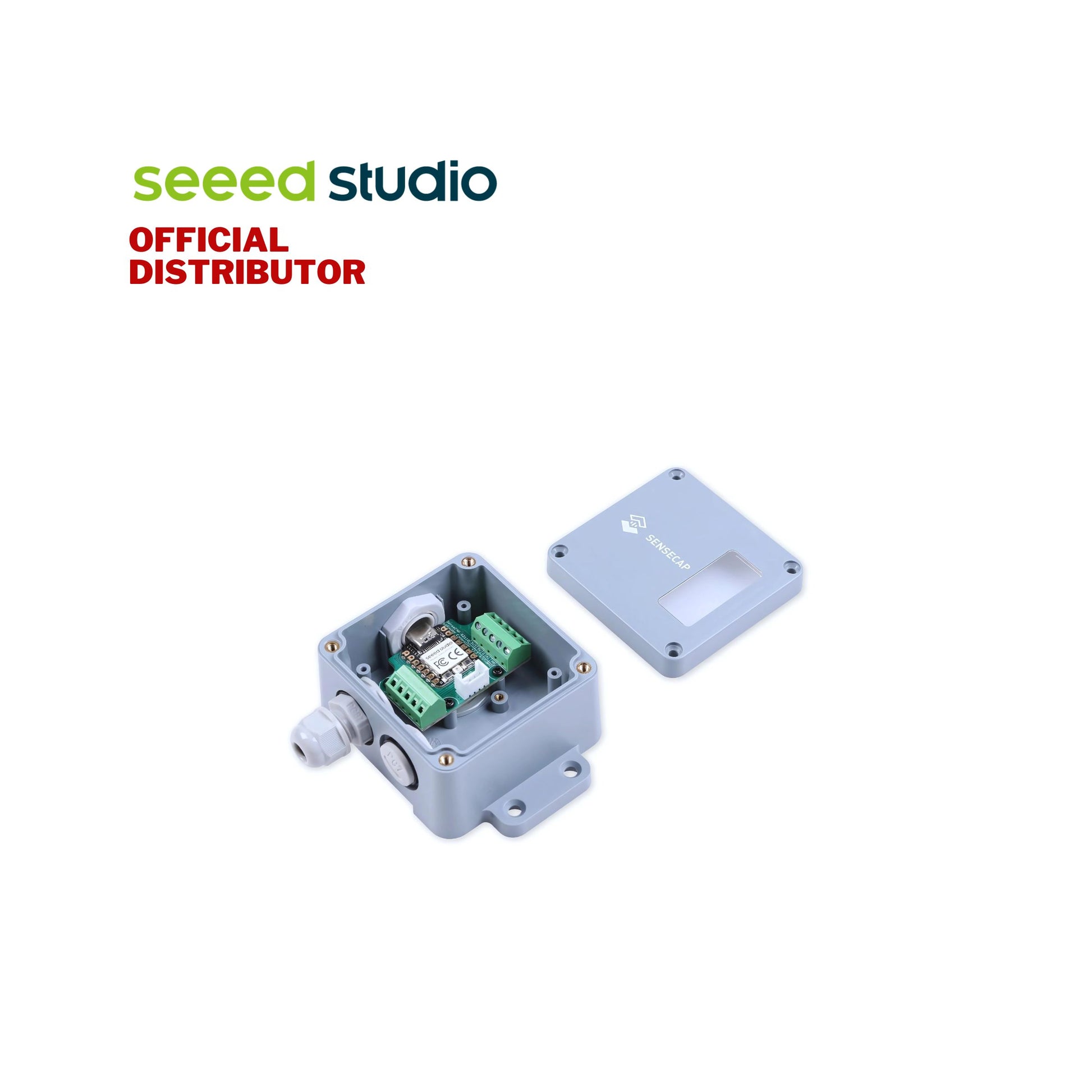

Powered by Seeed Studio XIAO RP2040: Take advantage of the powerful Seeed Studio XIAO RP2040 dual-core ARM M0+ processor and vast open-source resources to customize your own sensor. Easily upload code via USB-C port.
Specifications:
Microcontroller: Seeed Studio XIAO RP2040
CPU: Dual-core ARM Cortex-M0+
Clock Speed: Up to 133 MHz
SRAM: 264KB
Flash: 2MB onboard Flash
Wireless Connectivity: Bluetooth 5.0 BLE
Enclosure Rating: IP66
Operating Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C.
Hardware Overview:
Twelve Grove Sensors Supported by Native Firmware:
- Grove - Temperature and Barometer Sensor (BMP280)
- Grove - Oxygen Sensor (MIX8410)
- Grove - CO2 & Temperature & Humidity Sensor - SCD41
- Grove - Sunlight sensor - SI1151
- Grove - Light Sensor v1.2 - LS06-S phototransistor
- Grove - Flame Sensor
- Grove - Gas Sensor (BME680)
- Grove - Multichannel Gas Sensor v2
- Grove - TDS Sensor/Meter For Water Quality (Total Dissolved Solids)
- Grove – UV Sensor
- Grove - Ultrasonic Ranger
- Grove - Turbidity Sensor
- Grove - Lightning Sensor
- Grove - ±5A DC/AC Current Sensor (ACS70331)
Application:
- Smart Agriculture
- Smart Buildings & Cities
- Smart Industrial Control
- Office/Home Monitoring
- Environmental Protection
- Other Wireless Sensing Applications
Documents:

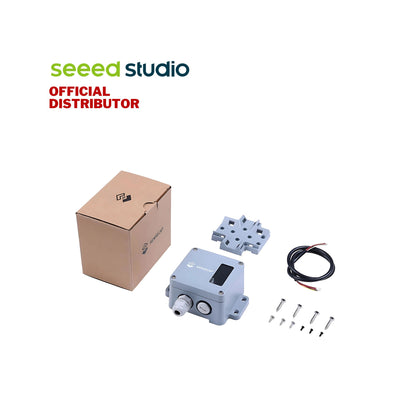

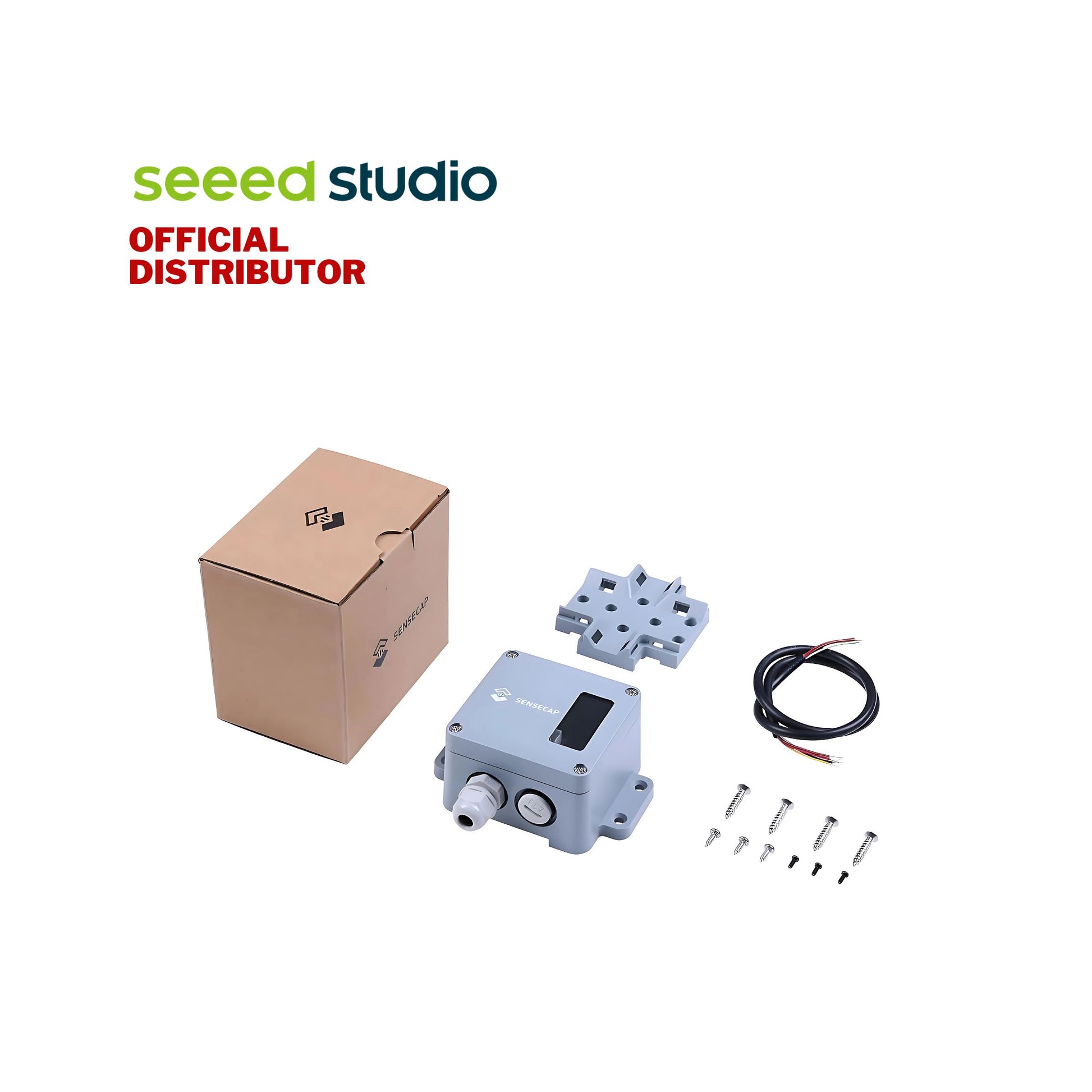

Part List:
1x SenseCAP S2110 Sensor Builder
1x Mounting Pad
1x Screws Set
1x RS-485 Cable
FAQs:
1. Is the LoRaWAN network coverage necessary when using SenseCAP S2110?
If you want to build a LoRaWAN sensor with SenseCAP S2110, ideally, yes. LoRaWAN enables your solutions with ultra-low power consumption and wide-range transmission. When connecting with the SenseCAP S2100 Data Logger, this device can be connected to the local LoRaWAN network if there's network coverage nearby. Also, you can manage to build a LoRaWAN network on your own by deploying LoRaWAN gateways. (Check
SenseCAP LoRaWAN gateways)
2. What APP can be used when binding the SenseCAP S2110 and managing the device?
The SenseCAP Mate can be used to bind the gateway to the SenseCAP Cloud and manage the device. It is a powerful tool for the usage of the SenseCAP S2110 Sensor Builder. You can download the APP here: 1.
iOS; 2.
Google Play; 3.
App Center
