Solar Radiation Shield for Outdoor Sensor Protection-A10

Name: Solar Radiation Shield for Outdoor Sensor Protection-A10
Brand: Others
SKU: MLE06275
Price: 2499.0 PHP
Availability: OutOfStock

₱2,499.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Loading locations...

Quantity

Product Description

Description:

The Solar Radiation Shield for Outdoor Sensor Protection - A10 is a high-quality solar radiation shield that protects sensors from the weather, avoids producing errors due to solar radiation and precipitation, thus ensuring data accuracy. It applies to different sensors, such as air temperature, humidity, barometric pressure, CO2, NO2, PM2.5, PM10, and other gas sensors, just to name a few.

This Solar Radiation Shield features robustness, high flexibility, low thermal conductivity, and anti-ultraviolet properties, making it widely applicable in outdoor severe environments. This product is equivalent to the radiation shielding layer of the sensor, which is very suitable as housing to protect the sensors in outdoor environments. Outdoor temperature sensor housing is one of the most commonly seen use cases.

The geometric design of this Shield can protect the sensors from all directions, including direct solar radiation and solar reflection from the ground. It also helps protect the sensors in severe weather conditions such as strong winds, rain, snow, etc. Air can flow through the Shield freely, making sure the sensors work soundly with accurate data in ventilated environments. The combination of plate geometry, robust material, and natural ventilation enables effective shielding. It also supports the integration of various sensors.

Features:

Robustness: Suitable for outdoor application scenarios

Effectiveness: Shielding the sensors from solar radiation and reflection

Easy Installation: Mountable on flat and curved surfaces

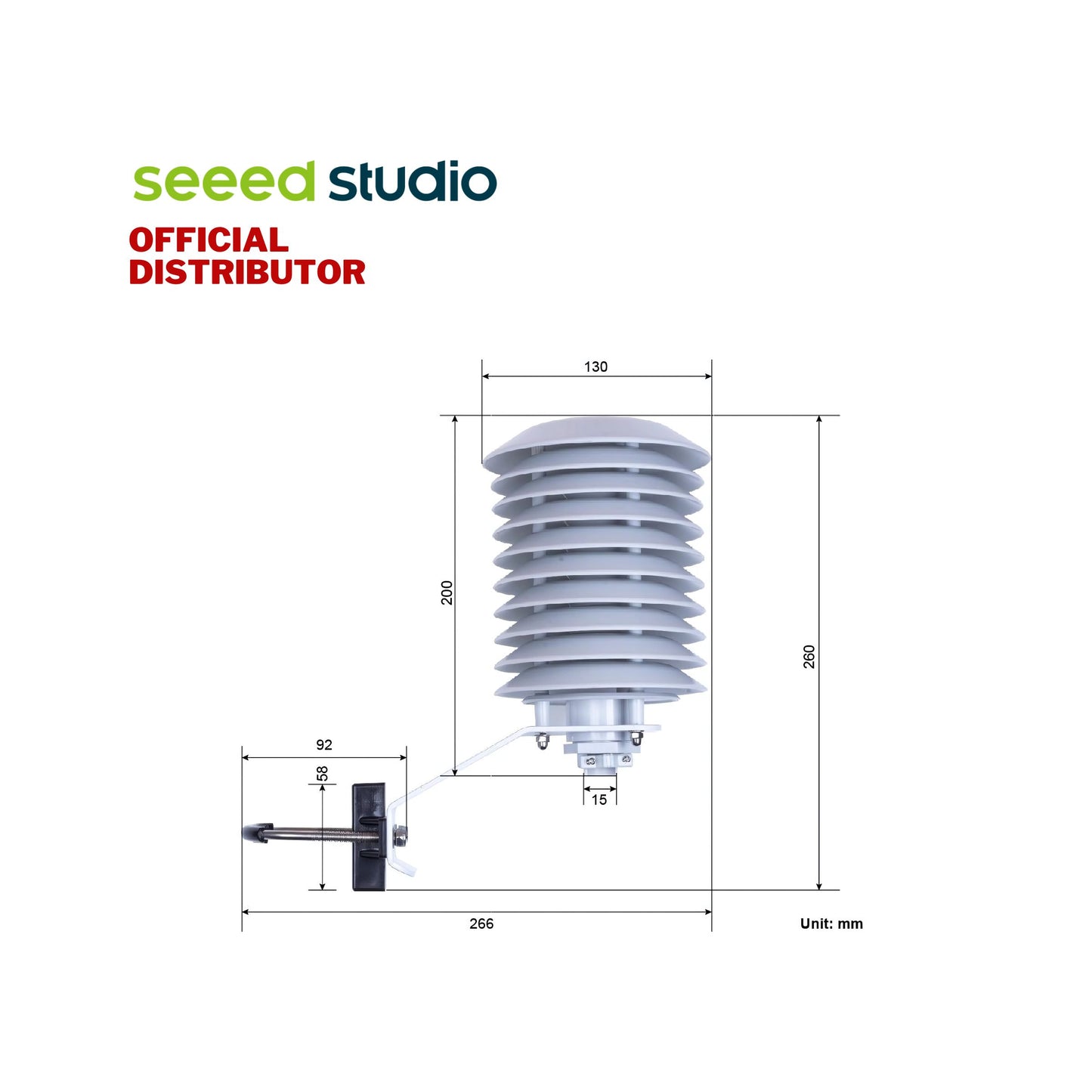

Specifications:

Product Model: A10

Number of Plates: 10

Materials: Engineering plastic plates; stainless steel brackets & screws.

Inner Diameter: 30mm

Outer Diameter: 130mm

Internal Height: 135mm

Accessories for Installation: Stainless steel bracket

Operating Temperature: -40 ℃ to +85 ℃

Weight: 517g

Notes for Installation:

Please make sure the device is installed in environments with good air circulation.
Please keep the device away from metal objects and large items such as asphalt, masts, and solar panels.
Please keep the device away from exhaust vents, electrical machinery, and motors.
Please keep the device away from standing water, fountains, and sprinklers.
