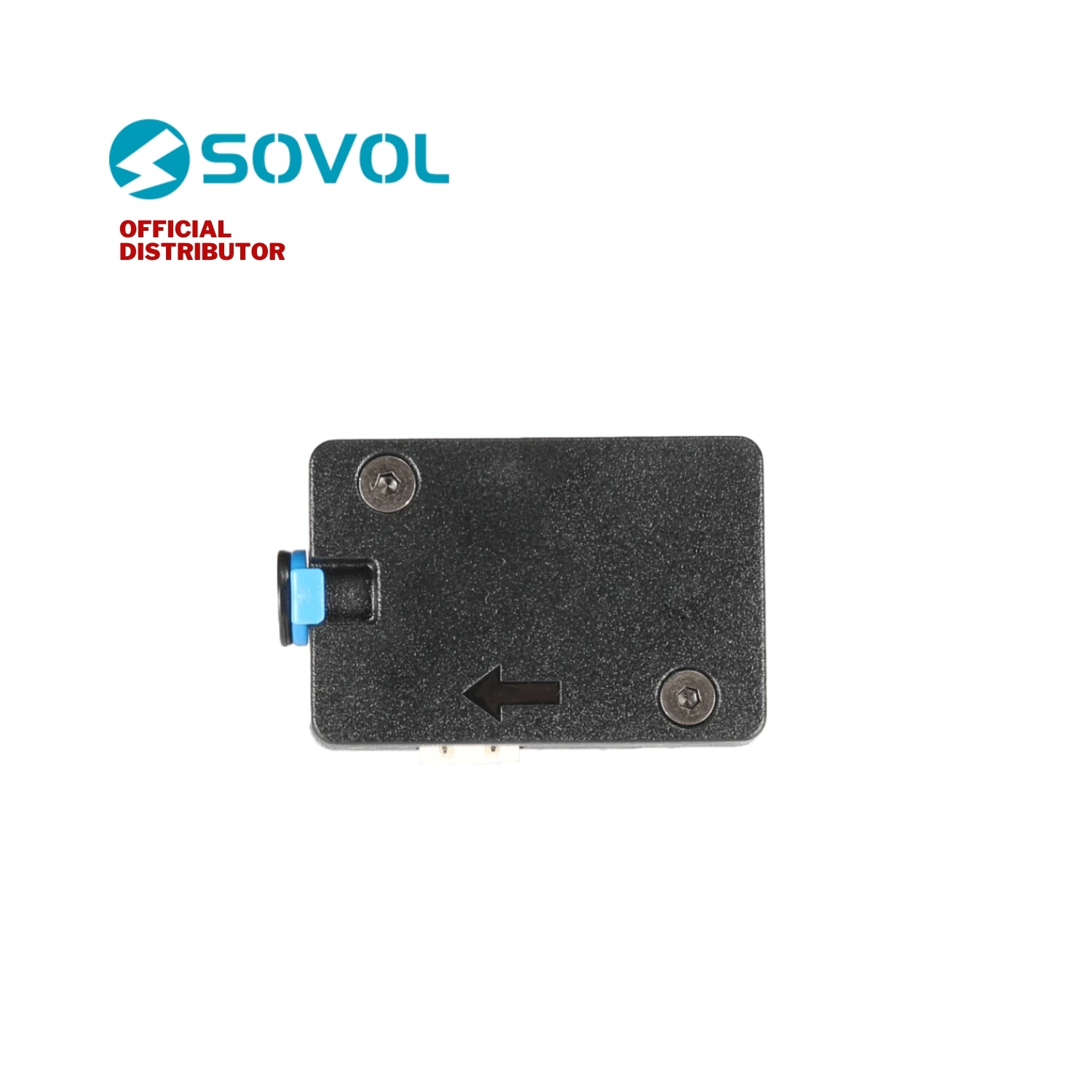

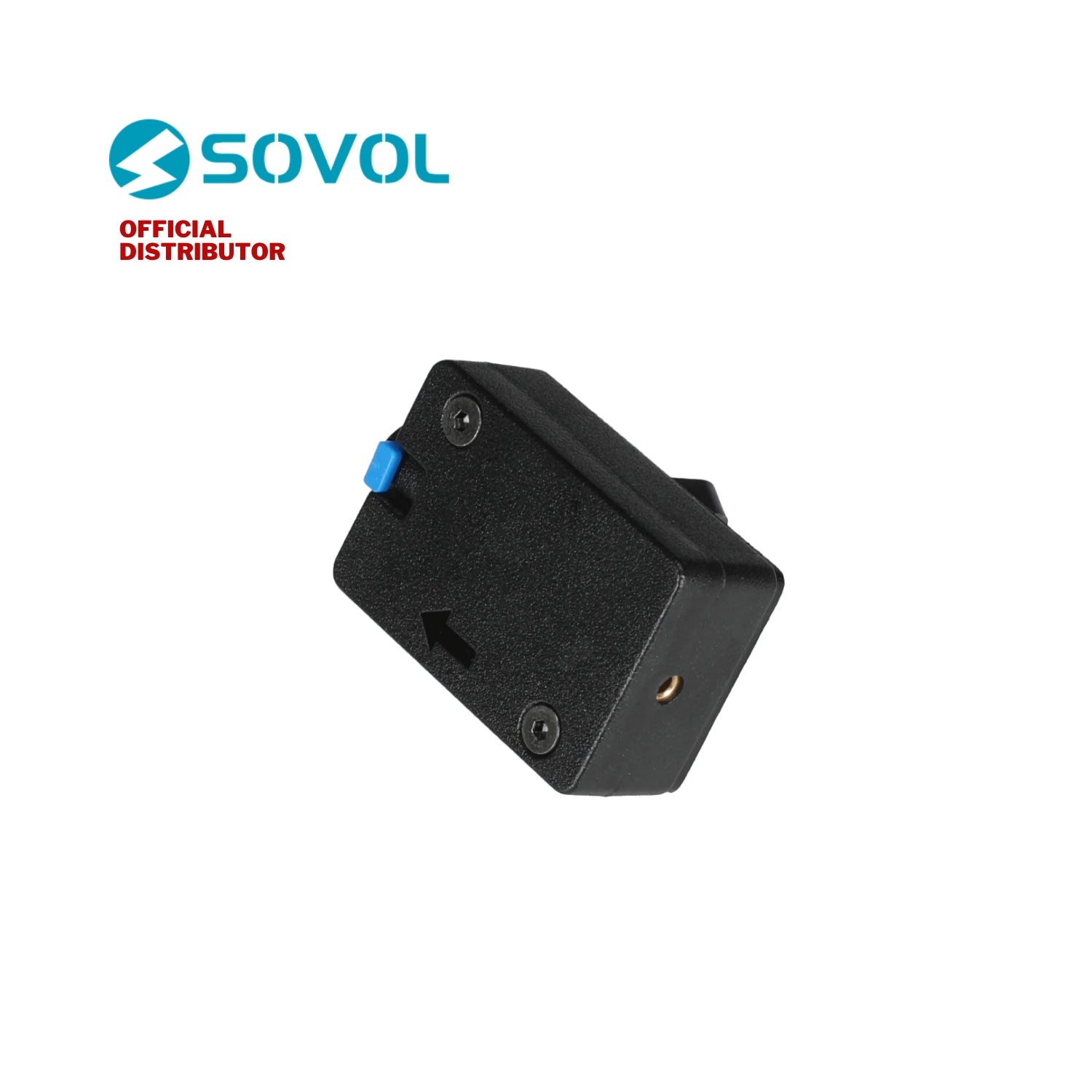

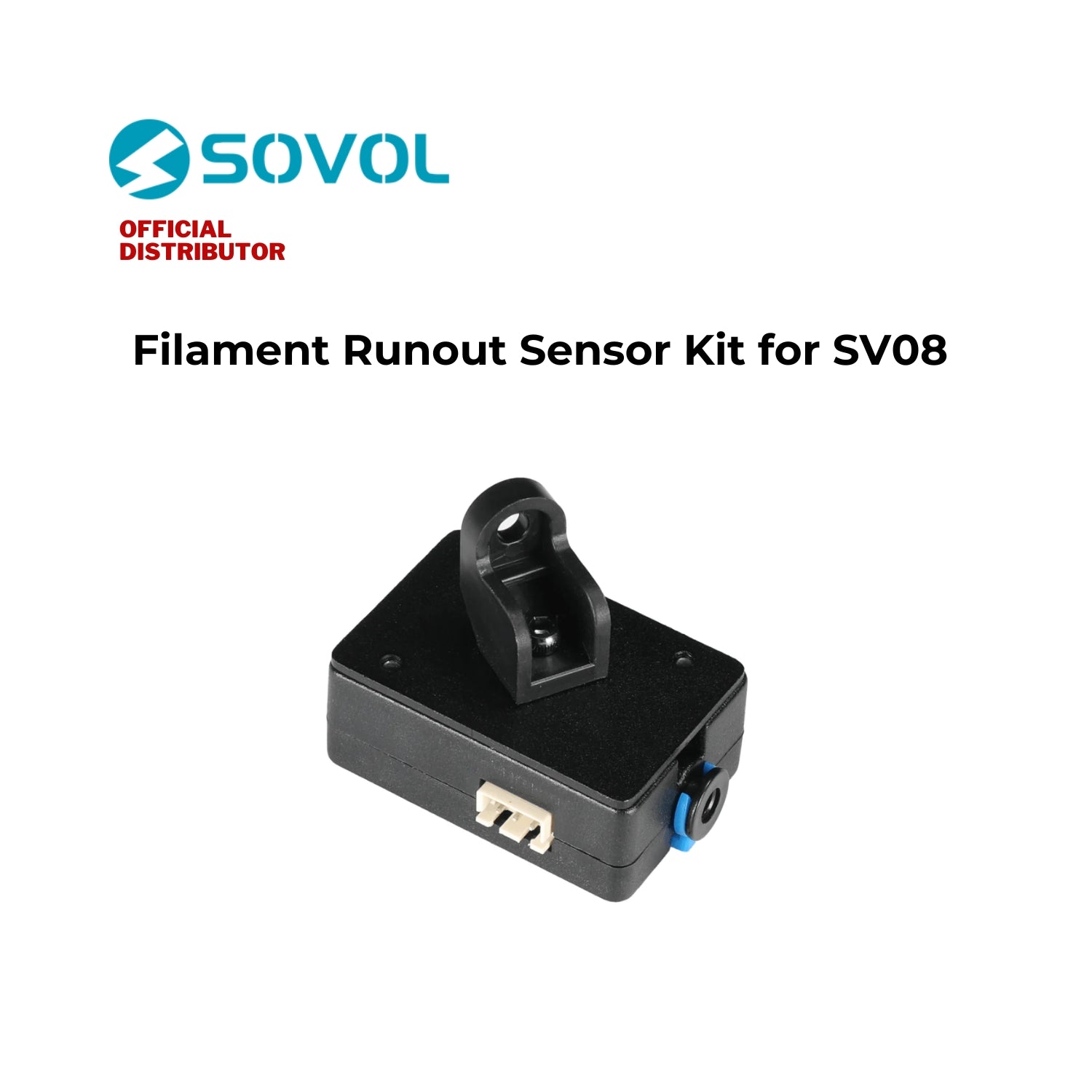

Sovol Filament Runout Sensor Kit for SV08 3D Printer

Description

The Sovol Filament Runout Sensor Kit is an essential upgrade for SV08-series 3D printers (including SV08, SV08 Zero, SV08 Max, T300). It detects when filament runs out or breaks and safely pauses your print. This helps avoid failed prints, material waste, and unnecessary rework, especially during long or unattended jobs.

Product Features

• Accurate Detection: Optical sensor reliably detects filament presence and runout events.
• Printer Pausing: Automatically halts the print when filament is depleted to prevent nozzle damage.
• Plug-and-Play Installation: Includes a pre-wired connector compatible with SV08 mainboard—no wiring modifications required.
• Compact and Lightweight: Small form factor mounts easily near the extruder without affecting filament path.
• Broad Compatibility: Works with 1.75 mm filament—PLA, PETG, TPU, and more.

Specifications

• Sensor Type: Optical filament runout detector
• Filament Diameter Supported: 1.75 mm
• Operating Voltage: 5 V DC (compatible with stock SV08 electronics)
• Connector: 3-pin JST (ready to plug into SV08 mainboard)
• Mounting Style: Includes bracket designed for SV08 extruder assembly
• Compatible Filament Types: PLA, PETG, TPU, ABS, and common 1.75 mm filaments
