Sovol Proximity Switch Kit for SV08 3D Printer

Description

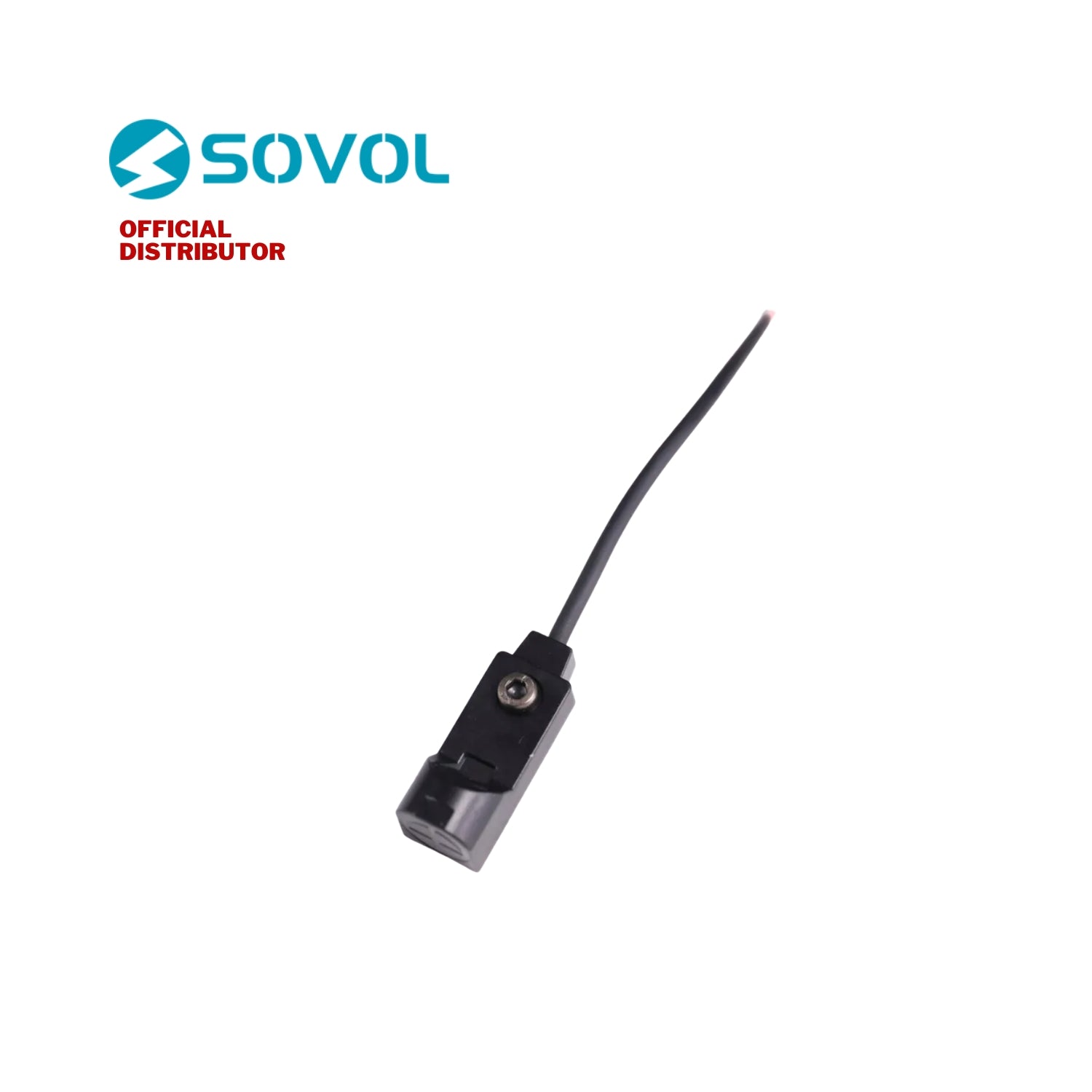

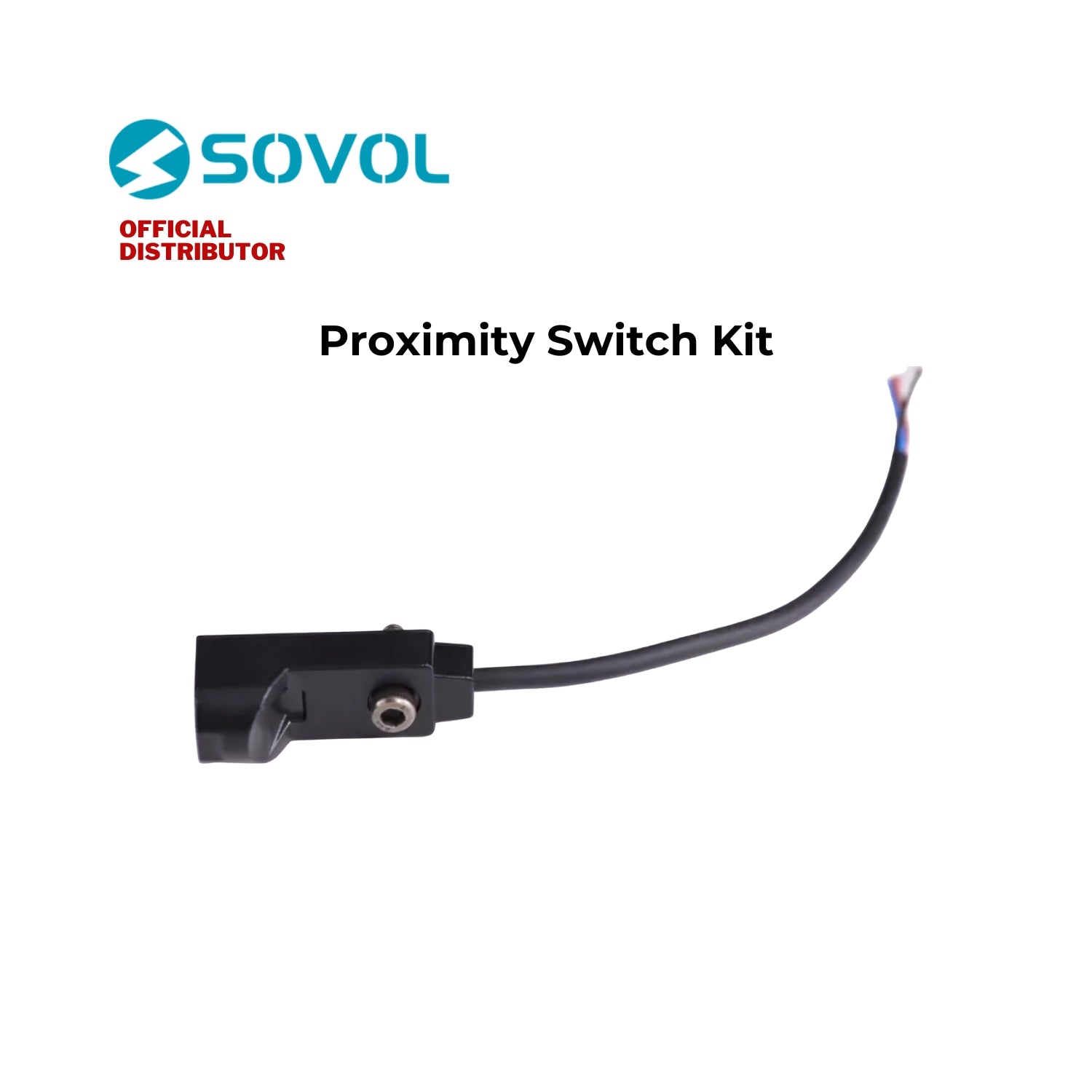

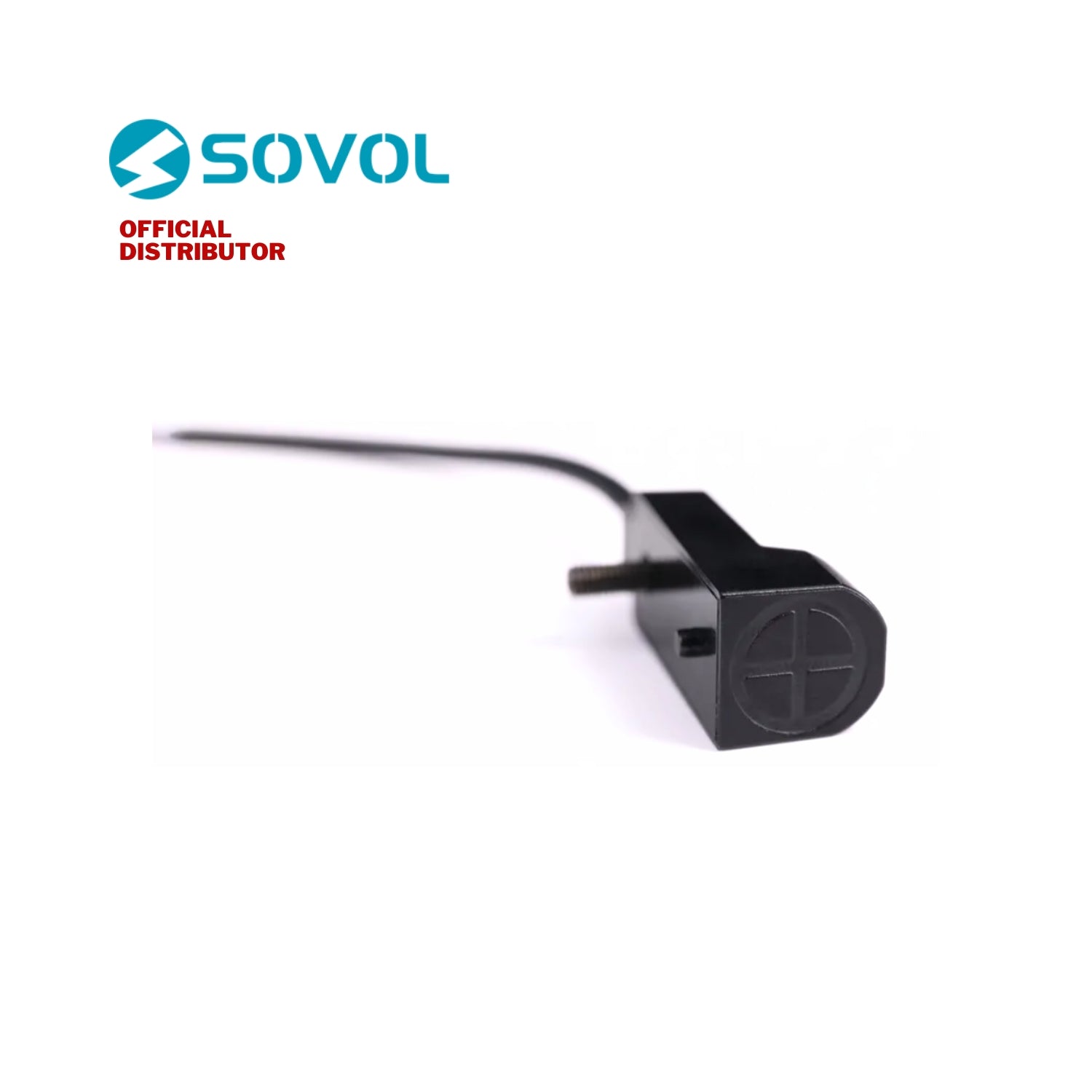

The Sovol Proximity Switch Kit replaces the mechanical Z-endstop on the SV08 series 3D printers (SV08, SV08 Zero, SV08 Max, T300) with a non-contact metal proximity sensor. This upgrade delivers faster, more reliable homing, improved Z-axis precision, and longer-term durability without wear and tear.

Product Features

• Non-Contact Z-Endstop: Provides consistent and precise Z-axis homing, reducing noise and mechanical wear.
• Faster Response: Instant detection ensures quicker print starts and improved layer reproducibility.
• Durable & Long-Lasting: No moving parts to wear out, increasing reliability over many print cycles.
• Plug-and-Play Design: Includes compatible connector and mounting bracket for easy replacement of the stock endstop.
• Improved Print Quality: Offers repeatable homing point, resulting in better first-layer adhesion and uniform layer height.

Specifications

• Type: Inductive metal proximity switch
• Operating Voltage: 5 V DC
• Connector: 3-pin (matches SV08 control board header)
• Mounting Bracket: Machined to fit the SV08 Z-axis endstop location
• Detection Range: ~1–3 mm (metal target dependent)
• Compatibility: SV08, SV08 Zero, SV08 Max, T300 and similar CoreXY printers
