Description:

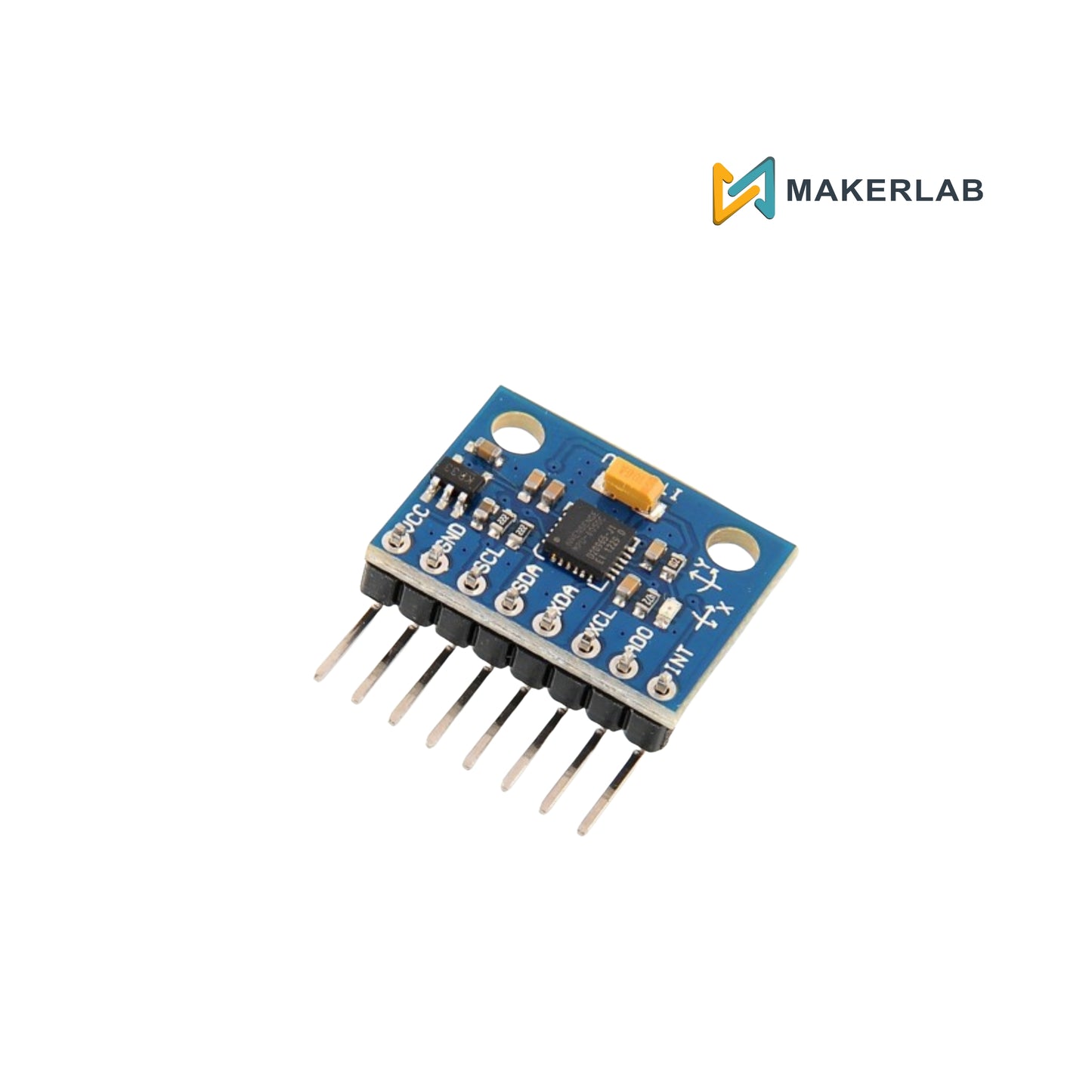

The Triple Axis Acceleration and Gyroscope Module (HW-123) is a compact, low-power Inertial Measurement Unit (IMU) sensor board commonly based on the MPU-6050 integrated circuit. This module is capable of simultaneously measuring 3-axis acceleration and 3-axis angular velocity (gyroscope). It combines a 3-axis MEMS gyroscope and a 3-axis MEMS accelerometer, along with an on-chip Digital Motion Processor (DMP) that can process complex 6-axis fusion data directly on the sensor.
The module communicates with microcontrollers (like Arduino or Raspberry Pi) via the I²C bus, making it highly popular for robotics, drone control, gesture recognition, and motion tracking projects. Crucially, this version is shipped unsoldered, meaning the user must solder the included male pin headers onto the PCB before it can be integrated into a breadboard or project circuit.
Features:
6-Axis Motion Sensing: Provides concurrent data from a 3-axis accelerometer and a 3-axis gyroscope.
Integrated DMP: Includes an on-chip Digital Motion Processor that offloads complex motion fusion calculations from the main microcontroller.
I²C Communication: Uses the simple, fast, and widely supported two-wire I²C interface for data transfer.
Unsoldered Headers: Supplied without the pin headers attached, allowing users flexibility in choosing connection methods (e.g., direct wiring, female headers, or specific angle).
Low Power Consumption: Efficient design suitable for battery-powered or portable applications.
Wide Application: Essential for balancing robots, drones, virtual reality devices, and motion-controlled projects.
Specifications:
Model: HW-123
Core Chip: MPU-6050
Operating Voltage: 3.3V−5V DC (On-board regulator allows 5V input)
Communication Interface: I²C (Two-Wire Serial Interface)
Axes Measured: 3-axis Acceleration + 3-axis Angular Velocity
Gyro Range: ±250,±500,±1000,±2000 dps
Accelerometer Range: ±2 g,±4 g,±8 g,±16 g
On-board Components: Voltage Regulator, Required Passive Components
Dimensions: ∼20 mm×15 mm (Very small PCB footprint)
