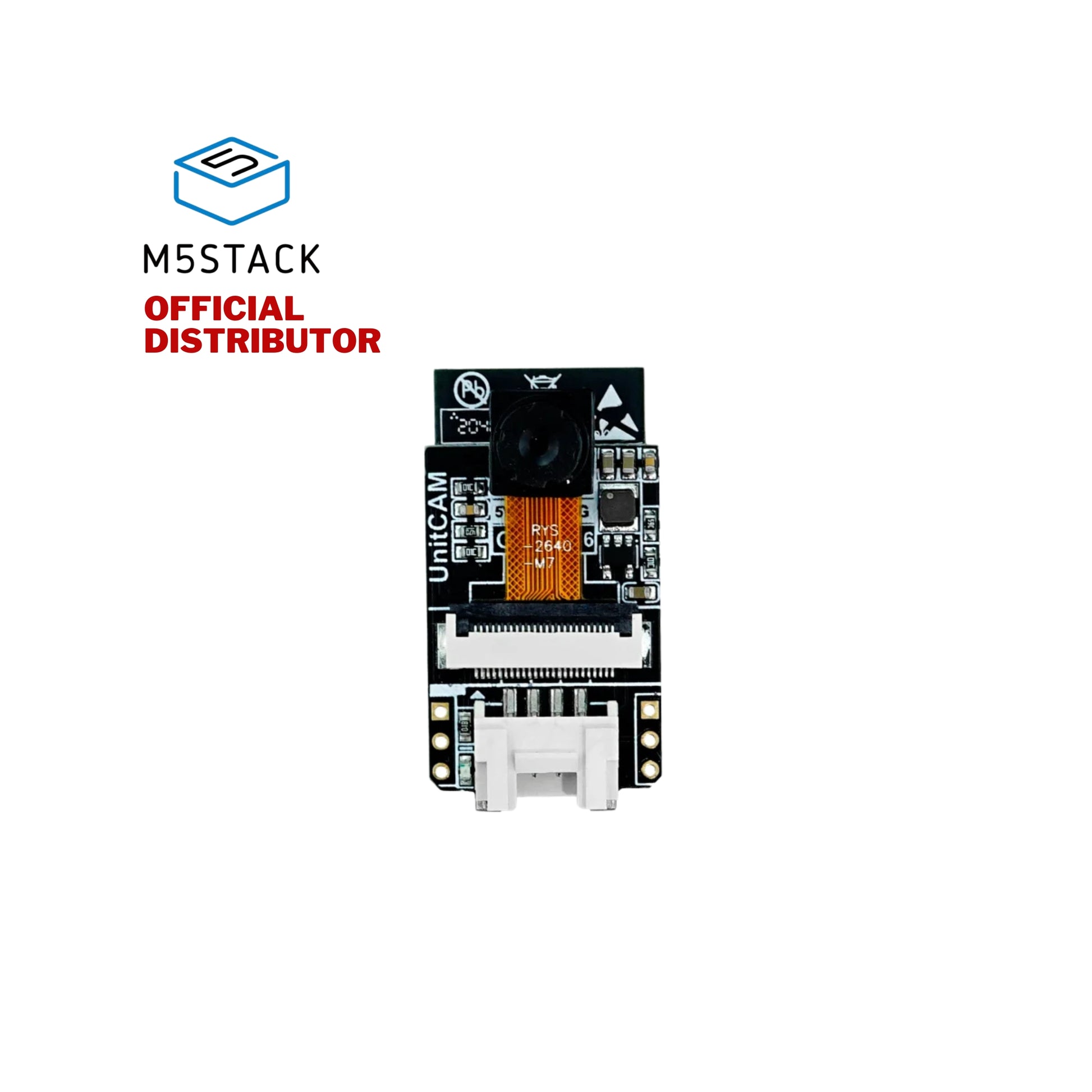

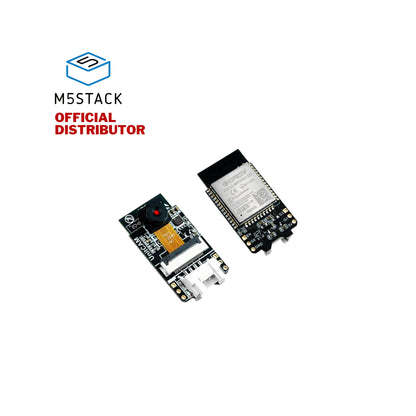

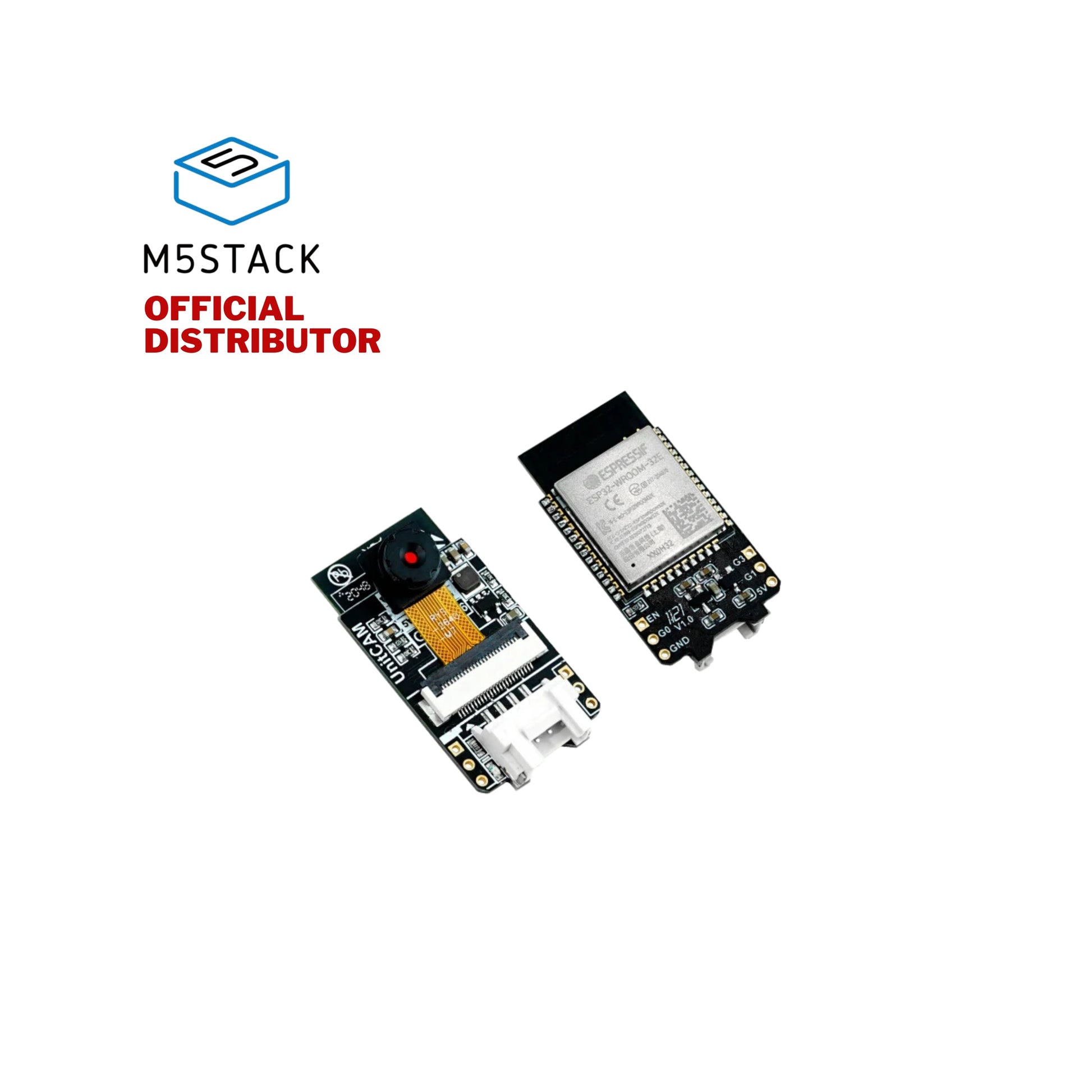

M5Stack Unit Cam Wi-fi Camera (OV2640)

Description:

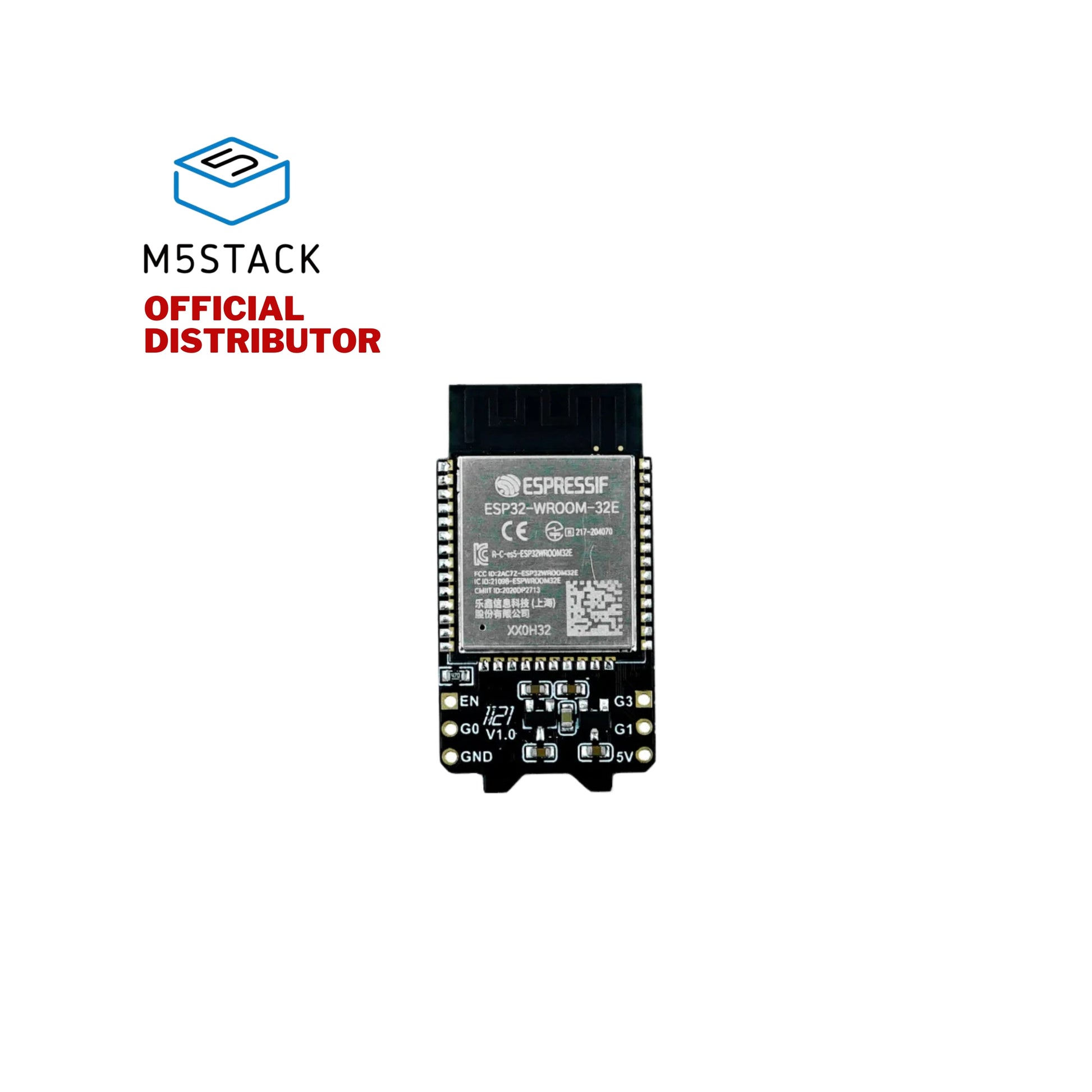

Unit CAM M5 launched a very cost-effective WiFi camera, using ESP32-WROOM-32E control core + 2MegaPixel image sensor (OV2640) solution on the hardware, using the most simplified design, no extra peripherals. The factory software integrates image transmission firmware, provides image data acquisition, image parameter (white balance, exposure, gain, size and other attributes) adjustment interface, users can directly acquire image data through UART or WiFi, and interact with the camera. Support UIFlow graphical programming call, realize zero development, out-of-the-box user experience. The compact design and cost performance are suitable for various wireless camera application scenarios.

Features:

• Simplified design
• ESP32 control core
• 2MegaPixel camera (OV2640)
• UART communication (support image data acquisition, image parameter adjustment and other interfaces)
• WIFI image transmission
• Programming platform: ESP-IDF/Arduino/UIFlow

Specifications:

• Product Code: U109
• Flash: 4M
• Firmware default communication method: UART: 115200bps 8N1
• Camera: OV2640
• Maximum resolution: 2MegaPixel
• Unit CAM firmware default picture transfer rate: 12fps
• OV2640 supports output format: YUV(422/420)/YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data
• DFOV: 66.5°
• Net weight: 4.7g
• Gross weight: 5.3g
• Product Size: 45*20*12mm
• Package Size: 60*60*15mm

Applications:

• WiFi camera
• Remote monitoring

Part List:

• 1x Unit CAM
