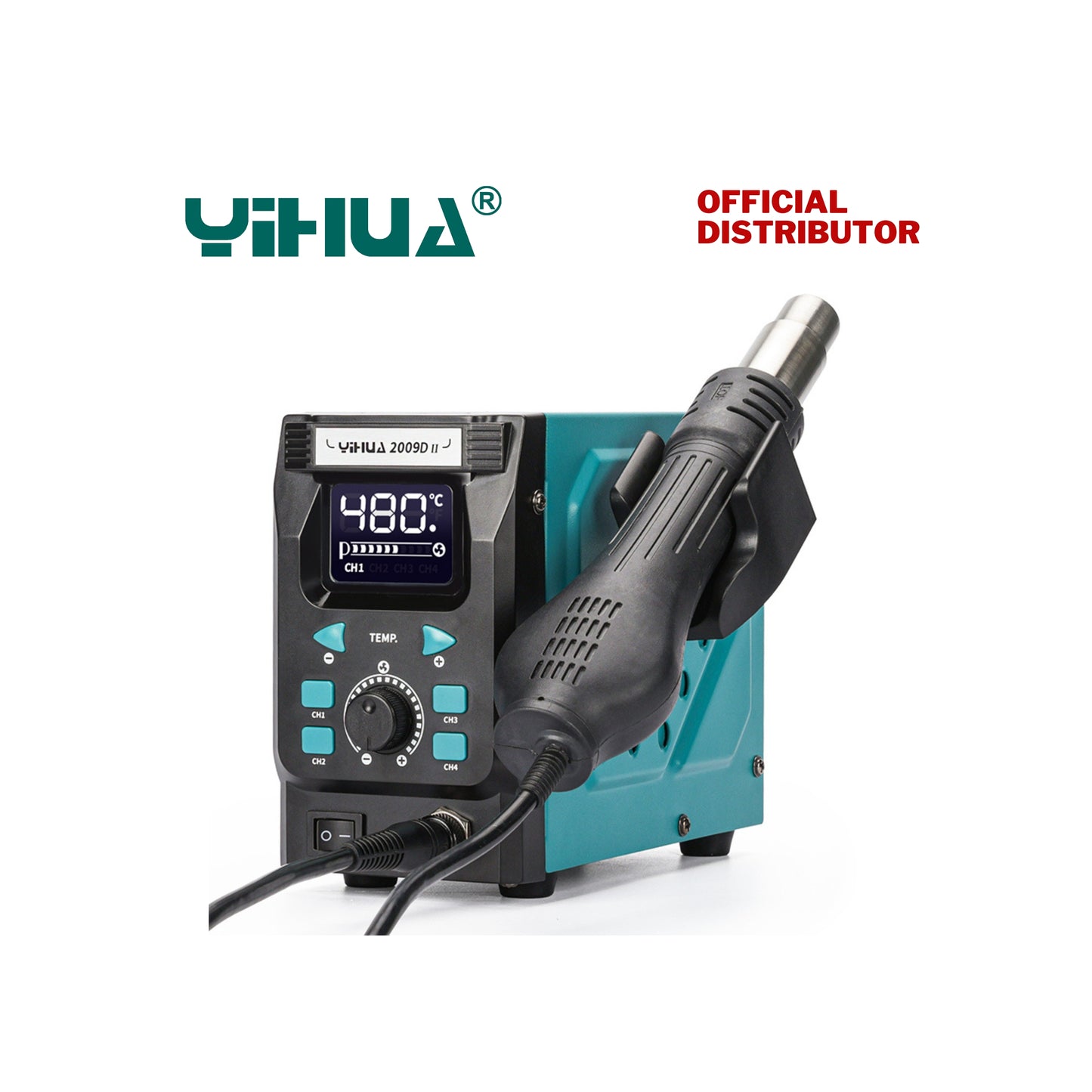

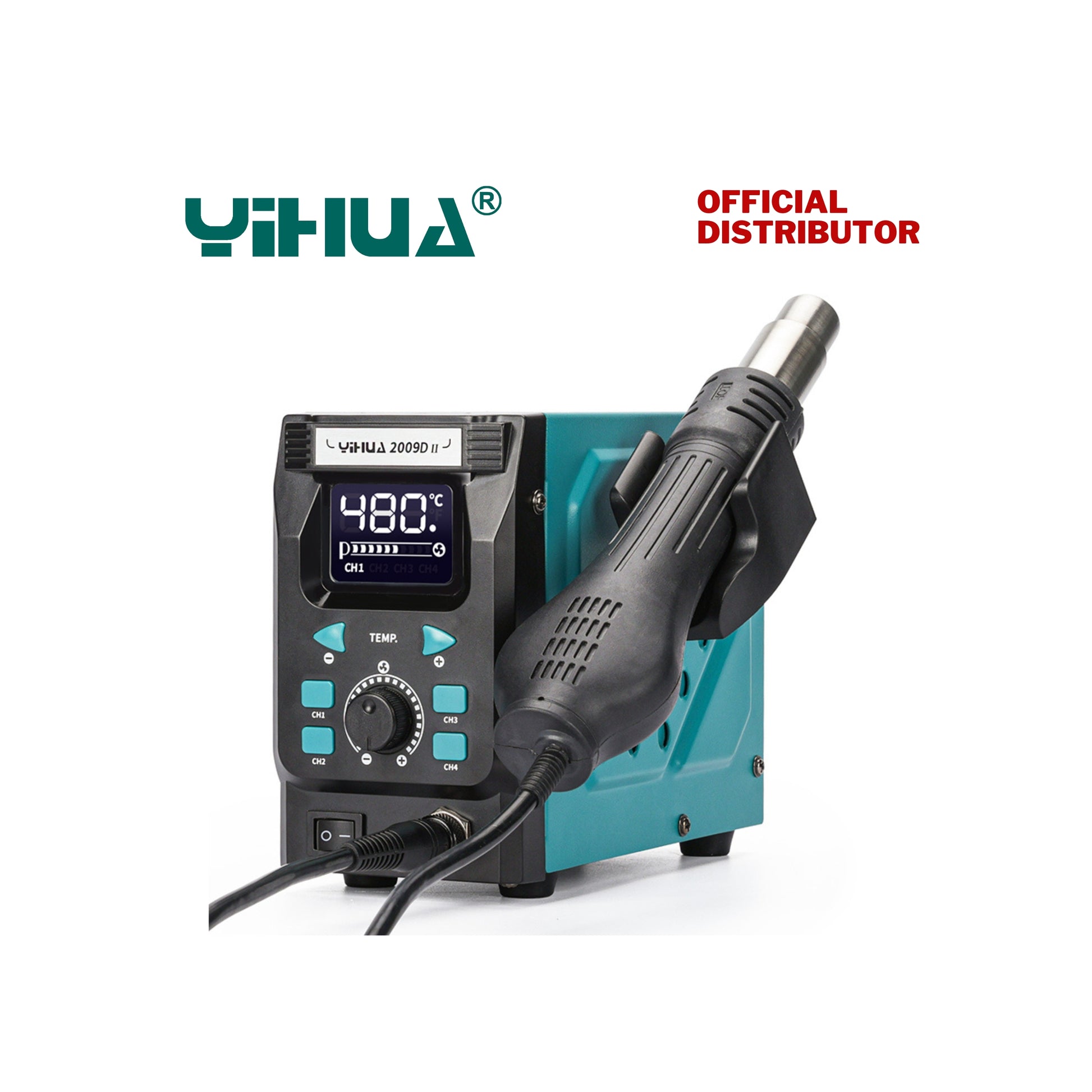

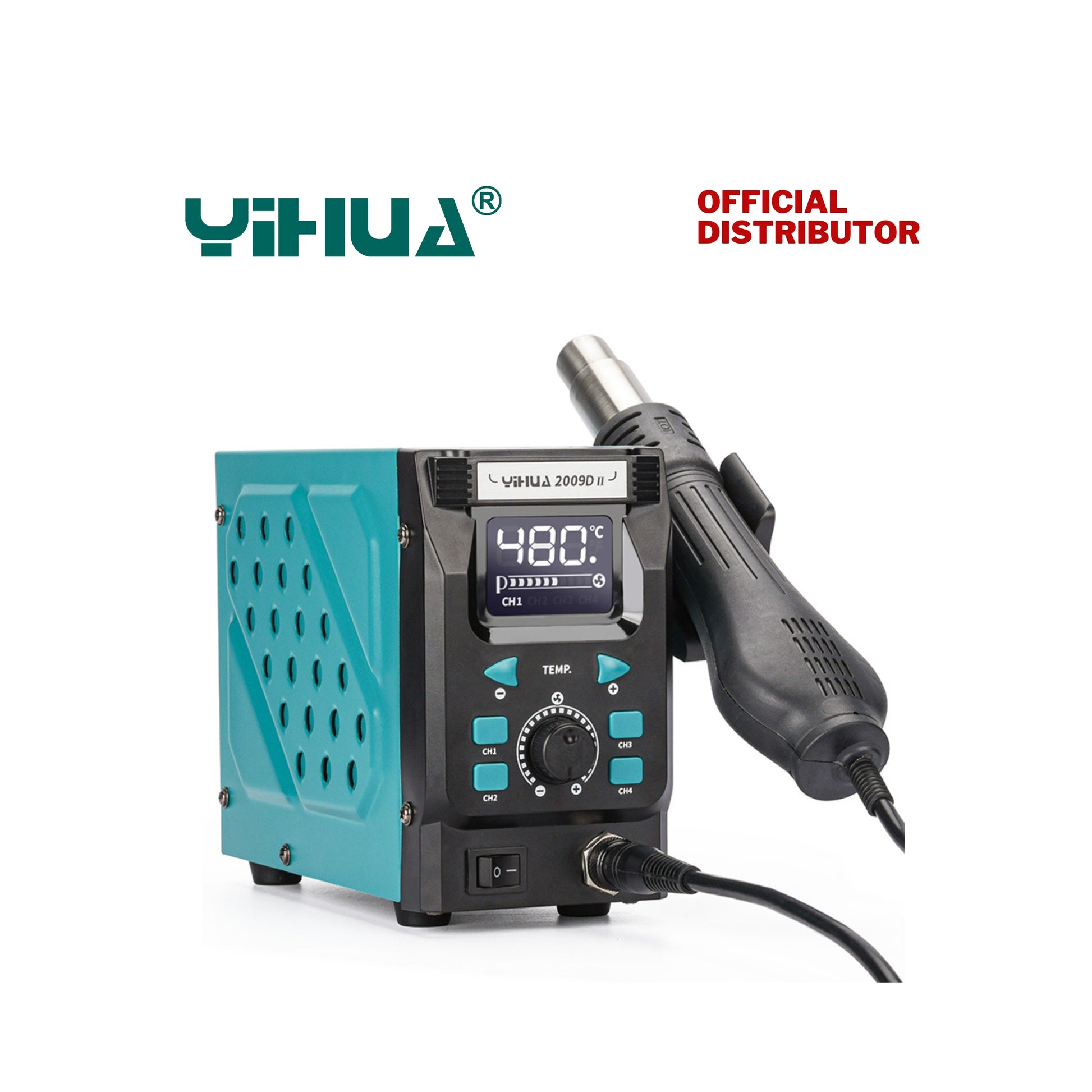

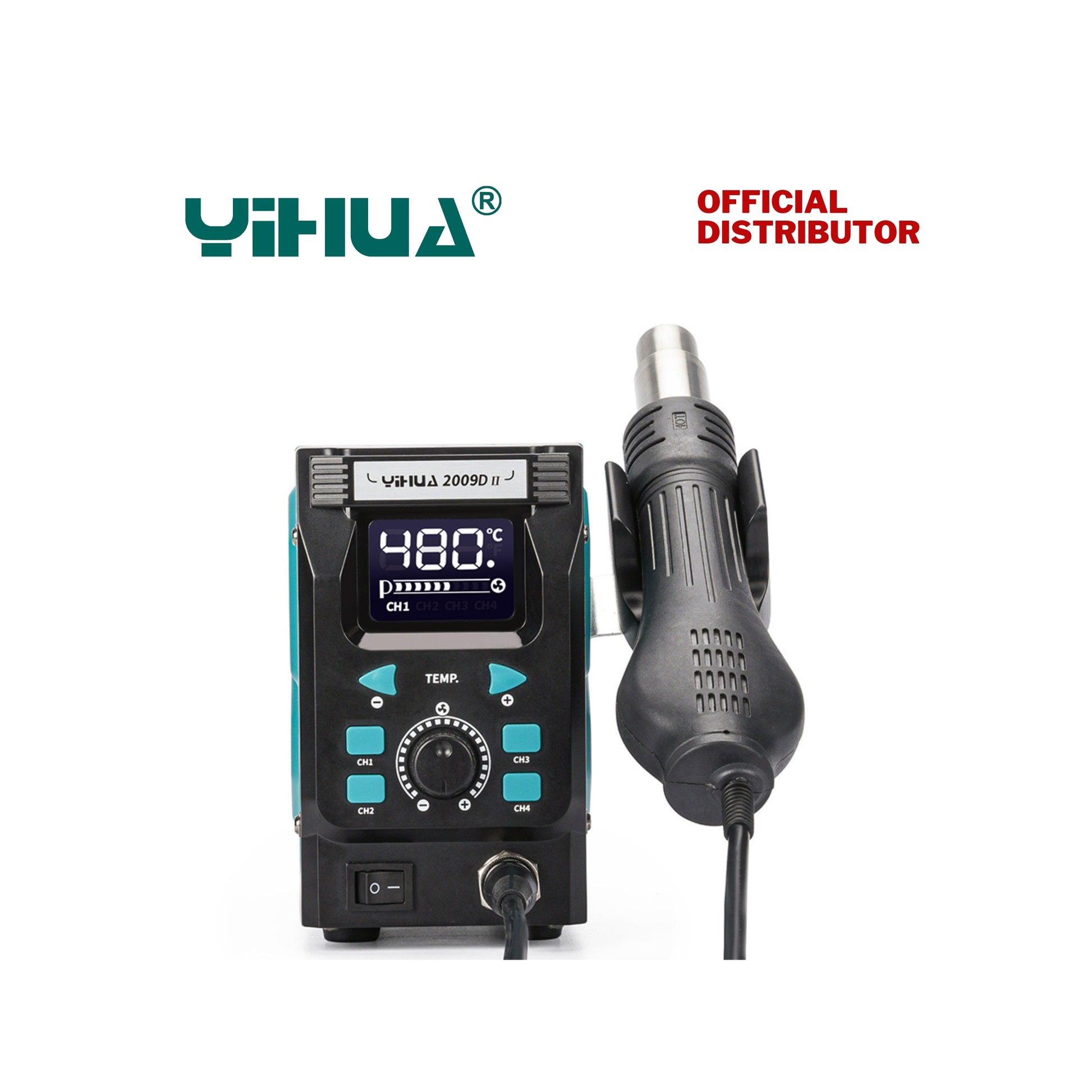

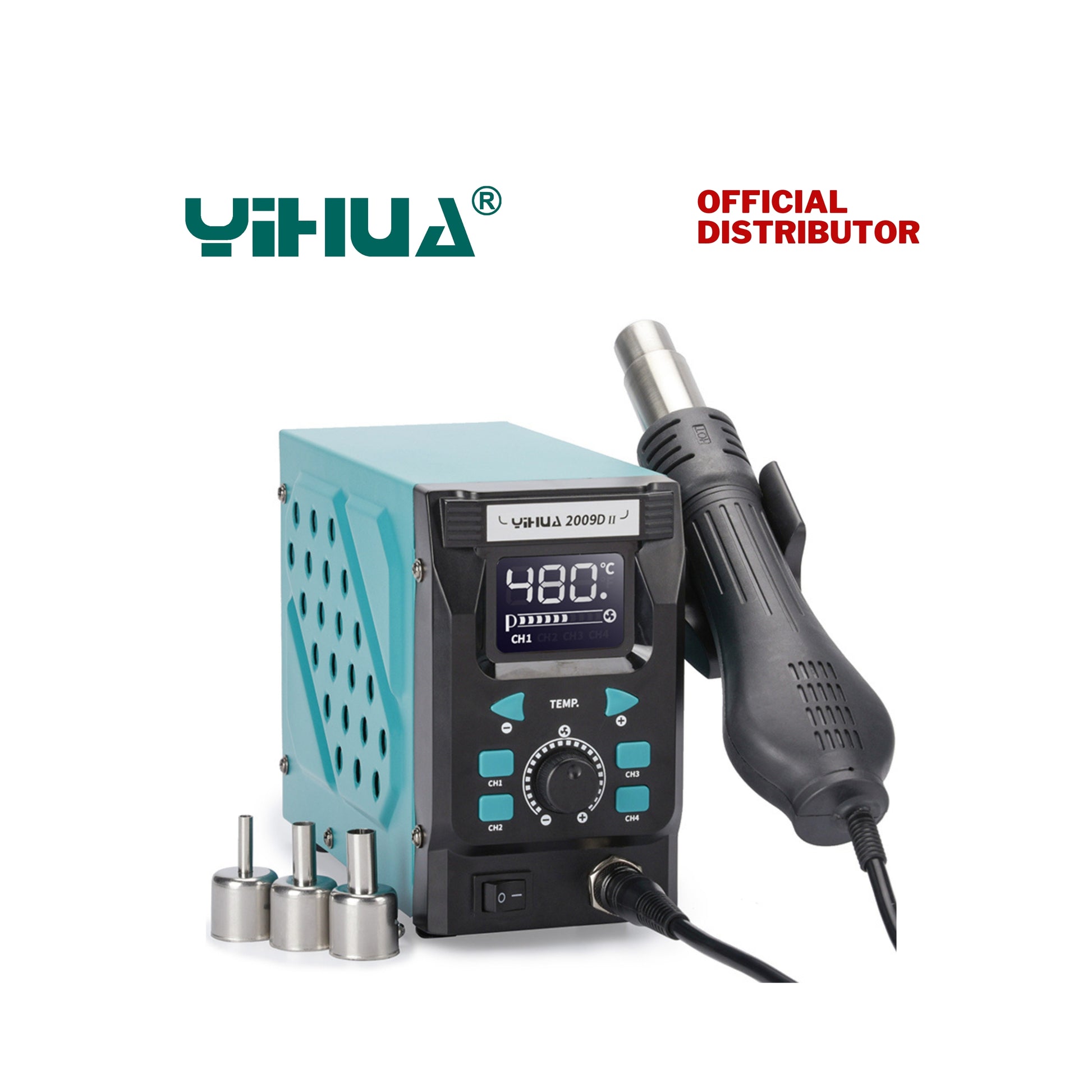

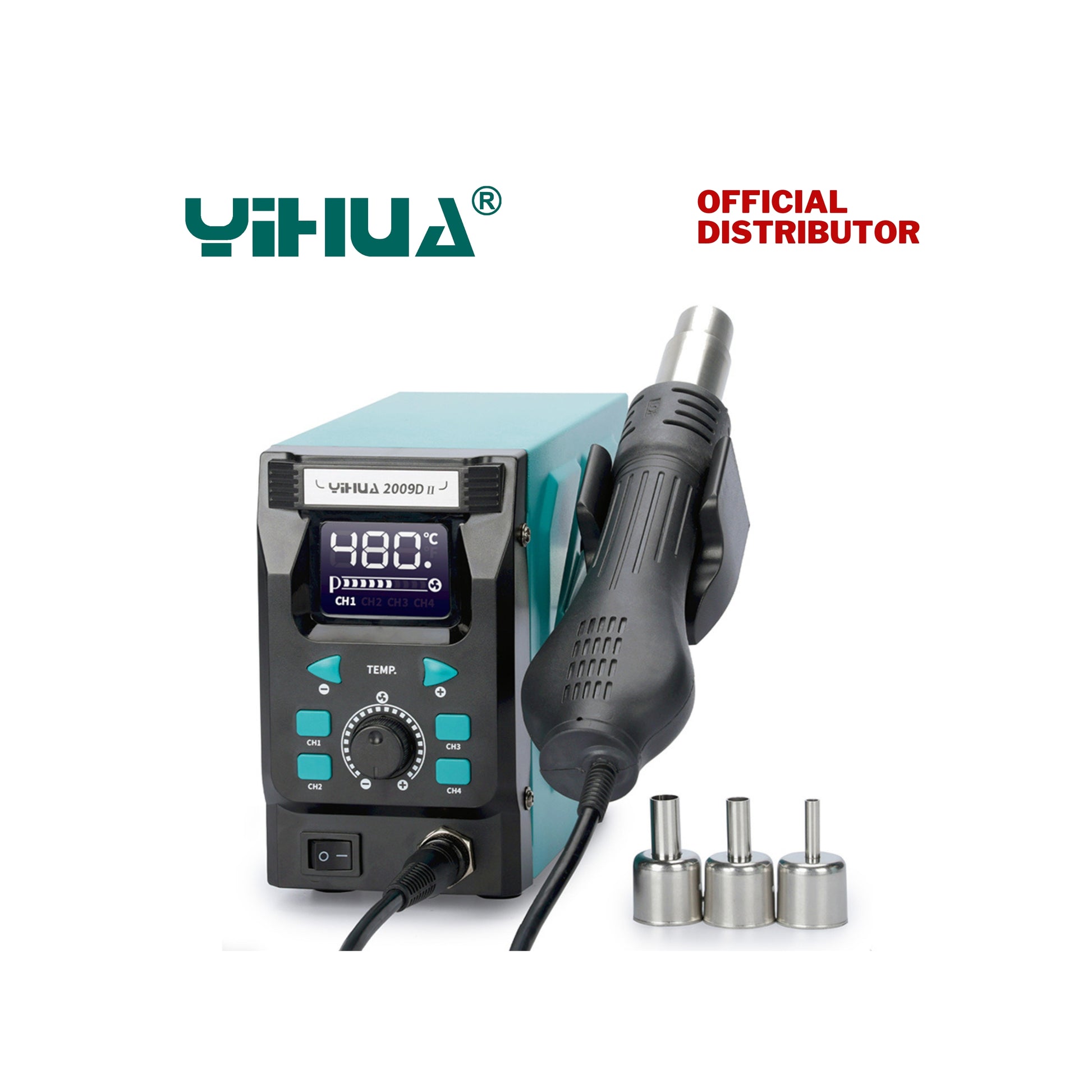

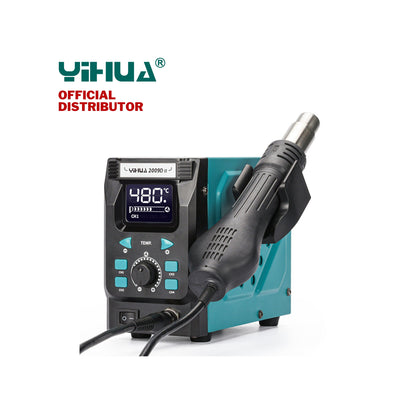

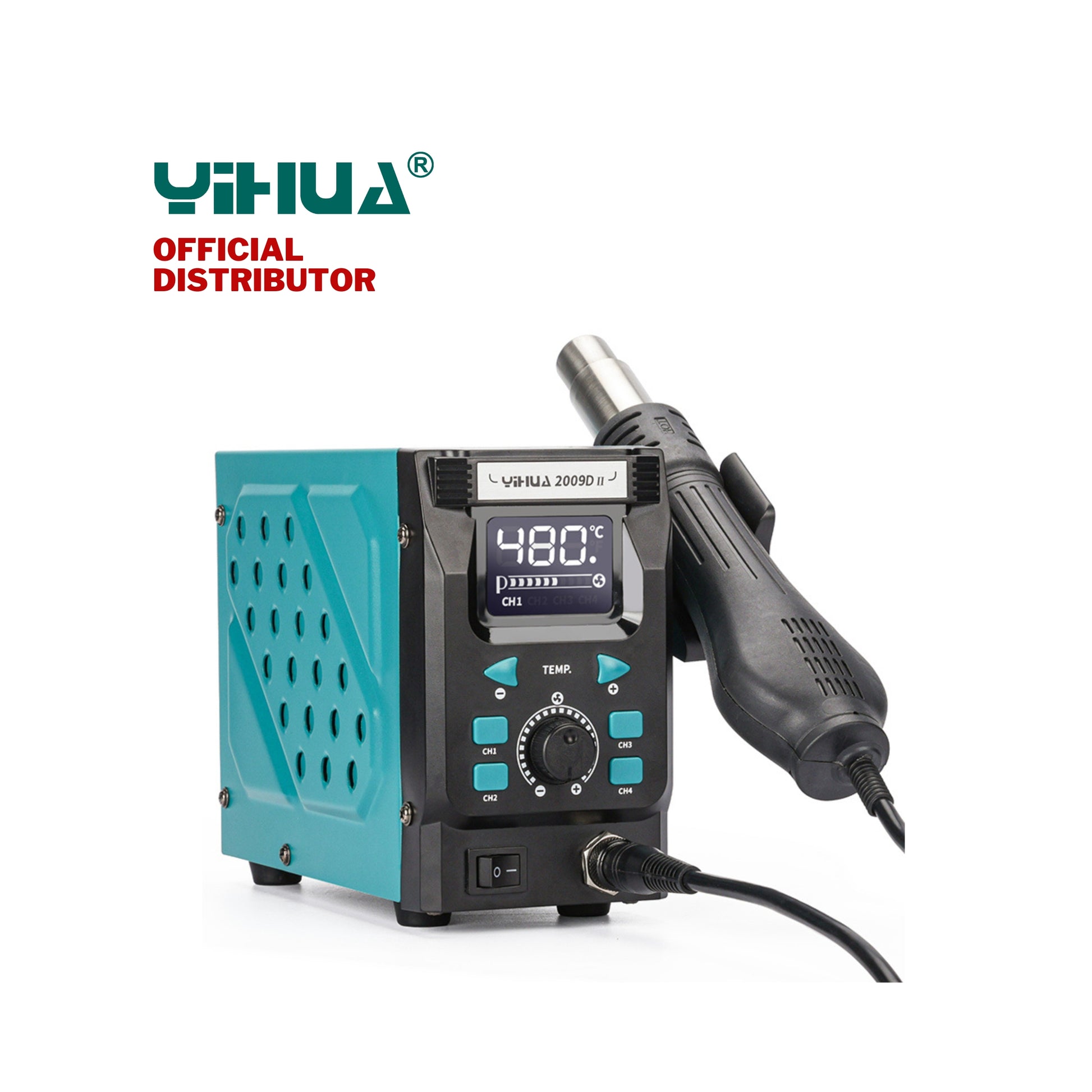

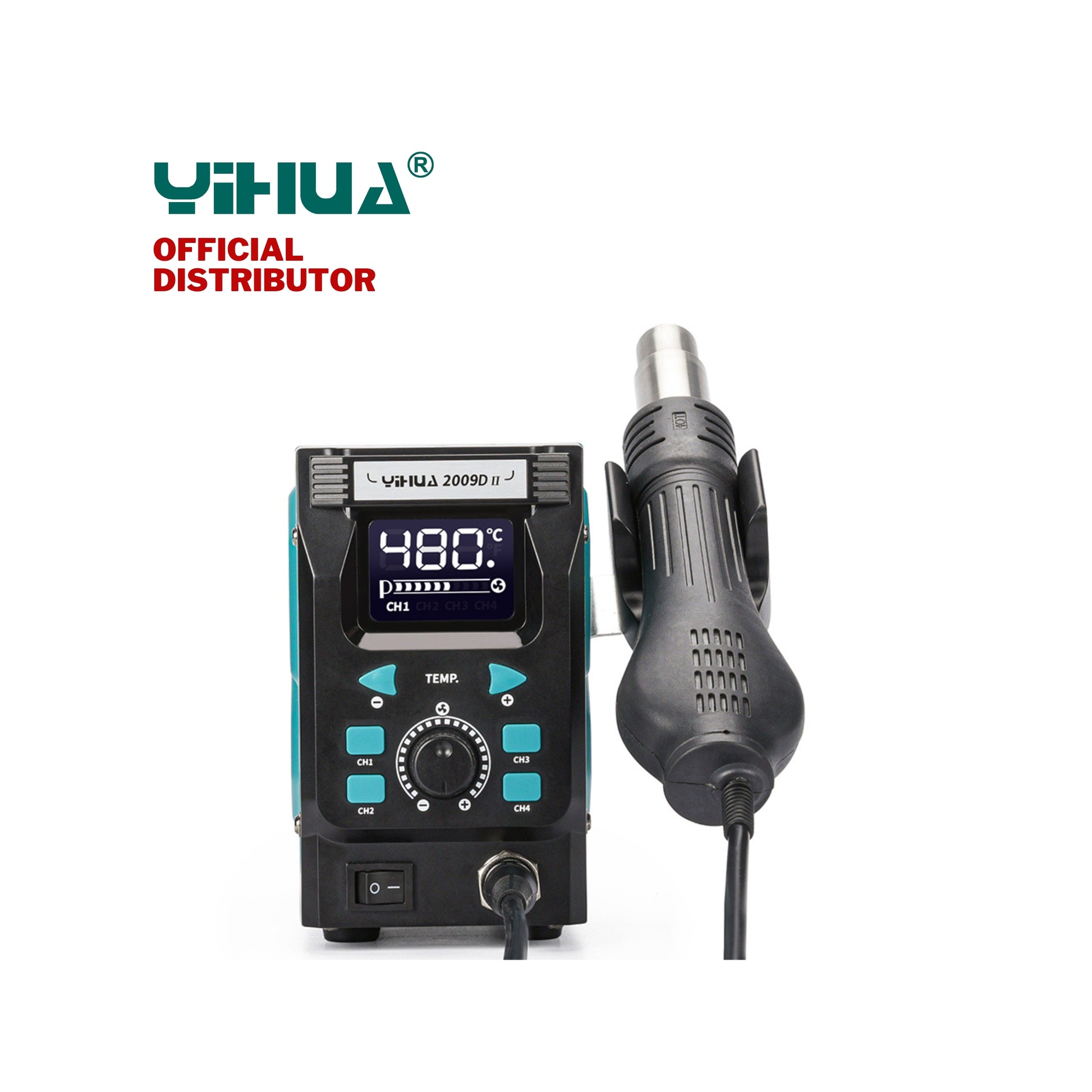

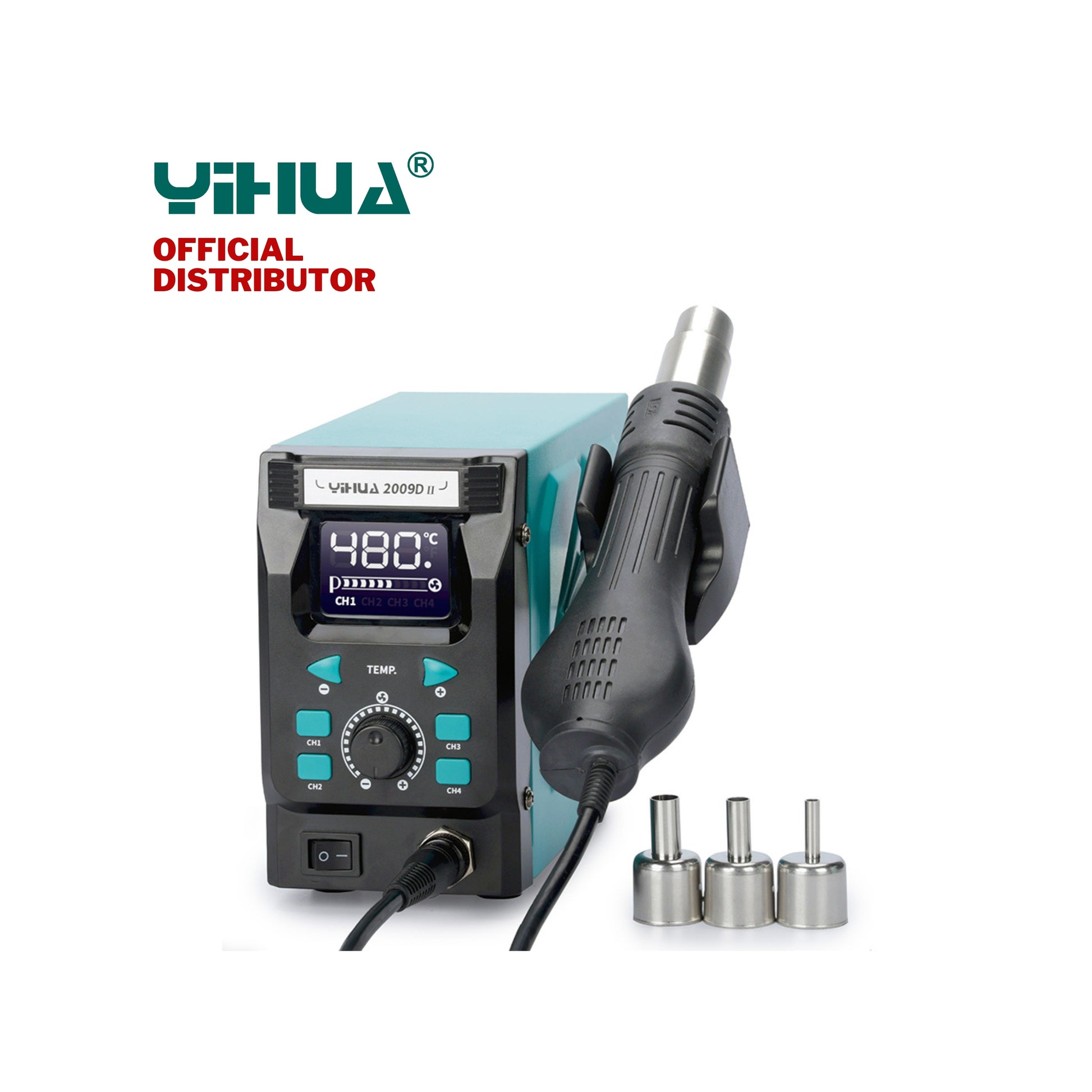

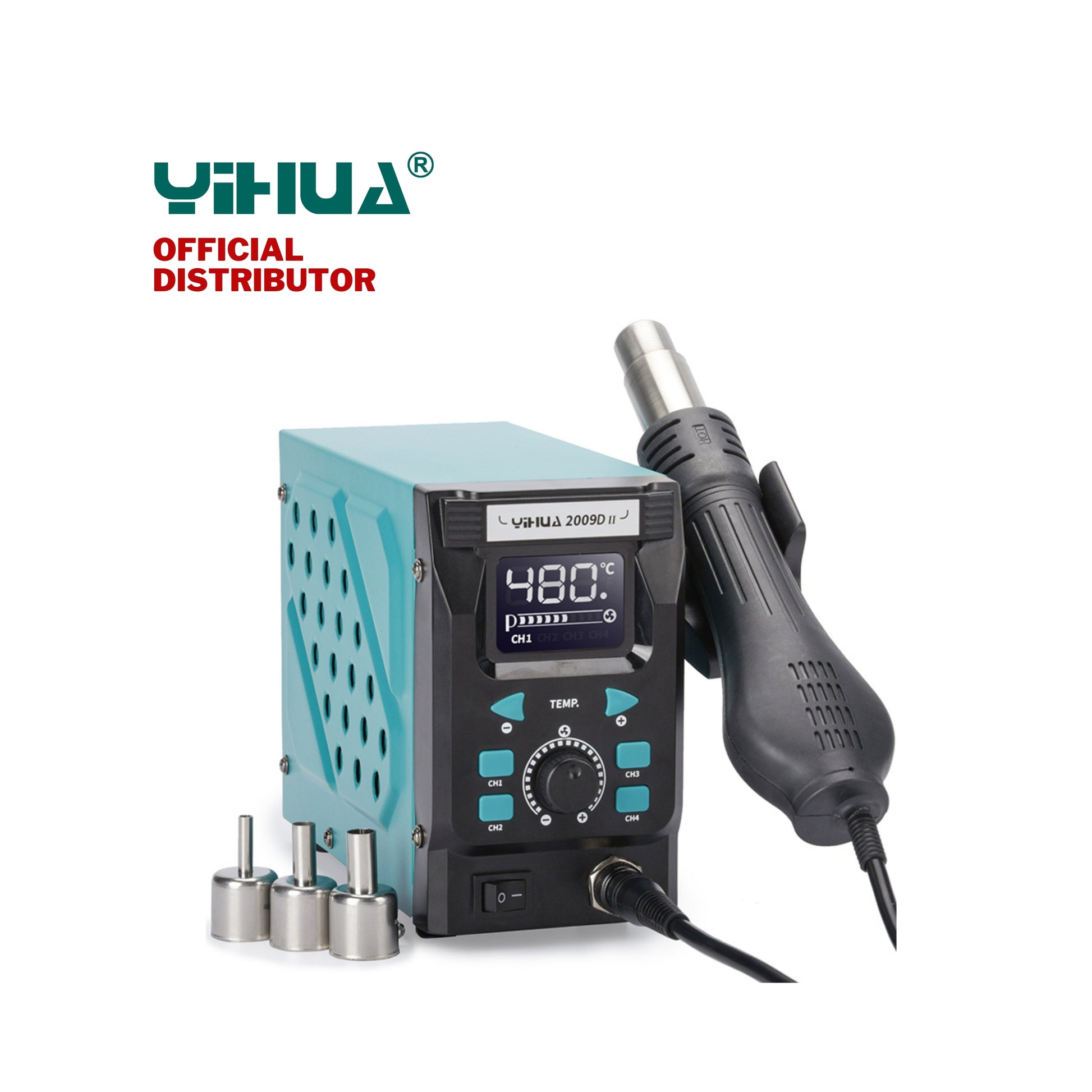

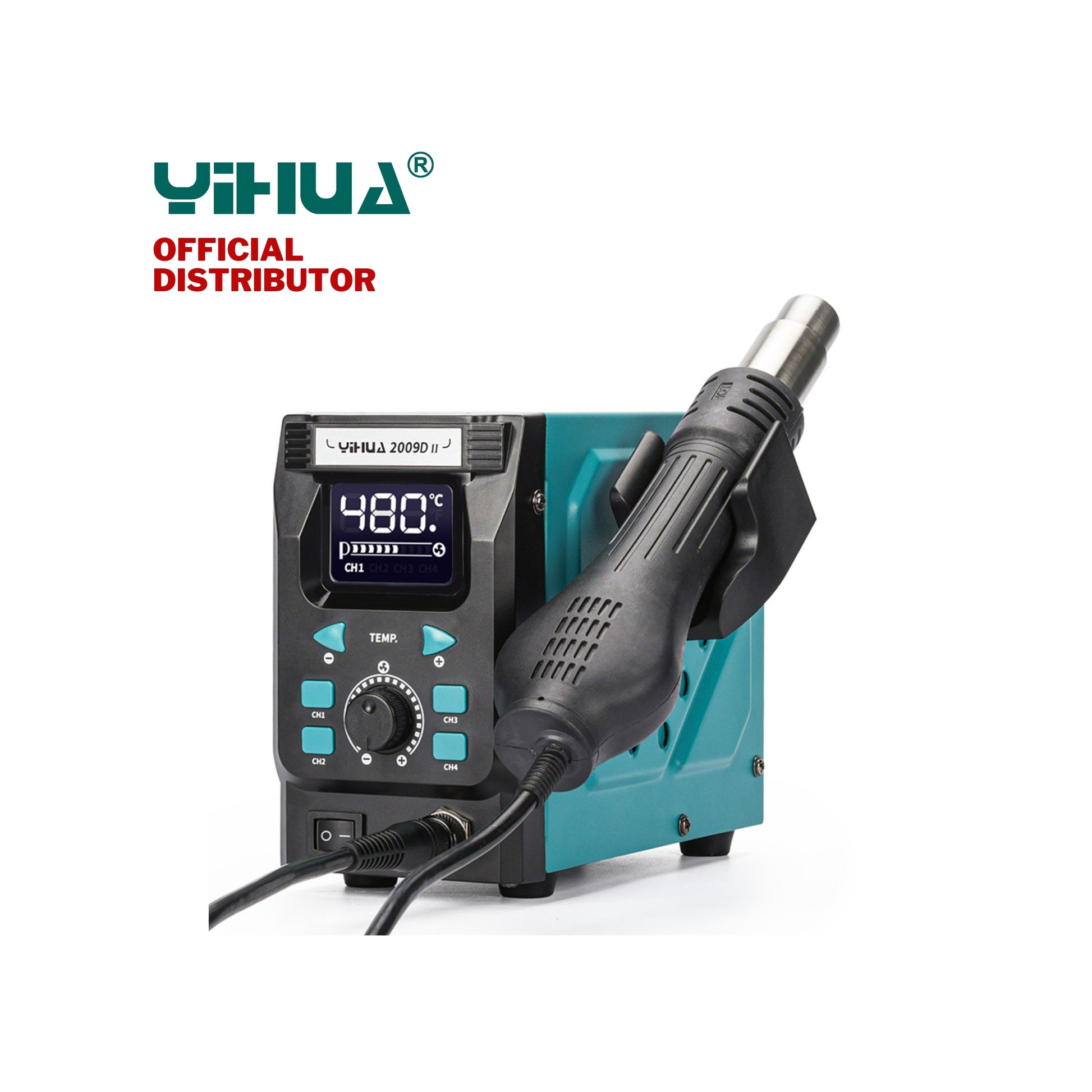

Yihua 2009D-II Hot Air Soldering Station

Description:

The Yihua 2009D-II is a high-performance hot air rework station designed for precision soldering and desoldering tasks, particularly suitable for Surface-Mount Device (SMD) components.

Features:

• Adopt classic appearance design.
• Large digital display, intuitive operation.
• Digital temperature correction: Temperature deviation caused by environmental changes or replacement of accessories such as heating cores can be corrected through this function; temperature correction can effectively improve work efficiency and extend the service life of the soldering iron.
• Four-stage temperature storage: Users can preset the temperature of each storage channel according to their needs. During welding work, they can quickly call up the appropriate preset temperature of CH1/CH2/CH3 according to different welding environments.
• Fahrenheit/Celsius display conversion: This function allows the machine to adapt to the usage habits of consumers in different regions.
• Cold air/hot air switching function of the air gun: In the cold air state, the heating wire of the air gun stops heating, and the fan is used to supply air, which provides convenience for users to cool down the heating components and clean the small solder beads on the circuit board.
• No-wind protection function: If the air gun stops blowing abnormally during use, the system will automatically cut off the power supply of the heating wire to prevent the air gun from accumulating heat and burning the handle due to no wind, further enhancing the safety performance of the product.
• Prompt tone settings.

Specifications:

• Model Unit: Yihua 2009D-II
• Rated Voltage Range: 110V-240V
• Credit Frequency: 50-60Hz
• Rated Power: 700W
• Temperature Range: 100°C to 480°C (212°F to 896°F)
• Digital Form: Digital Tube
• Host Size: 170x90x130mm ±5mm
• Operating Temperature: 0°C~40°C/32~104°F
• Airflow Type: Brushless fan soft wind
• Air outlet flow: <30L/min
