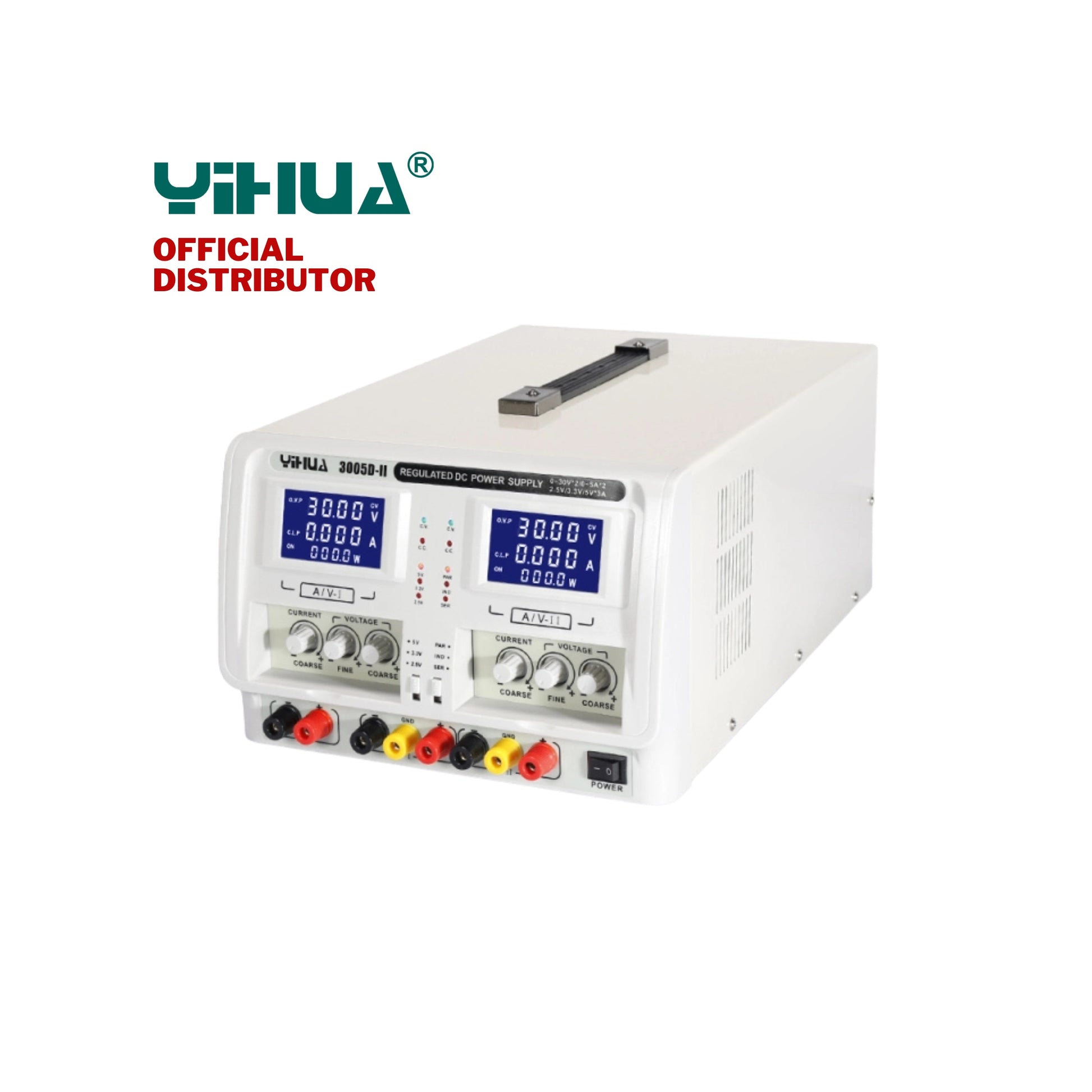

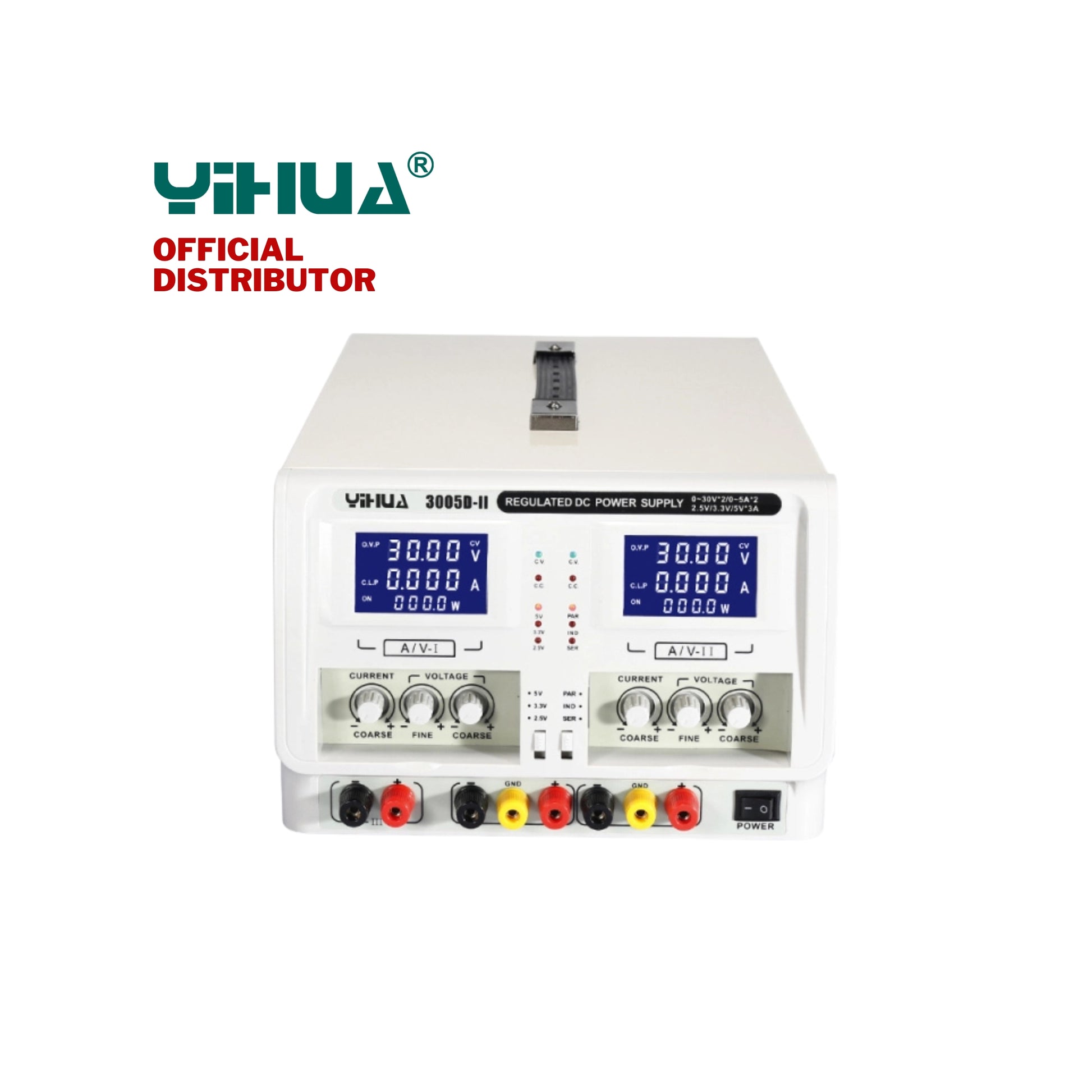

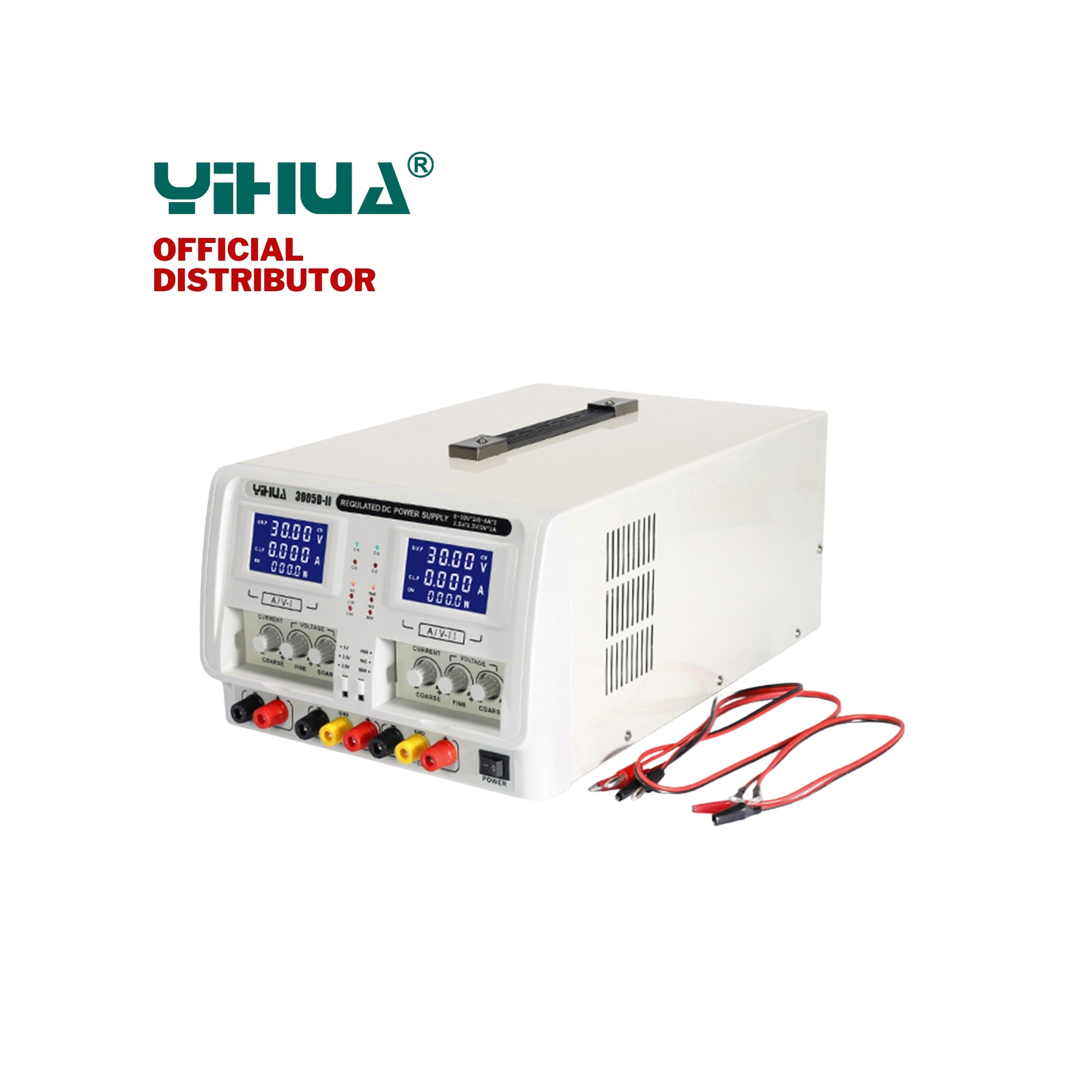

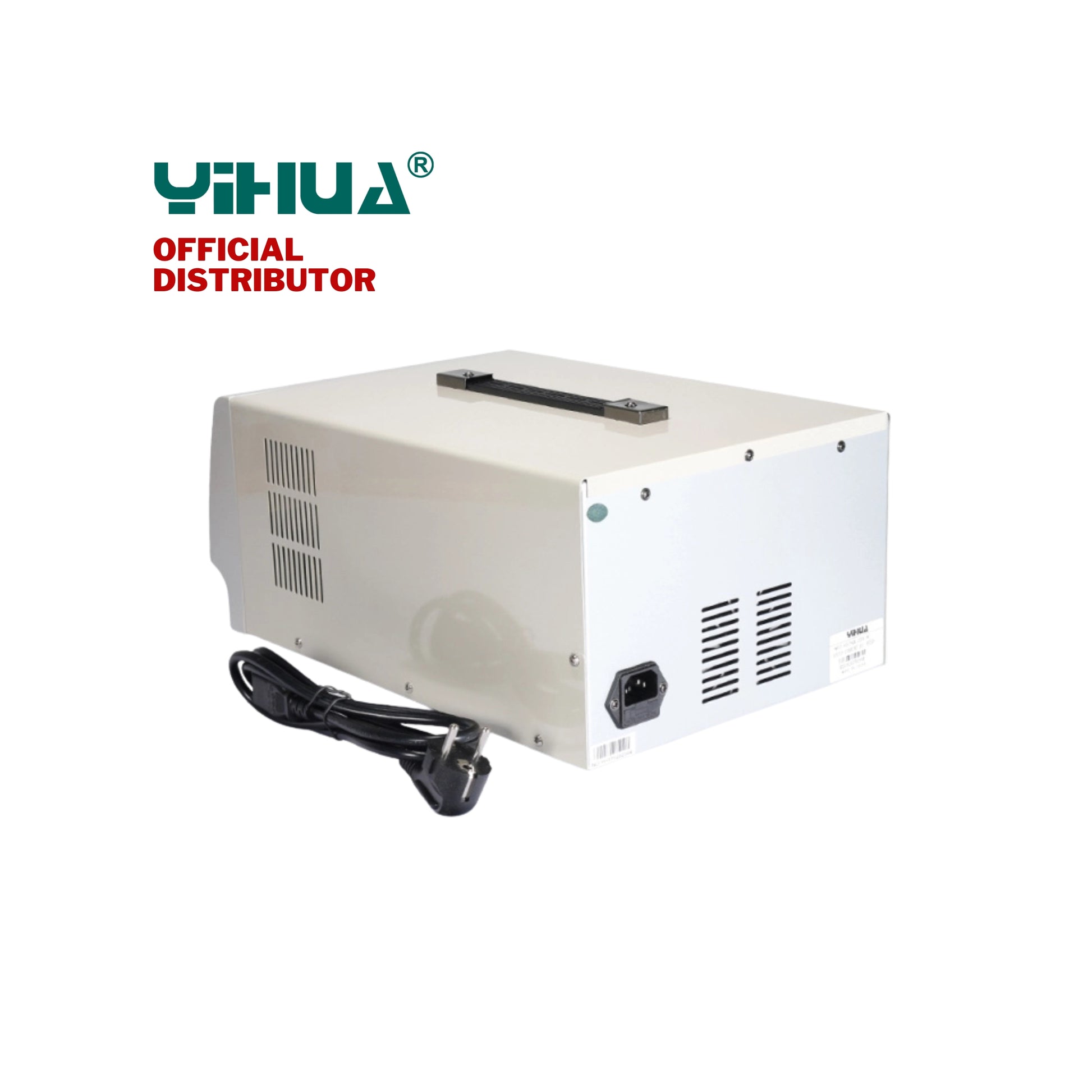

Yihua-3005D-II Dual Adjustable DC power Supply (30V 5A)

Description:

YIHUA 3005D-II Dual adjustable DC power supply is a dual-channel DC power supply with continuously adjustable current and voltage, a large-screen LED-backlit display, and built-in knobs to help operators eliminate hidden dangers resulting from faulty adjustment. Channel II independent operations feature automatic tracking in series or in parallel. The third fixed output features selection between 2.5V, 3.3V, and 5V. Stunning in appearance and outstanding in performance, the machine is suitable for technology product development and use in laboratories, teaching, and electronics production lines as well as in essential communications industry equipment.

Features:

• Independent Operations Mode means the machine has 2 groups 30V 5A output voltage and current.
• Series Tracking Mode means the machine’s max output voltage is 60V, the max output current is 5A.
• Parallel Tracking Mode, means the max output voltage value is 30V, the output current is 10A.
• The device has Fixed output,” SER” mode, can set fixed output,(the voltage fixed output value is 2.5V,3.3V,5V)
• It features 3 positive and negative output voltage and current values. The 3 outputs can work simultaneously
• 4digit display for accurate displaying of current values, precise to mA value, the machine is built with SMT manufacturing and the latest technology
• The machine inside the transformer is copper, and inside have a fan, when the machine work temperature over 45 degrees, the fan will be work, it is good for heating radiation, can prolong the machine life.

Specifications:

• Input Voltage: 220V
• Output Voltage: Continuously adjustable between 0-30V
• Output Current: Continuously adjustable between 0-5A
• Power Effect: CV≤0.01%+1mV   CC≤0.2%+1mA
• Load Effect:
  • CV≤0.01%+5mV (I≤3A) CC≤0.2%+5mA (I≤3A)
  • CV≤0.01%+7mV (I>3A) CC≤0.2%+10mA (I>3A)
• Ripple Noise (5Hz-1MHz):
  • CV≤0.5mVrms (I≤3A) CC≤3mArms (I≤3A)
  • CV≤1mVrms (I>3A) CC≤5mArms (I>3A)
• Voltage Accuracy: ±0.5%rdg+2 characters
• Voltage Accuracy: ±0.5%rdg+2 characters
• Display Resolution: ±0.5%rdg+2 characters
• Supply Voltage: 220V±10% 50Hz (110V±10% 60Hz if required)
• Operating Conditions: Temperature 0℃~40℃ / Relative humidity <80%
• Storage Conditions: Temperature -20℃~80℃ / Relative humidity <80%
• Operating Method: CV/CC
• Protection Methods: Current-limiting buck, short circuit protection, overheating protection
• Cooling Method: Cool air
• Dimensions: L370×W250×H160mm
• Rated Output Power: 315W
• Unit weight: 10.8KG
