Yihua 8858-V

Description:

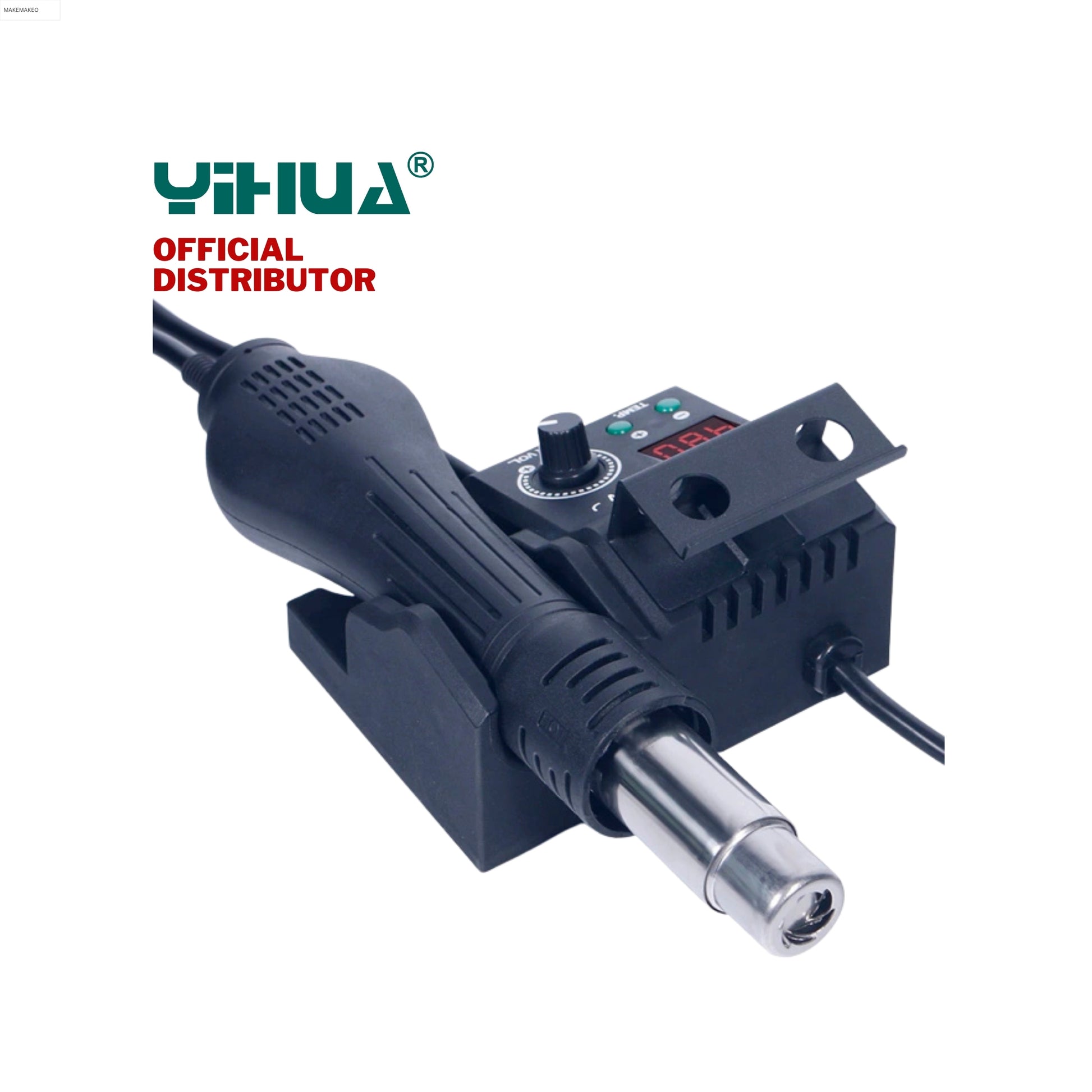

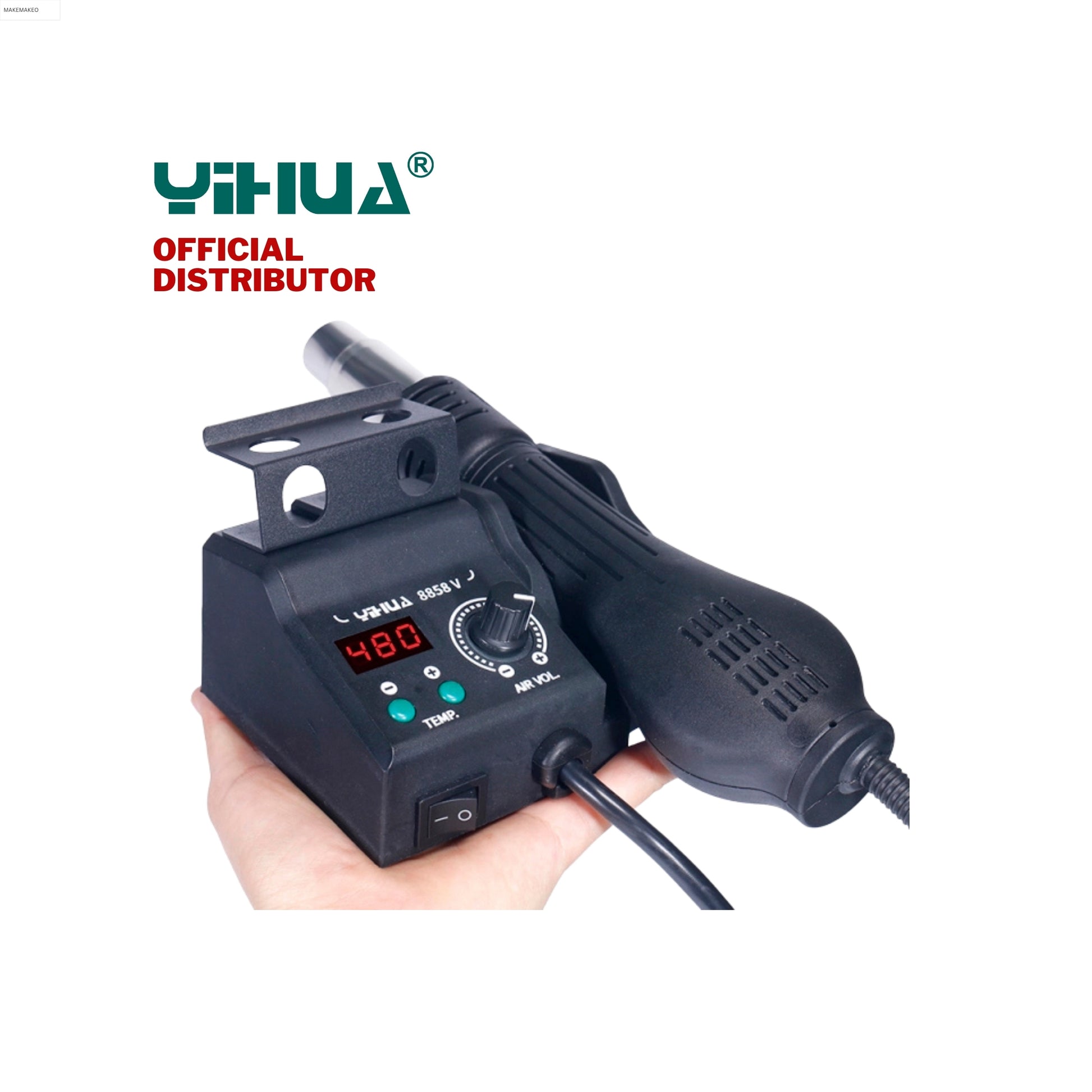

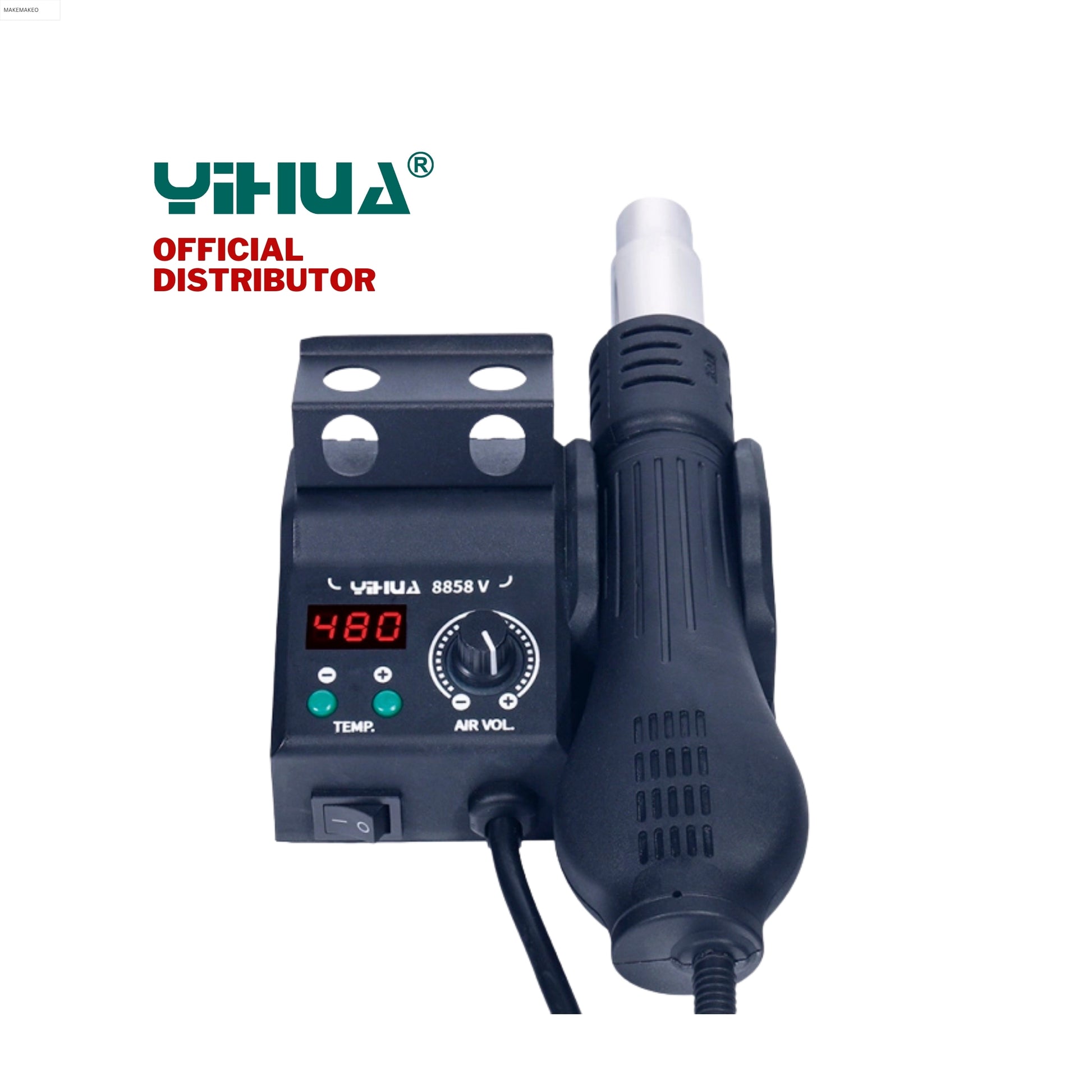

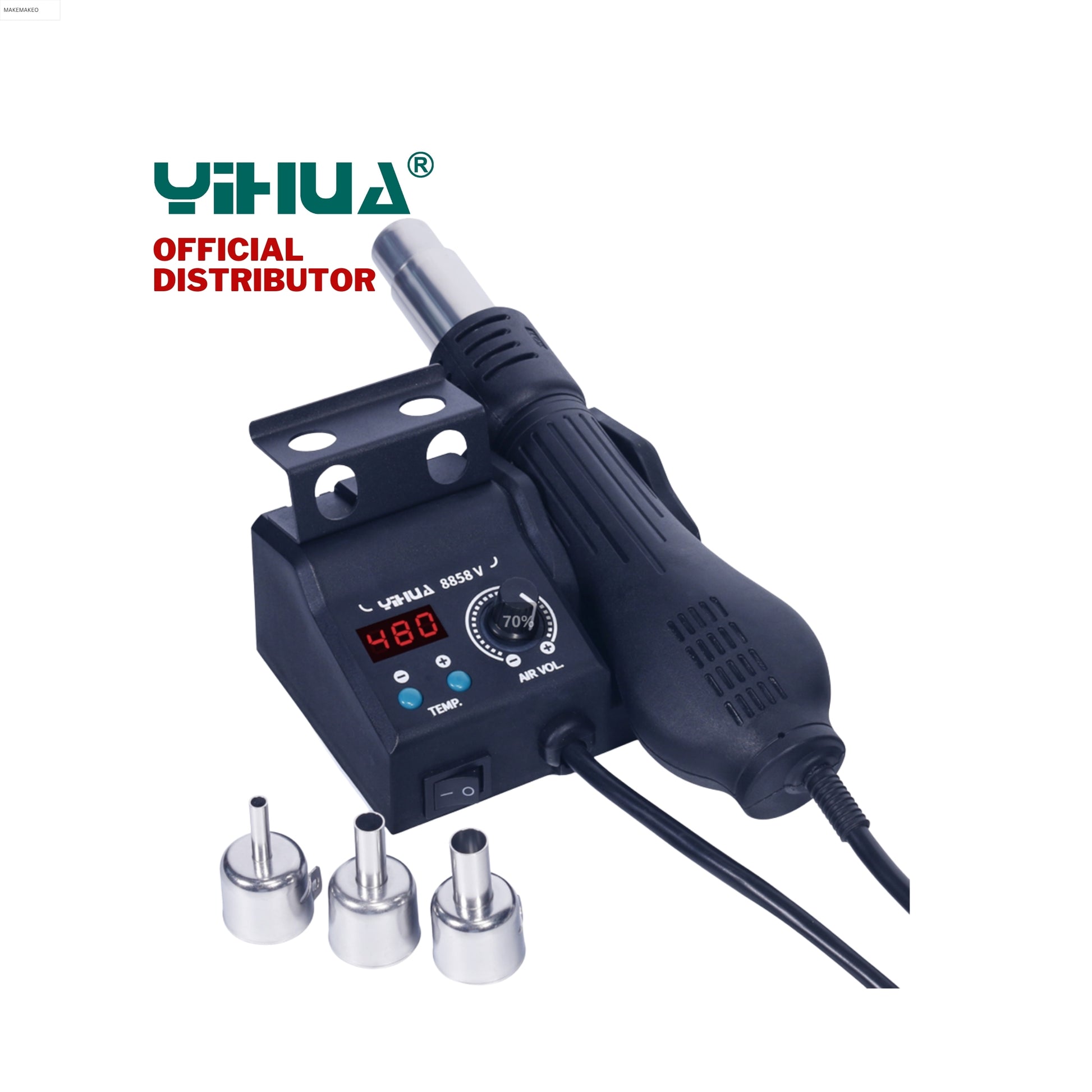

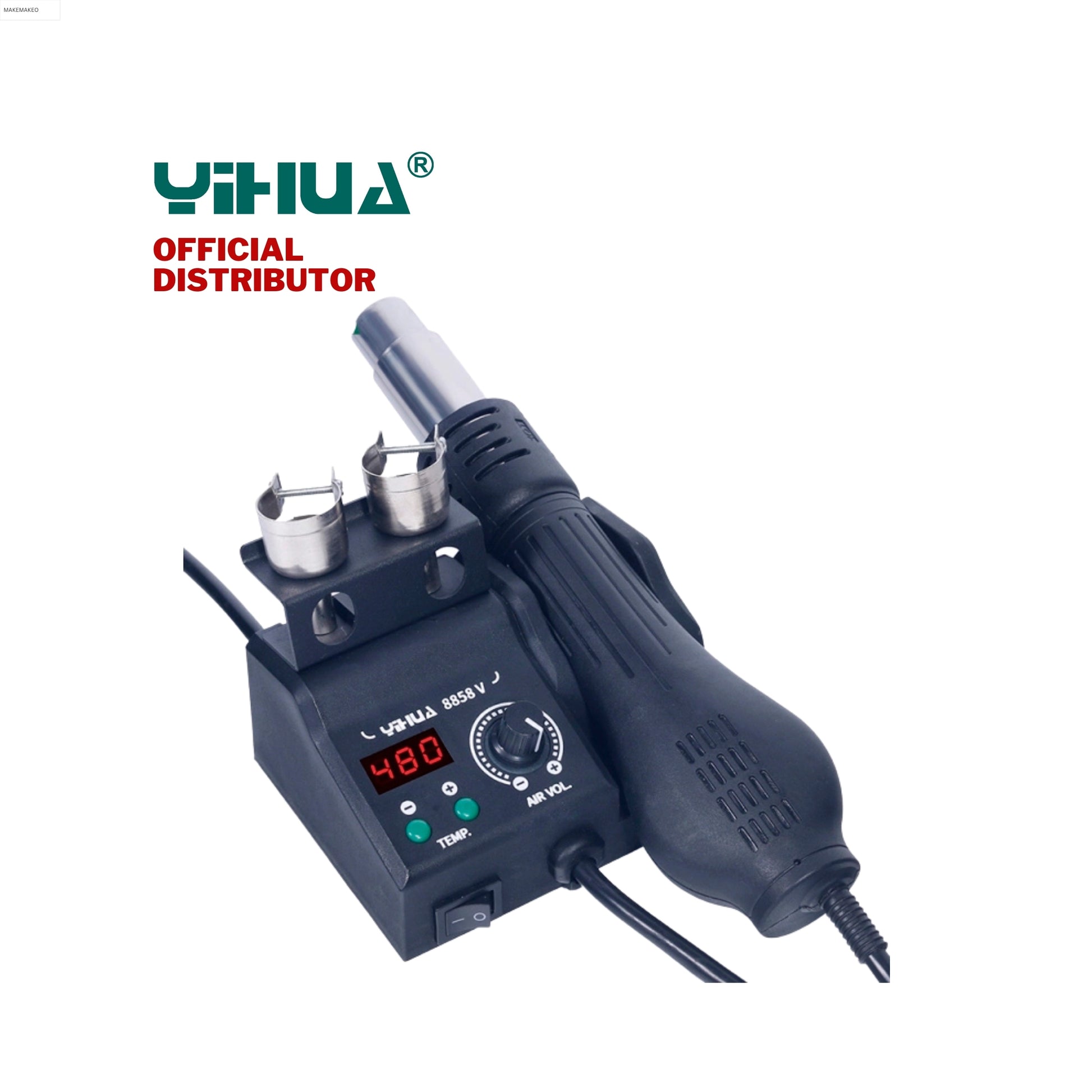

This YIHUA 8858-V handheld digital hot air rework gun features a compact structure and lightweight that makes it easier to carry and operate. This hot air gun utilizes a high-quality heater with a stable performance and longer service life.

Features:

• The digital hot air rework gun features a PID programmable temperature microcontroller track the temperature in real time, as well as an auto temperature correction with a minimum tolerance.
• Adjustable airflow rate and hot air temperature.
• The hot air gun is driven by a high power blower with a long service life.
• This hot air rework gun comes equipped with an insert-type ceramic skeleton heater for easy and convenient repair and replacement.
• The interchangeable temperature display mode will display in both Celsius and Fahrenheit in order to meet the needs of different international customers.

Applications:

• This unit is suitable for rework and soldering operations on a broad range of components, example, SOIC, CHIP, QFP, PLCC, BGA, SMD, and more. This unit is especially suited for rework operation in-line sockets.
• This rework station can be used for heat shrinking, drying, paint removal, conformal coating removal, defrosting, pre-heating, glue soldering, and more.


Specifications:

• Input voltage: ~220V ±10% 50Hz
• Output Power: 700W
• Temperature range: 100℃-480℃
• Display mode: LED display
• Airflow type: Blower
• Airflow: 120L/min (MAX.)
• Handle size: L305 x W60 x H60MM ±3MM
• Operation temperature: 0~40℃/32℉~104℉
• Storage temperature: -20℃~80℃/-4℉~176℉
• Storage Humidity: 35%~45%
