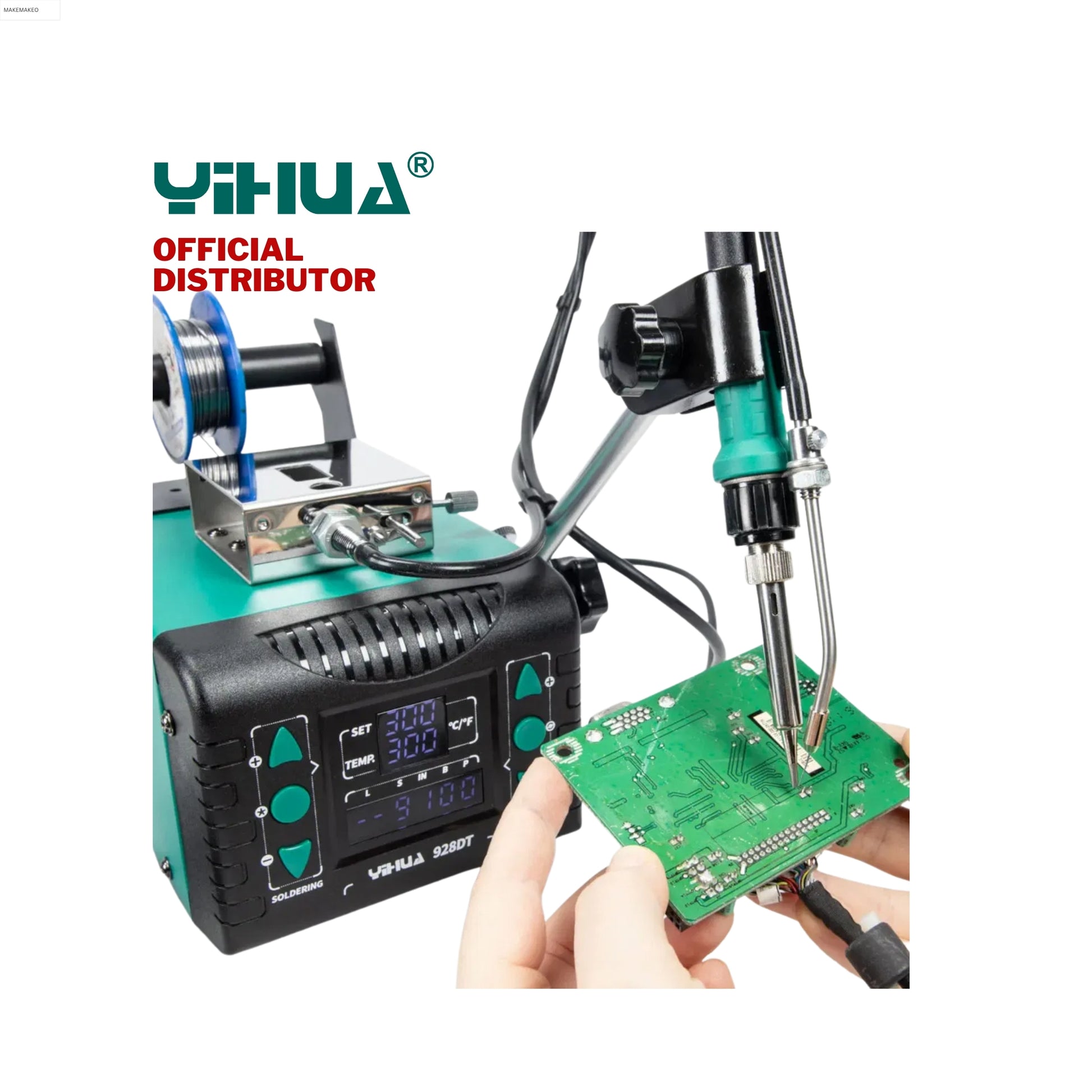

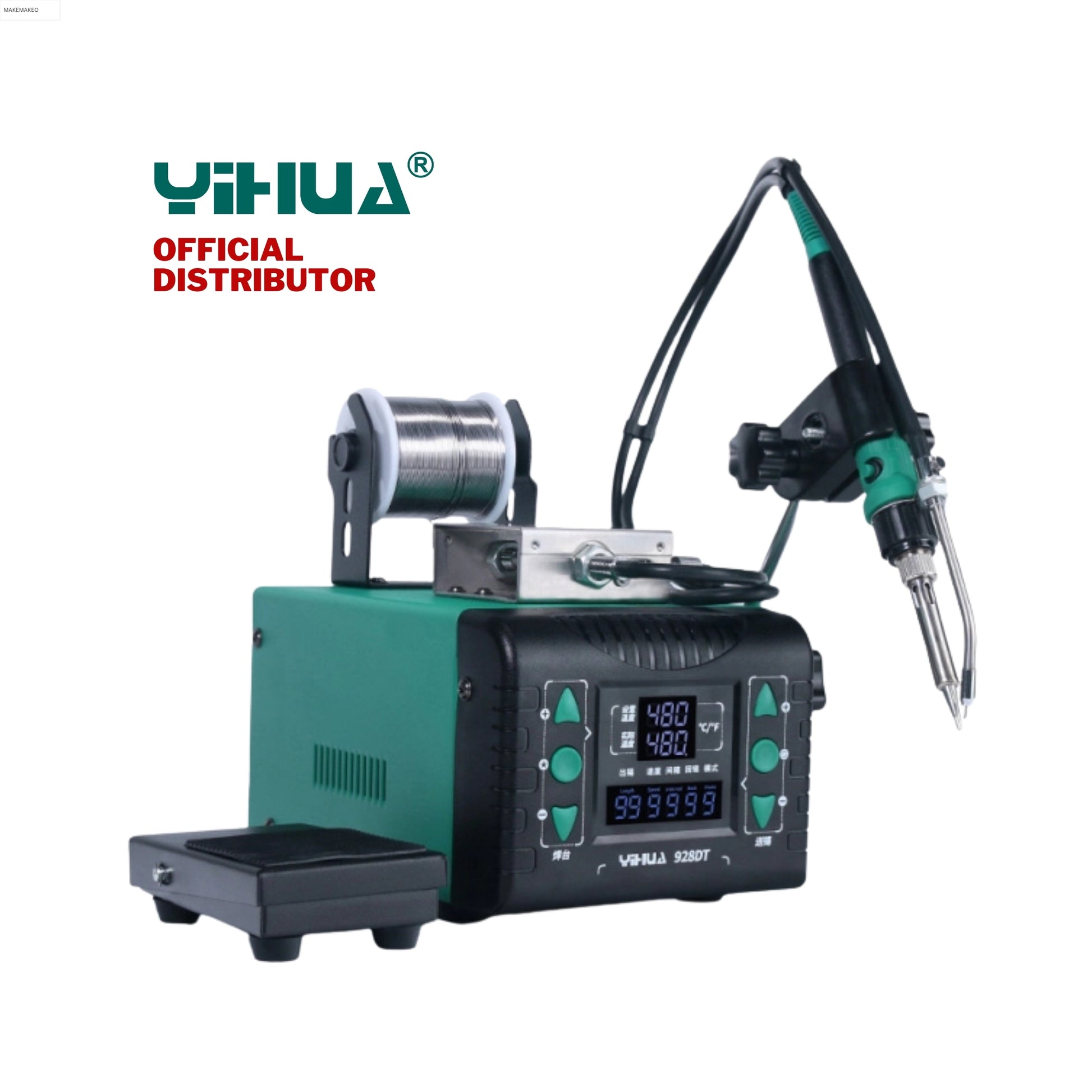

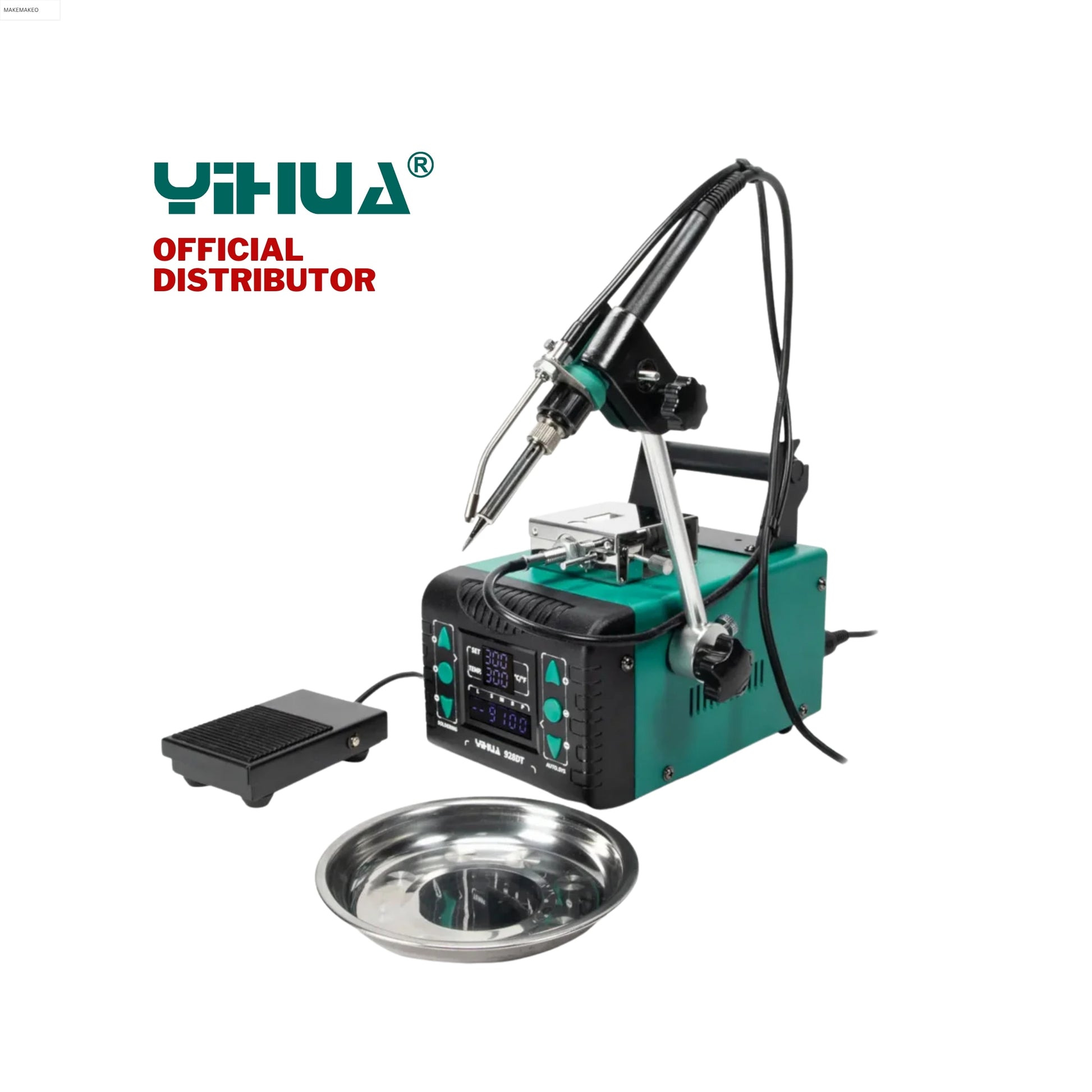

Yihua 928DT High Power Soldering Station Pedal Constant Temperature Soldering Iron Industrial Grade Electric Soldering Iron

Description:

The Yihua 928DT High Power Soldering Station Pedal Constant Temperature Soldering Iron Industrial Grade Electric Soldering Iron is a reliable choice for electronics professionals. It features an automatic solder wire feeder that enhances both accuracy and work efficiency. Designed with an ESD-safe system, it ensures protection for both the user and sensitive electronic parts. Its compatibility with multiple tip types, including the 900M-T series, makes it a flexible tool suitable for various soldering tasks.

Features:

• Automatic tin feeder: precise feeding of binder controlled by the operating pedal.
• Fast heating: 65 W power ensures that the desired temperature is quickly reached.
• ESD Safe: protects the user and delicate electronic components from electrostatic damage.
• Versatility: compatible with 900M-T tips.
• Advanced control: intelligent temperature correction and eight automatic programs.
• Settings memory: ability to remember up to 9 different work settings.
• Adjustable tin feeder settings: length and speed of binder feed, ability to set the time and length of binder retraction.

Specifications:

• Rated voltage range: 220V~240V/AC, 50Hz
• Soldering iron power: 110W
• Operating temperature: 0°C~40°C
• Display mode: LED digital tube
• Temperature range: 200-480°C
• Motor: stepper motor
• Temperature control method: PID program temperature control
• Applicable solder wire diameter: 0.6-1. 2mm
• Temperature Correction: Yes
• Fahrenheit/Celsius Conversion: Yes
• Out tin switch: handle + pedal, pedalTemperature Stability: ±2.0°C (Static)
• Working Environment: 0°C ~ 40°C
• Storage Environment: -20°C ~ 80°C
• Storage Humidity: 35% ~ 45%
• Dimensions: 200 x 170 x 273 mm
• Weight: 3.4 kg
