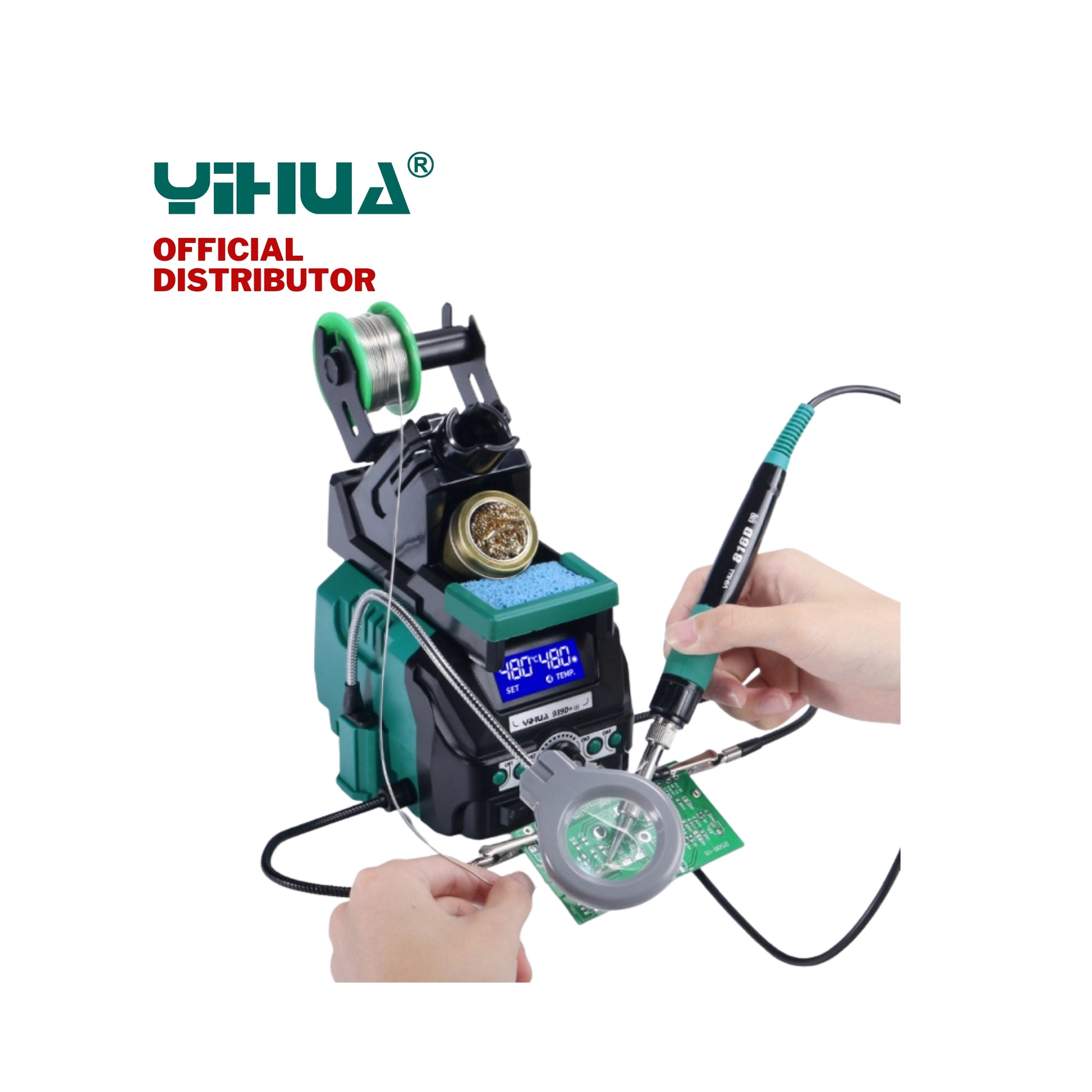

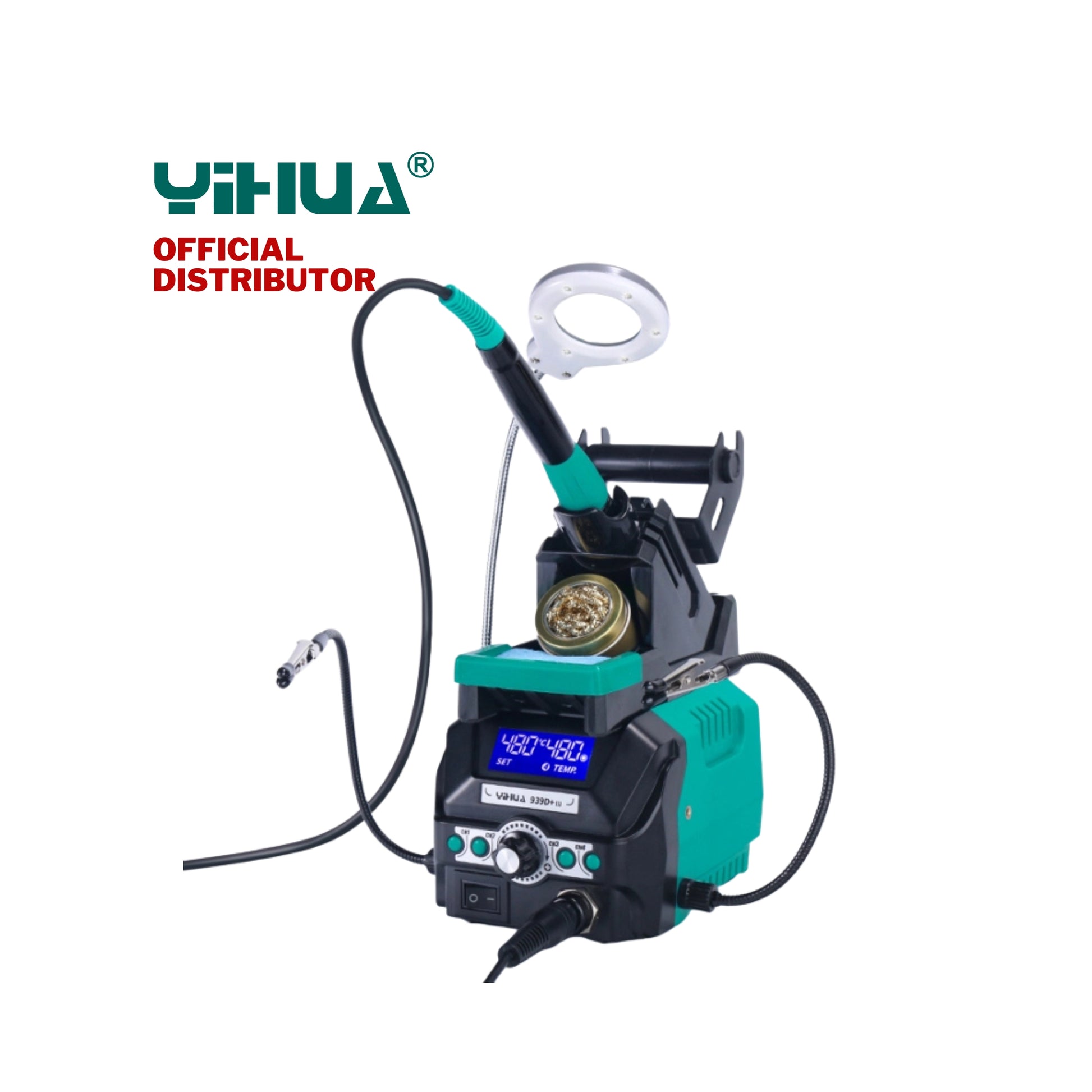

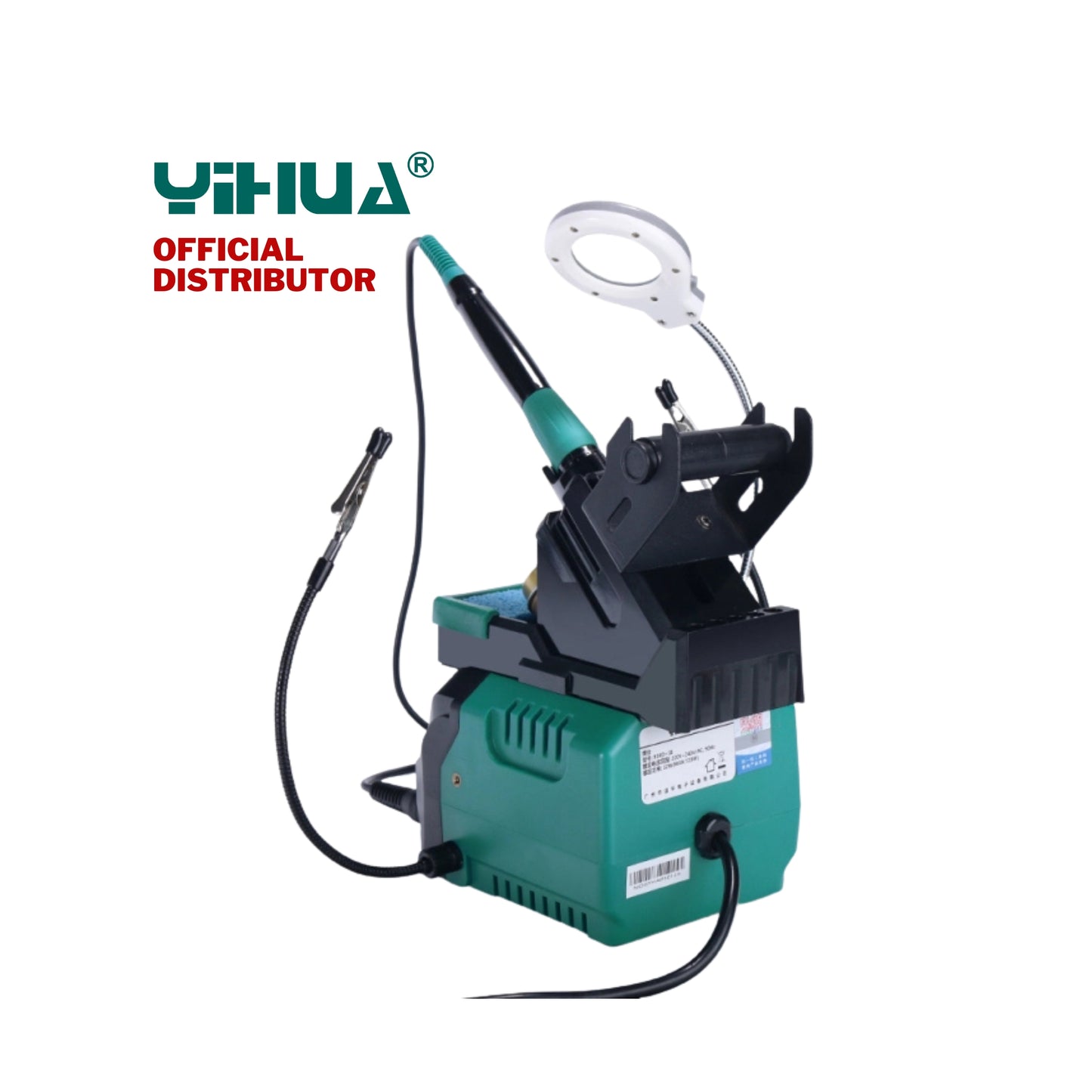

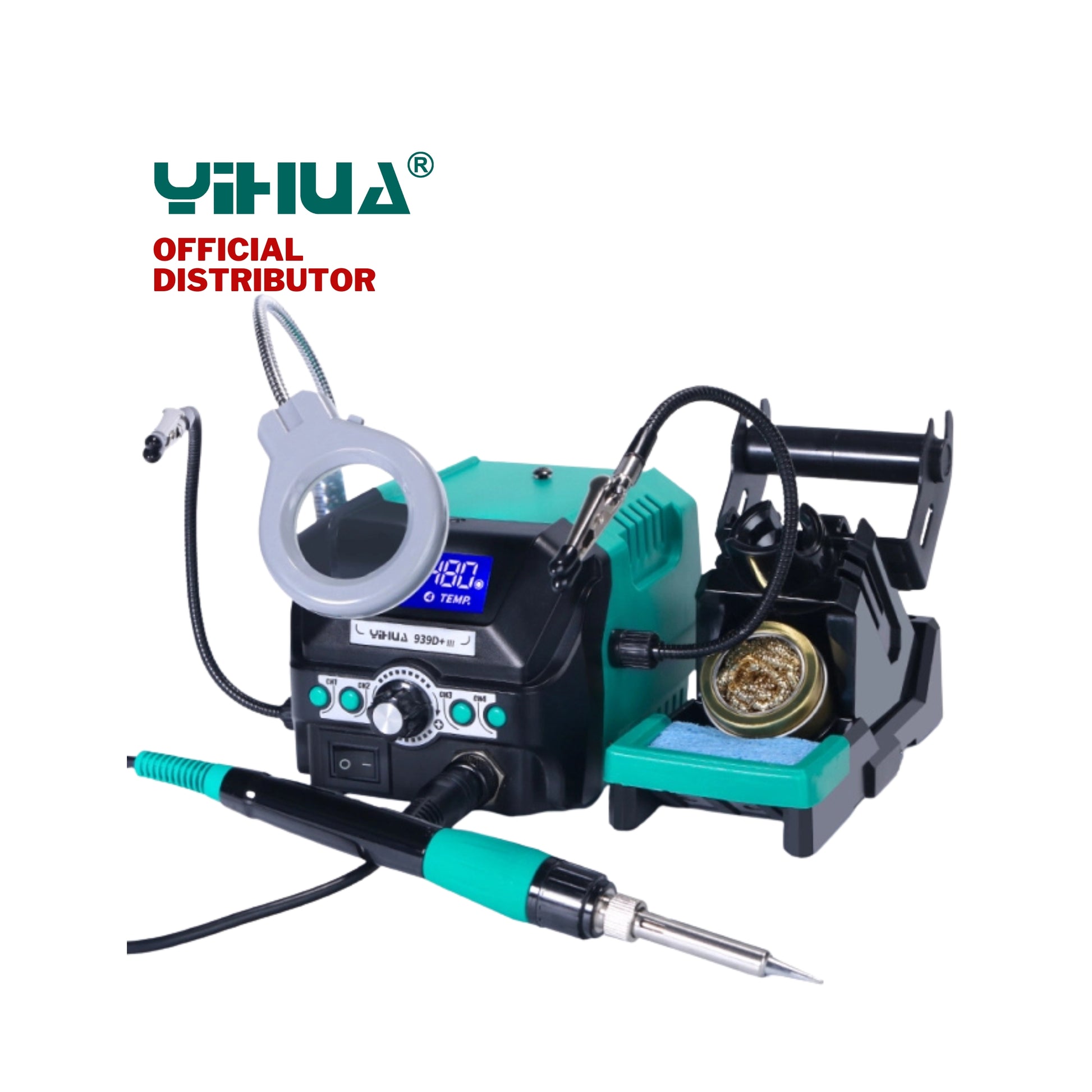

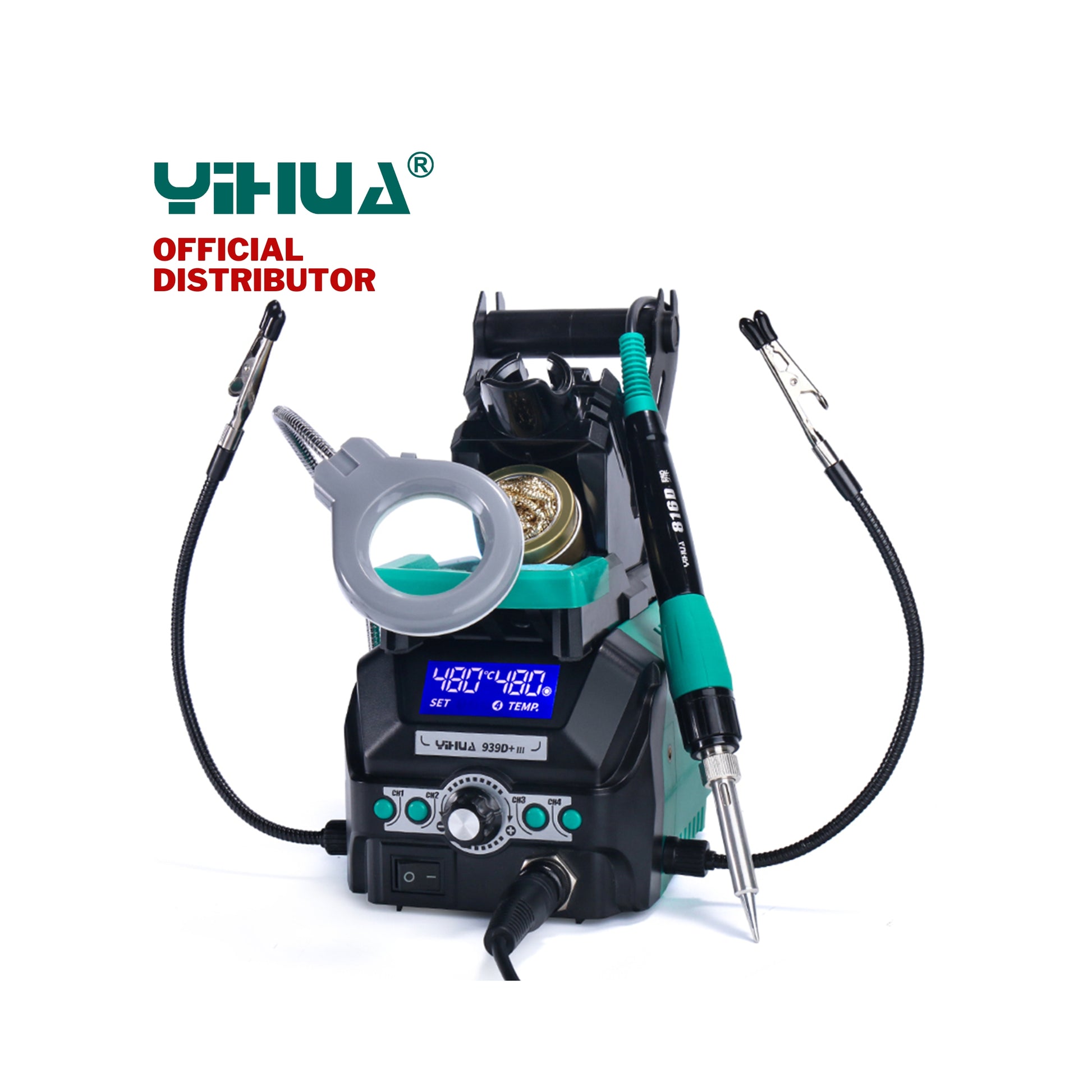

Yihua 939D+III Soldering Station with Helping Hands and Magnifying Lens

Description:

The YIHUA 939D+ III is a soldering station comes with advanced functions, precision features, and essential soldering / de-soldering tools & accessories. You can use the station for general purpose soldering, advanced & precision soldering, professional repair works and other professional applications. We engineered this soldering station for you to experience a more efficient and convenient workflow.

Features:

• Have 4 memory channels, dual-temp. display, sleep mode, calibration, 2 helping hands, a magnifier with led lights, and more. It is suitable for general purpose, advanced, precision soldering, electronic repair works and more.
• The solder iron temperature range is 392~896°F adjustable, the built-in PID temperature stabilization programmed keeps the temperature steady for a smooth soldering experience. Unlike other soldering iron kit, The LCD display shows the actual temperature and setting temperature at the same time easy reference.
• This solder station include functions such as 4 memory channels, digital temperature calibration, and more. You can store four sets of temperature settings and quickly select any, so you don’t have to constantly adjust temperature settings for different work. You can calibrate the soldering iron by simply measuring and entering its actual temperature value in the calibration menu.
• X2 Storage System- As compared to the flimsy soldering iron stands, the X2 holder system provides a stable holster for the soldering iron, while integrating all the essential cleaning tools you need in ONE. We integrated the iron holder, cleaning kit, protective residual tray, soldering tips temporary storage slots, and solder wire dispenser into one stable holder to help clean up your workspace and improve the safety factor.

Specifications:

• Heating Core Power: 110W
• Temperature Range: 200°C–480°C / 392°F–896°F
• Temperature Stability: ±10℃ (Static)
• Voltage: AC 110V–240V
• Operating Voltage: AC 26V±10%  50Hz
• Display: LCD
• Security Features: ESD Safe
• Tip to Ground Resistance: <2 ohms
• Tip of ground voltage: <2mV
• Operating Ambient Temperature: 0°C–40°C / 32°F–104°F
• Main Unit Dimensions: L168×W128×H185mm ±5mm
• Weight: 2.64KG

Applications:

• Professional Repairs
• Cellphone / Laptop Repair
• Radio / Automobile PCB Repair
• Standard Size Circuit Board Repairs
