Description:

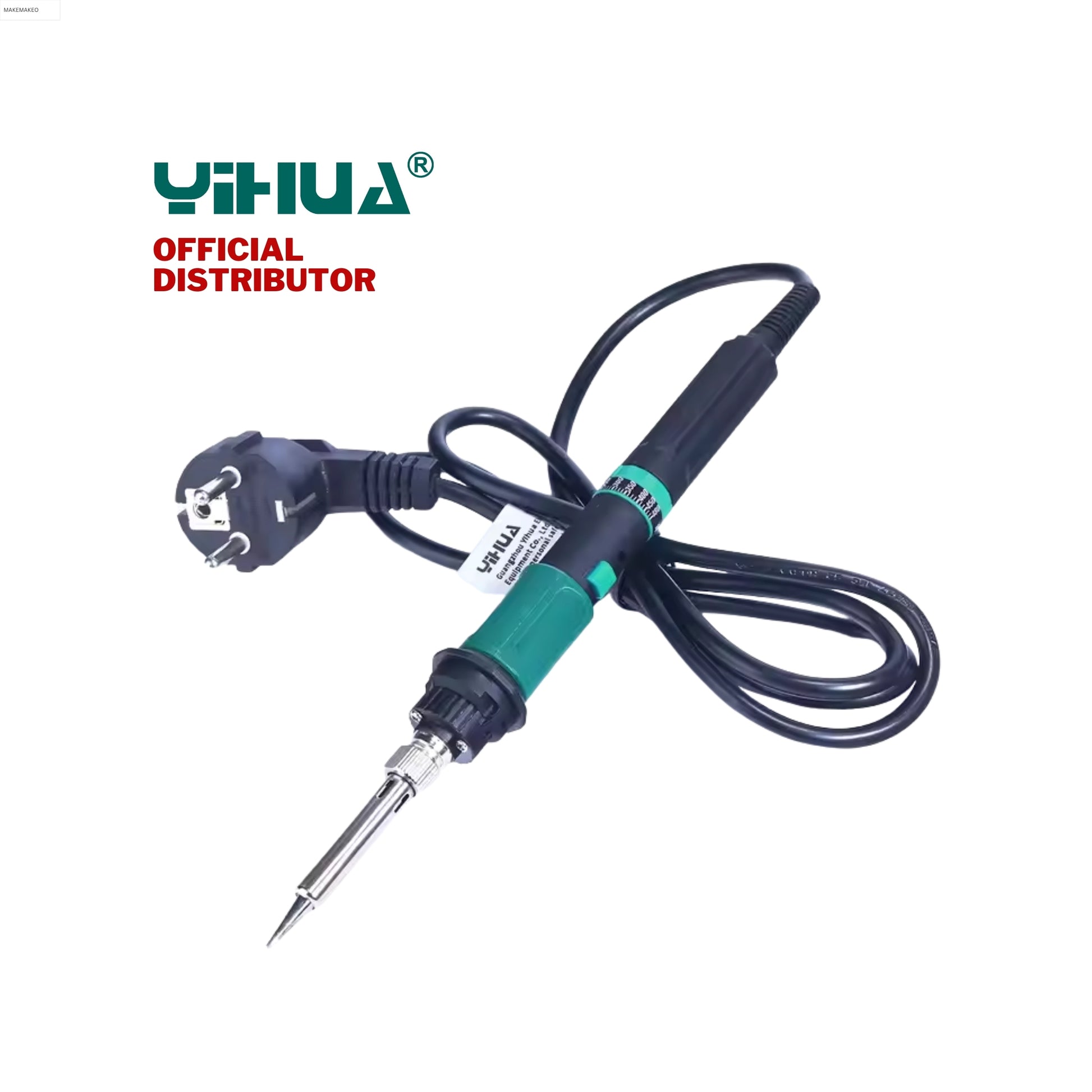

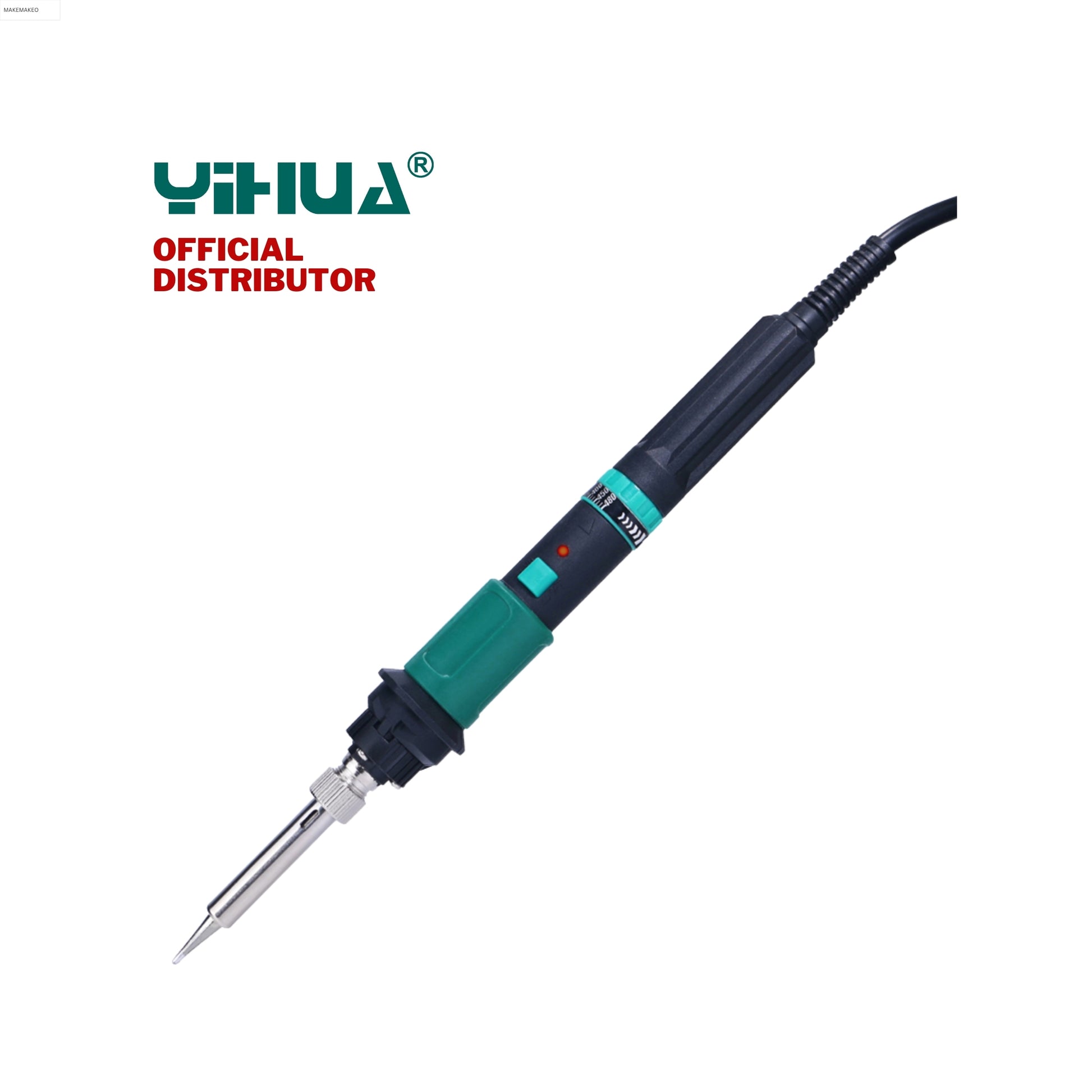

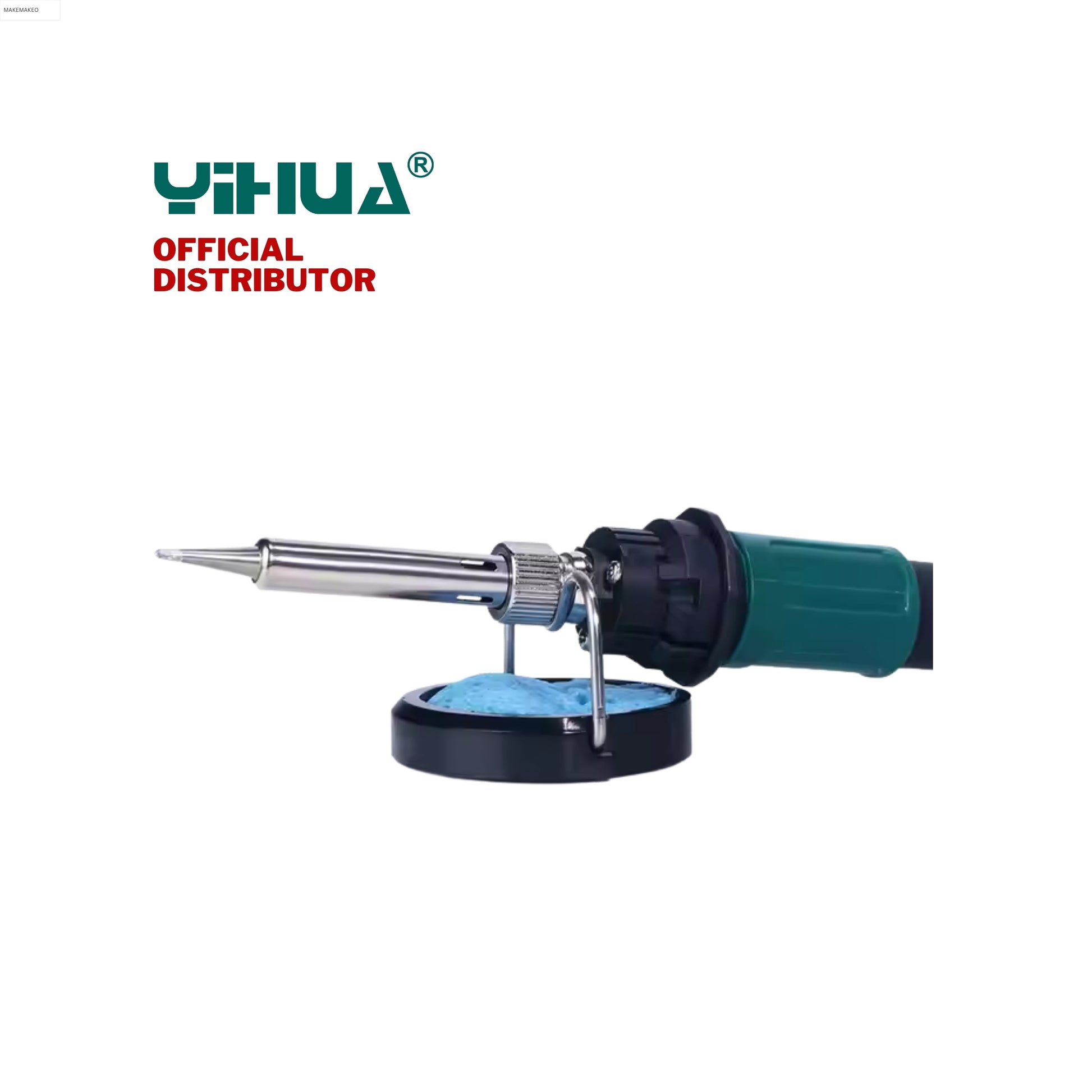

A compact, portable, temperature‑controlled 60 W soldering iron kit, ideal for electronics hobbyists and on‑the‑go repairs. It supports through‑hole and light SMD work with reliable heating and a handy power switch.
Features:
- New design, new looking, with temperature adjustable dial knob, showing temperature by scales.
- Soldering iron is designed with ON/OFF switch control, works at adjustable thermostat temperature from 220°C to 480°C, fitting most universal soldering needs.
- Use long-life lead-free solder tips, can be applied to a variety of lead-free soldering processes.
- Suitable for desoldering and soldering applications on surface-mounted and through-hole components such as SOP, DIP, SOIC, and more.
CAUTION: Upon the first use of the soldering iron, set the temperature to 250°C/482°F. When the temperature is just enough to melt solder wire, coat the soldering iron tip with a new layer of solder (the use of rosin-core solder wire is recommended) before adjusting the soldering iron to your desired temperature.
Specifications:
-
Input voltage: AC 110~127V, 60Hz/220~240V, 50Hz
-
Rate power: 16W
-
Max. power: 135W
- Control Unit Dimensions: L220xW28xH28mm ±5mm
- Operating Ambient Temperature: 0 ~ 40°C/32 ~ 104°F
- Temperature Range: 220°C ~ 480°C/428°F ~ 896°F
- Temperature Control: Sensor-Controlled Temperature
-
Temperature adjusts: Dial knob
- Operation Indicator Light: Yes
-
Weight: 0.3 KG
