Description:

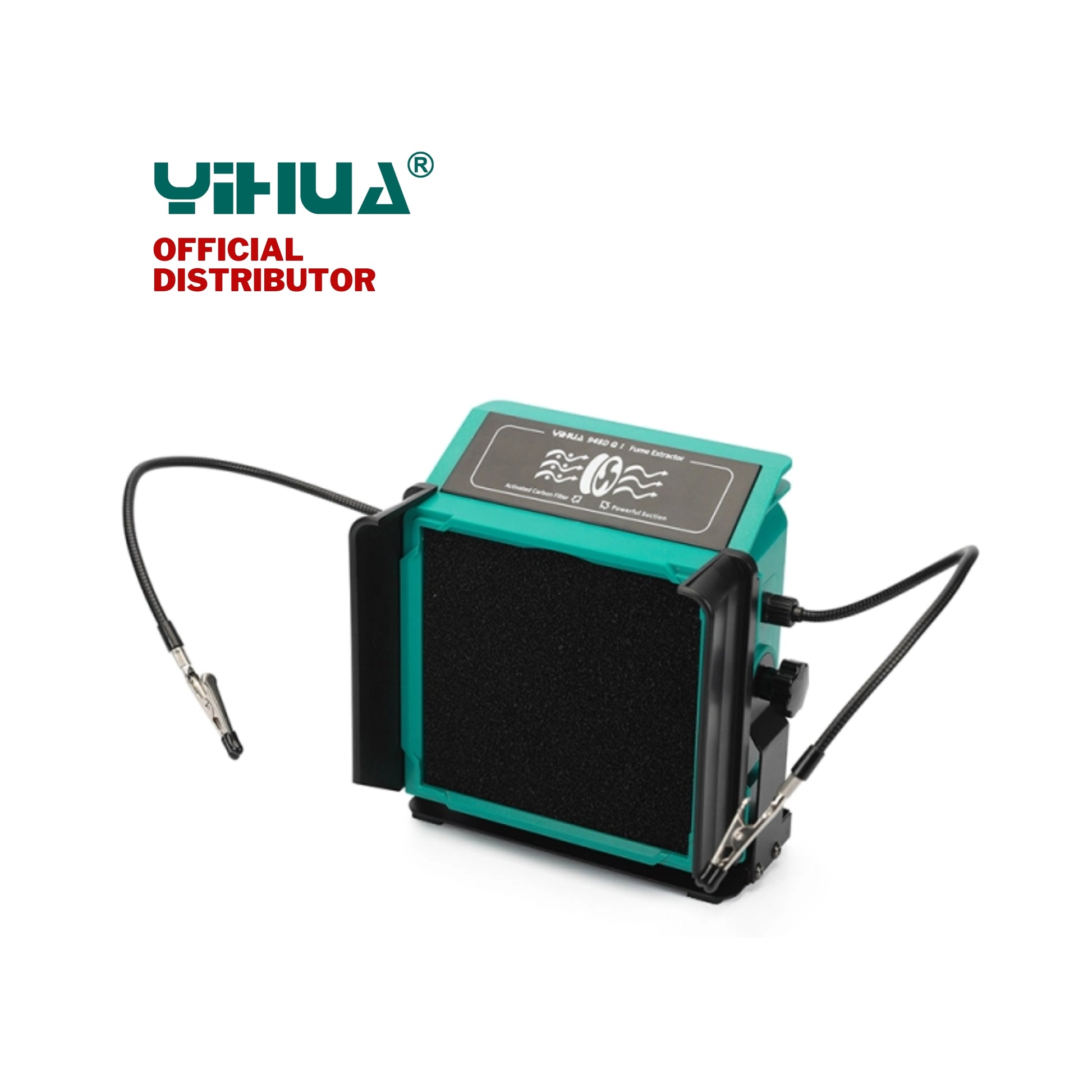

The Yihua 948DQ-I is a compact and efficient solder fume extractor designed to remove harmful fumes generated during soldering, wood burning, and other similar activities. It features a dual-filter system with activated carbon filters at the front and rear to effectively adsorb harmful particles and reduce odors, creating a safer and cleaner working environment. The extractor has a 5-blade fan for effective suction with a relatively low noise level and comes with a 30° tiltable stand for adjusting the effective filtering area. It also includes detachable helping hands with clips to aid in holding workpieces during soldering.
Features:

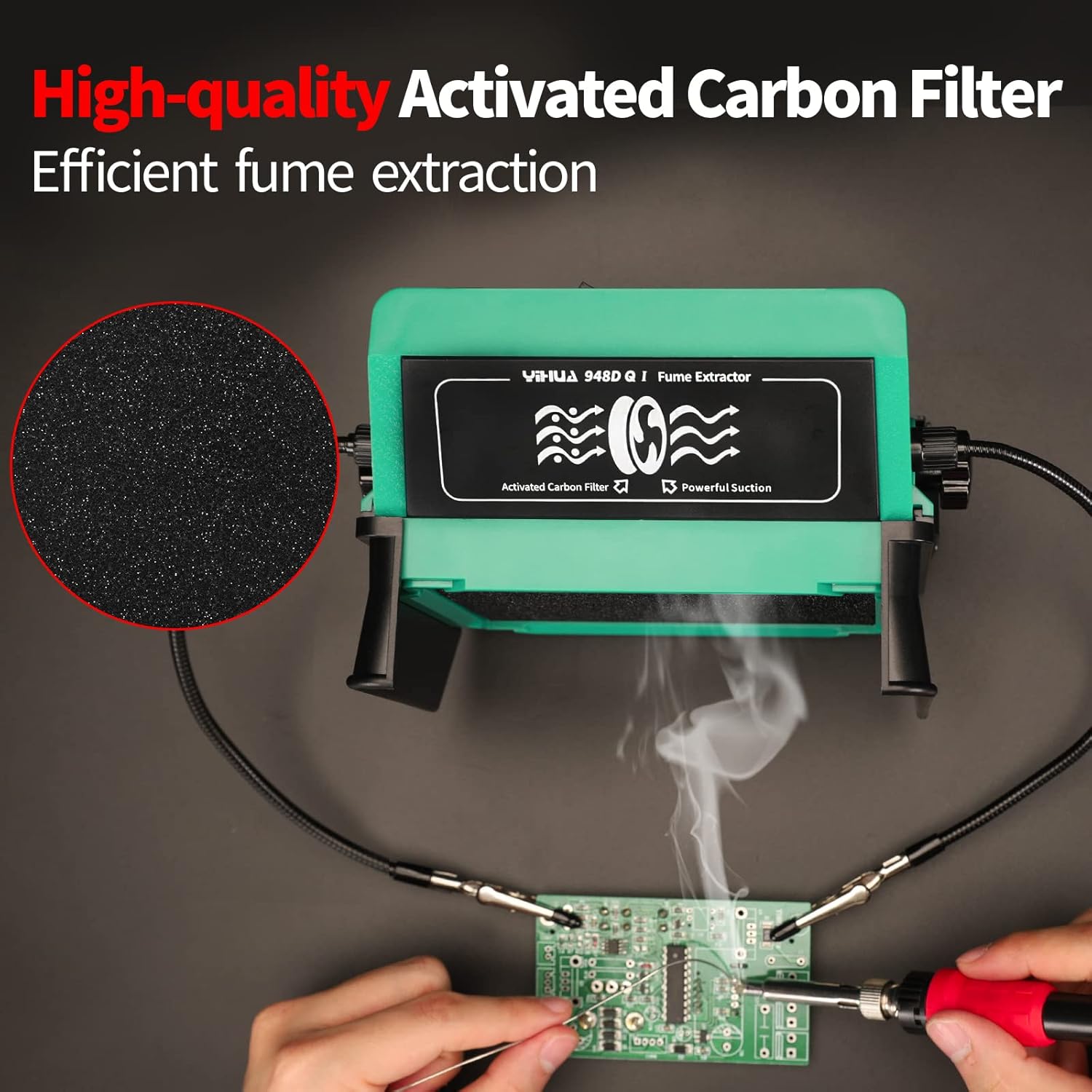

Dual Filtration System - Front and rear activated carbon filters for effective fume and odor absorption.

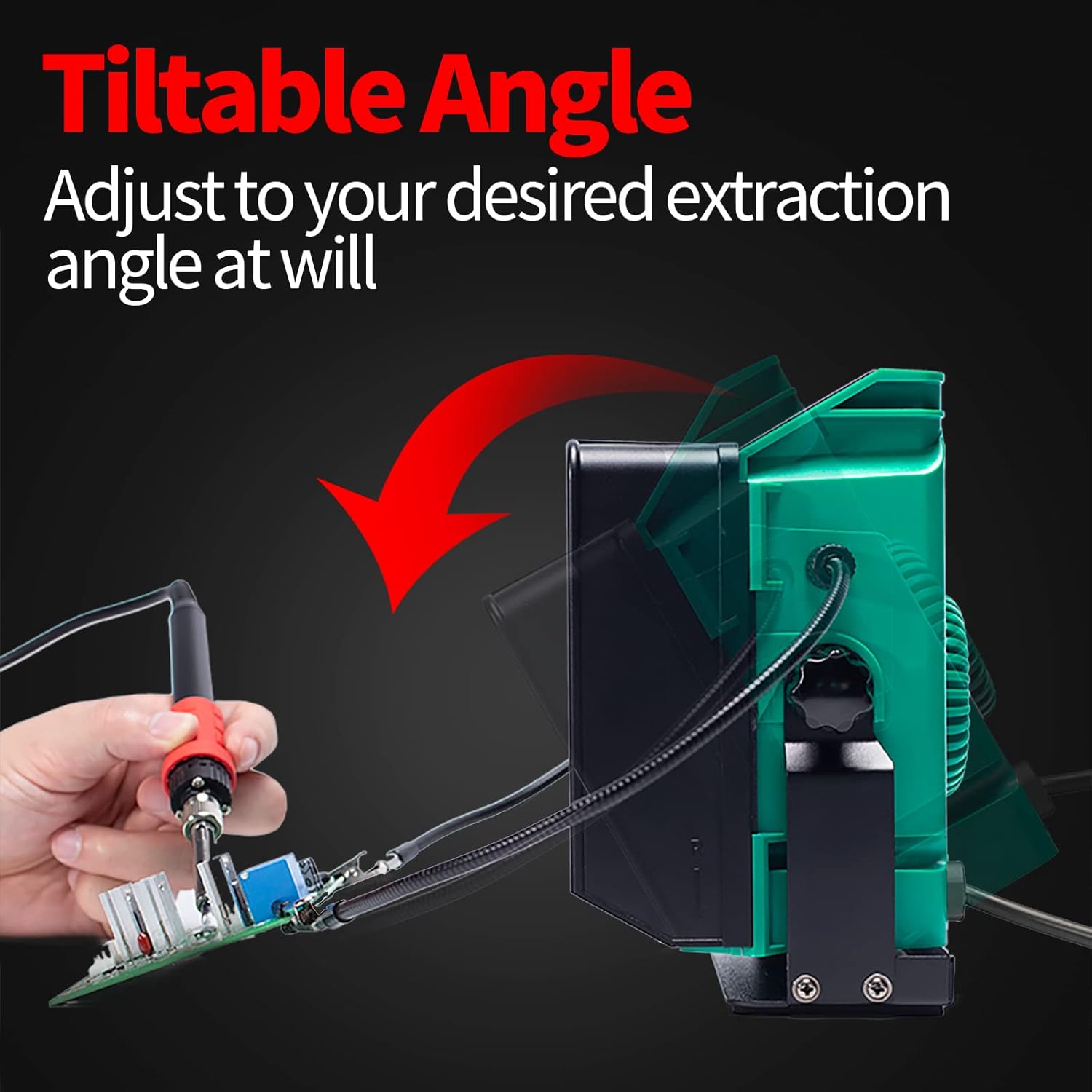

Tiltable Stand - 30° adjustable angle for optimal fume extraction.

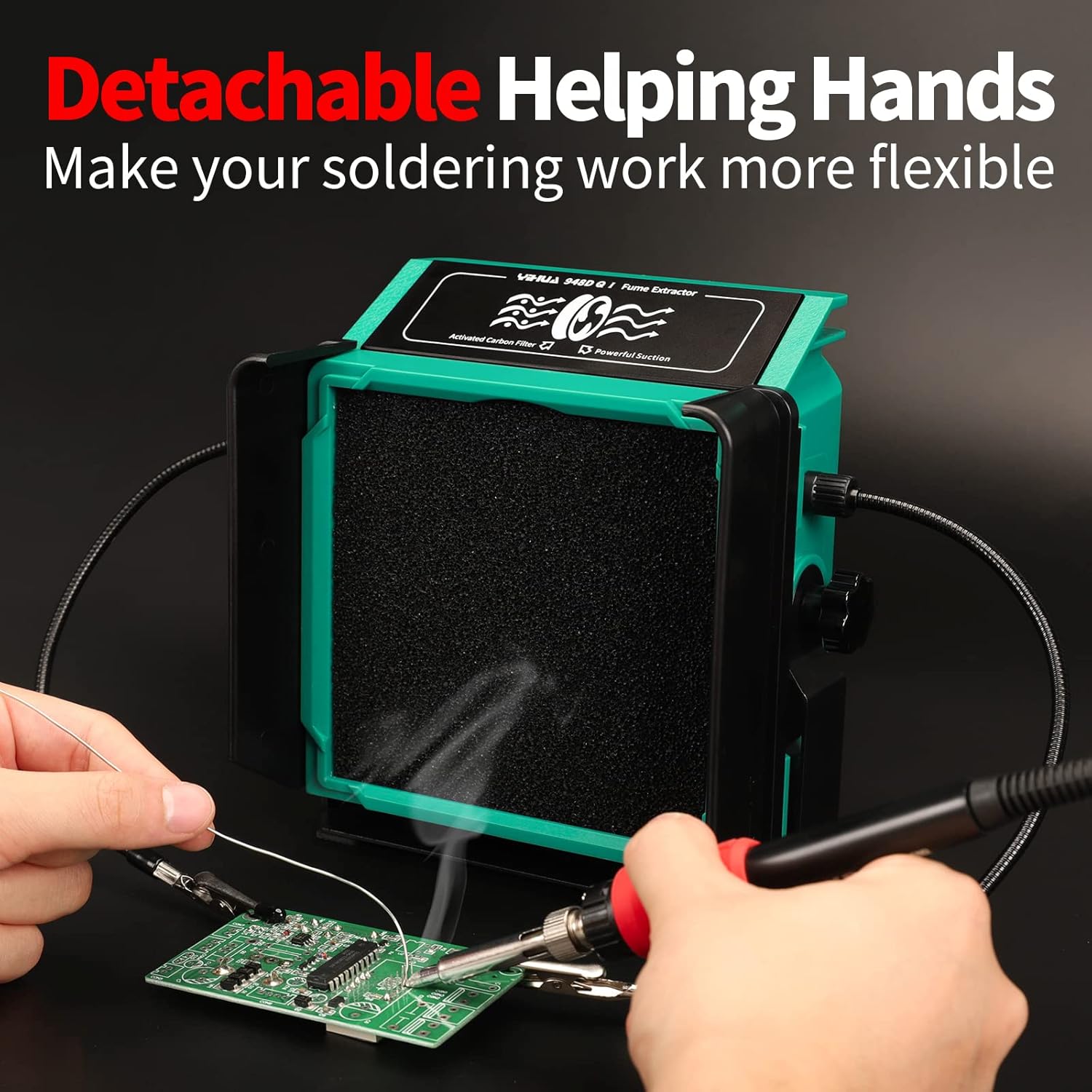

Detachable Helping Hands - Includes two helping hands with clips for holding PCBs and wires.

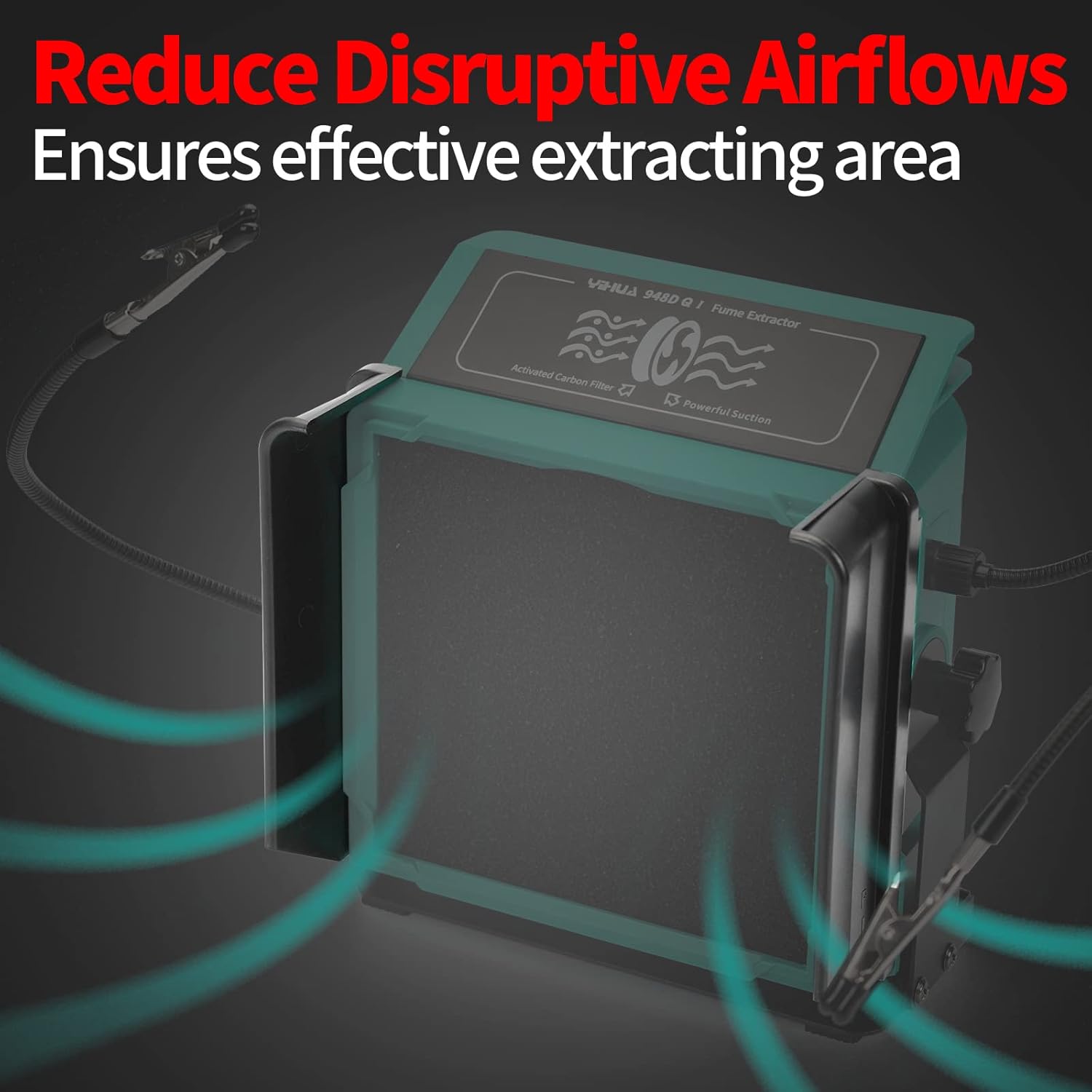

Fenders on Both Sides - Helps to reduce disruptive airflows for more effective fume extraction.
5-Blade Fan - Provides efficient fume extraction with a longer operating lifespan and lower noise.
Compact Design - Space-saving and easy to integrate into a workbench.
Easy Filter Replacement - Designed for convenient filter changes.
Specifications:
Model Number: 948DQ-I
Rated Voltage Range: 110-240V
Rated Frequency: 50Hz - 60Hz
Rated Power: 5W
Air Volume: Approximately 2.7m³/min
Main Unit Dimensions: L90*W145*H164mm ±5mm
Operating Ambient Temperature: 0-40℃/32-104℉
