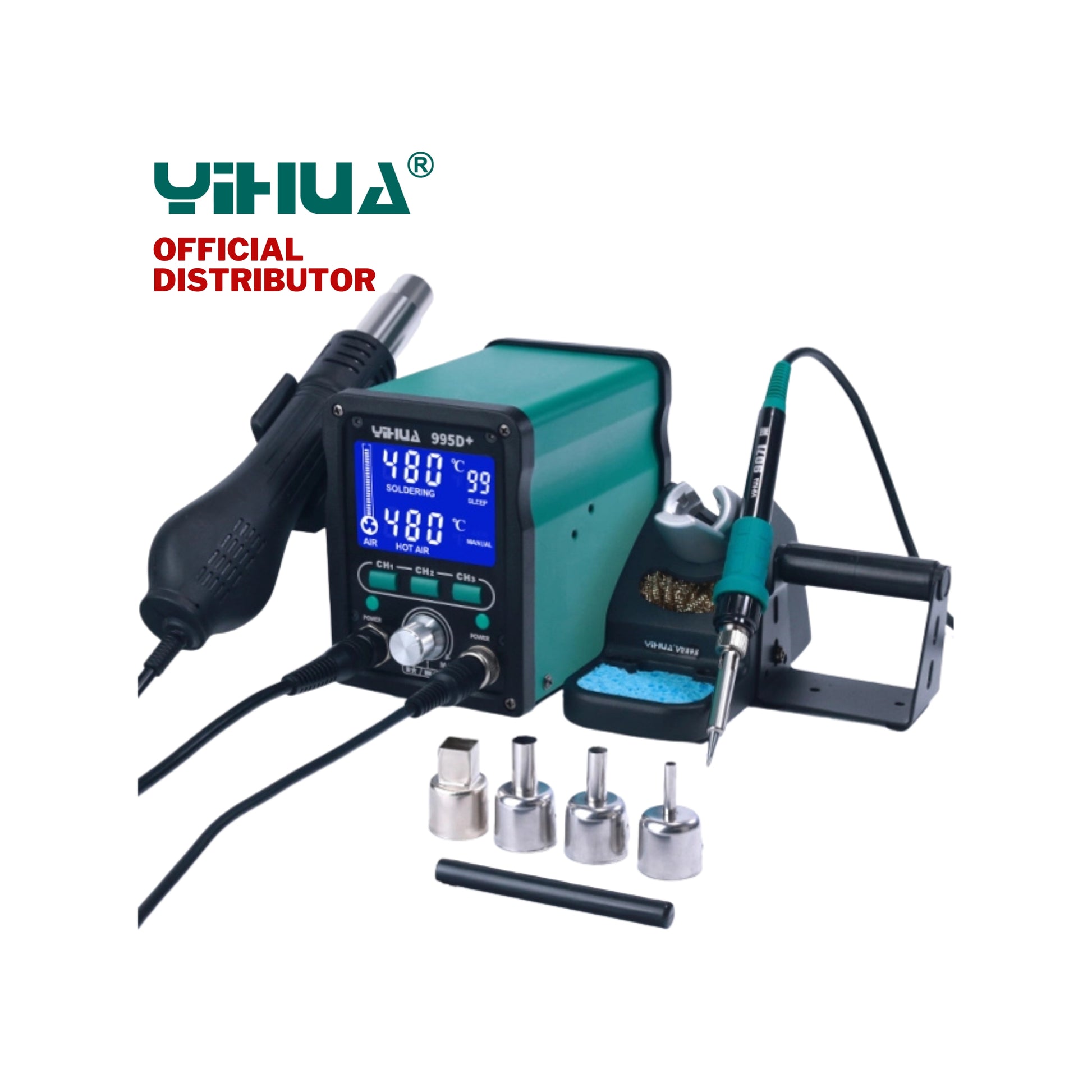

Yihua 995D+ Hot Air Rework Station 2 in 1

₱6,590.00
₱6,590.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Loading locations...
Product Description

Description:

YIHUA-995D+ LCD SMD hot air rework station with soldering iron is designed with three storages: CH1/CH2/CH3. According to the use habit or the device characteristics of assembling and disassembling, the user can set or storage three different gun and iron temperatures / airflow / display mode / iron sleep time / gun AUTO. The setting is manually accomplished.

This machine is added with the cooling function that can facilitate users in rapidly cooling, dismounting, and cleaning the equipment.

Specifications:

Machine

  • Rated Voltage    AC 220V±10% 50Hz
  • Machine Power    720W±10% (max.)
  • 300 ℃ Isothermal Power (PID controlled, energy saving)    220W±10%
  • Working Environment    0 ~ 40℃ Relative humidity < 80%
  • Storage Temperature    -20 ~ 80℃ Relative humidity < 80%
  • Machine Size    13.5*15*10cm
  • Weight    3.5KG

Hot Air Gun

  • Output Power: 650W
  • Temperature Range: 100℃ ~ 480℃
  • Mode of Airflow: Brushless fan
  • Airflow: 120L/min (max.)
  • Temperature Stability: ±1℃ (static)
  • Display: LED (red/green)
  • Temperature Correction: PID digital program proofreading
  • PID Temperature Cycle: Fast 20ms
  • Heater: Heating core ceramics heater

Soldering Iron

  • Output Power: 75W
  • Temperature Range: 200℃ ~ 480℃
  • Temperature Stability: ±1℃ (static)
  • Display: LED (red/green)
  • Temperature Correction: PID digital program proofreading
  • PID Temperature Cycle: Fast 200ms
  • Heater: Imported high-power heater
  • Tips to Ground Impedance:  < 2Ω
  • Tips Voltage to Ground: < 2mV

Part List:

  • Standard Configuration
  • Machine: 1 set
  • Specifications: 1pc
  • Air Gun Handle: 1pc
  • Nozzles: 4pcs (5mm, 8mm, 10mm, 13mm)
  • IC Puller: 1pc
  • Handle Frame: 1pc
  • Iron Handle (including a heater and tips): 1pc
  • Iron Holder: 1pc
  • Power Plug: 1pc

Warranty Policy

This warranty is valid within 1 month from the date of purchase and covers any defects in materials or workmanship under normal use during the warranty period. During this time, we will repair or replace, at no charge, products or parts of a product that prove defective because of improper material or workmanship, under normal use and maintenance.

The warranty does not cover:

  • Damage due to misuse, abuse, negligence, or accidents.
  • Damage caused by unauthorized repairs or modifications.
  • Normal wear and tear.

To file a warranty claim, please contact our customer service department with the following information:

  • Proof of purchase (Sales Invoice).
  • Detailed description of the issue.
  • Photos or videos of the defect (if applicable).
