SKU:MLE00901

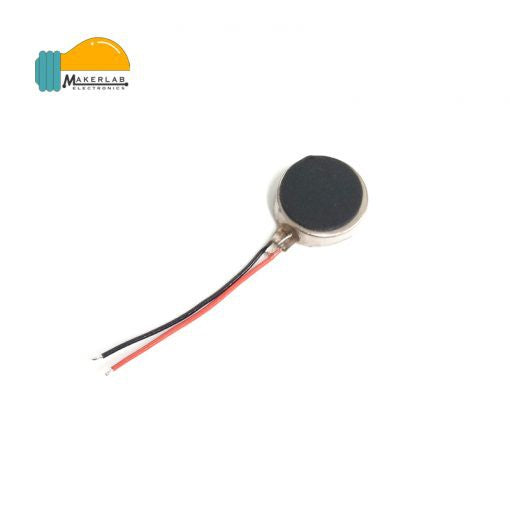

1027 Mobile Phone Flat Vibration Motor

₱50.00 PHP
₱50.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
In stock

About the Product

1027 Mobile Phone Flat Vibration Motor

This 1027 Mobile Phone Flat Vibration Motor is a shaft less vibration motor is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaft less design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project.

The motor has a 3M adhesive backing on it for easy mounting and 1.5? leads for making quick connections. Polarity is not important; the motor can run CW or CCW.

This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads.

Feature:

  • Material: Iron
  • Rated Voltage: DC 3.0V
  • Working Voltage: DC 2.5~4.0V
  • Working Temperature: -20'C ~ +60'C
  • Rated Rotate Speed: Min. 9000RPM
  • Rated Current: Max. 90mA
  • Starting Current: Max. 120mA
  • Starting Voltage: DC 2.3V
  • Insulation Resistance: 10Mohm
  • Terminal Impedance: 31ohm +/- 15% (single posture), 59ohm +/- 15% (double posture)
  • Cable Length: 3cm
  • Dimensions: 1.57 in x 0.39 in x 0.12 in (4.0 cm x 1.0 cm x 0.3 cm)

Package included:

  • 1 x 1027 Flat Vibrating Vibration Motor
