12V WS2815 Neopixel Programmable RGB LED Strip 60 LEDs/M IP65 IP67 4 Wires - 1 Roll of 5 meters

12V WS2815 Neopixel Programmable RGB LED Strip 60 LEDs/M IP65 IP67 4 Wires - 1 Roll of 5 meters

In stock

SKU:MLE03784

Regular price ₱1,500.00
Regular price Sale price ₱1,500.00
Sale Sold out
Black PCB
View full details
Product Description
12V WS2812B LED Strip:

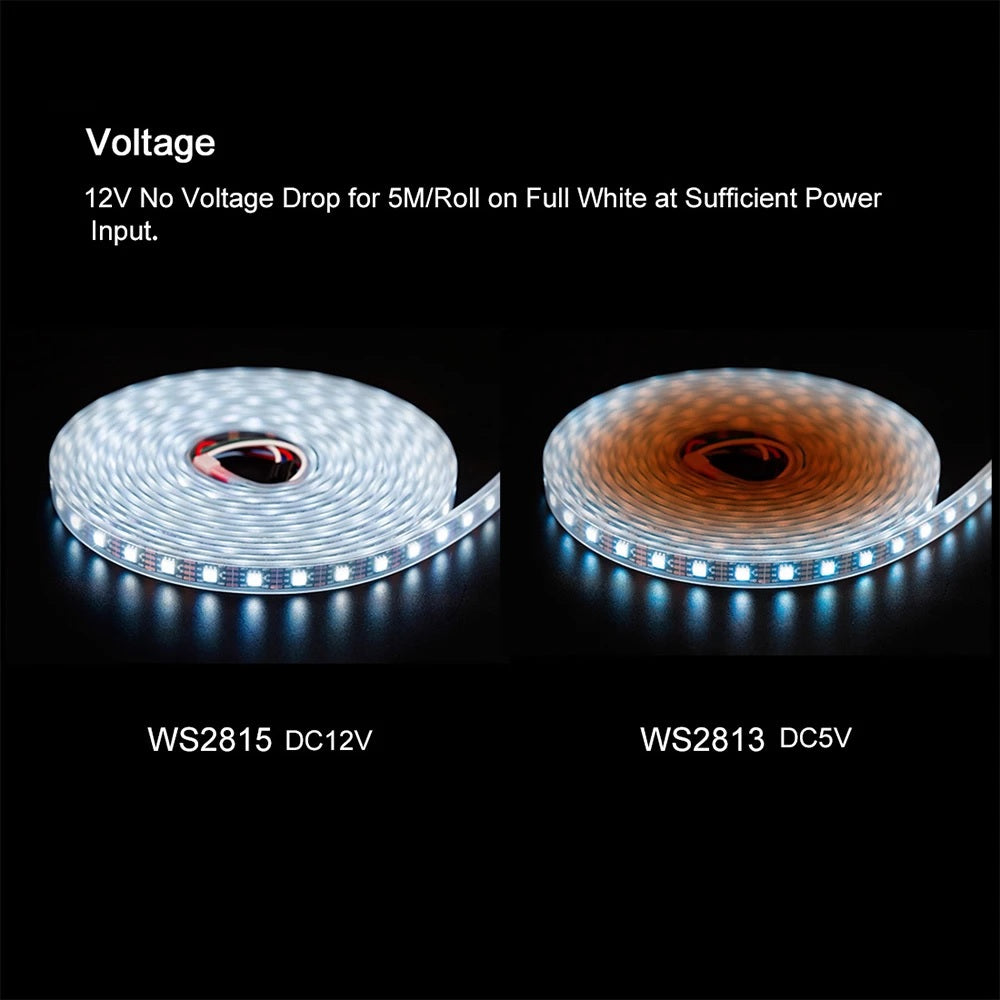

WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don't need to inject power as frequently as 5V version.

Individually addressable:
Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.

Dual-signal wires:

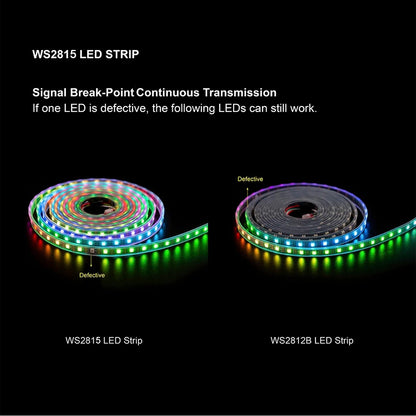

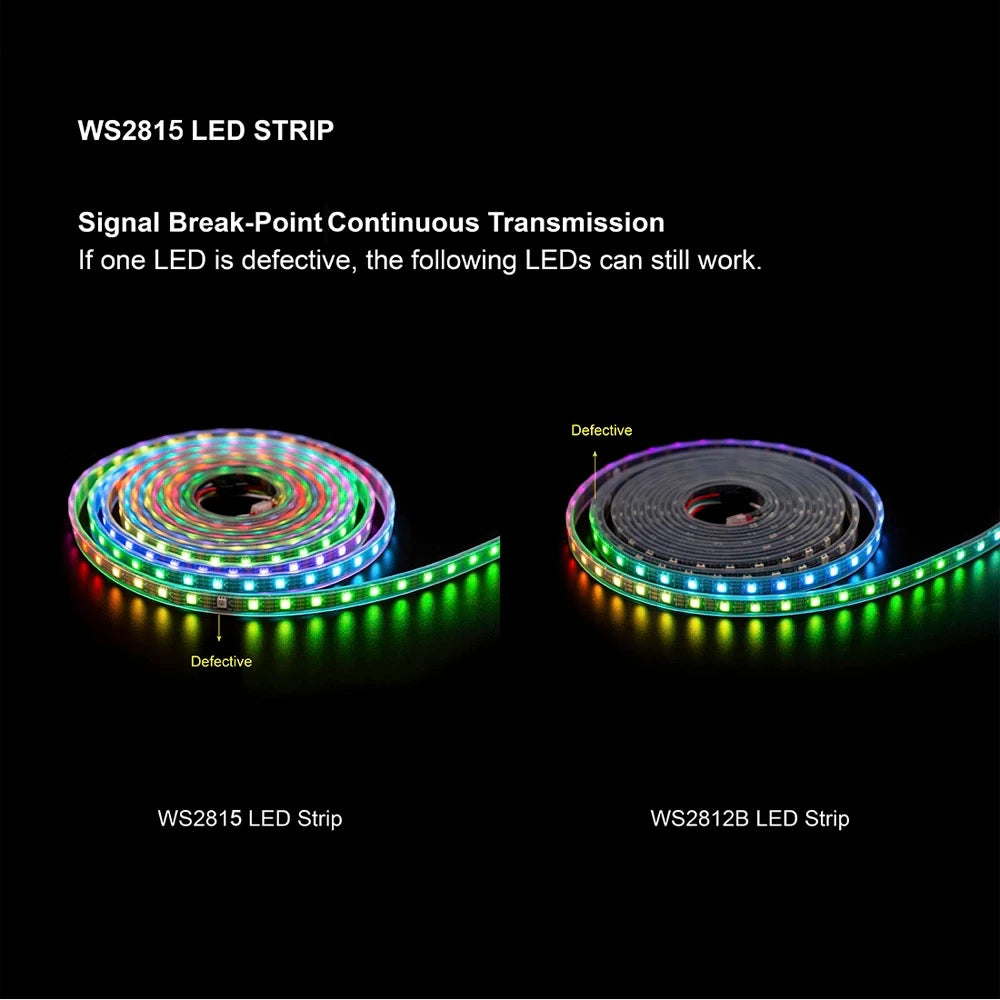

WS2815LED strip is Similar like the version of 5V WS2813 LED strip, Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.

Specifications:
IC type :WS2815 IC.
Gray level: 256.
View angle: 120°.
Input voltage: DC12V.
Color: full color 24-bit.
FPCB board color: White/Black.
Power: 0.3W/LED 30/60/144 LEDs/m.
Model: WS2815 strip 5050rgb chips.
Storage Temperature:-30-+95 °C.
Operating Temperature:-20 ~ +85°C.
Led Qty: 30/60/144pcs RGB SMD 5050 per meter.

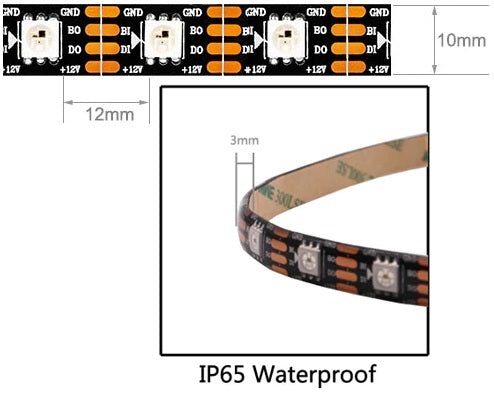

The distance between two LEDs:30Leds/m -- 28mm, 60Leds/m -- 12mm, 144Leds/m -- 1.92mm.
Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm.
Waterproof level: IP30: Non- waterproof, IP65: Waterproof in Silicon Coating, IP67: Waterproof in SiliconTube.

Package includes:
1 x 1M/5M RGB 30/60/144leds/m led strip.
1 x 4pin connector.
