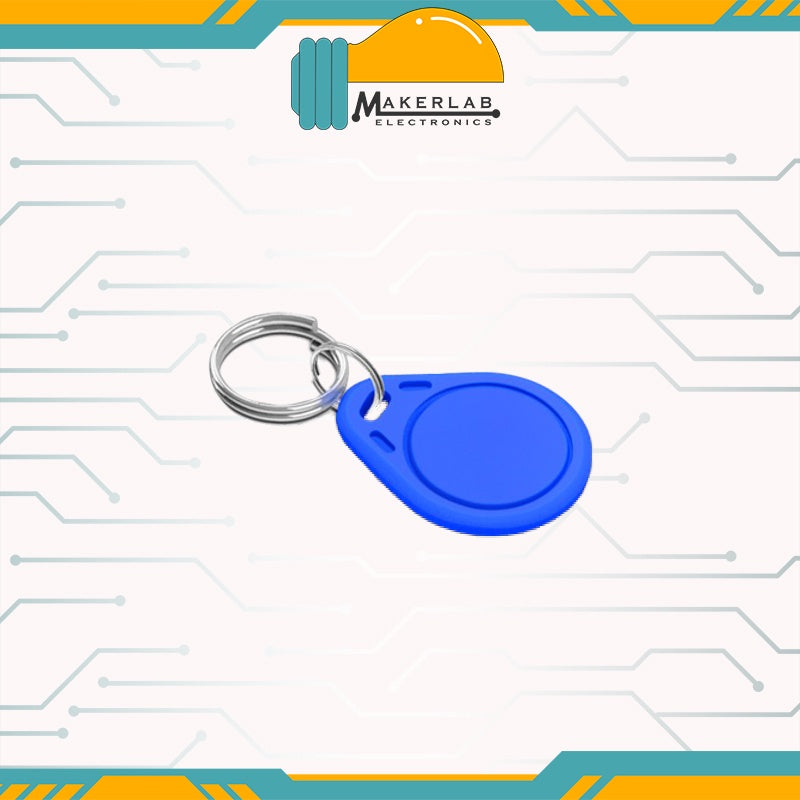

13.56MHz RFID IC Key Tags

Feature :

- Water and dust proof and anti shock

- Printing: Available with logo silk printing, ID number or serial number printing

- Resonance Frequency : 13.56MHZ

- Memory : 8K Bit EEPROM memory

- Communication Rate : 106 KBPS

- Working distance : 10 cm

- 32 Bit serial number Operating temp.range:

-20?- 50?

Parameter :

1?Capacity of 8Kbit EEPROM

2?Divided into 16 sectors, with each sector composed of 4 blocks. Each block is 16 bytes and serves as minimum data unite.

3?Each sector has a separate set of passwords and access control

4. Each card has a unique 32-bit serial number

5?With anti-collision mechanism, it can support multiple card operation

6?No power, with build-in antenna, and contains logic circuit for encryption control and communication

7?Data retention period is 10 years, and can be rewritten 100,000 times, with unlimited reading time

8?Operating temperature: -20 ? ~ 50 ? (humidity 90%)

9?Operating frequency: 13.56MHZ

10?Communication speed: 106 Kbps

11?Read and write distance: <10 cm (depend on the reader)

Composition :

- The electrical parts consist of an antenna and ASIC.

- Antenna: made of winding coils, suitable for packaging in IS0 card.
