2.4GHZ NRF24L01 Module with PA LNA SMA Antenna 1KM

2.4GHZ NRF24L01 Module with PA LNA SMA Antenna 1KM

In stock

SKU:MLE00614

Regular price ₱180.00
Regular price Sale price ₱180.00
Sale Sold out
Or 3 months for only ₱1,000 with . Learn More.
View full details

2.4GHZ NRF24L01 Module with PA LNA SMA Antenna 1KM

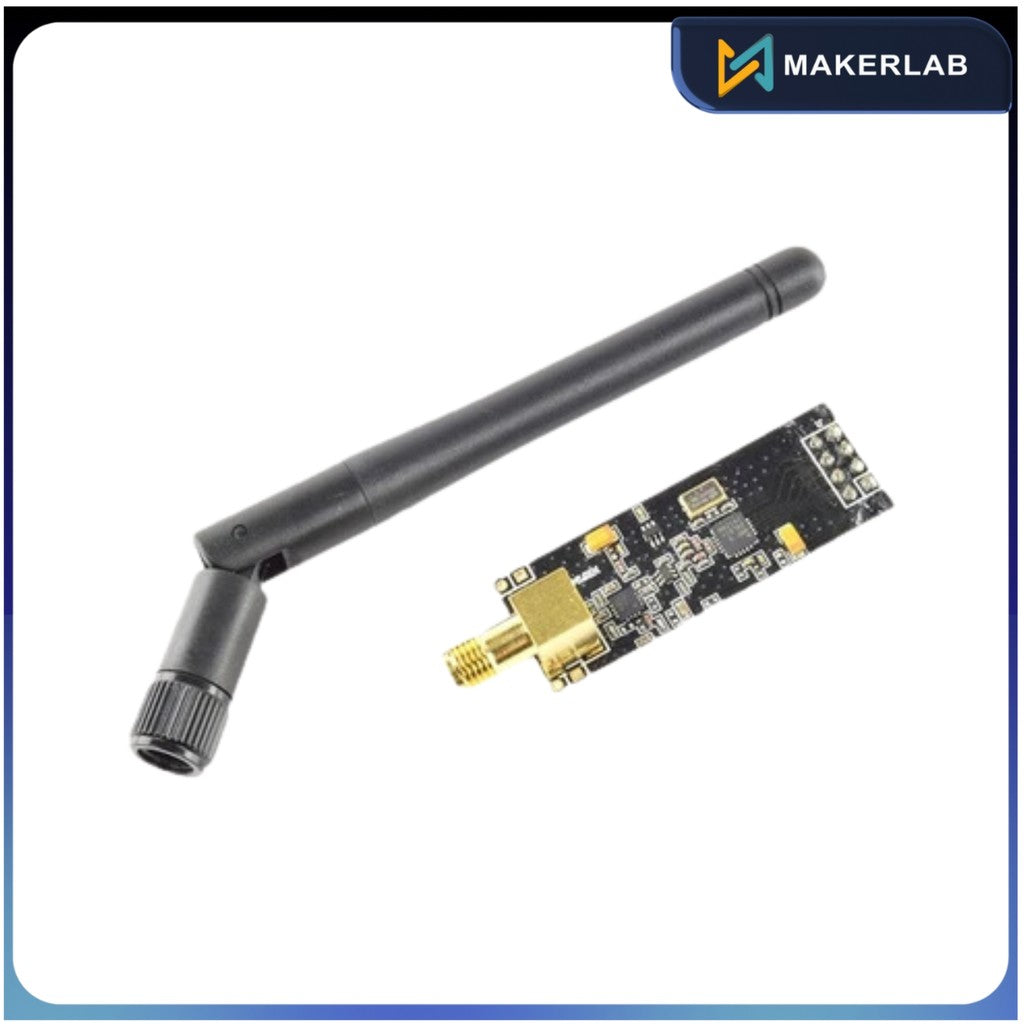

This 2.4GHZ NRF24L01 Module with PA LNA SMA Antenna use 2.4 GHz transceiver from Nordic Semiconductor, the nRF24L01+PA+LNA. This transceiver IC operates in the 2.4 GHz band and has many new features. Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-re-transmit feature.

Specifications:

  • Voltage:3-3.6V
  • Max output power: +20 dBm
  • Working current in transmit mode (peak): 115 mA
  • Working current in receiver mode (peak): 45 mA
  • Current in-mode: 4.2uA
  • Operating temperature: -20-70 degree
  • Receiver sensitivity: -92 dBm in 2 Mbps mode, -95 dBm in 1 Mbps mode, -104 dBm in 250 kbps mode
  • PA gain: 20 dB
  • LAN gain: 10dB
  • LAN noise figure: 2.6dB
  • Antenna gain (peak): 2 dBI
  • 2M rate: 520m
  • Dimension of NRF24L01 Module: 31 x 20 mm
  • Antenna Length: 88 mm
