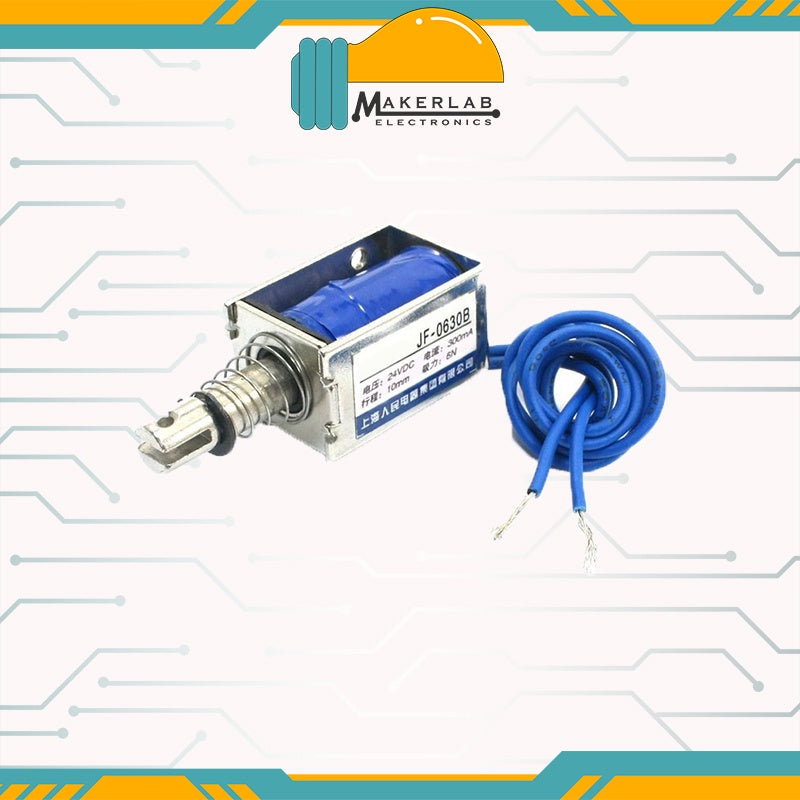

24V 300mA Push Pull Solenoid Electromagnet JF-0630B

24V 300mA Push Pull Solenoid Electromagnet JF-0630B

In stock

SKU:MLE00081

Regular price ₱250.00
Regular price Sale price ₱250.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details

24V 300mA Push Pull Solenoid Electromagnet JF-0630B

This 24V 300mA Push Pull Solenoid Electromagnet JF-0630B, 10mm 6N Push Pull type, open frame type, linear motion, plunger spring return, open coil form, DC electron magnet. Solenoids are basically electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle/ When the coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull (from one end) or push (from the other).

Used widely in home appliances vending machines, game machine, auto door lock.

Specification:

  • Main color: Blue, Silver Tone
  • Rated Voltage: DC 24V
  • Type: Pull Push
  • Rated Current: 0.3A
  • Force / Stroke: 6N/10mm
  • Weight: 47g
Model

JF-0630B DC 24 V 6N Push Pull Solenoid Electromagnet

Operating Voltage (VDC)

24

Operation Mode

Push-Pull (Normally Closed)

Rated Current (mA)

300

Holding Force (N)

6

Energized forms

Intermittent

Cable Length (cm)

15

Mounting Hole(mm)

M2

Shaft Hole Diameter

3

Dimensions (LxWxH) mm

30 x 14 x 19

Weight (g):

46

Shipping Weight 0.07 kg
Shipping Dimensions 10 × 5 × 5 cm
