3S | 4S | 8S Balance Li-ion Lifepo4 LTO Lithium Battery Active Equalizer Balancer Board CapacitorBMS

3S | 4S | 8S Balance Li-ion Lifepo4 LTO Lithium Battery Active Equalizer Balancer Board CapacitorBMS

In stock

SKU:MLE03868

Regular price ₱699.00
Regular price Sale price ₱699.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Model
View full details
Product Description

Technical parameter

Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.

Working principle, the capacitive fit transfers the charge porter, the equalization board is connected to the battery to start the equalization work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB, equalizing current 0-5.5A, the more the battery, the smaller the equalizing current, The wiring position of the dormant switch is reserved, the working current of dormant power-off mode is less than 0.1mA, and the balance voltage accuracy is within 5mv!



The quiescent current is about 12 mA, and it is recommended that the battery capacity is between 60-300 AH.



With under-voltage sleep protection, the voltage will automatically stop entering the sleep state when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1 mA.

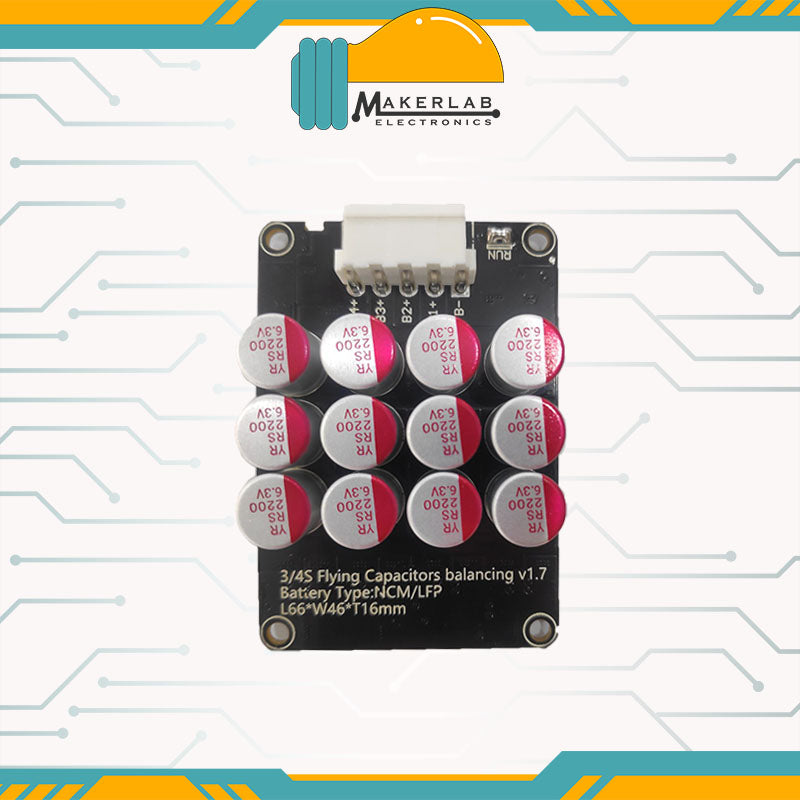

Li-ion/Lifepo4/Lipo Capacitive BMS Balancer Board

Balance start voltage: 3.0V-4.2V

Balance termination voltage: 2.9V (into Under voltage sleep state)

Maximum Balance current: The whole group accuracy is 0.1V1A; 0.5V3.5A; 1.0V5.5A (18awg 30CM cable test)



4S quiescent current Full state : (4.2v*4cell) 16.5V 15mA

8S quiescent current Full power state : (4.2v*7cell) 33.6V 14mA

Whether external power supply is required: no external power supply is required, and the internal energy transfer of the battery is used to transfer and the entire set batteries pack in balance.

Working environment temperature : 0-60 degrees

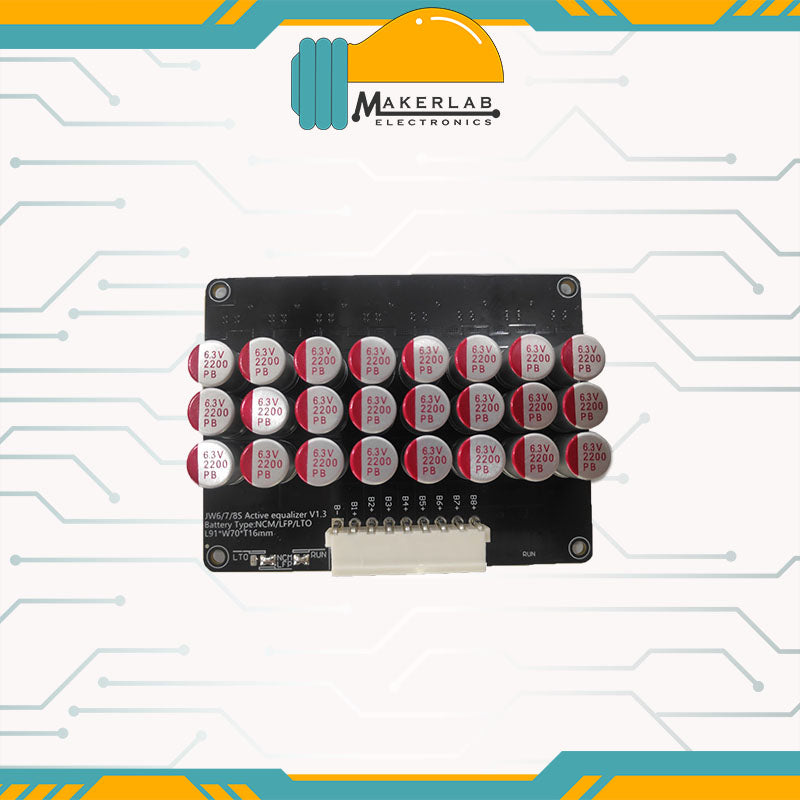

LTO 3S-8S Capacitive BMS Balancer Board

Balance start voltage: 2.0V-2.8V

Balance termination voltage: 1.9V (into undervoltage sleep state)

Maximum Balance current: The whole group error is 0.1V1A; 0.5V3.5A; 1.0V5.5A (18awg 30CM cable test)



8S LTO quiescent current Full state: 2.8v*8cell) 33.6V 14mA

Whether external power supply is required: no external power supply is required, and the internal energy transfer of the battery is used to transfer and the entire set batteries pack in balance.

Working environment temperature: 0-60 degrees
