About the Product

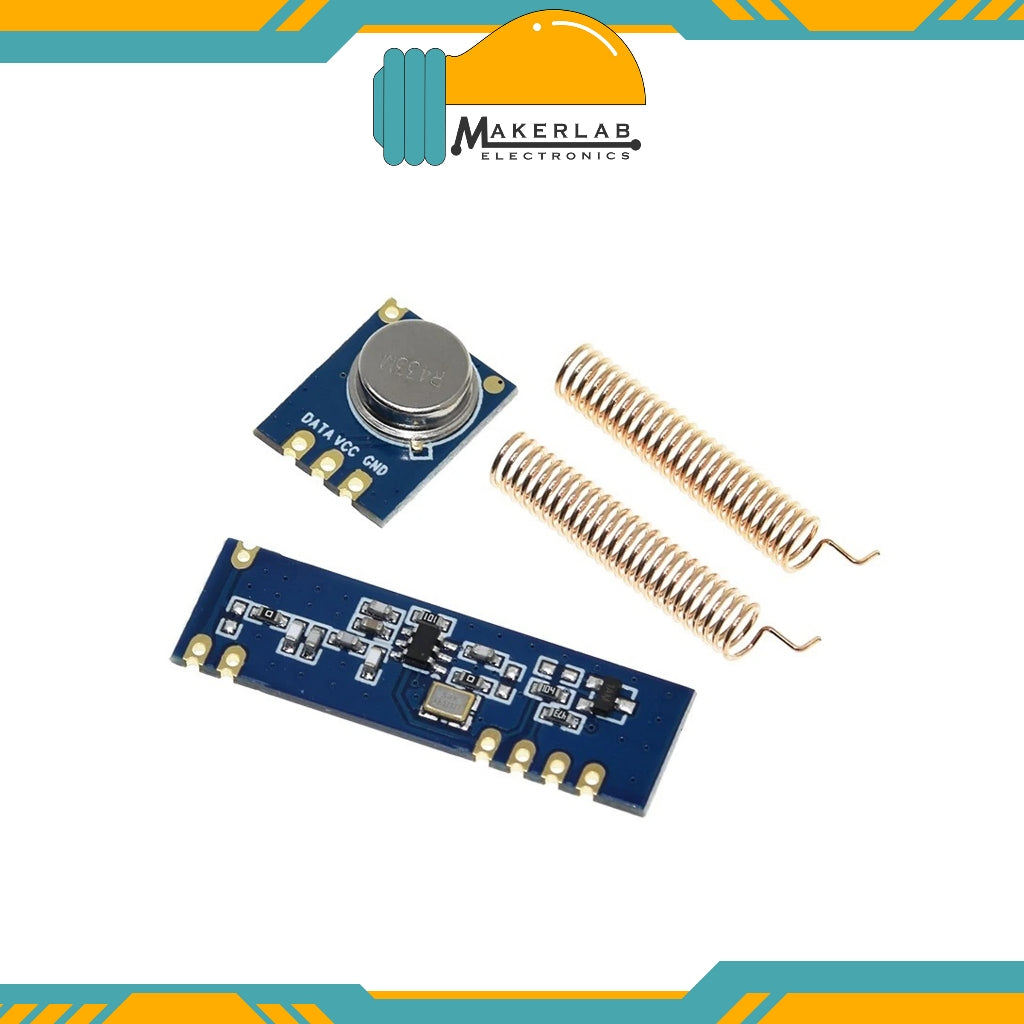

433MHz 100 Meters ASK Wireless Module Kit RF
This 433MHz 100 Meters ASK Wireless Module Kit RF comes with a SRX882 Receiver Module, STX882 ASK Transmitter Module and SW433–TH32 spring antenna. The modules can be connected to the microcontroller directly. So it is more convenient for user developing wireless products.
STX882 is a low cost, small size, ultra-high-power, low harmonic ASK transmitter module. Has high stability and high cost, at 3.6V power to achieve 50mW.
SRX882 is a micro power strong driving force super heterodyne receiver module. Has high stability, anti-interference and high cost-effective, but also has a powerful driving force.
Features:
STX882 ASK Transmitter Module
- Frequency Range: 433 MHZ
- ASK modulation mode
- Small volume low self radiation
- High-power long-range
- Frequency stability
- Various international testing standards
SRX882 Receiver Module
- Frequency Range: 433 MHZ
- ASK /OOK modulation mode
- Super anti-power interference
- Low-power sleep less than 1uA
- Low self radiation
- Small size
- Frequency stability and reliability
- Various international testing standards
Specification:
STX882 ASK Transmitter Module
| Parameter | Min. | Typ. | Max | Unit |
Conditions |
| Operation conditions | |||||
| Supply Voltage | 1.2 | 3.0 | 6 | V | |
| Operating Temperature Range | -20 | 25 | 70 | ||
| Current consumption | |||||
| TX current | 34 | mA | @ 3.3V,15dBm | ||
| Sleep Current | ?0.01 | uA | @ DATA As Low level | ||
| RF parameters | |||||
| Frequency Range | 433.82 | 433.92 | 434.02 | MHZ | @ 433MHZ |
| RF power | 12 | 13 | 13.5 | dBm | @ 2.4V |
| 14 | 15 | 15.5 | dBm | @ 3V | |
| 19.5 | 20 | 20.5 | dBm | @ 5V | |
| Air rate | 0.1 | 9.6 | Kbps |
|
|
SRX882 Receiver Module
|
Parameter |
Min | TP | Max | Unit |
Condition |
| Operation conditions | |||||
| Supply Voltage |
2.4 |
5 | 5.5 | V |
|
| Operating Temperature Range |
-30 |
85 |
|
||
| Latency |
|
9 | ms |
@ 433@HZ |
|
|
Current consumption |
|||||
| Consuming current |
|
2.8 | mA |
@ 433MHZ |
|
|
<2 |
uA |
@ CS=1 Or vacant |
|||
| RF parameters | |||||
| Frequency Range |
433.82 |
433.92 | 434.02 | MHZ |
@ 433MHZ |
| Sensitivity |
|
-110 | -107 | dBm |
@ 1.2Kbps |
| Air rate |
0.1 |
9.6 | kbps |
|
|
| Receiver bandwidth |
|
200 | KHz |
|
|
Pinout
STX882 ASK Transmitter Module Pinout
| Pin Number | Pin Definitions |
Description |
|
1 |
ANT |
Connect with 50 ohm coaxial antenna |
|
2 |
DATA |
Data input |
| 3 | VCC |
Positive power supply |
| 4 | GND |
Connected to power ground |

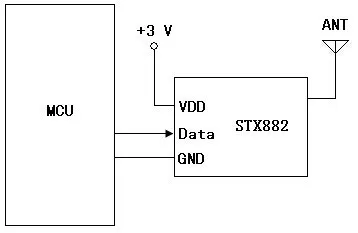

Schematic of STX882
SRX882 Receiver Module Pinout
| Pin Number | Pin Definitions |
Description |
|
1 |
ANT |
Matching 50 ohm antenna |
|
2 |
GND |
Connected to power ground |
|
3 |
VCC |
Positive power supply |
|
4 |
CS |
High level to enable the module, low level to enter sleep mode |
|
5 |
DATA |
Data output pin |
|
6 |
GND |
Connected to power ground |
|
7 |
ANT |
Matching 50 ohm antenna |
Pin 1 and Pin 7 has the same function, user can choose either of them to use
Mechanical Dimension

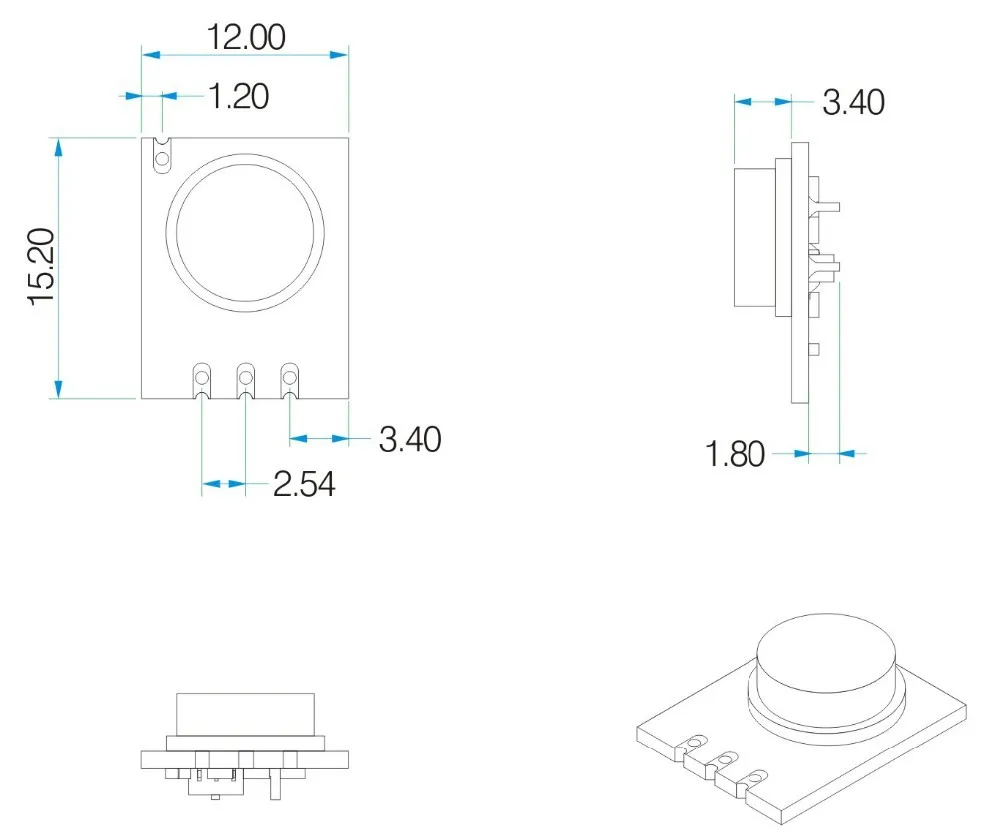

STX882 ASK Transmitter Module Dimension
SRX882 Receiver Module Dimension
