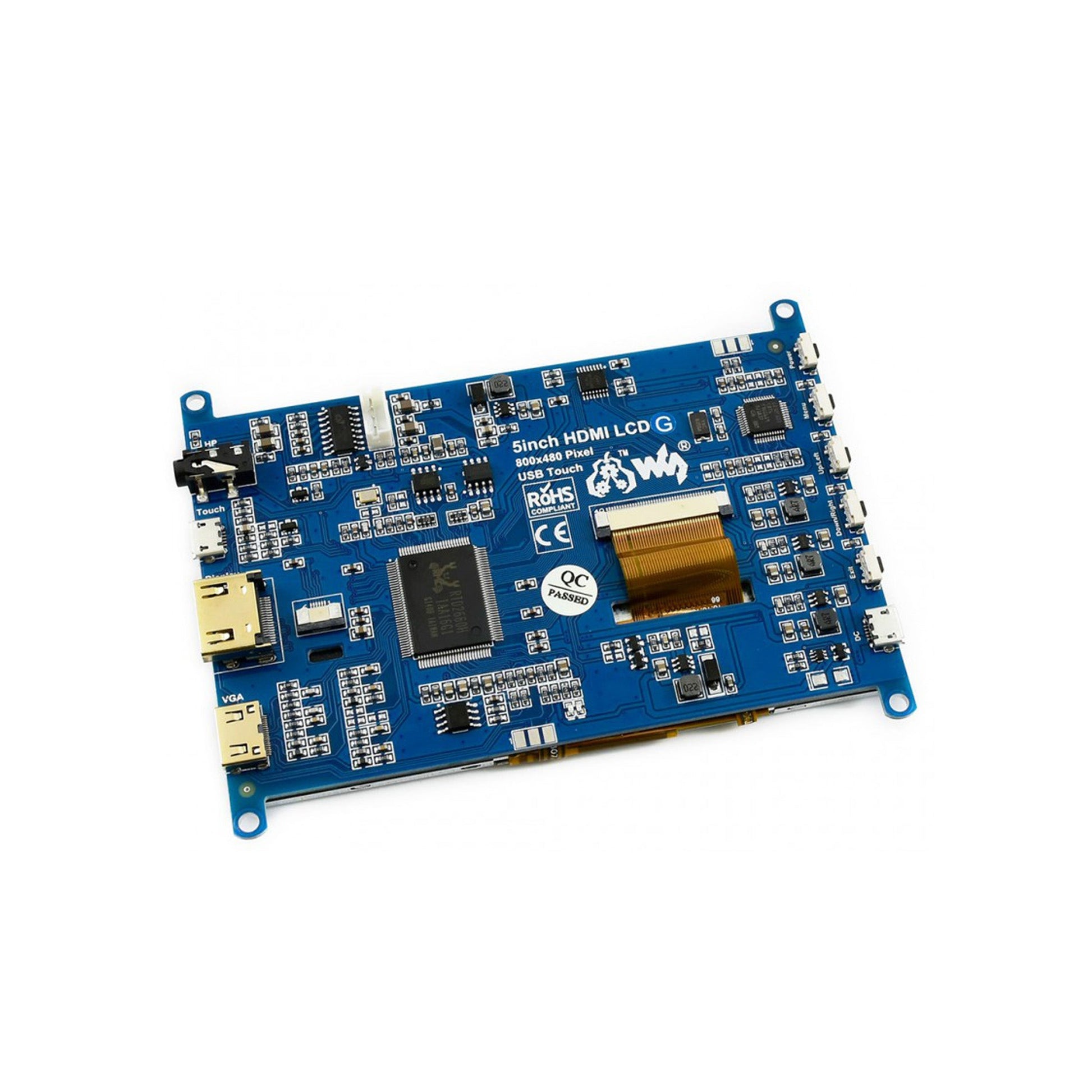

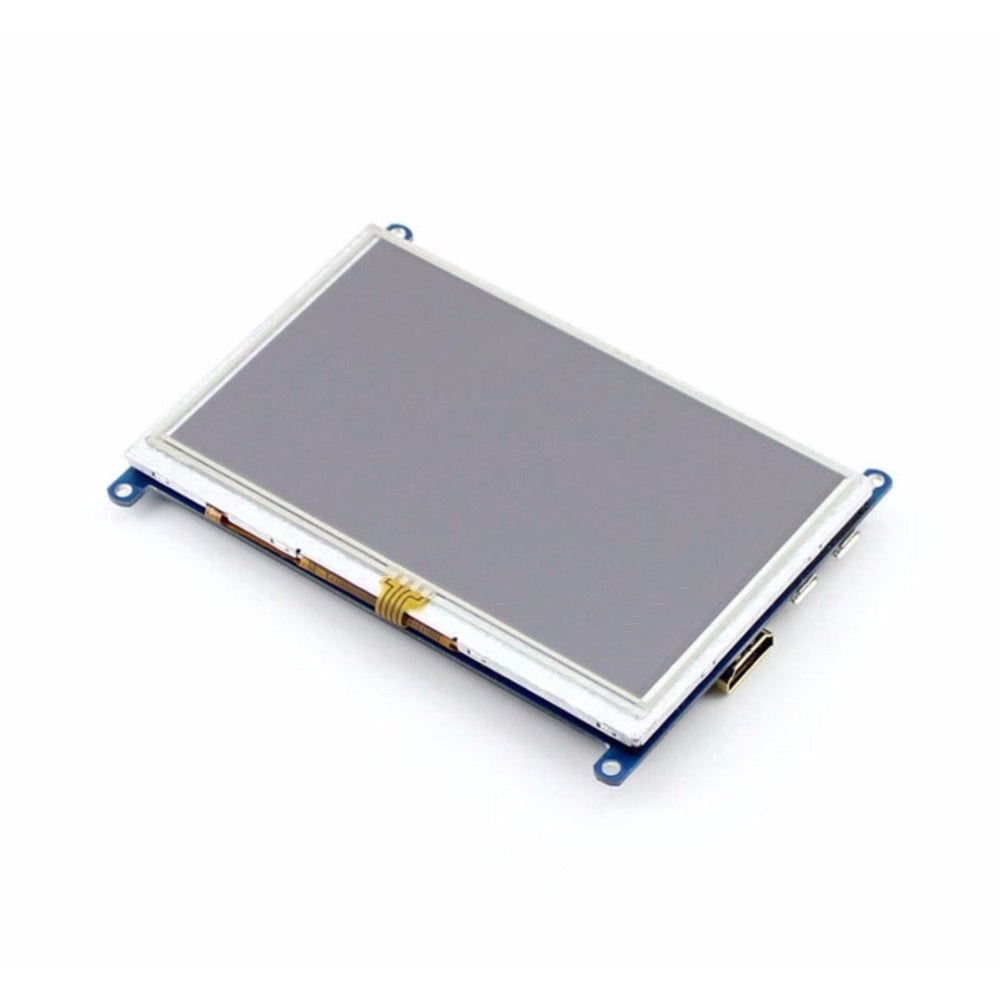

5 inch Raspberry Pi Touch Screen Display

5 inch Raspberry Pi Touch Screen Display

In stock

SKU:MLE00112

Regular price ₱2,500.00
Regular price Sale price ₱2,500.00
Sale Sold out
View full details

5 inch Raspberry Pi Touch Screen Display

This 5 inch Raspberry Pi Touch Screen Display, has a 800x480 high resolution, touch control. Compatible and direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable). It is high quality immersion gold surface plating.

Features:

  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • Backlight can be turned off to lower power consumption
  • High quality immersion gold surface plating.

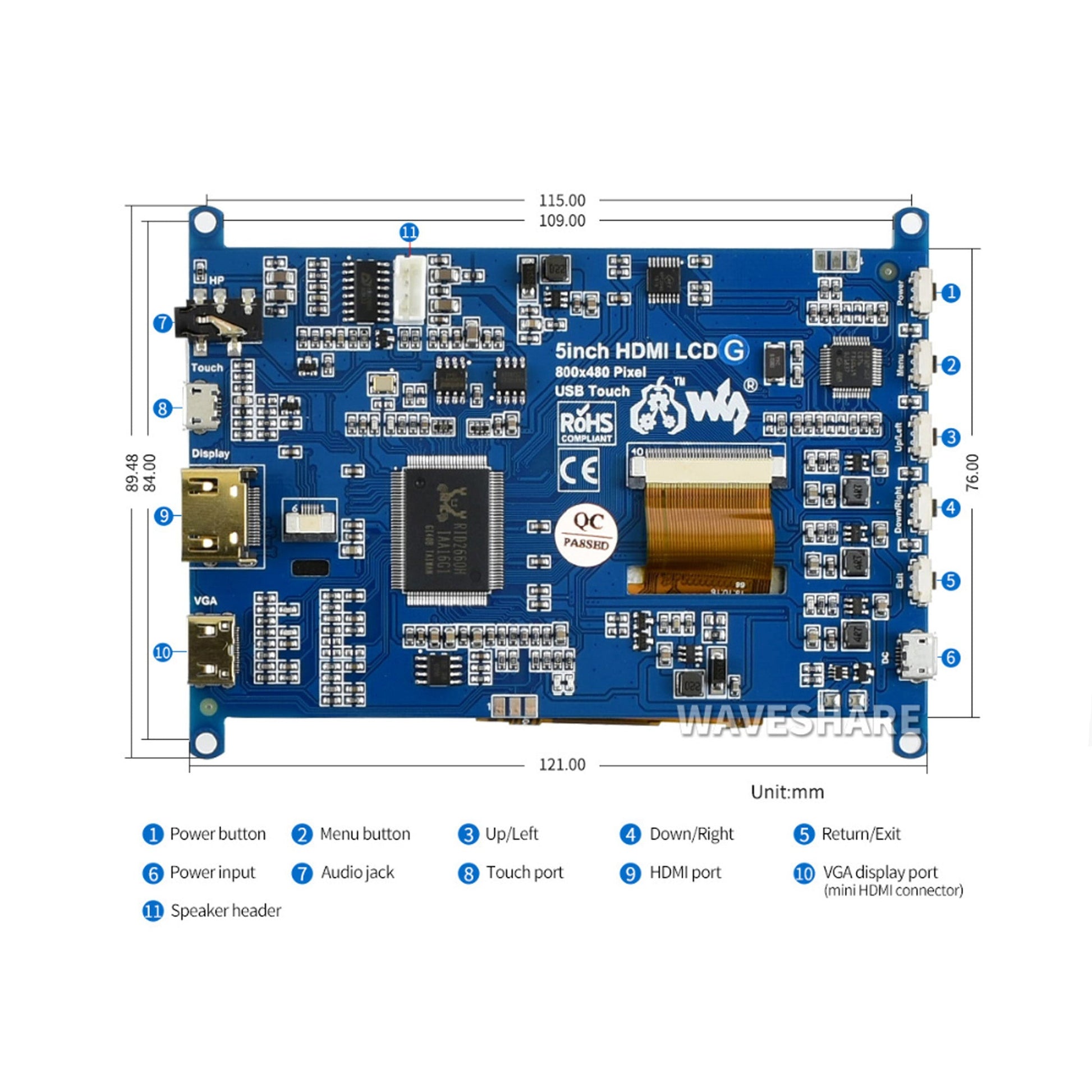

Interface:

PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC NC
6, 9, 14, 20, 25 GND Ground
19 TP_SI SPI data input of Touch Panel
21 TP_SO SPI data output of Touch Panel
22 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
23 TP_SCK SPI clock of Touch Panel
26 TP_CS Touch Panel chip selection, low active

Documents:

Package Included:

  • 5 inch Raspberry Pi Touch Screen Display
  • HDMI Cable (Black)
