SKU:MLE00564

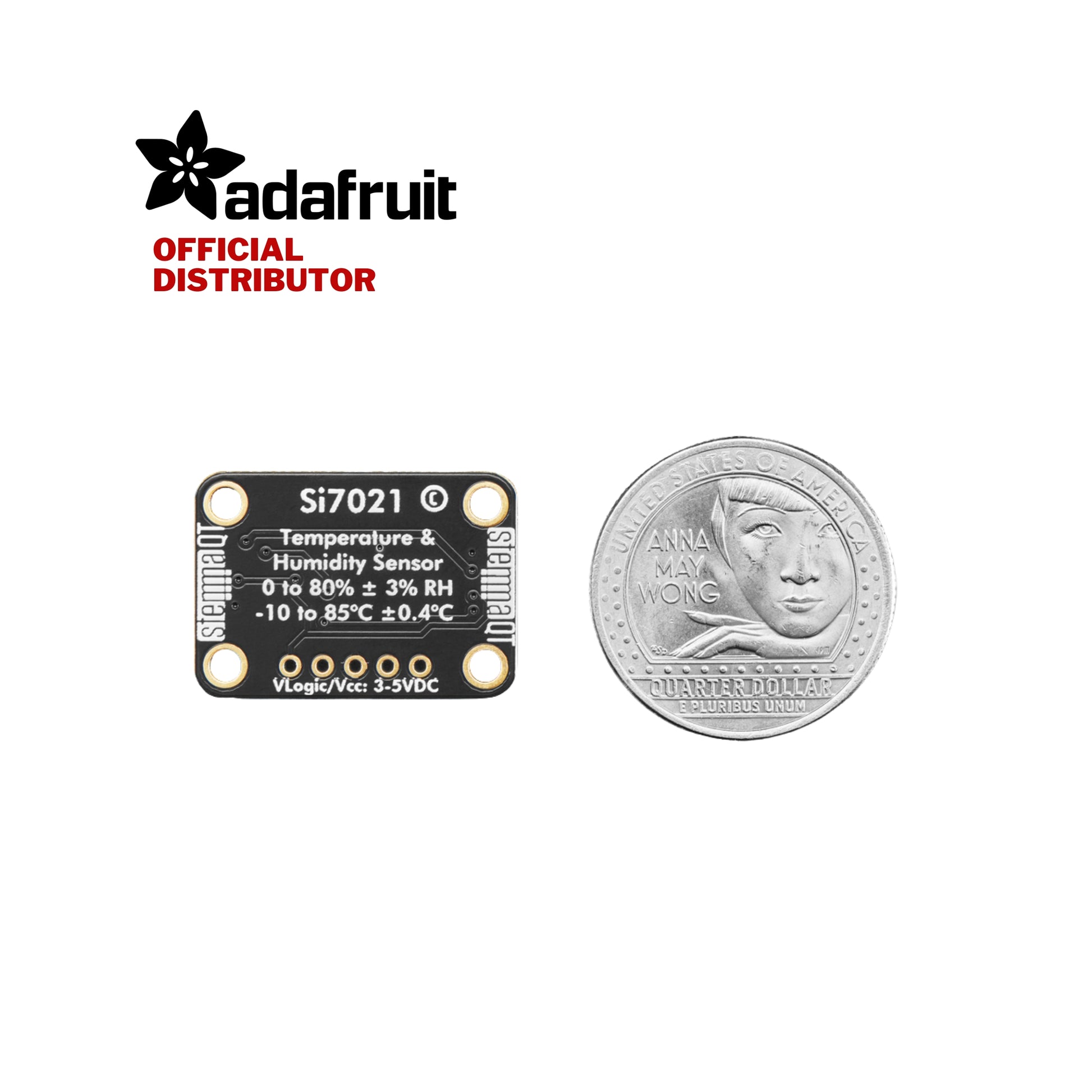

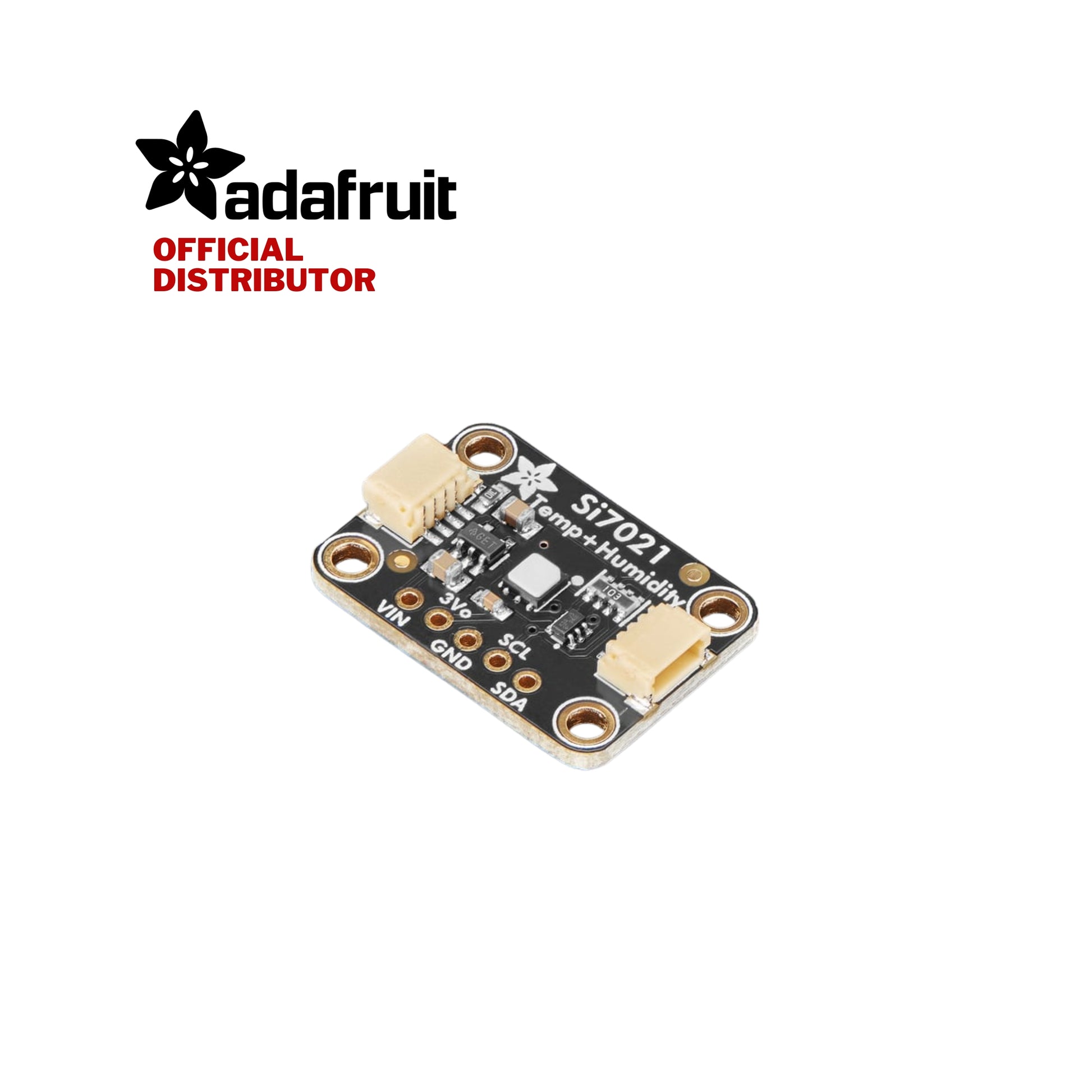

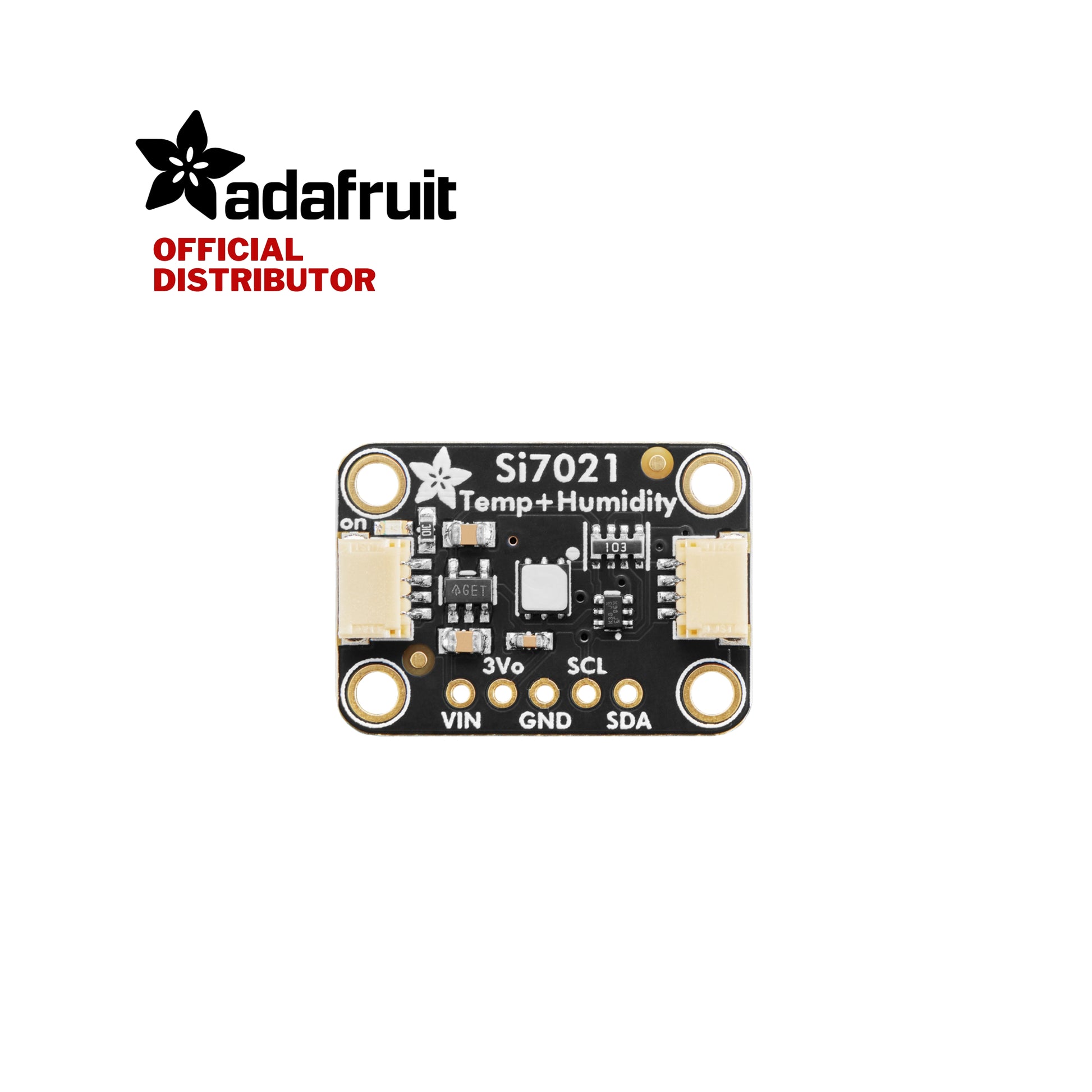

Adafruit Si7021 Temperature & Humidity Sensor Breakout Board - STEMMA QT
Couldn't load pickup availability
files/MLE00564.jpg
11:37 AM
Product Description
Description:
This Adafruit Si7021 Temperature & Humidity Sensor Breakout Board for Silicon labs has ± 3% relative humidity measurements with a range of 0–80% RH, and ±0.4 °C temperature accuracy at a range of -10 to +85 °C. Great for all of your environmental sensing projects. It uses I2C for data transfer so it works with a wide range of microcontrollers.
We put this nice sensor on a breakout board with a 3.3V regulator and level shifting so you can use it safely with 3.3V or 5V power & logic. There's a PTFE filter to keep the sensor clean, that's the white flat thing on top. Also comes with some pin header. Some light soldering is required to attach the header but it's easy to do.
Specifications:
- Product Dimensions: 17.8mm x 15.3mm x 3.0mm / 0.7" x 0.6" x 0.1"
- Product Weight: 1.0g / 0.0oz
- Code: 3251
- Product Wiki
Packing List:

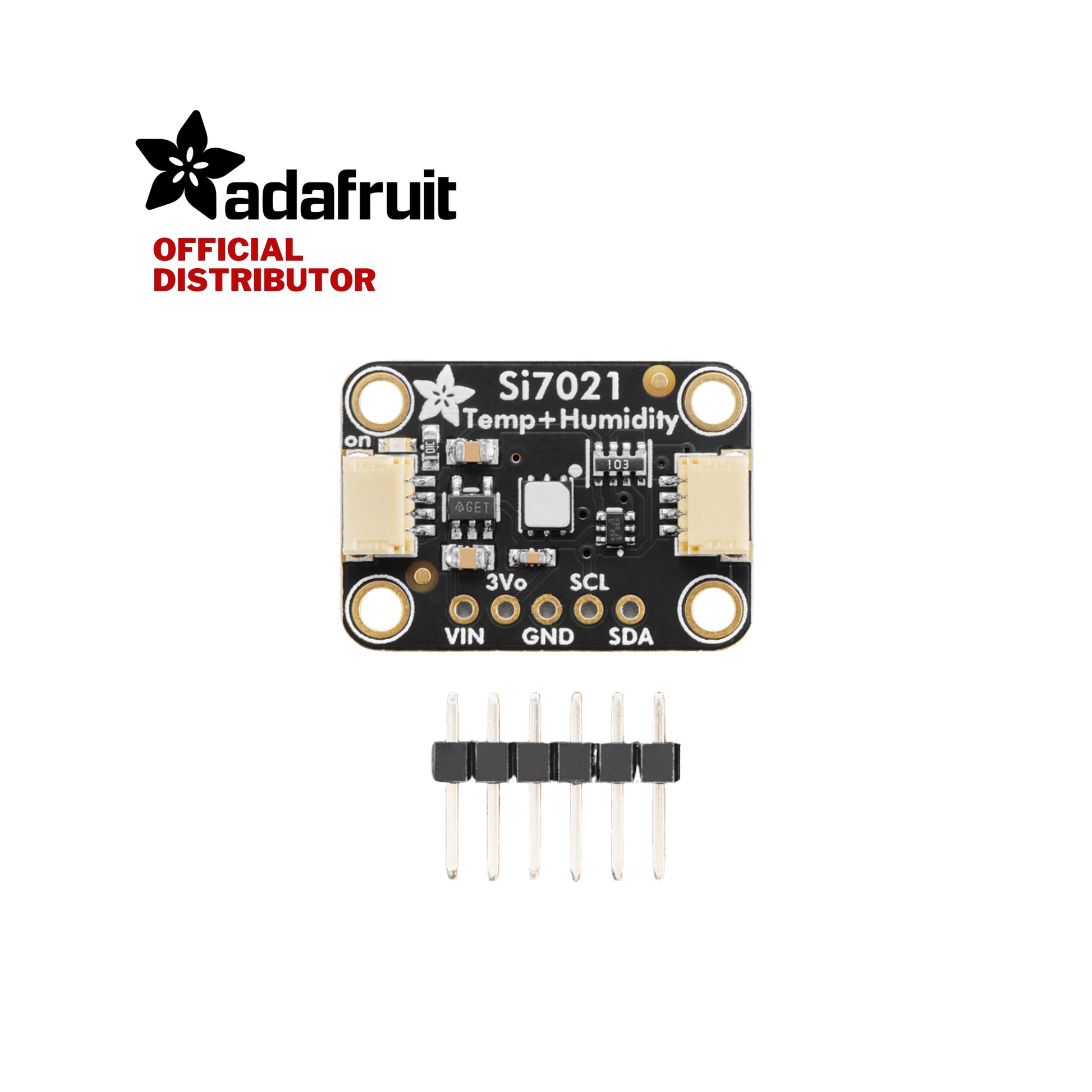

- 1x Si7021 Temperature & Humidity Sensor
- header pins
Link:
Tutorial for how to use it with Arduino or CircuitPython
