Description:

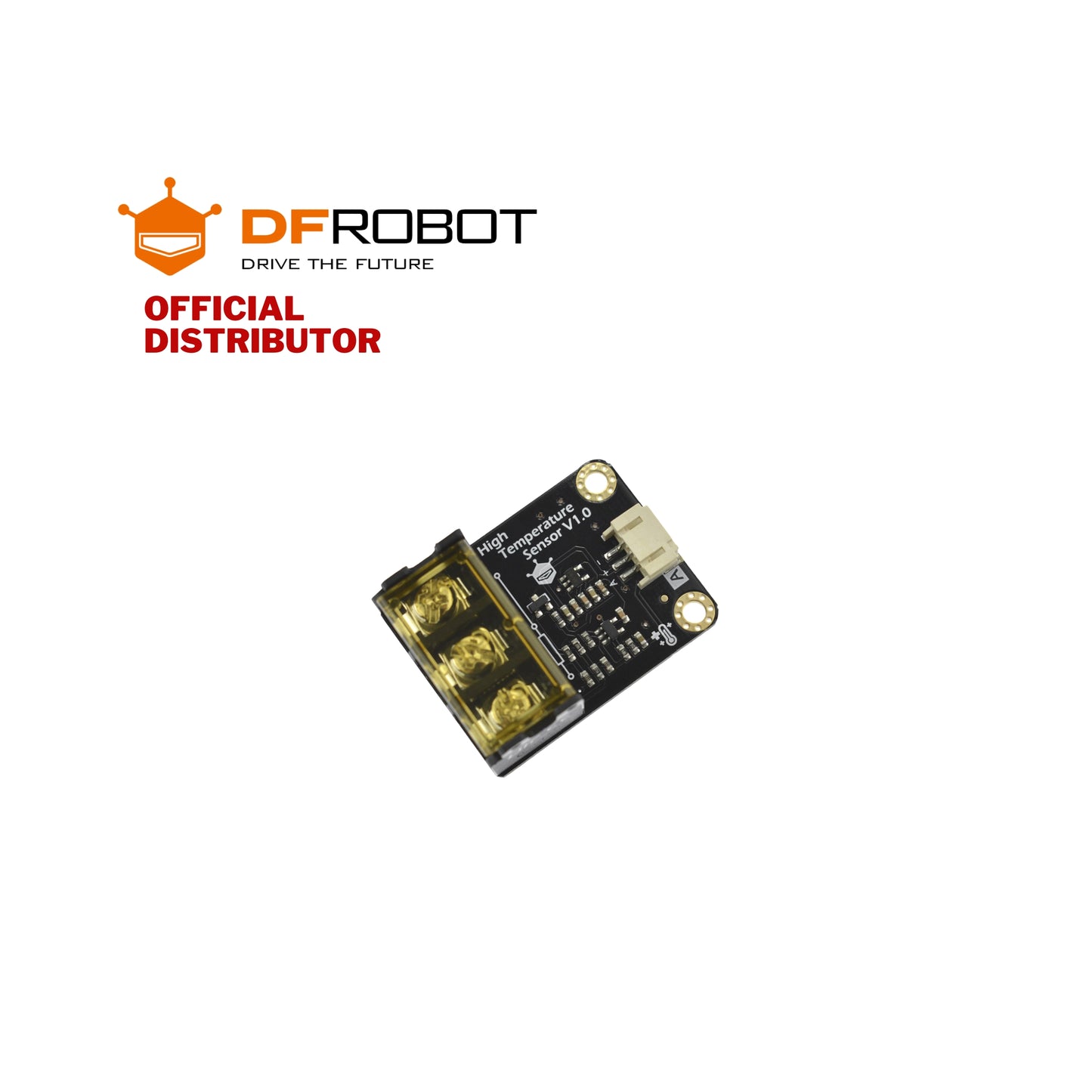

Analog High Temperature Sensor
While many might first think of the DS18B20 temperature sensor, it's important to note that this particular sensor has a maximum temperature limit of 125°C. For applications requiring temperature measurements beyond 100°C, a more robust solution is necessary.
This is where the PT100 resistance-type high-temperature probe comes into play. Commonly found in industrial environments, the PT100 sensor is designed to measure a wide temperature range from 30°C to 350°C. It provides higher resistance to heat and greater reliability under extreme conditions.
The sensor module is designed to operate with a voltage supply between 3.3V and 5.5V, making it compatible with a variety of microcontrollers including Arduino, STM32, and others. This makes it an excellent choice for projects involving high-temperature monitoring.
Features:
- Supports 3-Pin "Gravity"
- Interface Analog output
Specifications:
1. Module
- Operating voltage: 3.3V-5.5V
- Analog output voltage: 0.2V-2.8V
- Working temperature range: 30-350C
- Relative Error: ±2% F.S.
- Interface: PH2.0-3P
- Size: 42 * 32 * 18 mm/ 1.65 * 1.26 * 0.7 inches
- Waterproof: No

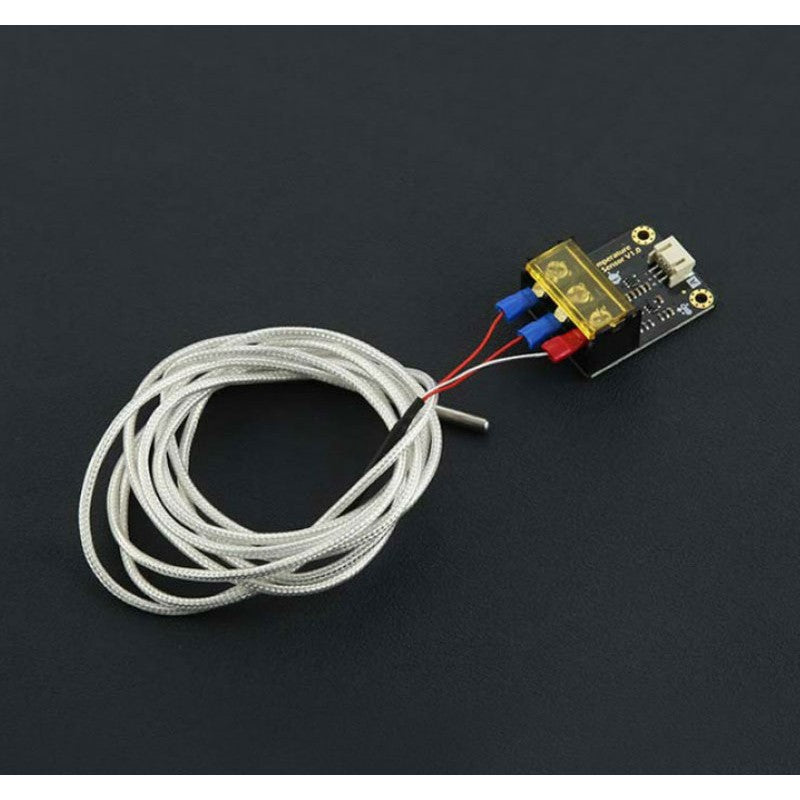

2. PT100 Probe
- Probe Working temperature: -20-400C
- Sheathing Tolerance: up to 200
- Length: 2m
- Precision: 0.5C
- Waterproof: Yes
Documents:

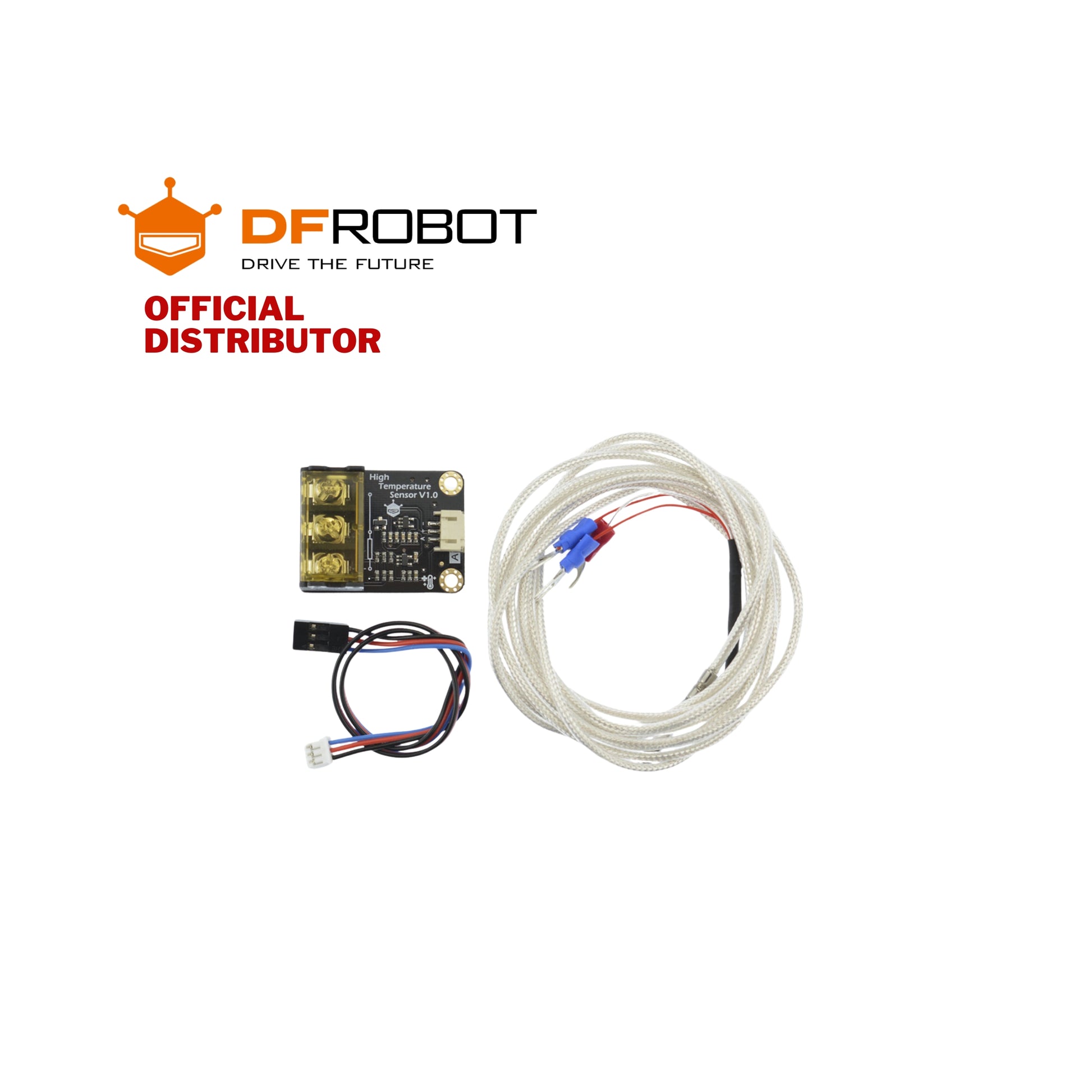

Part List:
- Analog High-Temperature Sensor Module x1
- PT100 Probe x1
- Analog Sensor Cable x1
