Heart Rate Sensor ECG compatible with Arduino®

Heart Rate Sensor ECG compatible with Arduino®

Out of stock

SKU:MLE00480

Regular price ₱1,249.75
Regular price Sale price ₱1,249.75
Sale Sold out
View full details

Heart Rate Sensor ECG compatible with Arduino®

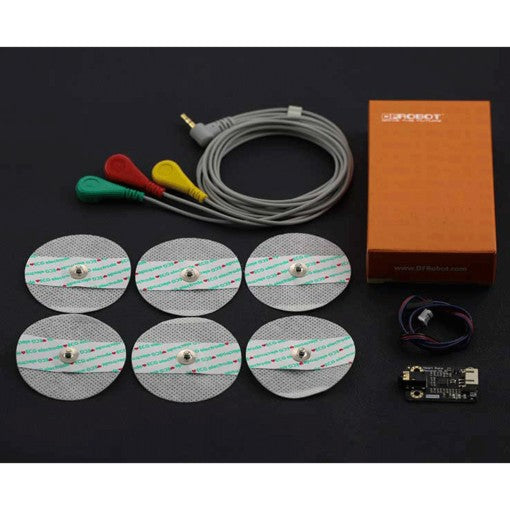

The Heart Rate Sensor ECG is used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG and output as an analog reading. An ECG signal can be extremely noisy so we have included an AD8232 chip which will generate a clear signal from the PR and QT Intervals. Using the Arduino IDE "Serial Plotter" feature, you are also able to view plotted ECG output on PC!

Below shoes the diagram on how to connect the Heart Rate Sensor to an Arduino

Gravity: Arduino Heart Rate Monitor Sensor (ECG) -DFRobot

NOTE: This product is NOT a medical device and is not intended to be used as such or as an accessory to such nor diagnose or treat any conditions.

SPECIFICATION

  • Input Voltage: 3.3-6V (5V recommended)
  • Output Voltage: 0-3.3V
  • Interface: Analog
  • Operating current: <10mA
  • Dimension: 35 x 22(mm), 1.378" x 0.866"(in)
  • Interface Type: PH2.0-3P
