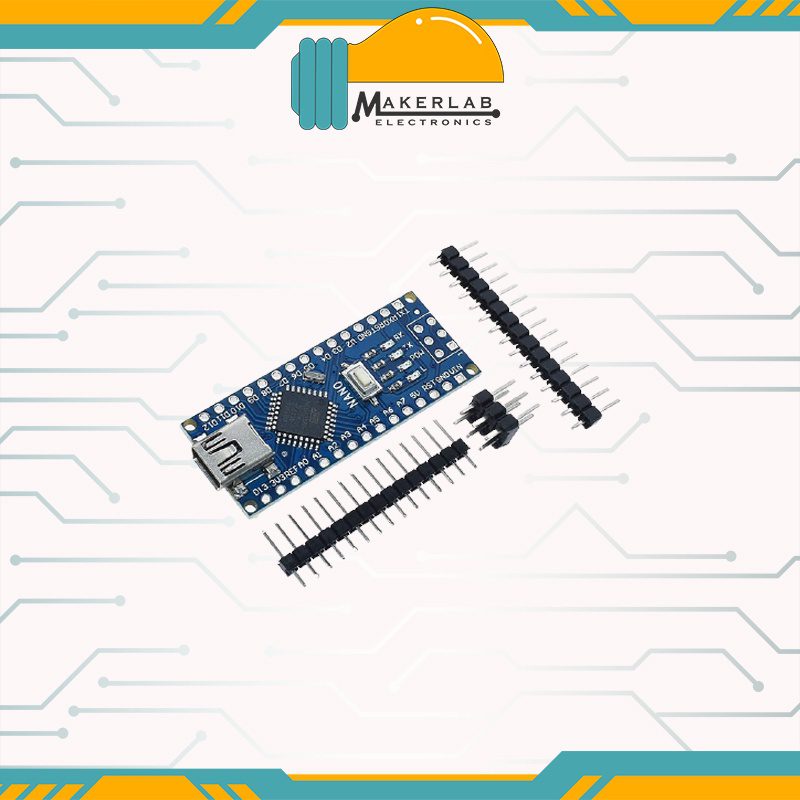

Nano ATmega328P CH340G Unsoldered

This Nano ATmega328P CH340G is a small, complete, and breadboard-friendly board based on the ATmega328. It is fully compatible with the official Aduino board.

Specifications:

• Microcontroller: ATmega328
• Operating Voltage (logic level): 5V
• Input Voltage (recommended): 7-12V (5V if bypassing the onboard voltage regulator)
• Input Voltage (limits): 6-15V
• Digital I/O Pins: 14 (6 with pwm)
• Analog Inputs: 8
• DC Current per I/O Pin: 40ma (max of 200ma across all pins)
• Flash Memory: 32kb (2kb used by bootloader)
• SRAM: 2kb
• EEFROM: 1kb
• Clock Speed: 16mhz

Documents:

To use this board you need to install the CH340G driver. download the driver below.

• Driver download for Windows 32/64 bit
• Driver download for Mac OS X 10.9+
