Nano ATmega328P CH340G Unsoldered based on Arduino®

Nano ATmega328P CH340G Unsoldered based on Arduino®

In stock

SKU:MLE00010

Regular price ₱340.00
Regular price Sale price ₱340.00
Sale Sold out
View full details

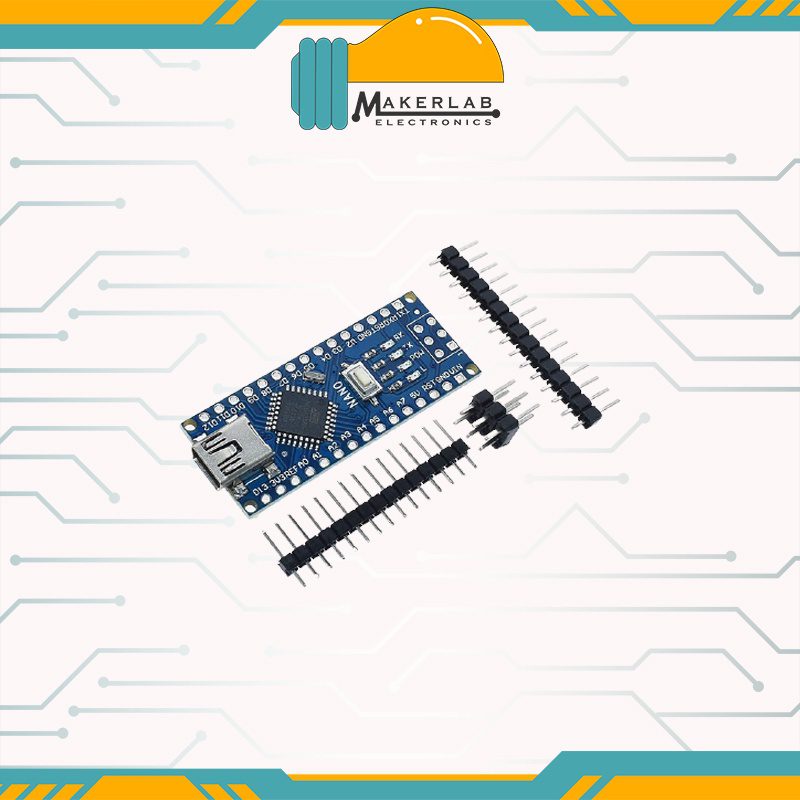

Nano ATmega328P CH340G Unsoldered

This Nano ATmega328P CH340G is a small, complete, and breadboard-friendly board based on the ATmega328. It is fully compatible with the official Aduino board.

Specifications:

  • Microcontroller: ATmega328
  • Operating Voltage (logic level): 5V
  • Input Voltage (recommended): 7-12V (5V if bypassing the onboard voltage regulator)
  • Input Voltage (limits): 6-15V
  • Digital I/O Pins: 14 (6 with pwm)
  • Analog Inputs: 8
  • DC Current per I/O Pin: 40ma (max of 200ma across all pins)
  • Flash Memory: 32kb (2kb used by bootloader)
  • SRAM: 2kb
  • EEFROM: 1kb
  • Clock Speed: 16mhz

Documents:

To use this board you need to install the CH340G driver. download the driver below.
