Arduino Nano RP2040 Connect with headers ABX00053

Arduino Nano RP2040 Connect with headers ABX00053

In stock

SKU:MLE04544

Regular price ₱2,000.00
Regular price ₱2,500.00 Sale price ₱2,000.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Model:
View full details

Product description: Arduino Nano RP2040 Connect with connectors - ABX00053

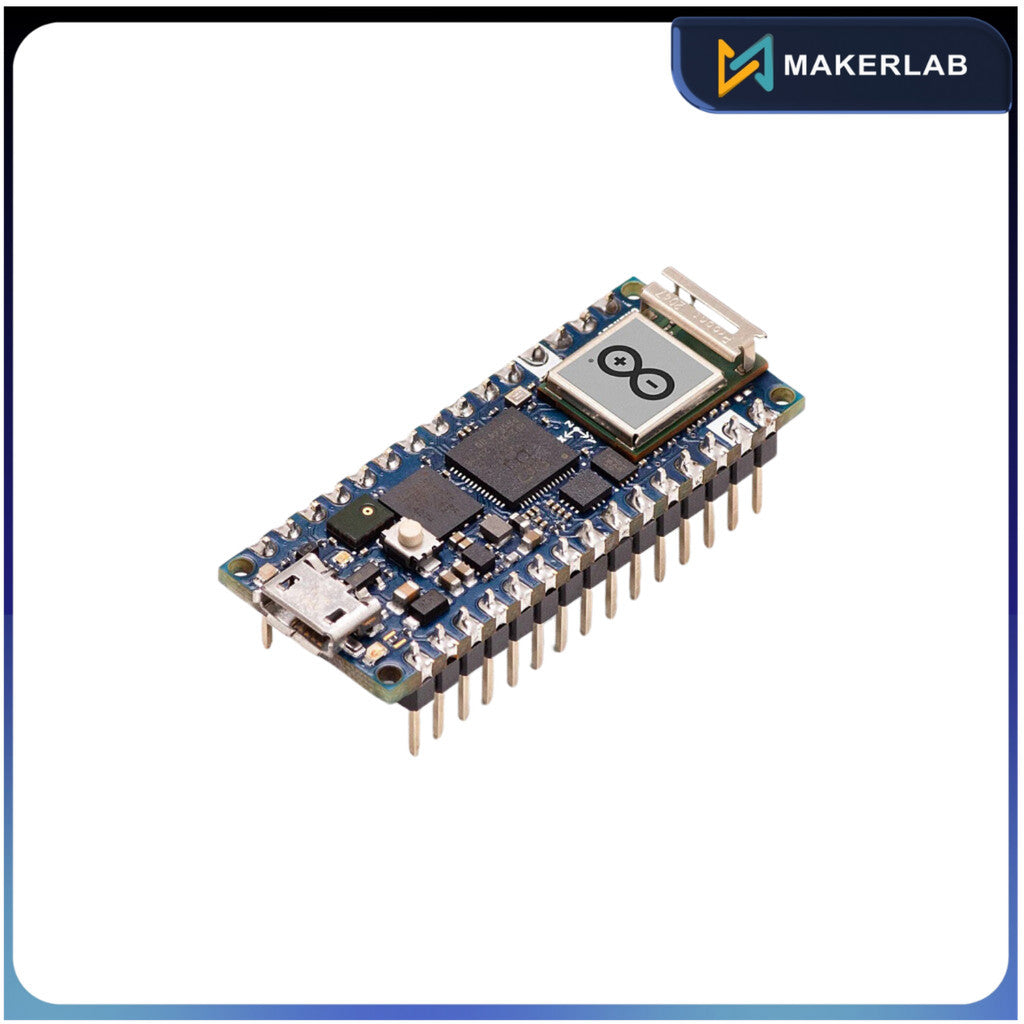

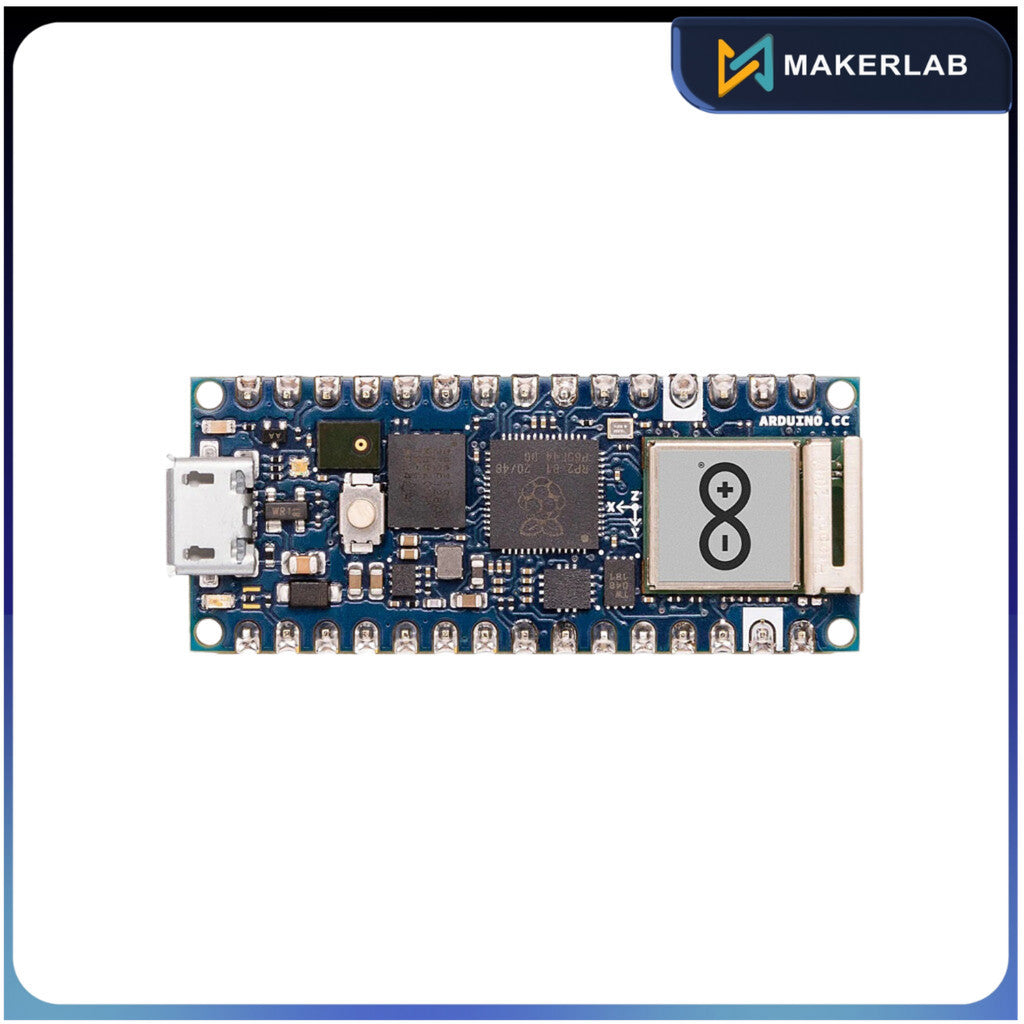

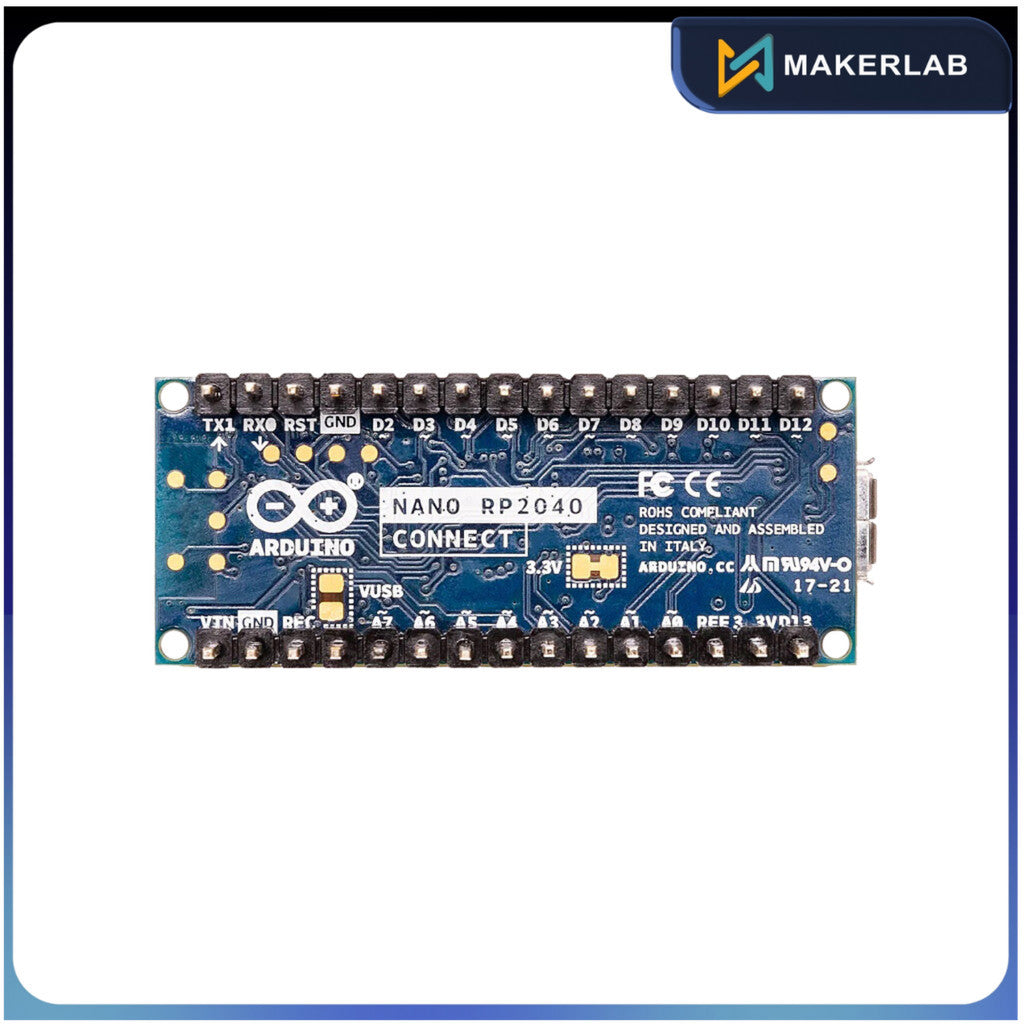

Another module from the seriesArduino NanoThis is the first Arduino board created in cooperation with Raspberry Pi. Arduino Nano RP2040 Connect module is based on chipRaspberry Pi RP2040and it's the first module which combines this chip with additional sensors and connectivity on one PCB. The board houses the aforementioned RP2040 chip, a6-axis sensor IMU, a U-Blox Nina chip forWiFi and Bluetoothcommunication, as well as a microphone and an RGB LED. The IMU chip hasmachine learningcapability, so additional sensing algorithms are available. The terminals of the Arduino Nano RP2040 Connect module operate at 3.3V. This version has soldered pins.

Main features of the Arduino Nano RP2040

Interfaces: USB, SPI, I2C, I2S, UART, PWM

U-Blox Nina chip for WiFi / Bluetooth wireless communication

MicroUSB connector for computer connection and 5V power supply

Built-in microphone, RGB LED and 6-axis IMU

Based on Raspberry Pi RP2040 microcontroller clocked at 133 MHz

Built-in 16MB Flash memory and 264kB SRAM

20 PWM pins, 8 analog pins and 22 digital pins

Standard dimensions for Nano series - 45 x 18 mm

ARDUINO NANO RP2040 CONNECT SPECIFICATIONS

Power supply voltage

4.5 V to 21 V

Operating voltage of logic part

3,3 V

Output current 3.3 V

800 mA

RP2040 microcontroller

ARM Cortex M0 Dual-Core 133 MHz

264 kB SRAM

2 MB Flash

DMA controller

supports up to 16 MB Flash memory via QSPI bus

programmable IO (PIO) to support external peripherals

4-channel ADC with internal temperature sensor, 0.5 MSa/s, 12-bit conversion

SWD debugging

WiFi / Bluetooth module U-blox Nina W102

dual core Xtensa LX6 240 MHz 32-bit

520 kB SARAM on-chip memory

448 kB ROM for boot and core functions

16 MB Flash memory for code storage, includes hardware encryption for program and data protection

1 kB EFUSE for MAC address, module configuration, Flash encryption and Chip-ID

IEEE 802.11 b/g/n 2.4 GHz WiFi

Bluetooth 4.2

built-in antenna (PIFA)

4 x 12-bit ADC

3 x I2C, SDIO, CAN, QSPI

Memory

AT25SF128A 16MB NOR Flash

532 Mb/s QSPI data transfer

100k programming / erase cycles

Sensor IMU 6-axis ST LSM6DSOXTR

3D gyroscope:

± 2 / ± 4 / ± 8 / ± 16 g full scale

3D accelerometer:

± 125 / ± 250 / ± 500 / ± 1000 / ± 2000 dps full scale

advanced pedometer, step detector and step counter

Motion detection and roll detection

standard interrupts: free fall, 6D/4D orientation wake-up, click, double click

programmable finite state machine: accelerometer, gyroscope and external sensors

machine learning core

embedded temperature sensor

MEMS ST microphone MP34DT06JTR

AOP = 122.5 dBSPL

signal to noise ratio 64 dB

omnidirectional sensitivity

frequency -26 dBFS ± 1 dB

RGB LED

common anode

connected to U-blox Nina W102 GPIO

Microchip ATECC608A cryptographic chip

cryptographic coprocessor with secure hardware key storage

I2C, SWI

Hardware support for symmetric algorithms:

SHA-256 and HMAC HASH including off-chip context saving/restoration

AES-128: encryption/decryption, Galois Field Multiply da GCM

internal high quality random number generator NIST SP 800-90A/B/C

Secure boot support

full ECDSA code signature validation, optional hash/signature

Optional communication key disablement prior to secure boot

Message encryption/authentication to prevent attacks

I/O

14 x digital pin

8 x analog pin

microUSB

UART, SPI, I2C, I2S, PIO

Slot

microUSB

Operating temperature

from -20°C to 80°C

Dimensions

45 x 18 mm
