Atlas Scientific Conductivity K 0.1 Kit | EC-KIT-0.1

Description:

If you are new to electrochemical sensing, knowing what components you need can get confusing. Let us help you. The Atlas Scientific K0.1 EZO-Conductivity Kit is perfect measuring water with a conductivity range from 0.07µs to 50,000µs. That means this kit is perfect for high purity water applications. And because the K0.1 kit can read well beyond the range of high purity water, you can trust that readings outside of the desired range will still be accurate.

Note: This E.C. Probe can be fully submerged in fresh water or salt water, up to the SMA connector indefinitely.

Specifications:

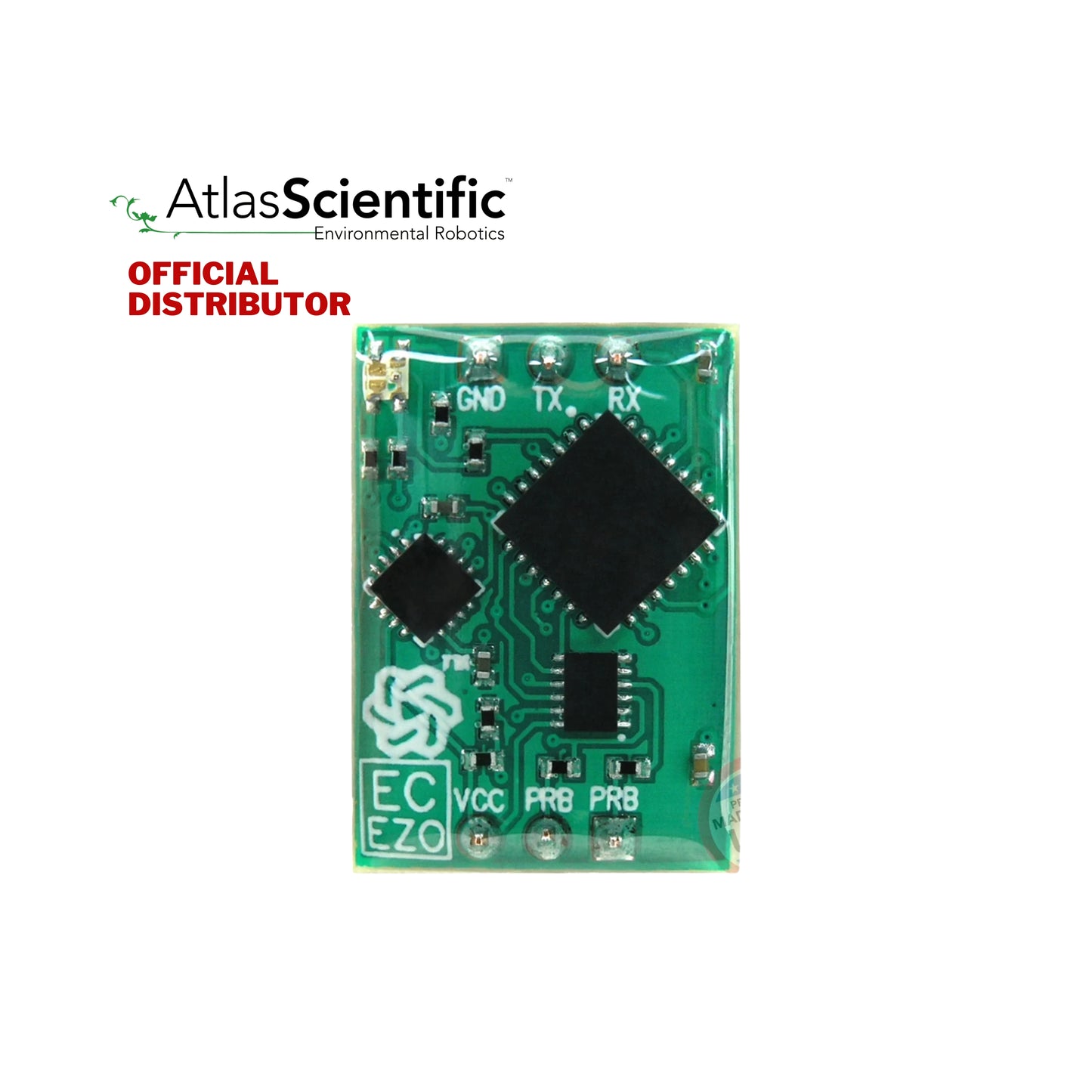

• EZO™ Conductivity Circuit

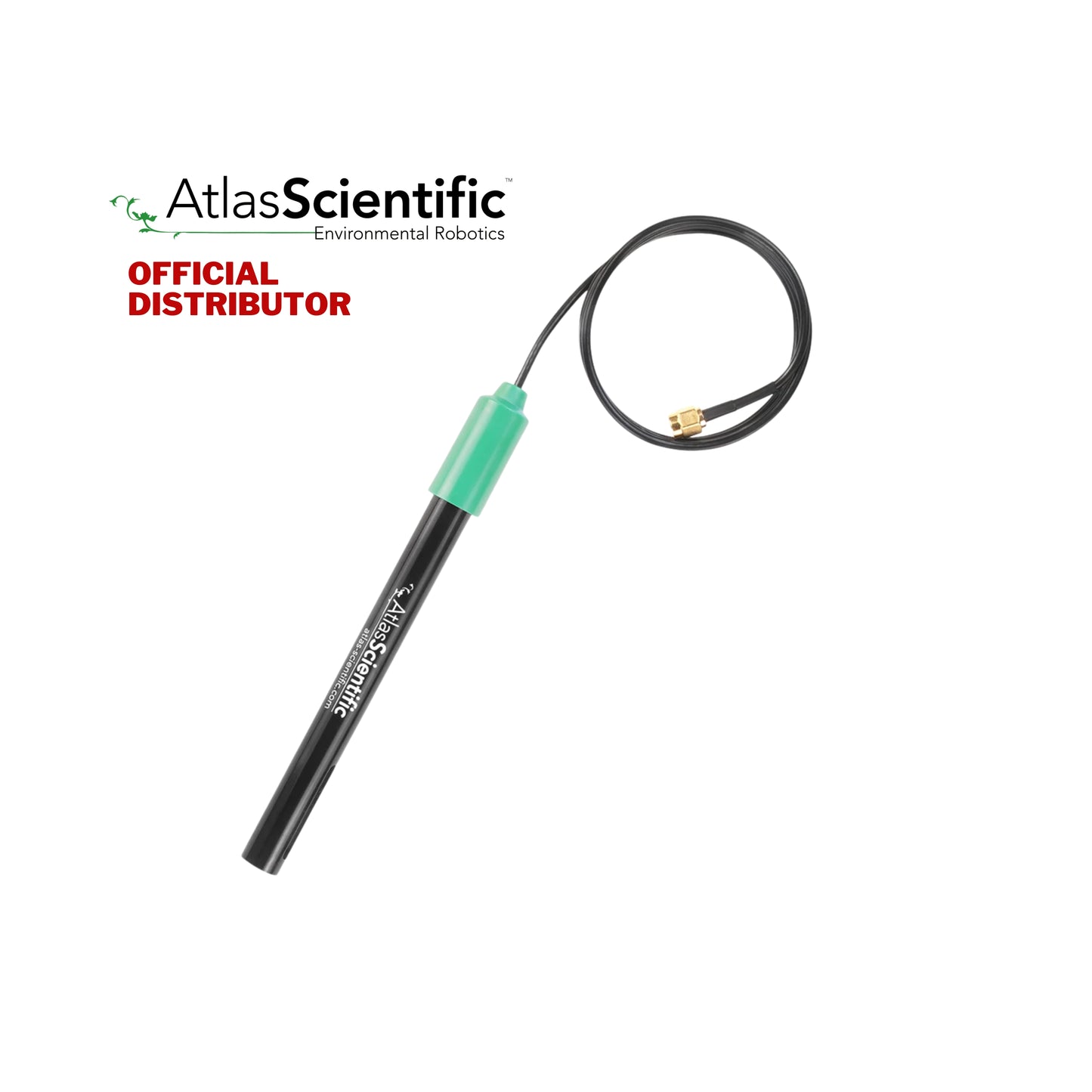

• Conductivity Probe: 0.07 µS/cm to 50,000 µS/cm

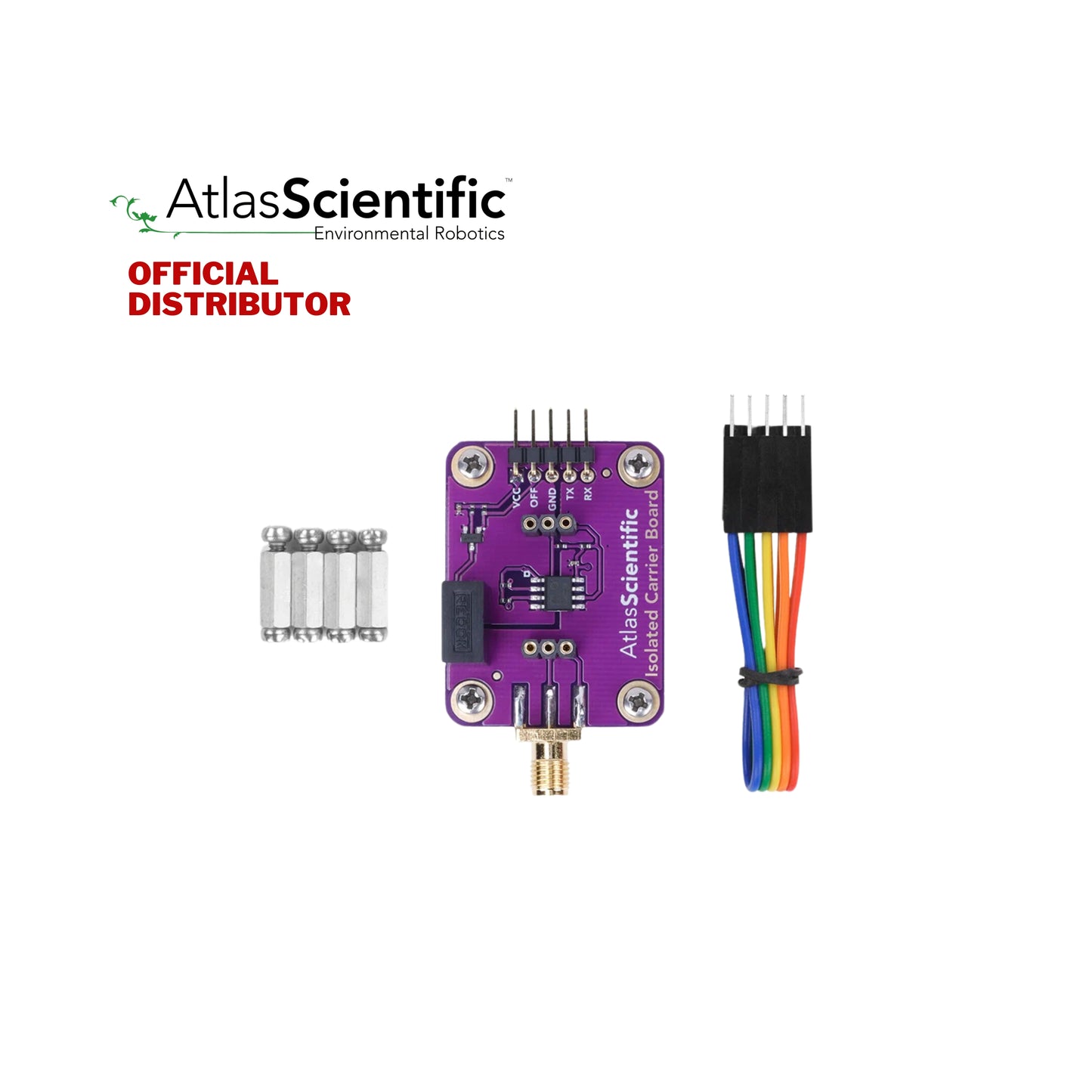

• Electrically Isolated EZO™ Carrier Board
• 125ml (4oz) calibration solutions

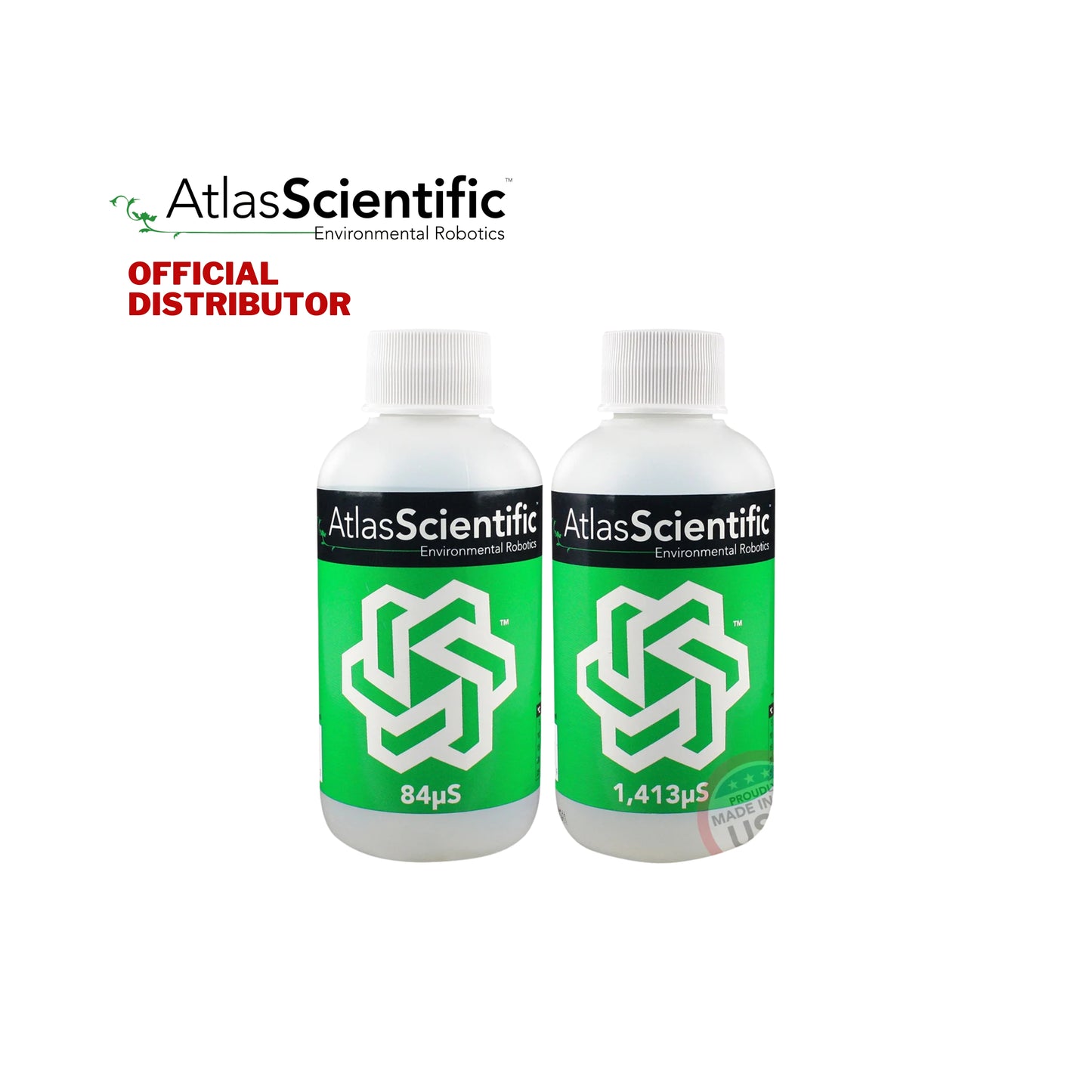

• K 0.1 – This set includes 1 (84µS) and 1 (1,413µS)
• Carrier Board dimensions
  • 56.2mm x 32mm (2.2″ x 1.2″)
  • Weight: 25 grams

Documents & Downloads:

Datasheets:

• EZO™ Conductivity Circuit Datasheet
• Conductivity Probe K 0.1 Datasheet

Documents:

• EZO™ Conductivity Accuracy Graph
• Wiring Diagram
• Connecting probes into a pipe
• How to properly cut your probe cable

Downloads:

• FREE Software - AtlasDesktop Monitoring Software
• AtlasDesktop Monitoring Software Users Guide

Basic Sample Code:

• Arduino Uno Sample Code
• Arduino Mega / Giga Sample Code
• Arduino I2C Sample Code
• Raspberry Pi Sample Code (UART, I2C, USB)

3D File:

• onductivity CAD Footprint File (*.dxf)

Library:

• EZO UART Library
• EZO I2C Library

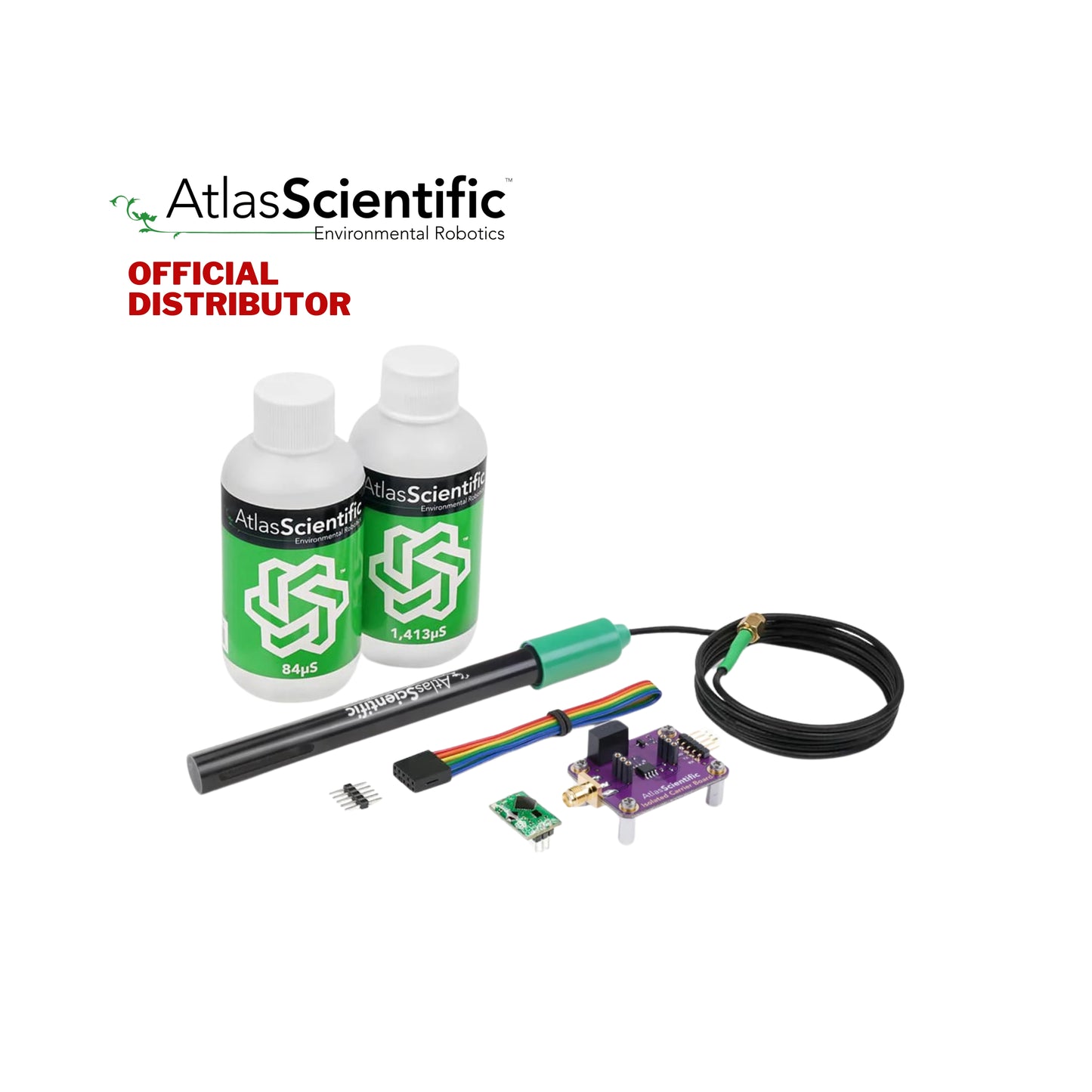

Part List:

• 1x EZO™ Conductivity Circuit
• 1x Conductivity Probe: 0.07 µS/cm to 50,000 µS/cm
• 1x Electrically Isolated EZO™ Carrier Board
• 2x 125ml (4oz) calibration solutions
