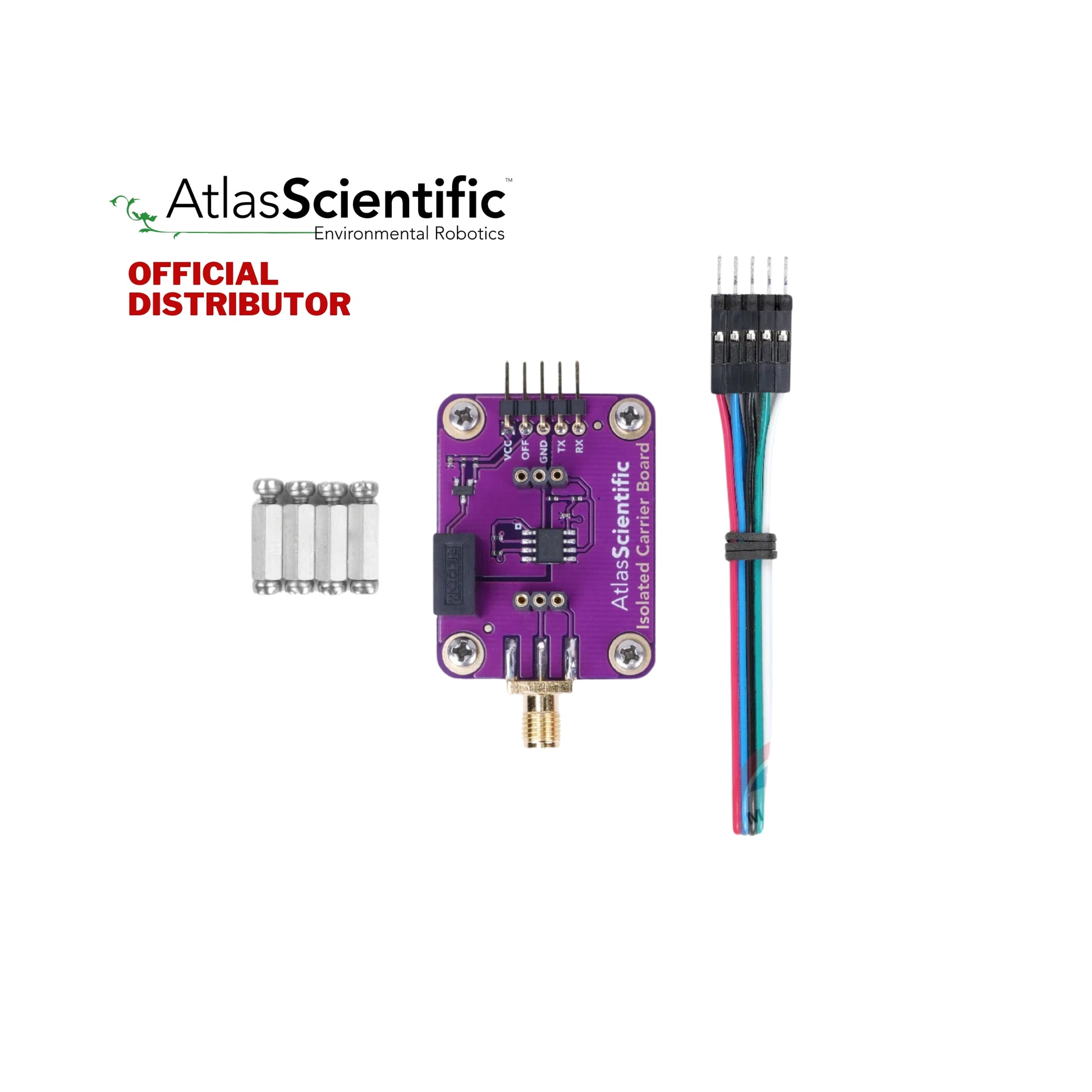

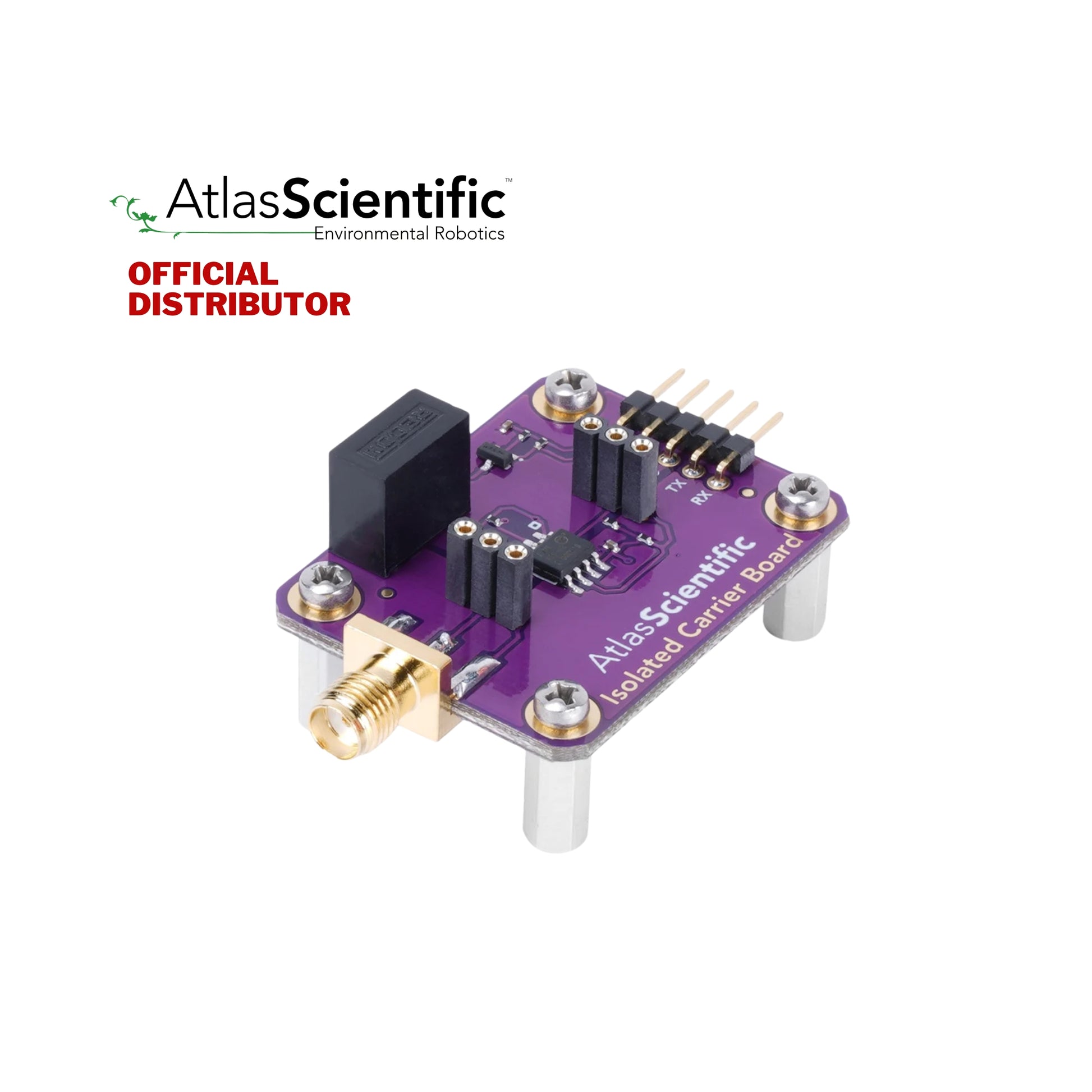

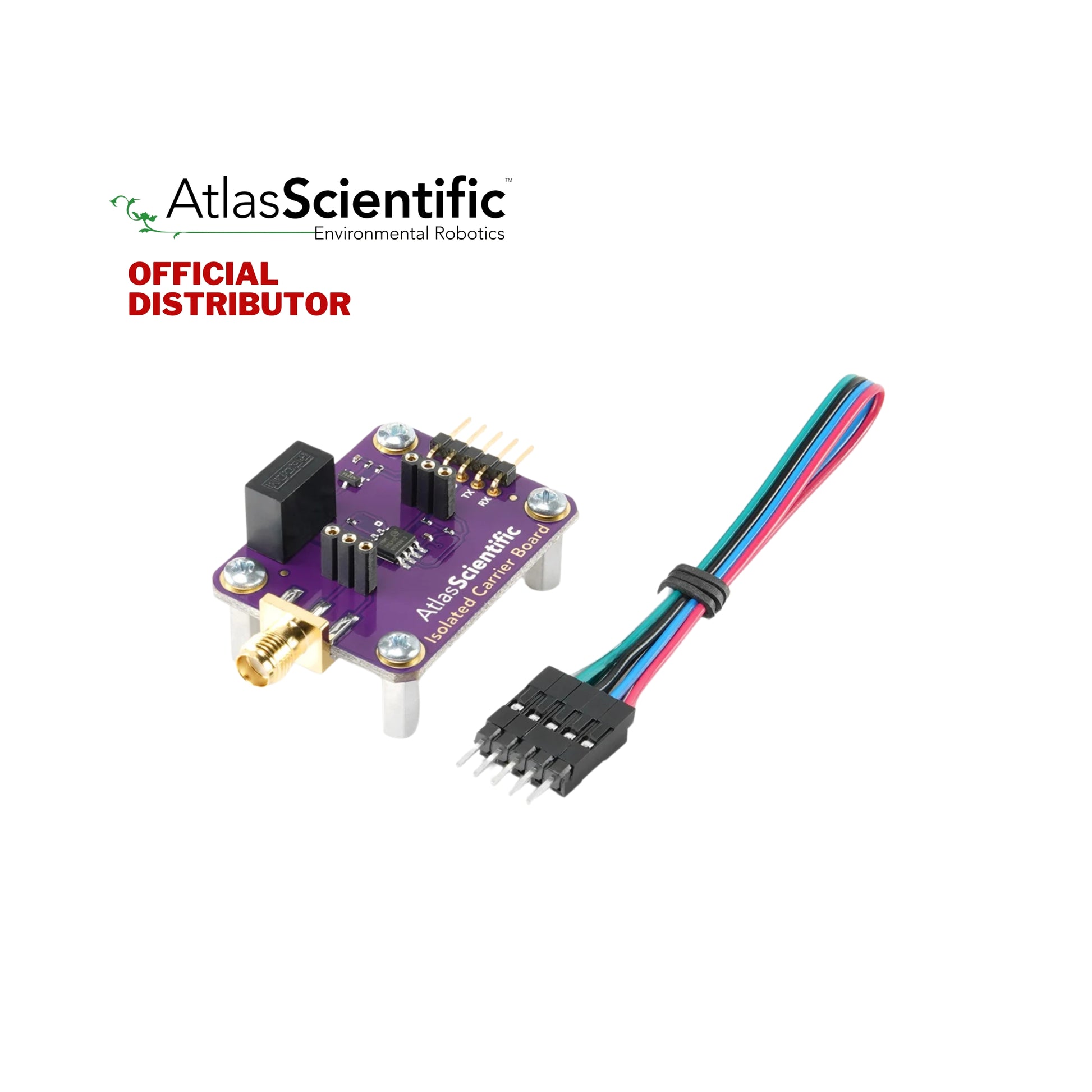

This carrier board utilizes the newest isolation technology, giving us the ability to put isolation into smaller footprint circuits. The Electrically isolated EZO™ carrier board is an efficient way to connect to one Atlas Scientific circuit to your CPU, eliminating the need for a bread board and external isolator. The five pins on top are left open for you to decide how to connect it to your system.
Specifications:
Data input: UART or I2C
Voltage input: 3.0V − 5.0V
Probe connector: Female SMA
Current consumption: 5V – 28 mA, 3.3V – 22 mA
Power saving mode (OFF pin): 2.6mA

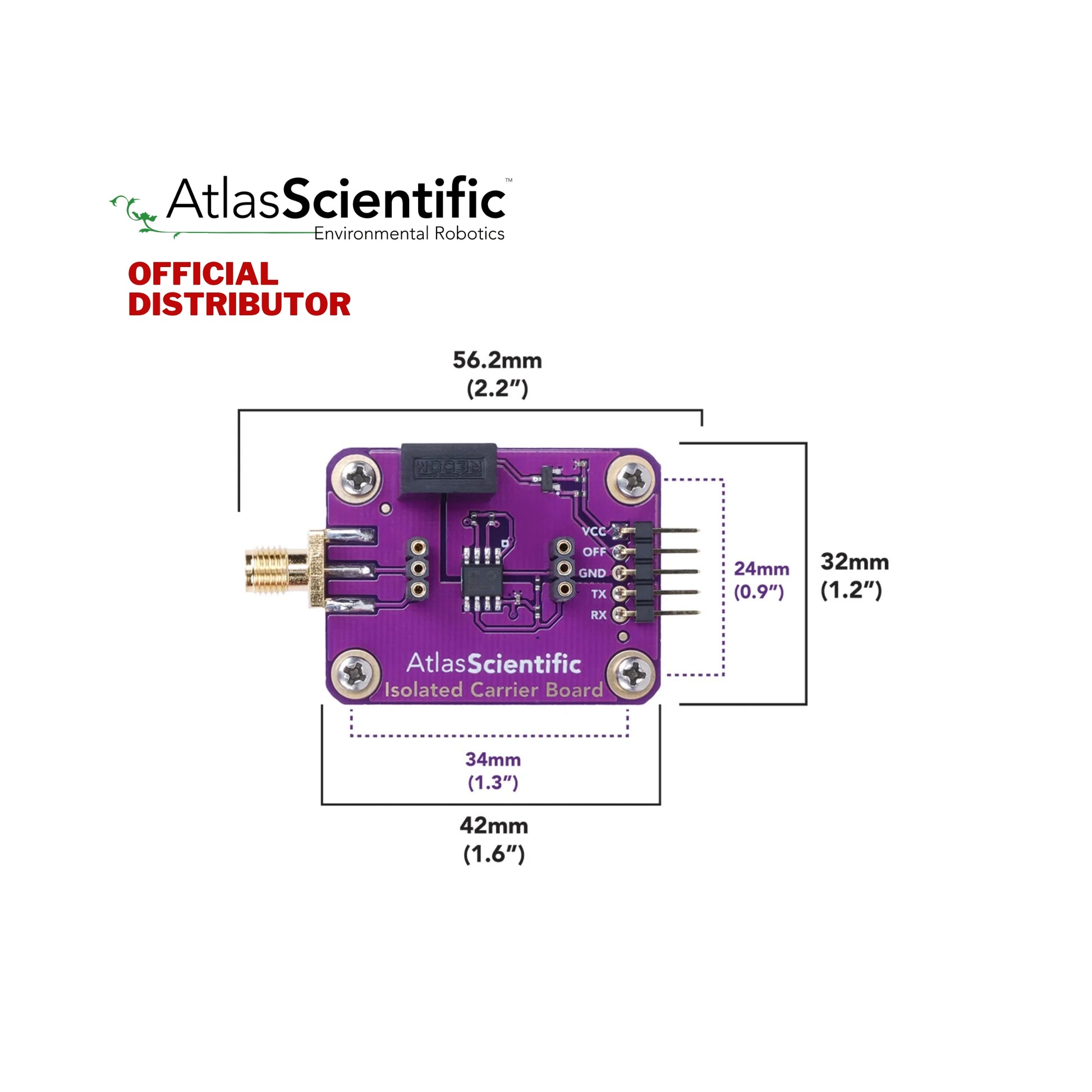

Carrier Board dimensions: 56.2mm x 32mm (2.2″ x 1.2″)
