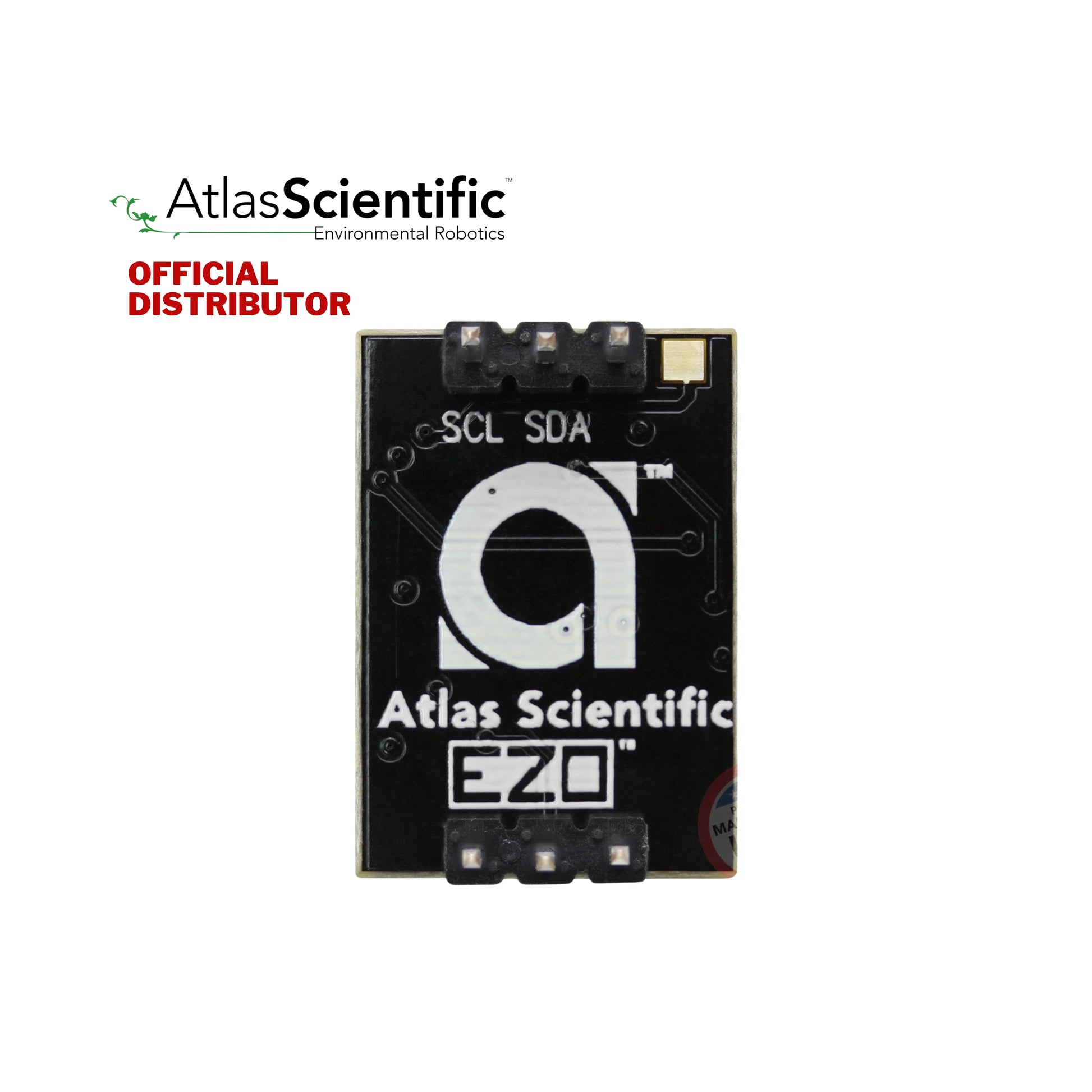

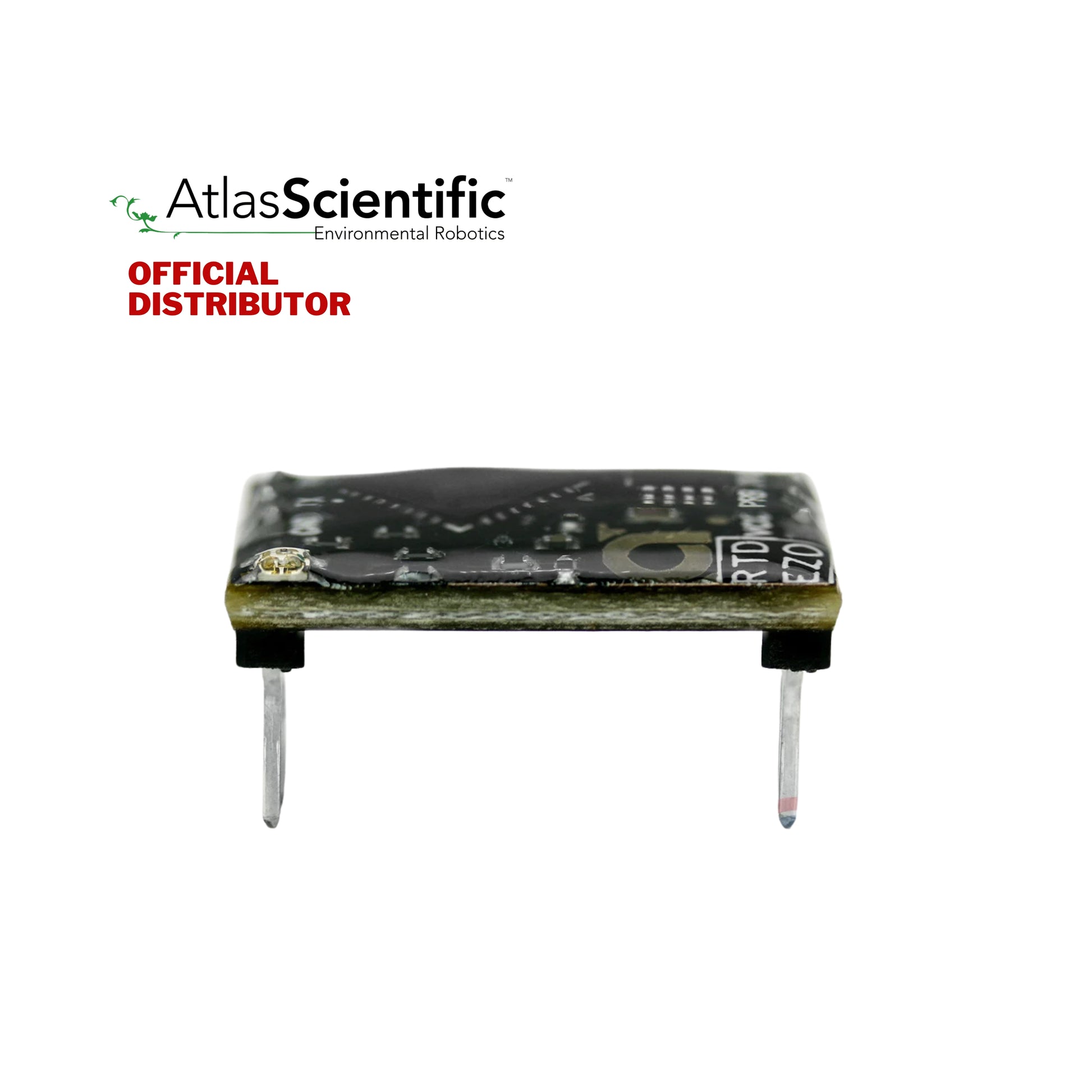

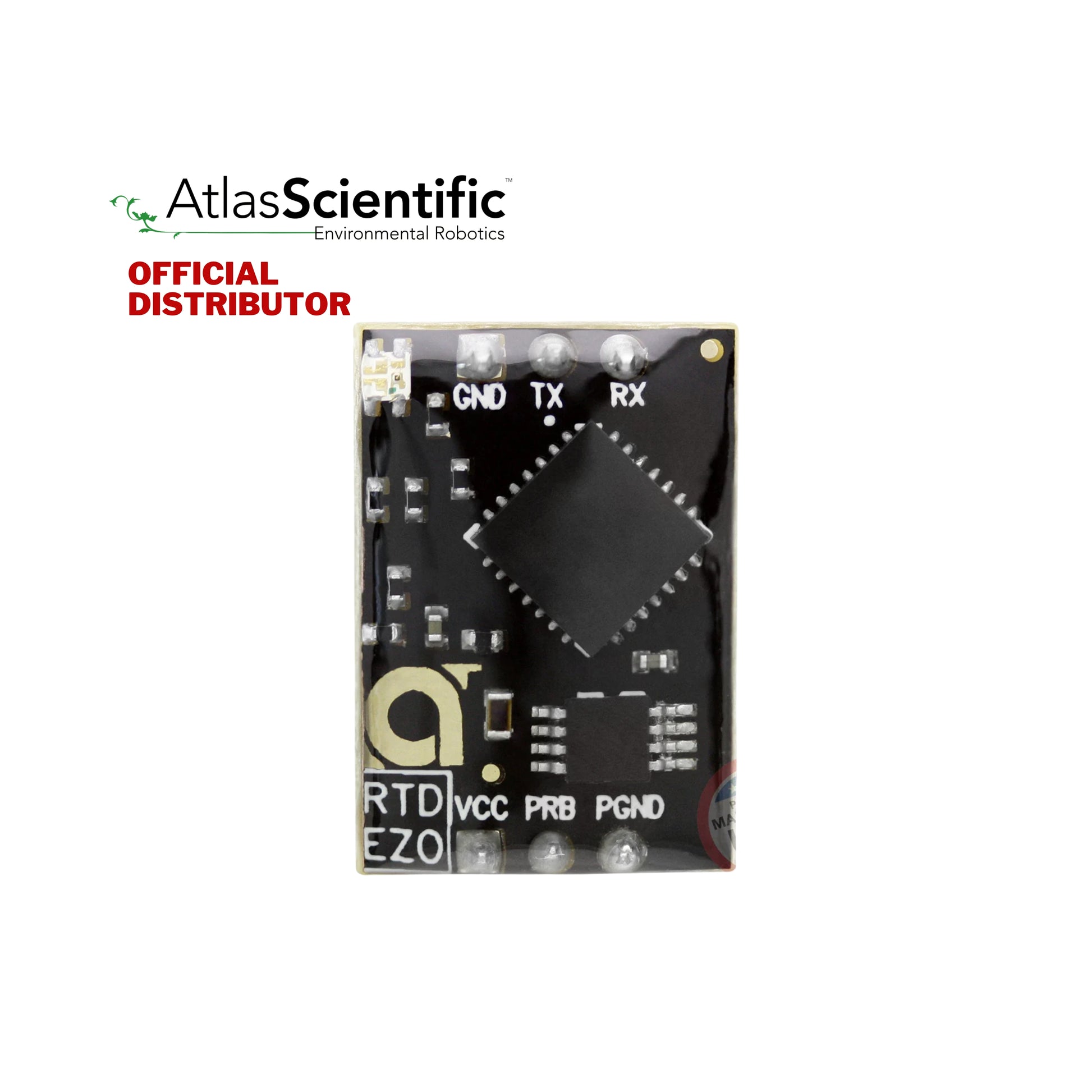

Atlas Scientific EZO™ RTD Temperature Circuit | EZO-RTD

Description:

There is no shortage of temperature probes out there, and the most accurate of all is the platinum RTD probe. But, converting the resistance of platinum to an actual temperature is unusually complicated. Fortunately, the Atlas Scientific EZO-RTD Circuit makes taking high accuracy readings from a platinum RTD probes easy. The EZO-RTD Circuit can work with any class of 2, 3, or 4 wire platinum RTD probes and has a sensing range of -126.000 °C to +1,254 °C.

Specifications:

• RTD: Resistance Temperature Detector
• Reads: Temperature
• Range: -126.000 °C − 1254 °C
• Resolution: 0.001
• Accuracy: +/– (0.1 + 0.0017 x ̊C)
• Response time: 1 reading per sec
• Supported probes: Any type & brand PT-100 or PT-1000 RTD
• Calibration: Single point
• Temperature output: °C, °K, or °F
• Data protocol: UART & I2C
• Default I2C address: 102 (0x66)
• Operating voltage: 3.3V − 5.5V
• Data format: ASCII
• Onboard Data Logger: 50 Readings
• Electrical Isolation: not needed

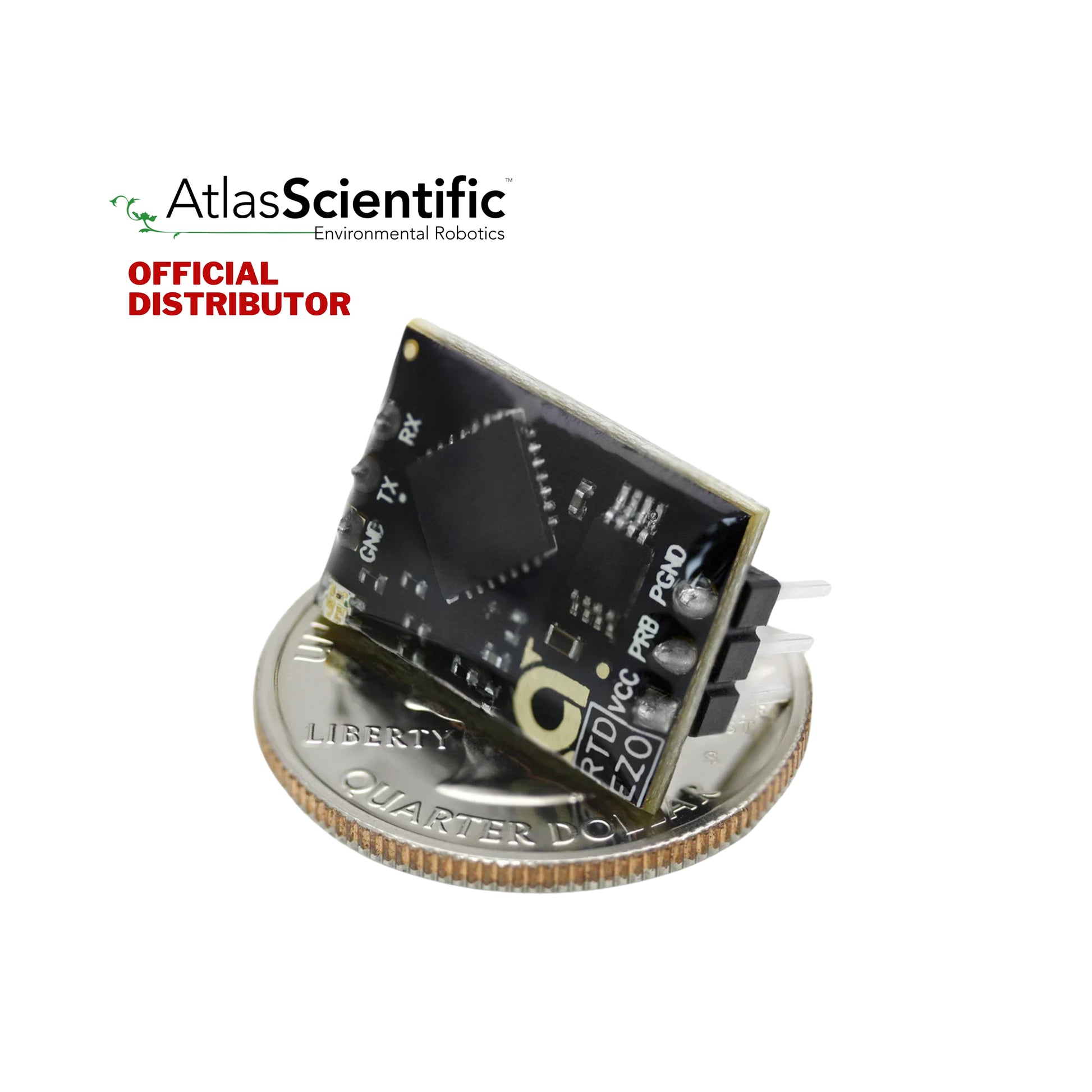

• Circuit dimensions: 13.97mm x 20.16mm (0.55″ x 0.79″)
• Weight: 1.76 grams

Documents & Downloads:

Documents:

• EZO™ RTD Circuit Datasheet
• Wiring Diagram

Downloads:

• FREE Software - AtlasDesktop Monitoring Software
• AtlasDesktop Monitoring Software Users Guide

Basic Sample Code:

• Arduino Uno Sample Code
• Arduino Mega / Giga Sample Code
• Arduino I2C Sample Code
• Raspberry Pi Sample Code (UART, I2C, USB)

3D File:

• EZO™ RTD Circuit 3D model (*step)

Library:

• EZO UART Library
• EZO I2C Library

Instructable:

• UART and I2C mode switching
• Auto Temp Compensation for Conductivity

Part List:

• 1x EZO™ RTD Temperature Circuit
