Atlas Scientific Surveyor™ Analog ORP Sensor / Meter | SRV-ORP

₱2,390.00
₱2,390.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Loading locations...
Product Description

Description:

(Previously known as the Gravity Analog ORP Sensor / Meter)

Every project is different; sometimes, you need high-accuracy digital readings. And other times, you only need a basic analog output. For those of you looking to add ORP measurements to your device but want something simple, the Atlas Scientific Gravity ORP Meter/Sensor is for you. This low-cost ORP meter gives you the same capabilities found in basic hand-held meters, with an easy way of capturing the data.

Specifications:

  • Reads: ORP
  • Range: -1500mV − 1500mV
  • Accuracy: +/– 1mV
  • Response time: Continuous analog output
  • Supported probes: Any type & brand
  • Calibration: Optional
  • Temp. compensation: No (unnecessary)
  • Data protocol: Analog 0 − 3V
  • Surveyor™ dimensions: 56.2mm x 32mm (2.2″ x 1.2″)
  • Weight: 15 grams

Documents & Downloads:

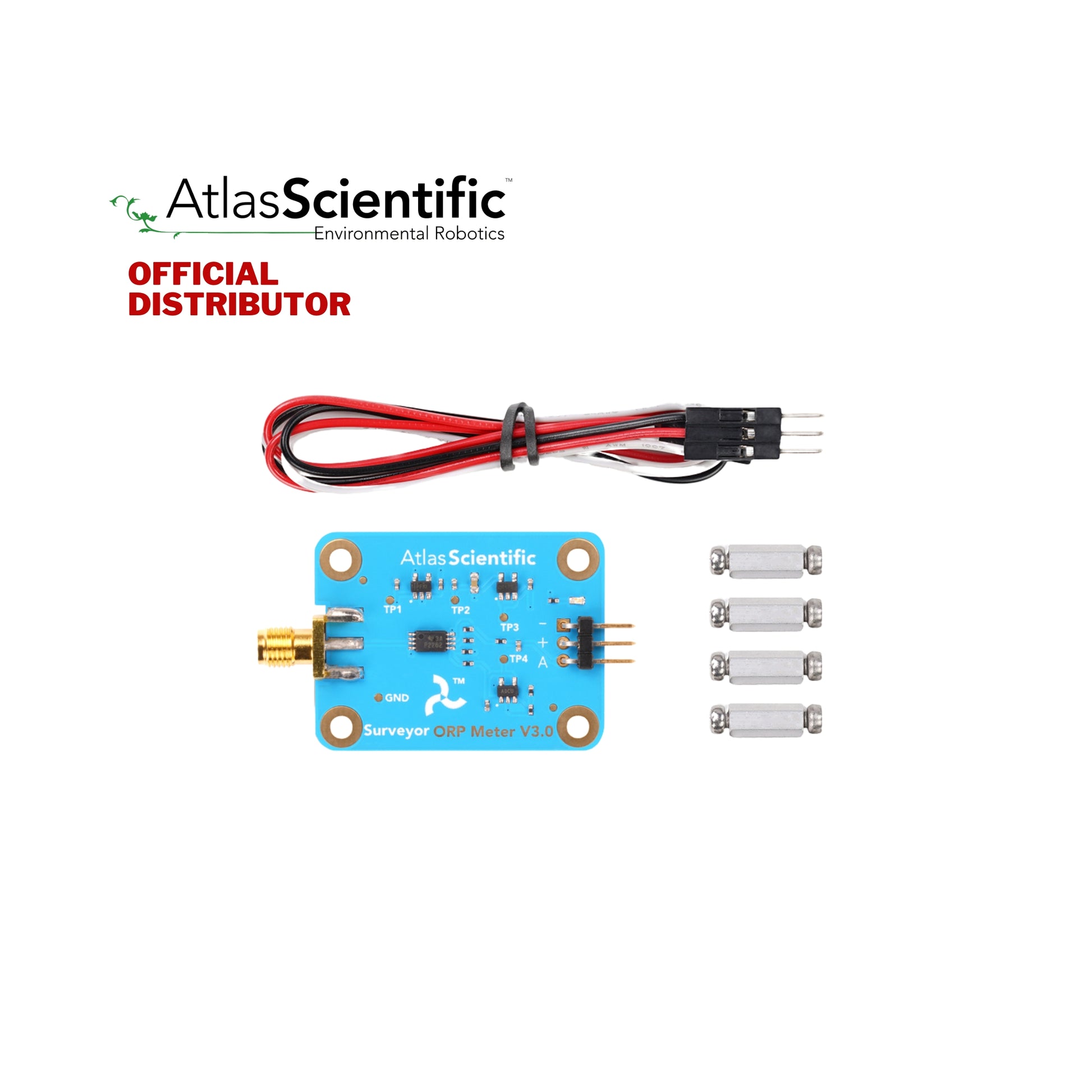

Part List:

  • (4) standoffs and screws
  • (1) 3 pin jumper cable
