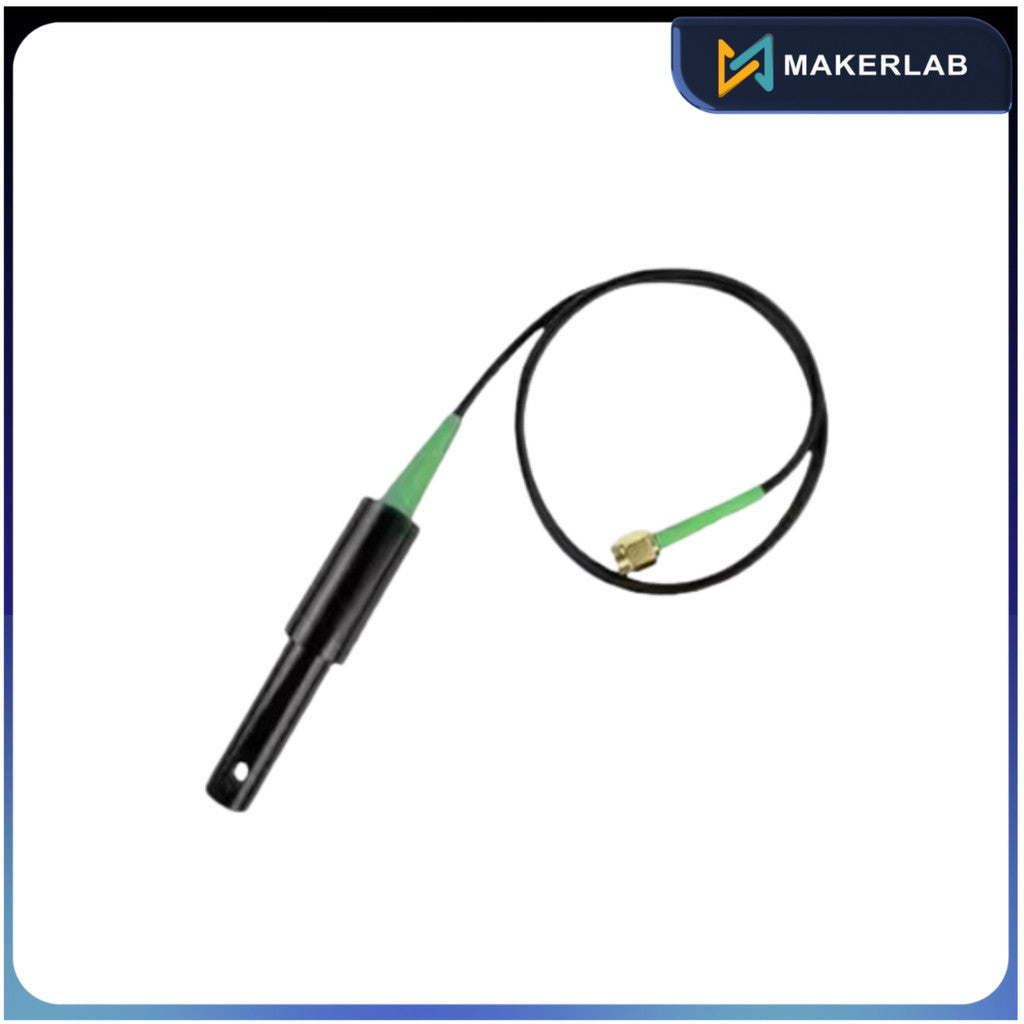

Atlas Mini Conductivity Probe K 1.0 | ENV-20-EC-K1.0

Description:

Works just as good as the full-size conductivity probe, only smaller. What else is there to say. Because conductivity probes don’t have any electrolyte that gets depleted, they only need to be calibrated during installation.

Specifications:

• Reads: Conductivity
• Range: 5 − 200,000 μS/cm
• Accuracy: +/ – 2%
• Response time: 90% in 1s
• Temperature range °C: 1 − 110 °C
• Max pressure: 3,447 kPa (500PSI)
• Max depth: 352m (1,157 ft)
• Connector: Male SMA
• Cable length: 1 meter
• Internal temperature sensor: No
• Time before recalibration: ~10 years
• Life expectancy: ~10 years

Documents & Downloads:

• Mini Conductivity Probe Datasheet
• LEGACY Mini Conductivity Probe Datasheet
• How to measure the conductivity of soil
• How to properly cut your probe cable
• Connecting probes into a pipe
• ENV-20-EC-K1.0 3D model (*step)
