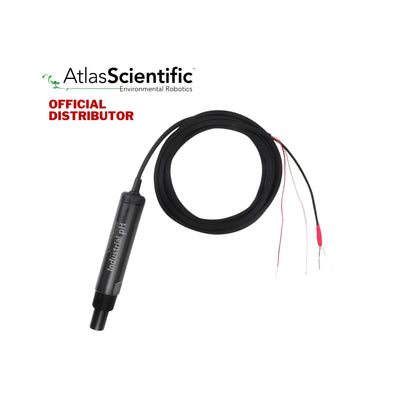

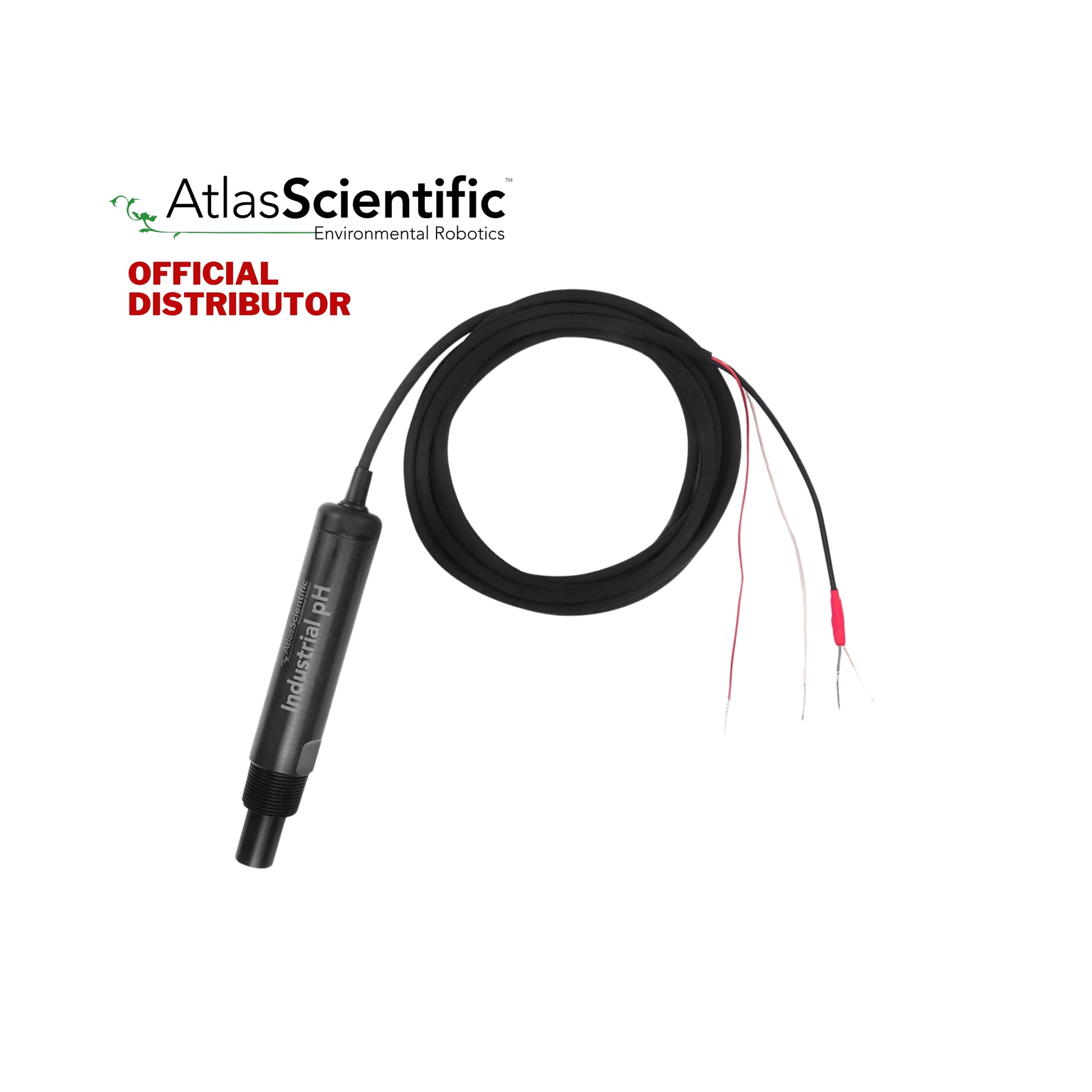

Atlas Scientific Industrial pH Probe | ENV-50-pH

Description:

Designed for industrial process control, the Atlas Scientific industrial pH probe has all the capabilities of our lab-grade pH probe and more

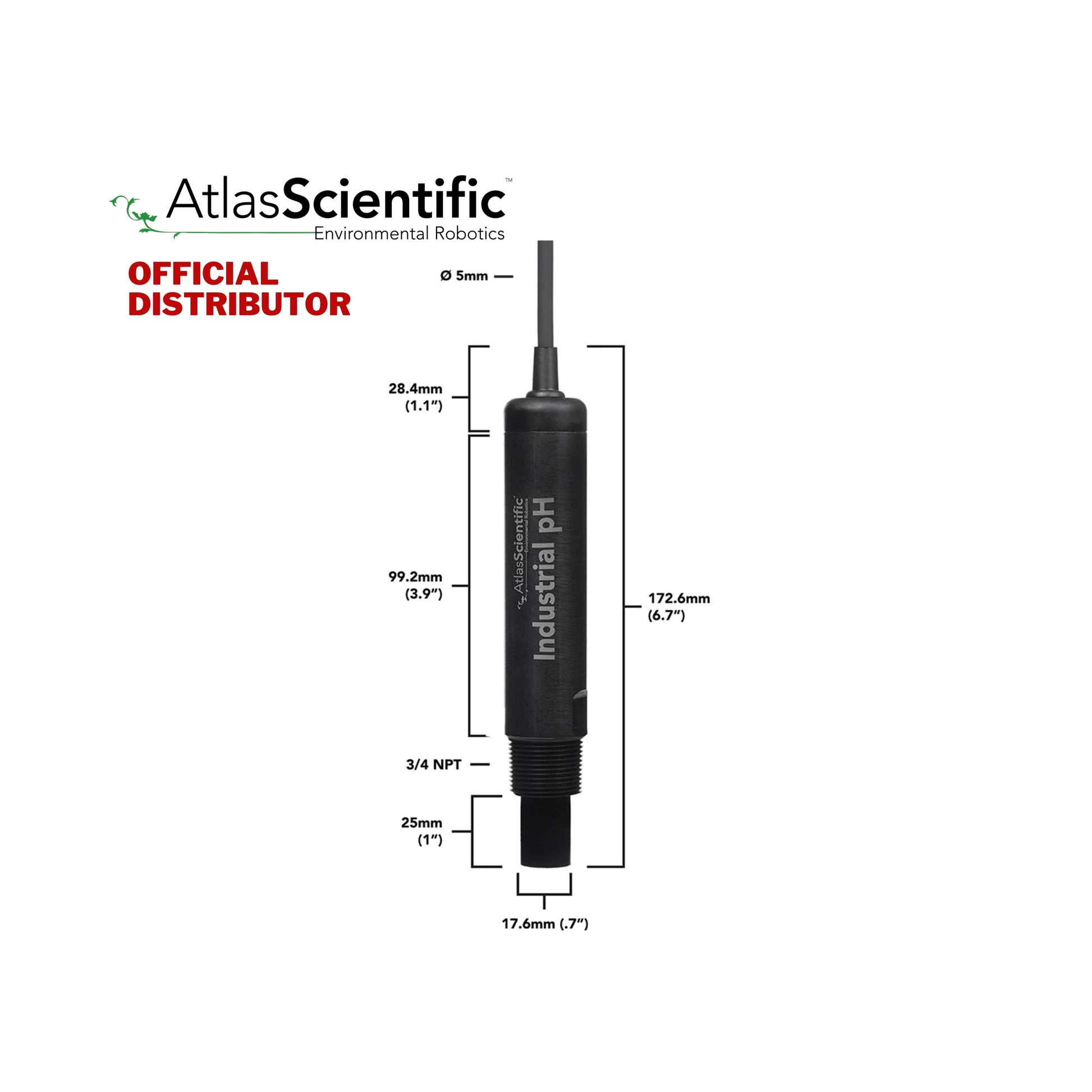

Because the probe is larger, it holds more internal electrolyte. This means it has a life expectancy almost twice as long as our Lab Grade probe. Its thick Ryton body is chemically inert and virtually indestructible. Unlike traditional pH probes that have a glass bulb at its tip, this probe has a flat sensing area. That means that you never have to worry about the glass breaking off into your liquid. And we didn’t even mention the 3/4″ NPT threaded body or internal temperature sensor!

Specifications:

• Double junction
• silver / silver chloride
• Reads: pH
• Range: 0 − 14
• Resolution: +/- 0.001
• Accuracy: +/- 0.002
• Response time: 95% in 1s
• Temperature range °C: 1 − 99 °C
• Max pressure: 100 PSI
• Max depth: 70m (230′)
• Connector: SMA or Tinned leads
• Cable length: 3 meters (9.8′)

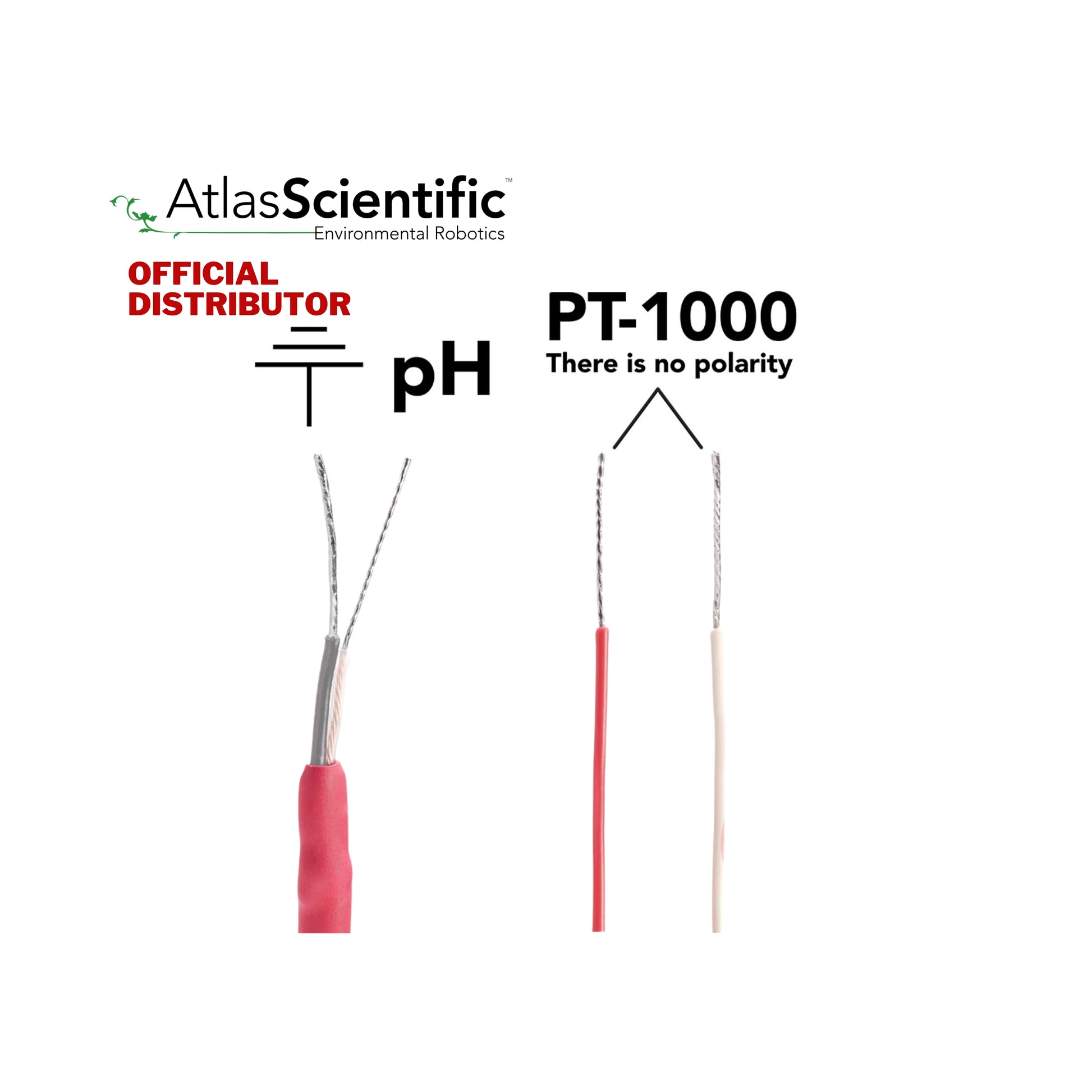

• Internal temperature sensor: Yes (PT-1000)
• Time before recalibration: ~1 Year
• Life expectancy: ~4 Years

Documents & Downloads:

Datasheets:

• pH Industrial Probe with Temp Datasheet
• LEGACY pH Industrial Probe Datasheet

Documents:

• Connecting probes into a pipe

Tools:

• pH Temperature Compensation Calculator

3D Files:

• pH Temperature Compensation Calculator
