Atlas Scientific pH Kit

This pH probe can be fully submerged in fresh water or salt water, up to the BNC connector indefinitely.

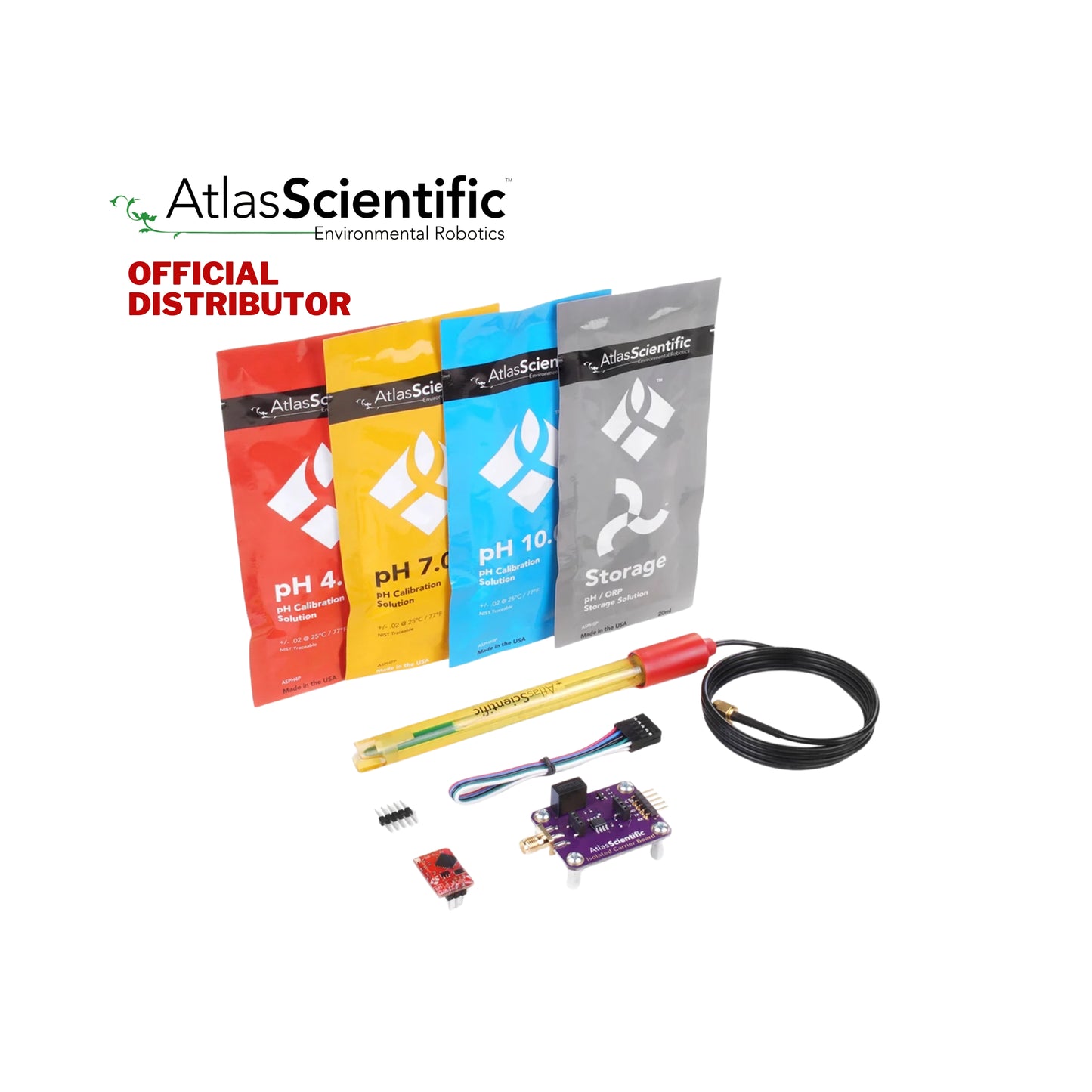

Package Included:

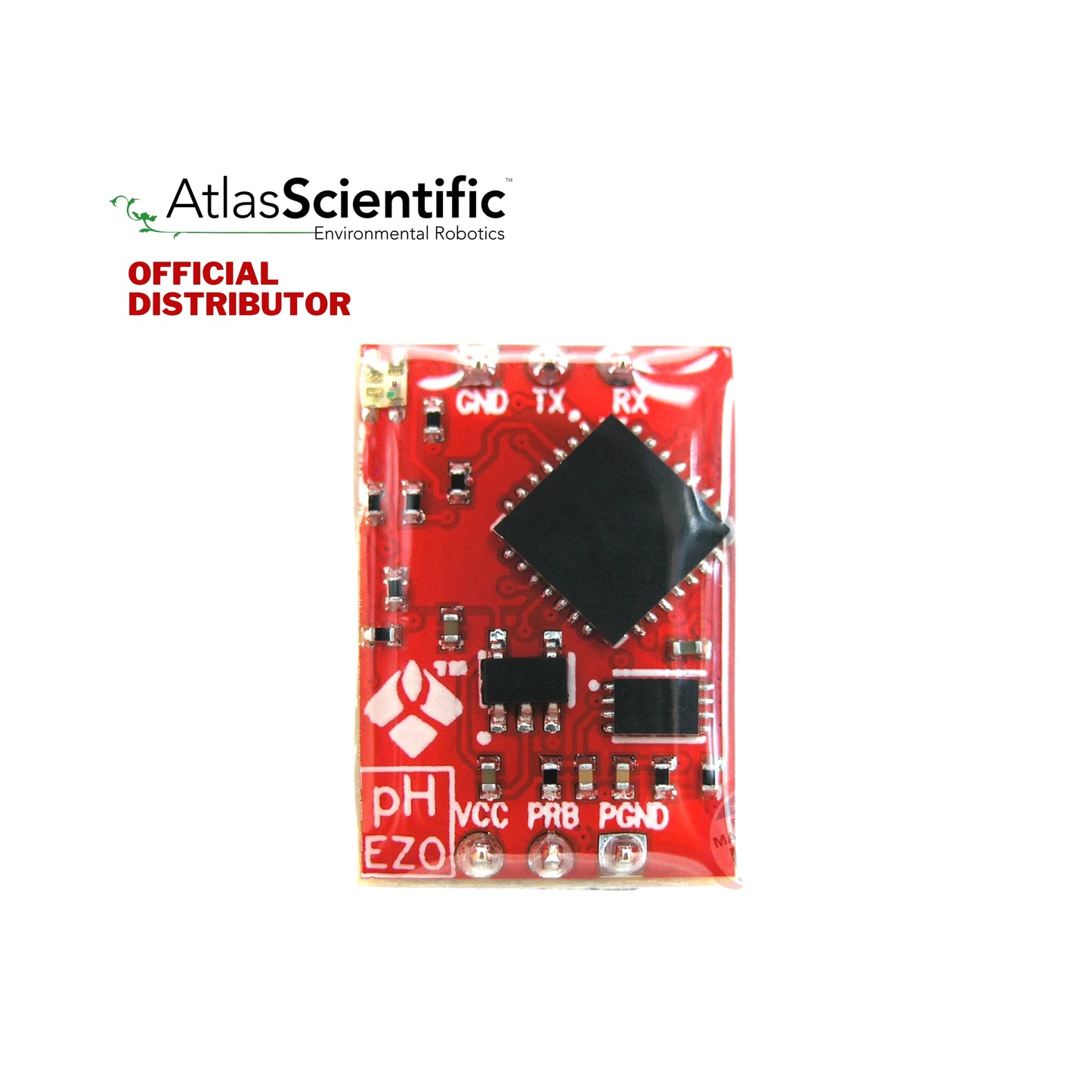

• 1 x EZO™ pH Circuit

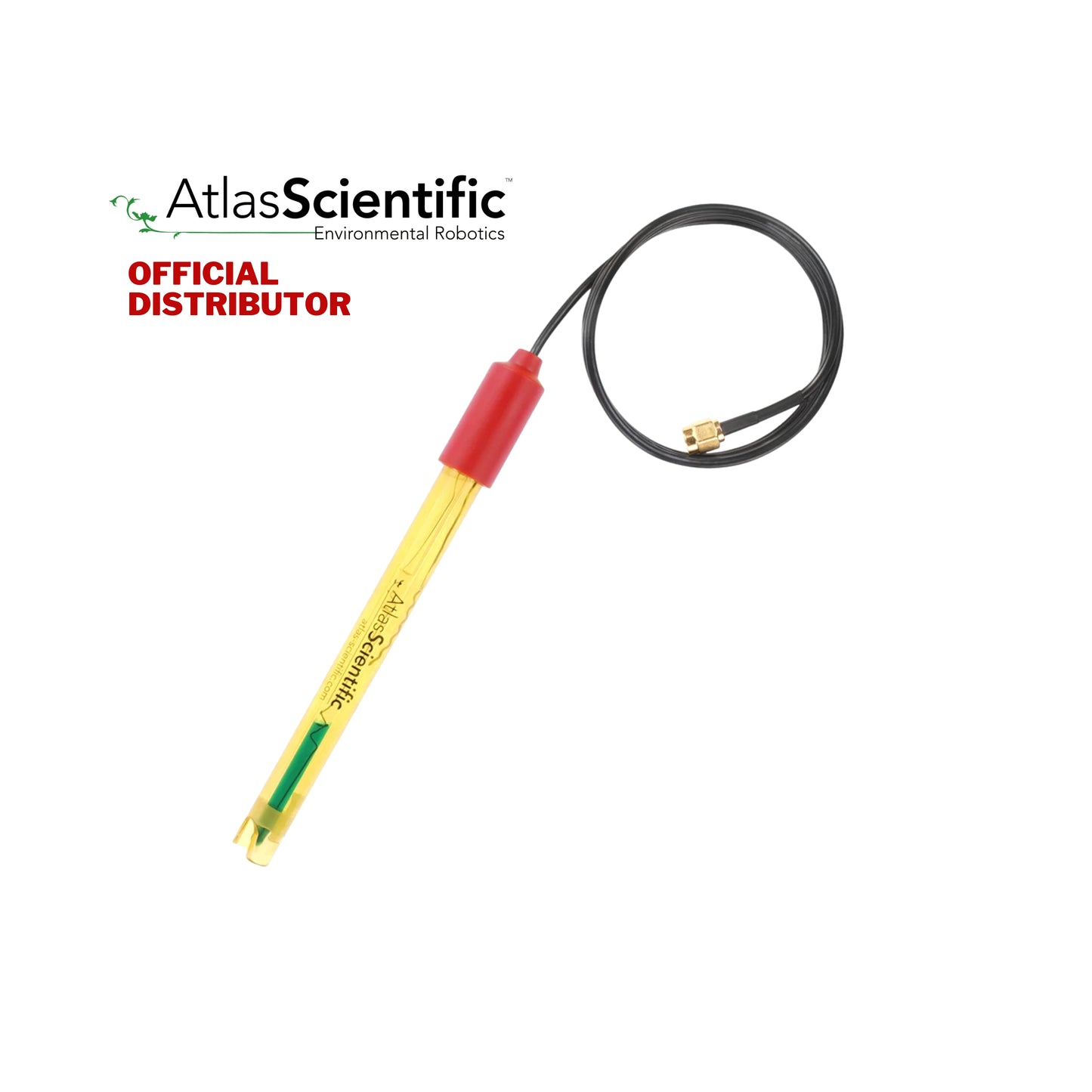

• 1 x scientific grade silver / silver chloride pH Probe.

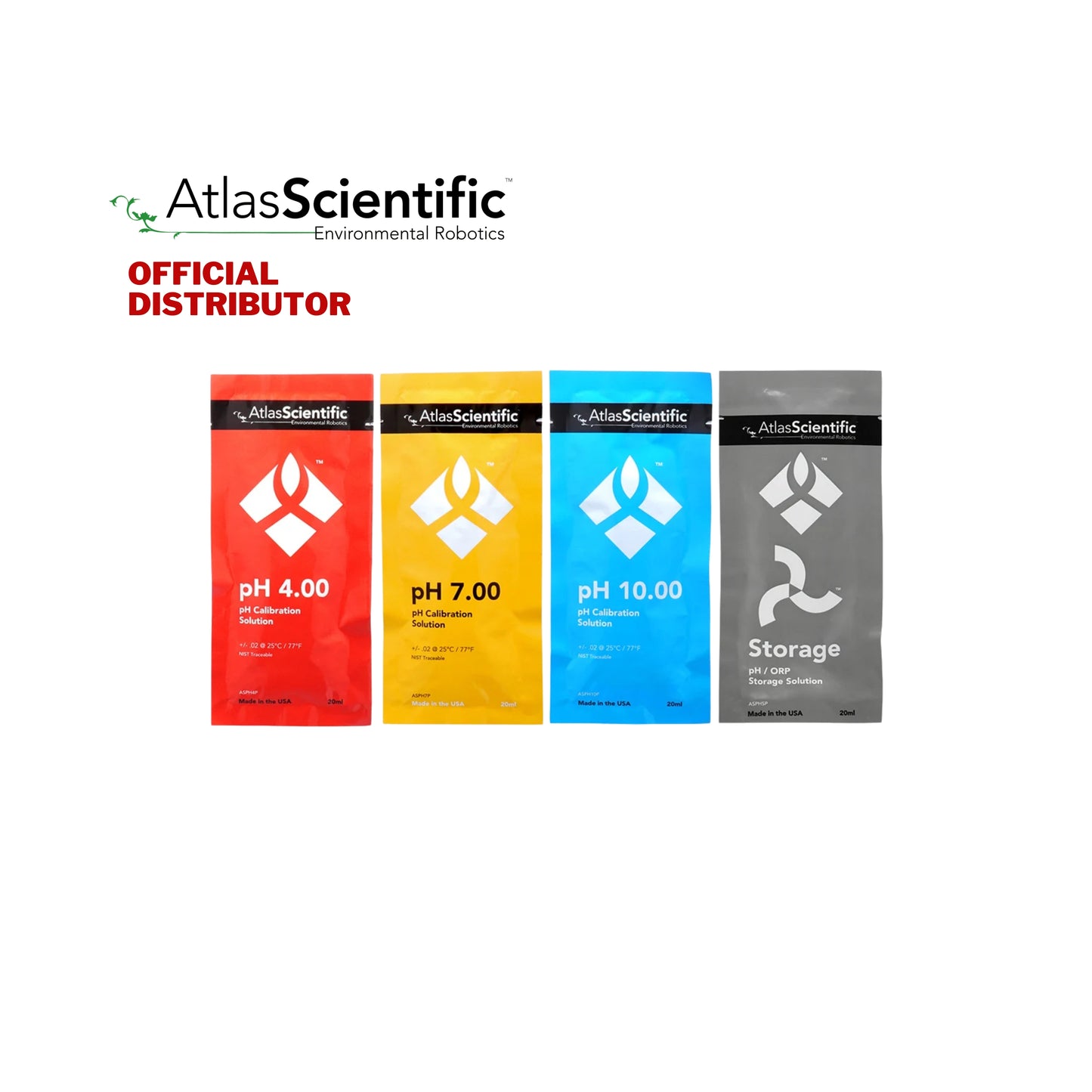

• 3 x 125ml (4oz) calibration solutions (ph 4, pH 7 and pH 10)
• 1 x 125ml (4oz) pH storage solution
• 1 Pre-Assembled Female BNC connector
• Probe Max Pressure: 690 kPa (100PSI)
• Probe Max Depth 60 M (197 ft)
• Probe Weight: 49 g

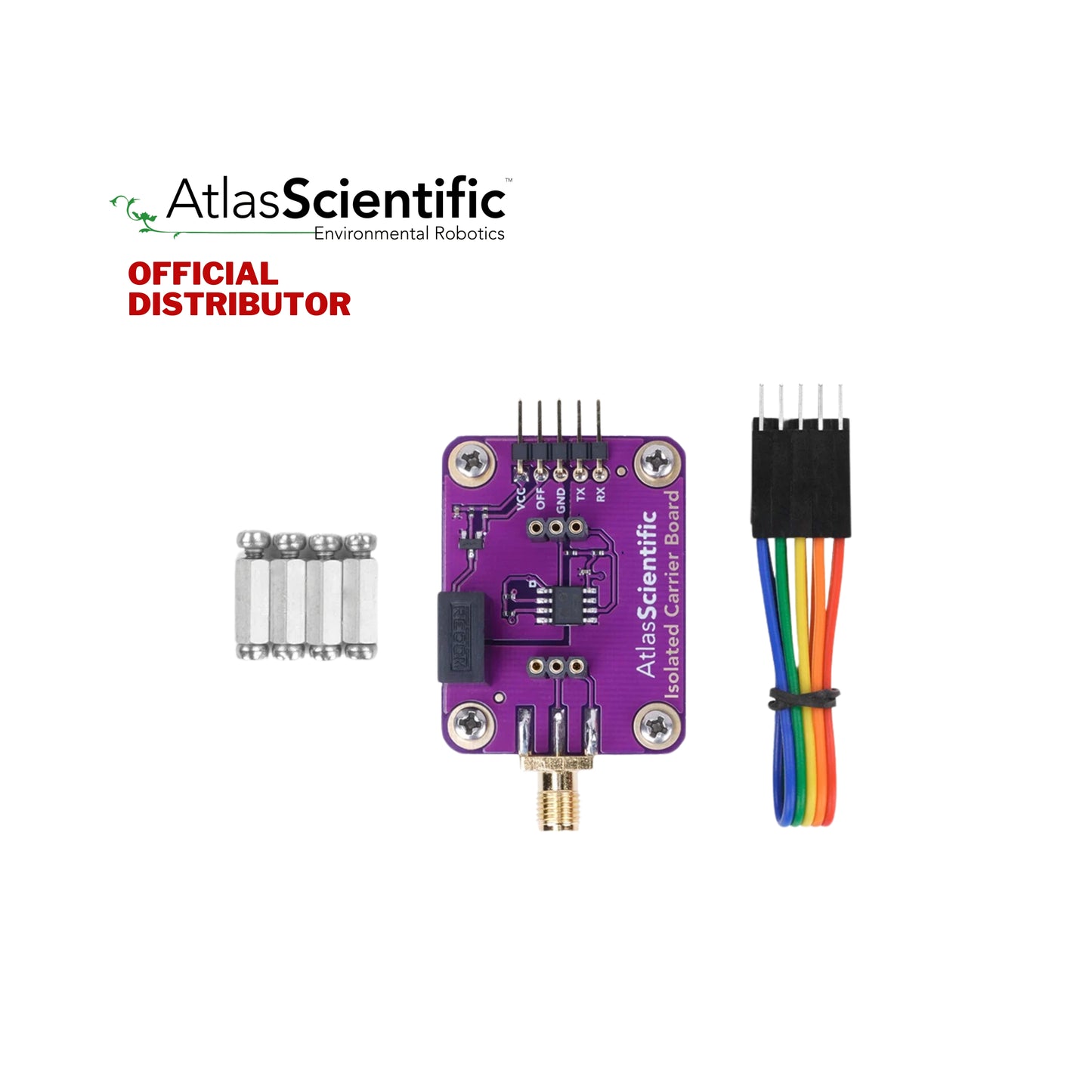

Optional: 1 Basic EZO™ Inline Voltage Isolator (optional)

Female BNC Specification:

• Thread size 1/4" - 36 UNS Thread type

Documents:

EZO™ pH Circuit Datasheet
How to measure the pH of soil
Wiring Diagram
Arduino Uno Sample Code
Arduino Mega Sample Code

Arduino I²C Sample Code

pH Probe Datasheet
How to properly cut your probe cable
Raspberry Pi Sample Code (UART, I²C, USB)
pH CAD Footprint File (*.dxf)
Dual Probe Holder - 3D printer file
BNC Technical Specs
