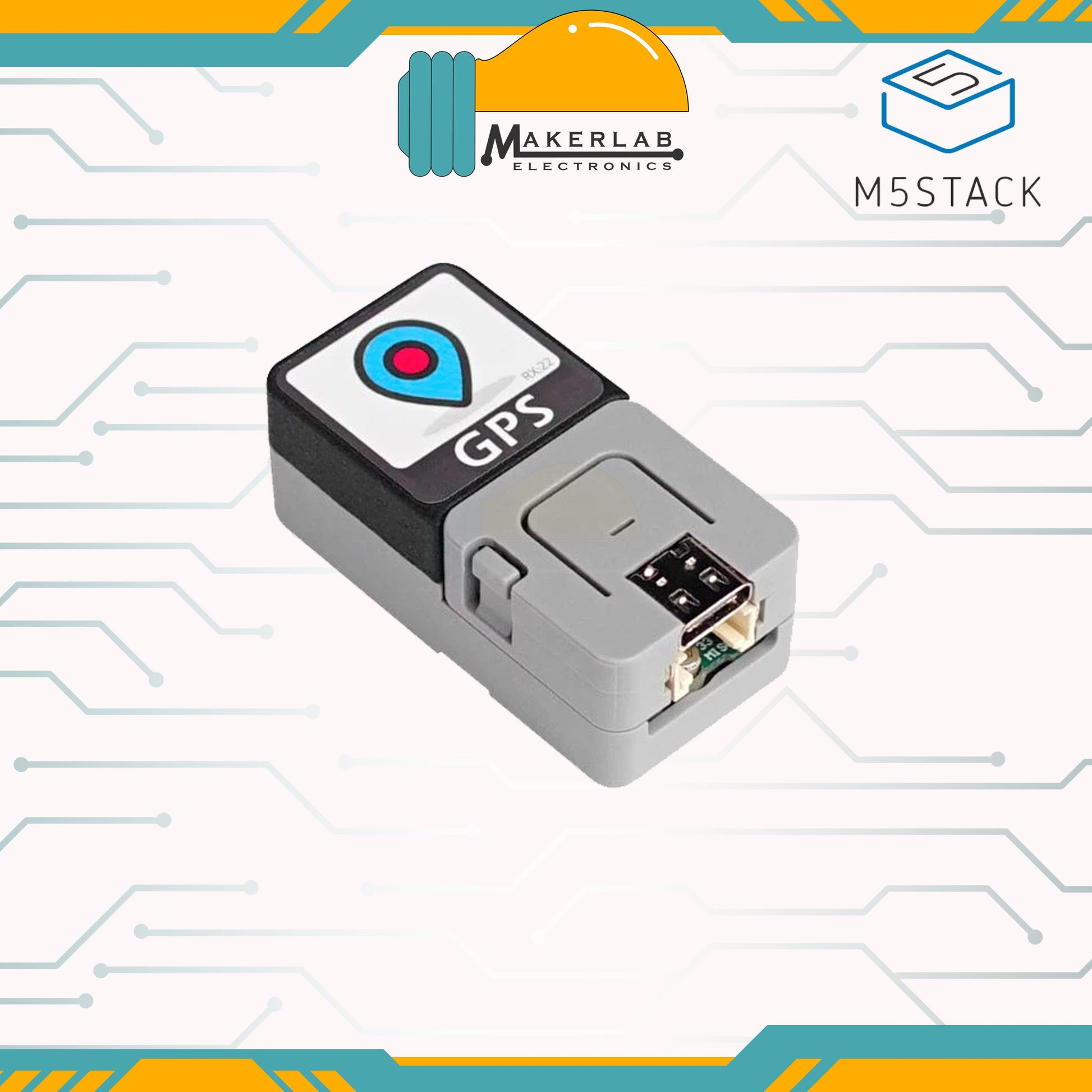

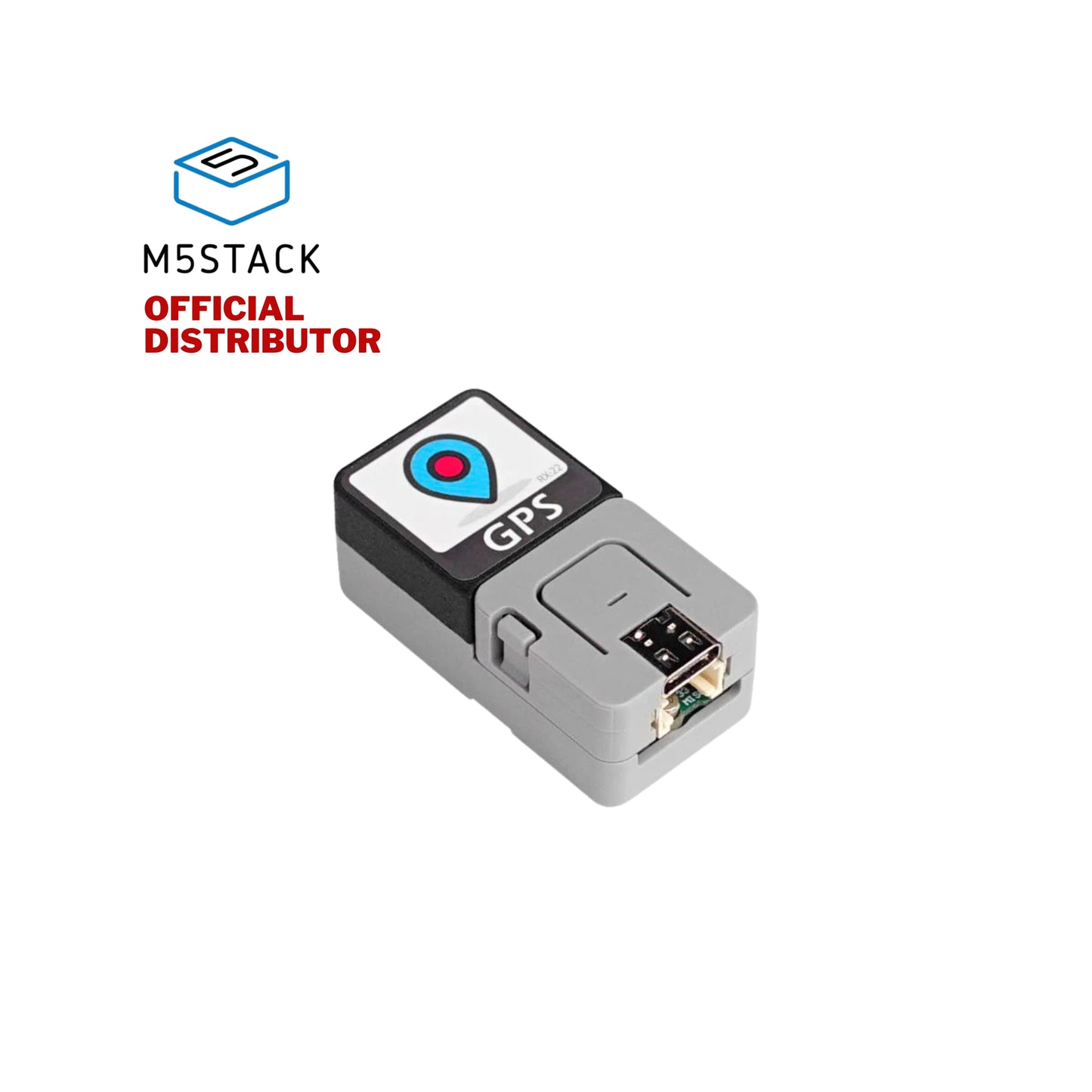

M5Stack ATOM GPS Development Kit (M8030-KT)

₱2,200.00 PHP
₱2,200.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 8 units left

About the Product

ATOM GPS is a GPS positioning module wich is part of the M5 atomic series. The navigation chip is m8030-kt, which has built-in flash and a coin cell battery, which can save the users configuration. It adopts NMEA-0183 protocol output, supports GPS, GLONASS, Galileo, BDS, SBAS and QZSS satellite systems, has 72 search channels, an adjustable refresh rate, and can be widely used in vehicle monitoring such as bus stop reporting, vehicle navigation, ship navigation, track tracking and other applications. In addition, a self elastic TF(MicroSD) card slot is built in. It is possible to read and write GPS and other file data, for example, you could export GPS data in a specific format to view the motion tracking in the map software, or read and write files as a common card reader.

UART Parameter setting:

  • Baud rate(default: 9600bps)
  • Start bit(1 bit)
  • Stop bit(1 bit)
  • Check bit(None)

Product Features

  • Compatible with Atom Matrix/Atom Lite
  • High signal acquisition sensitivity
  • Support single system positioning of BDS / GPS / GLONASS / Galileo / SBAS / QZSS multiple satellite navigation systems

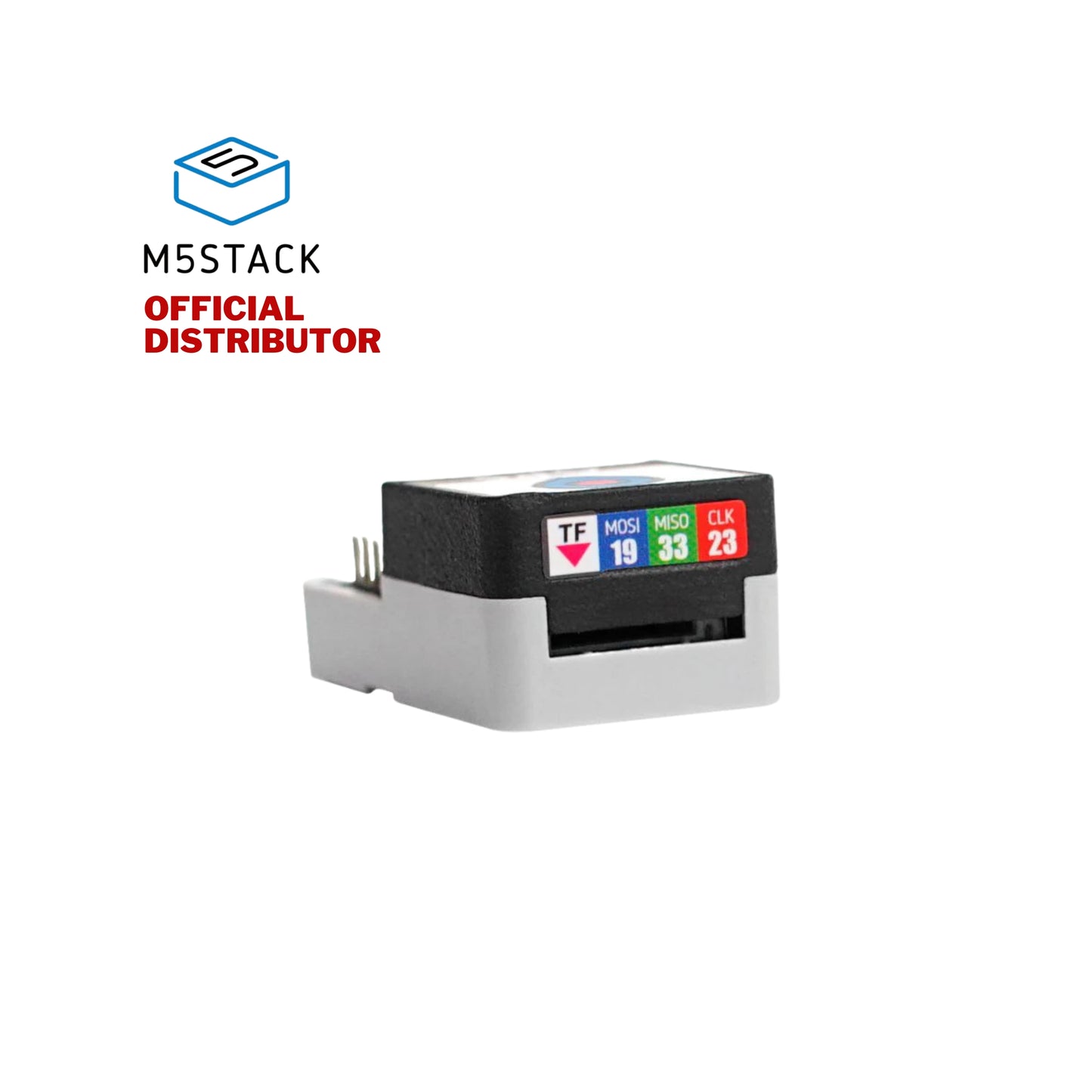

  • Built in self elastic TF (microSD) card slot
  • Low power

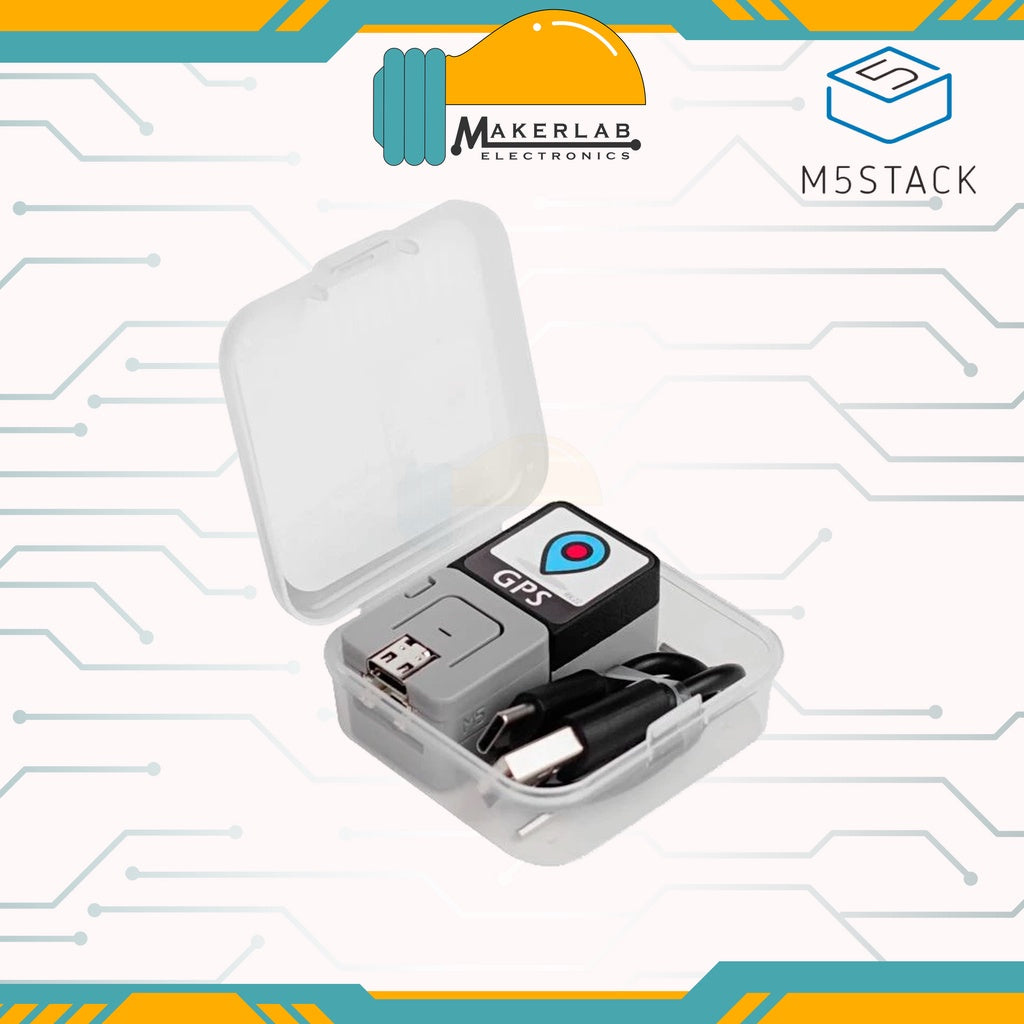

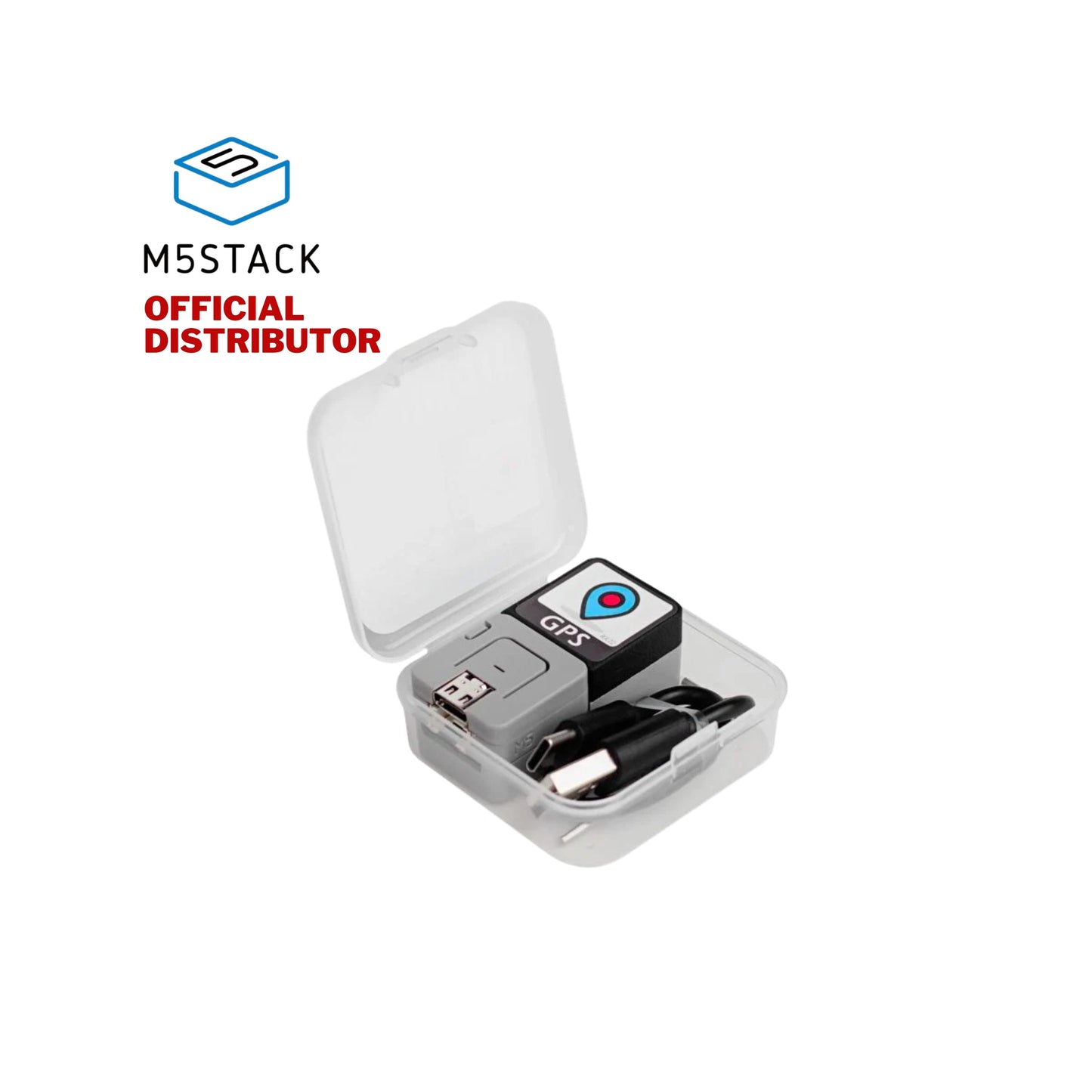

  • 1x ATOM GPS
  • 1x ATOM Lite
  • 1x Hex Key
  • 1x M2*3mm Hexagon self tapping screw
  • 1x M2*8mm Hexagon socket cup head machine screw
  • 1x TYPE-C USB Cable(20cm)


  • Vehicle and ship positioning and navigation
  • Track record
  • File reading and writing


Resources Parameter
Frequency accuracy GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Accuracy Horizontal: 2m, Speed: 0.1m/s, Time: 1us
Channels 72 search channel
Update frequency 1-10Hz
Maximum speed 515m/s
Maximum acceleration < 4g
Sensitivity Trace: - 167dbm, capture: - 160dBm, cold start: - 148dbm, hot start: - 156dbm
Start time Cold start: 26 seconds, warm start: 25 seconds, hot start: 1 second
Baud rate default: 9600bps
Output protocol NMEA-0183
Indicator light TX: the power on blue light flashes, indicating that there is data output, PPS:3D Blink after positioning, and it will not light if it is not positioned
Working temperature -40°C - 85°C
Net weight 28g
Gross weight 38g
Product size 24*48*18mm
Package size 54*54*20mm
