M5Stack ATOM Lite ESP32 Development Kit

Description:

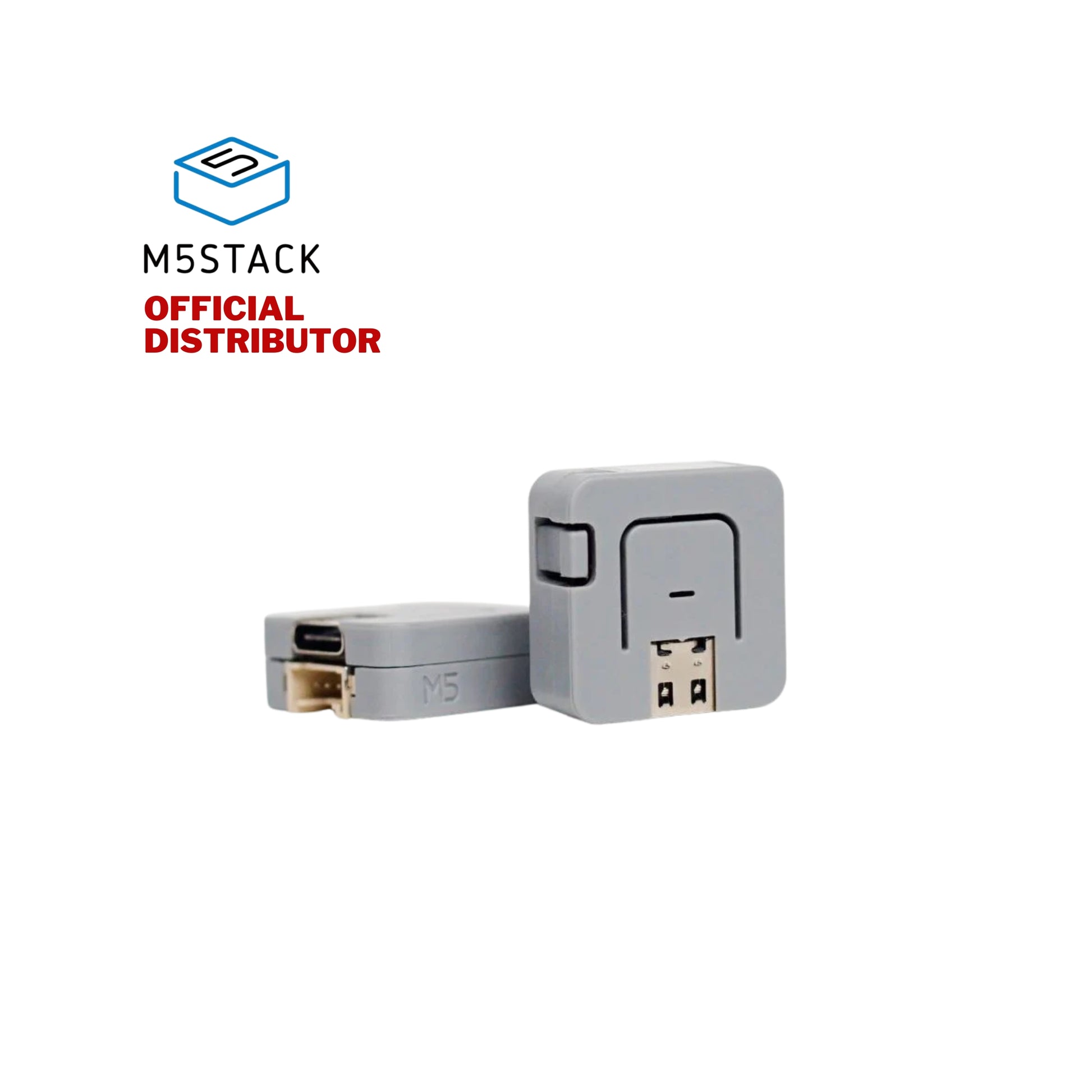

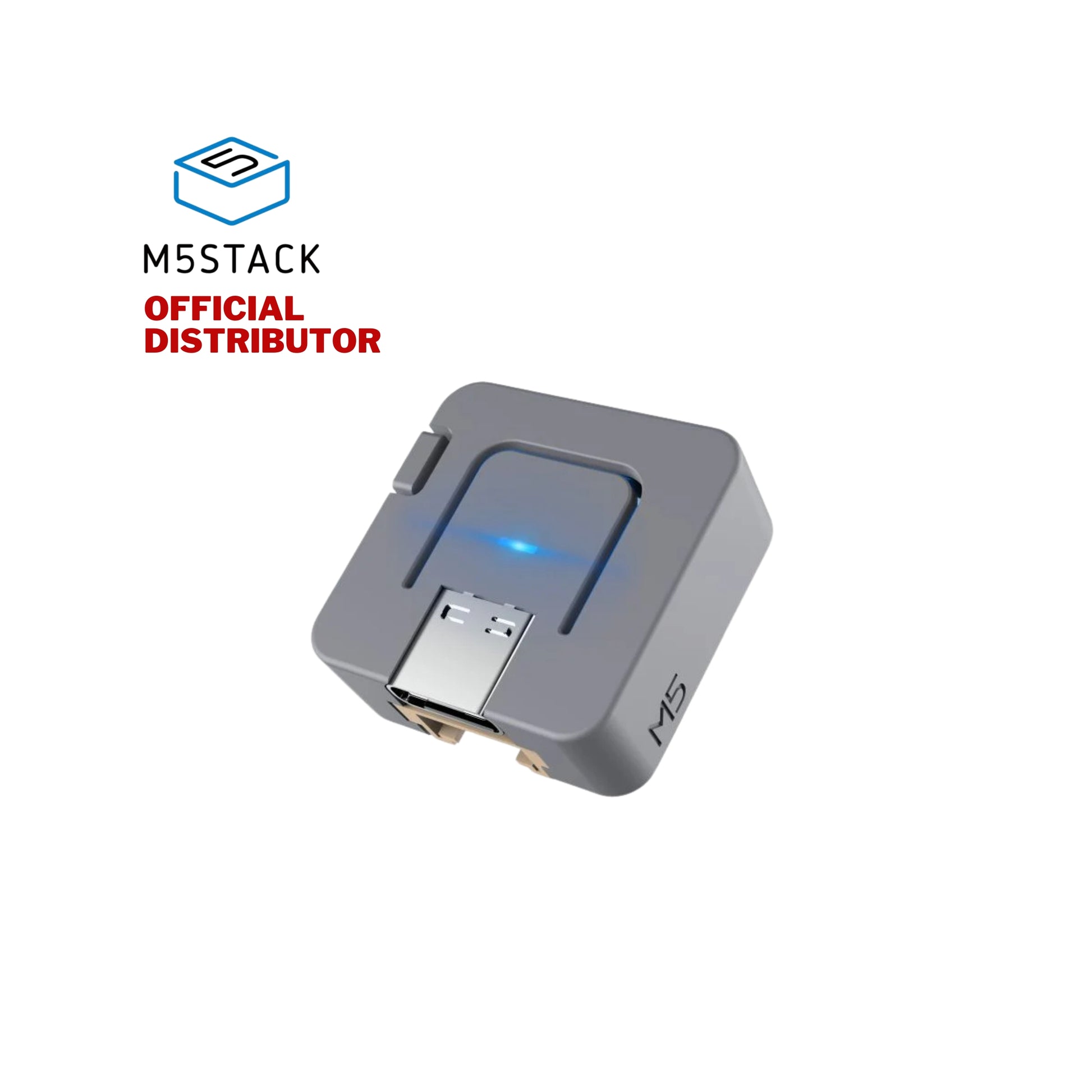

Atom Lite, which has a size of only 24*24mm, is a very compact development board in the M5Stack development kit series. It provides more GPIOs for user customization which is very suitable for embedded smart home devices and in making smart toys. The main control adopts the ESP32-PICO chip which comes integrated with Wi-Fi and Bluetooth technologies and has a 4MB of integrated SPI flash memory. Atom Lite board provides an Infra-Red LED, a RGB LED, buttons, and a HY2.0 interface. In addition, it can connect to external sensors and actuators through 6 GPIOs. The on-board Type-C USB interface enables rapid program upload and execution.

USB Drive problems

UnitV/M5StickV/M5StickC/ATOM may not work without driver in some systems. Users can manually install FTDI driver to fix this problem. Take the win10 environment as an example, download the driver file that matches the operating system, decompress it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usually M5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly).

Features:

• ESP32-based

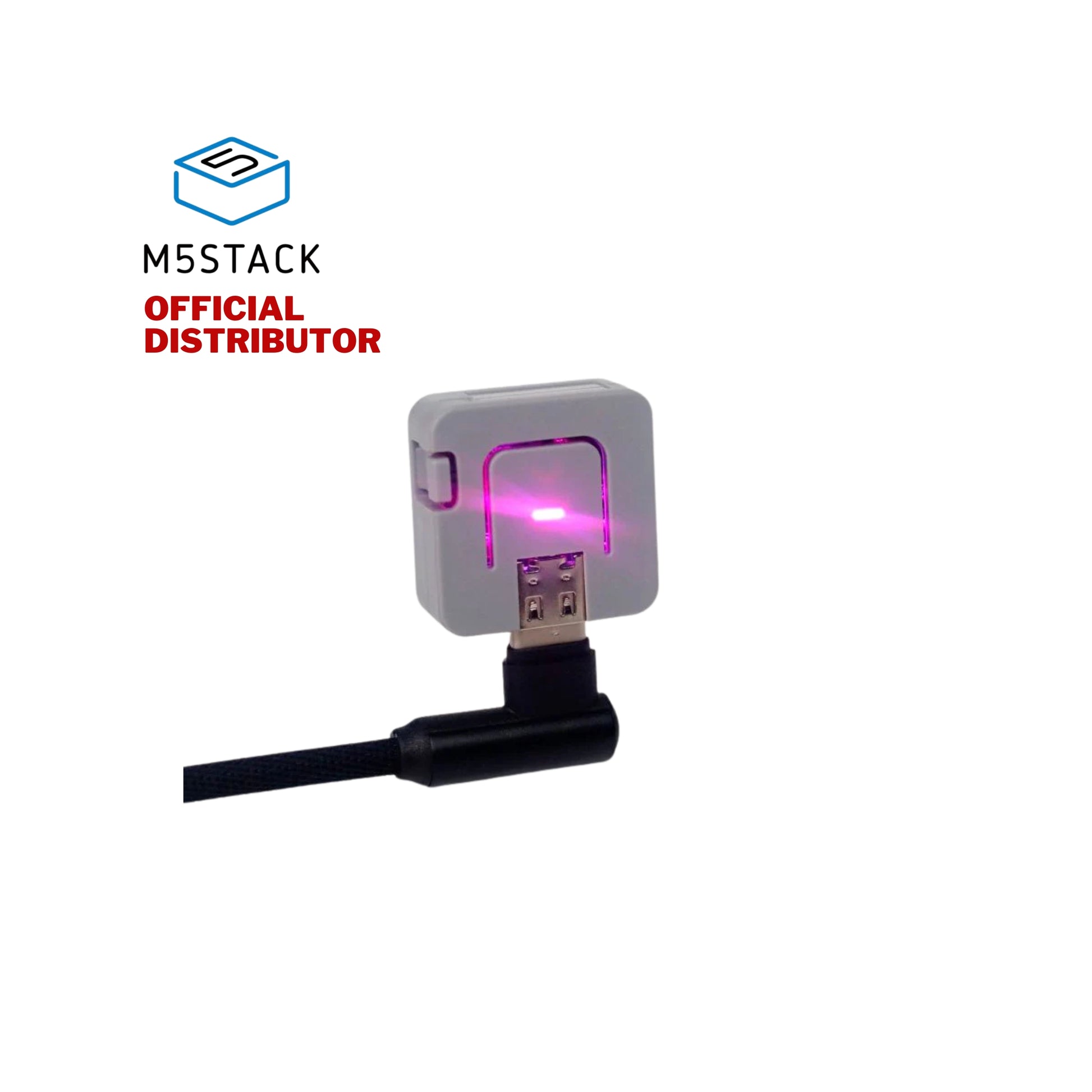

• RGB LED(SK6812)
• Programmable button
• Built-in Infra-red
• Extendable Pins & Holes
• Program Platform: Arduino, UIFlow

Specifications:

• Product Code: C008
• ESP32: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
• Flash: 4MB
• Power Input: 5V @ 500mA
• Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1

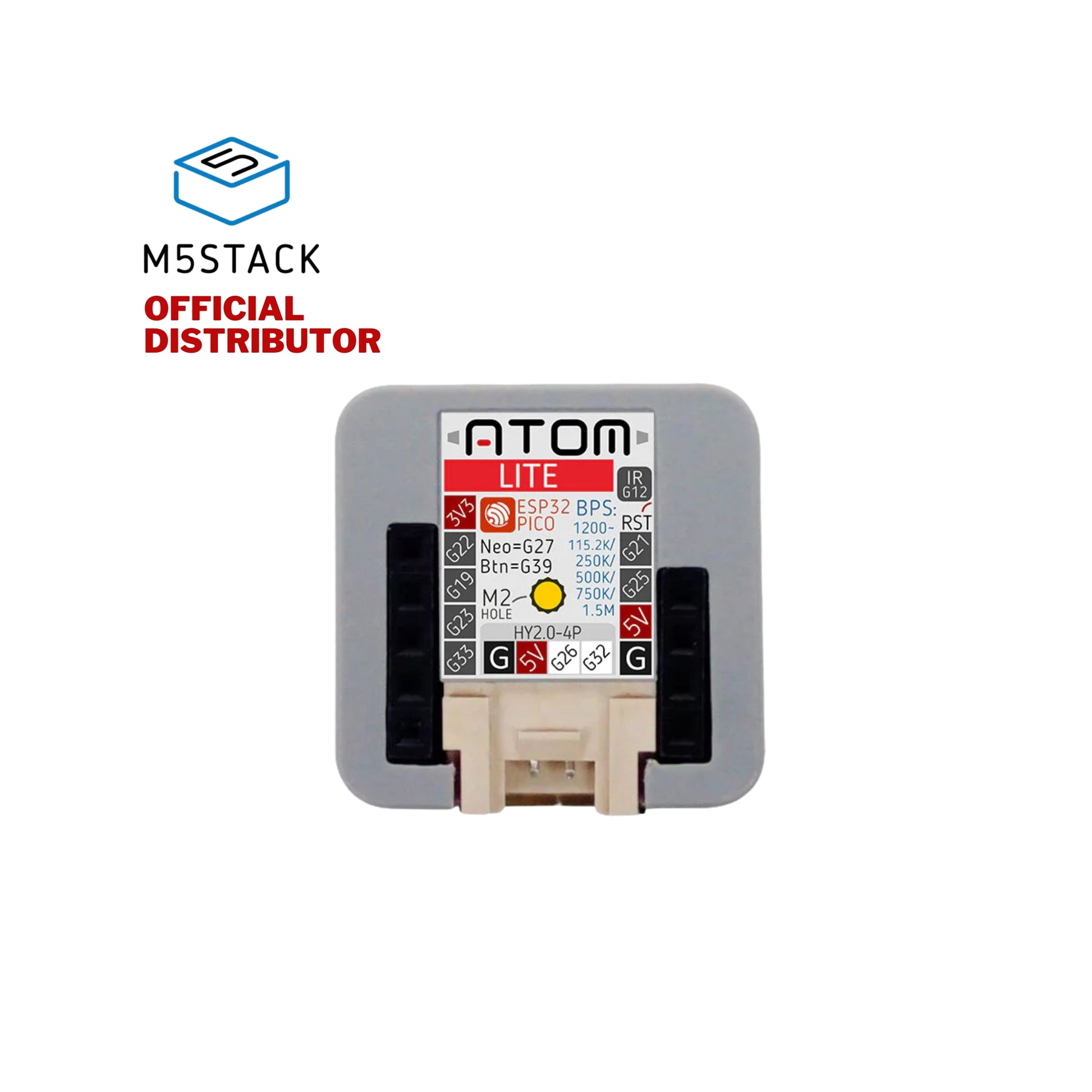

• PIN Port: G19, G21,G22,G23,G25, G33
• RGB LED: SK6812 3535 x 1
• IR: Infrared transmission
• Button: Custom button x 1
• Antenna: 2.4G 3D Antenna
• Operating Temperature: 0°C to 60°C
• Net weight: 3g
• Gross weight: 12g
• Product Size: 24*24*10mm
• Package Size: 43*43*13mm
• Case Material: Plastic ( PC )

Applications:

• Internet of things terminal controller
• IoT node
• Wearable peripherals

Part List:

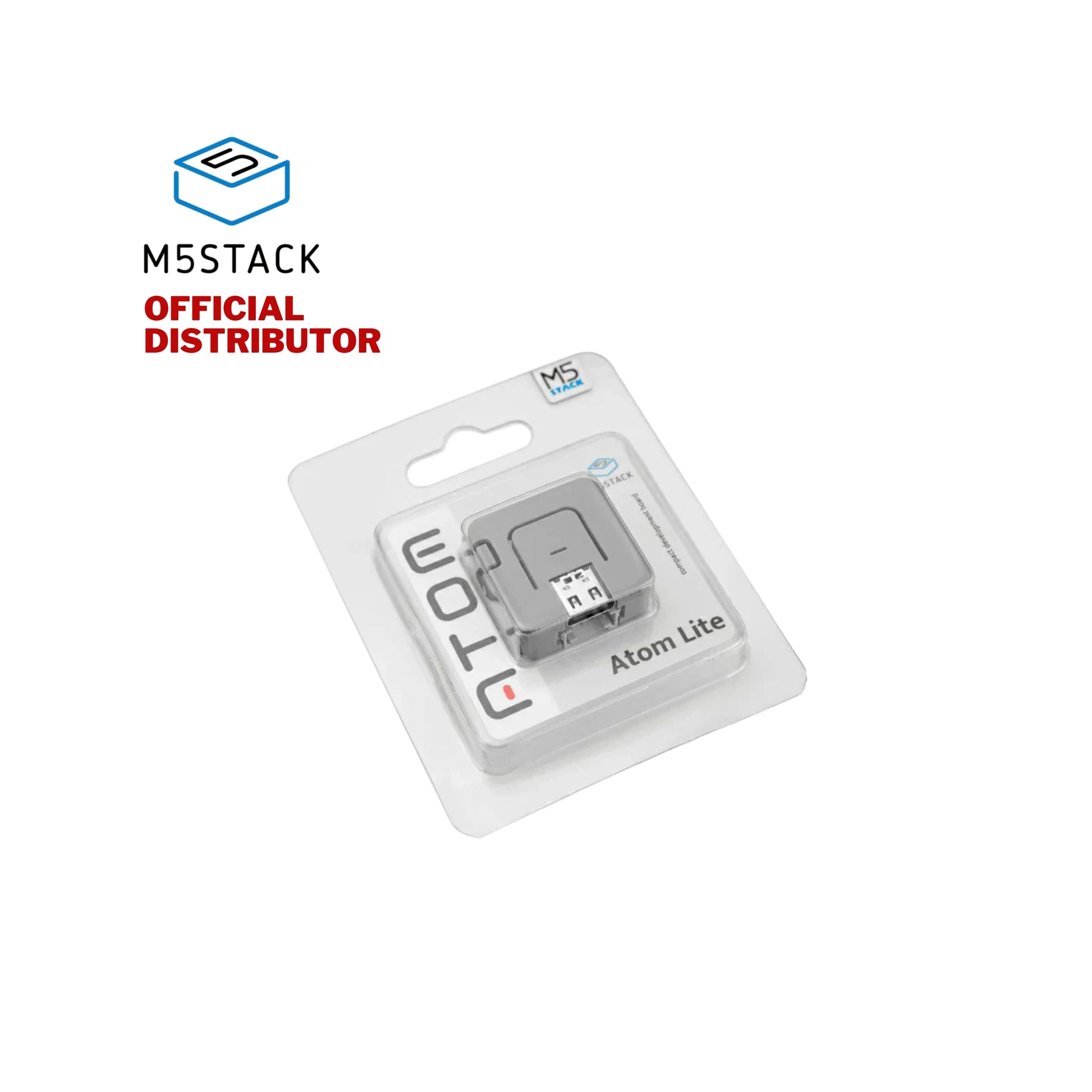

• 1x ATOM Lite
