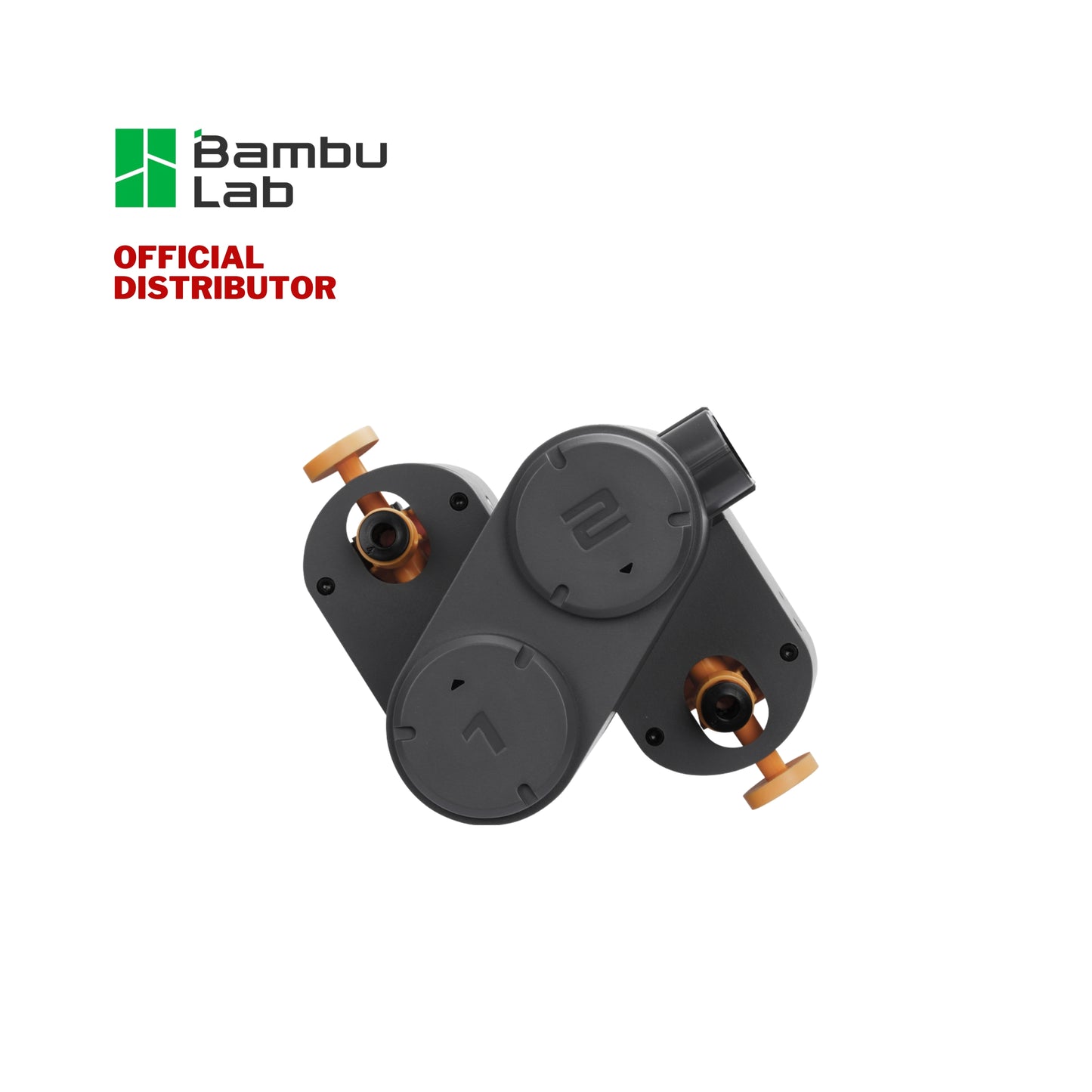

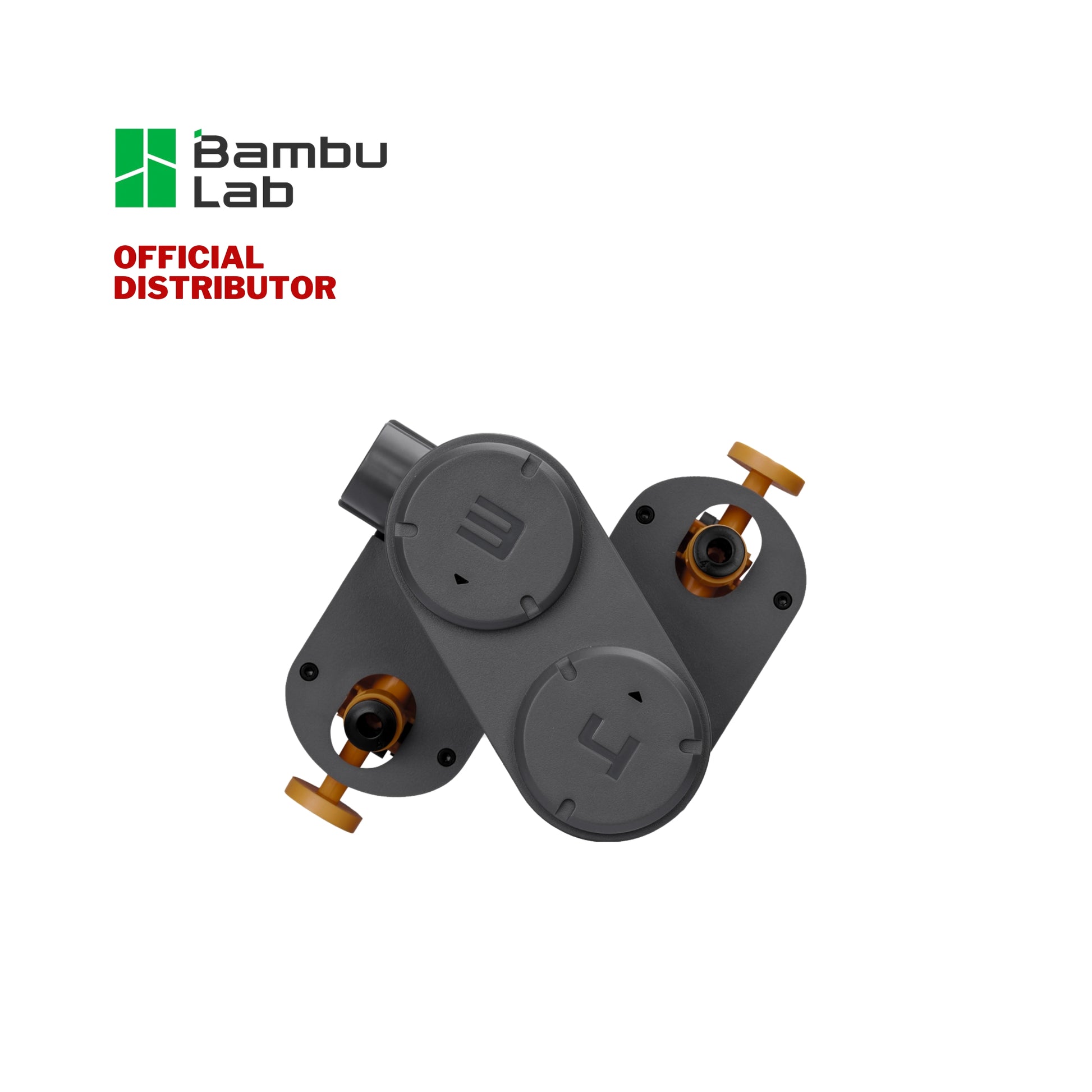

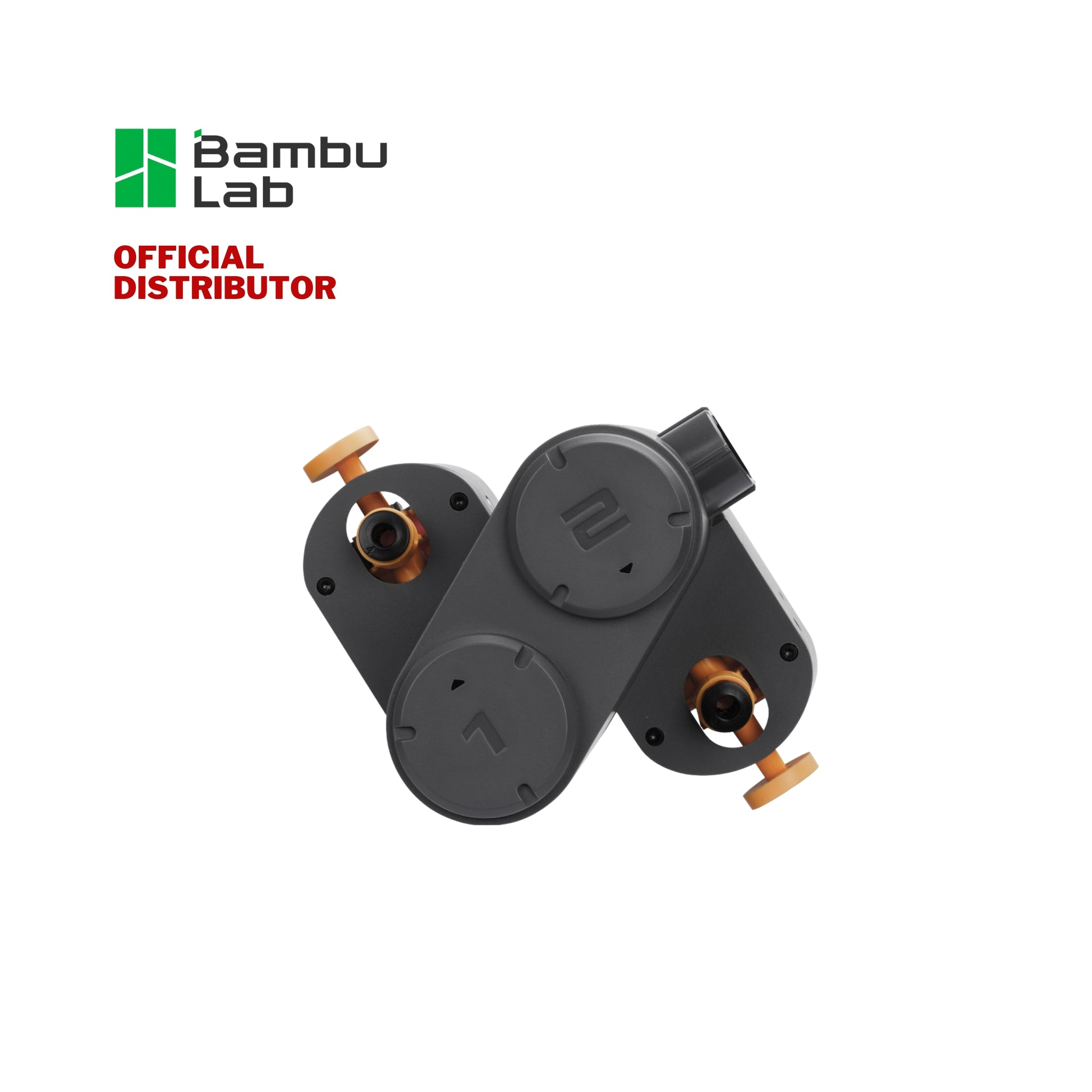

Bambu Lab AMS Lite Feeder Unit

Description:

The AMS lite Feeder Unit is specially designed to support the AMS lite for printing multiple colors and materials. Due to its unique symmetrical design, the feeder unit is designed in both left and right versions. Both left and right feeder units have their corresponding slots. The left feeder unit corresponds to Slot 1 and Slot 2, while the right feeder unit corresponds to Slot 3 and Slot 4.

The left and right feeder units have only minor structural differences, while their functionality and purpose remain identical. Please note that both the left and right feeder units can only be installed in their respective positions. Please confirm that you have selected the correct version (left or right) before purchase.

Each feeder unit has its own motors and gears to actively push the filament forward. When the filament is inserted, the feeder unit will pull the filament automatically and send the filament to the toolhead through the PTFE Tube.

Specifications:

Model Number: SAA006 (Left Slot 1 and 2), SAA007 (Right Slot 3 and 4)
Materials: Plastic, Metal, PCBA
Color: Grey and Yellow
Packaging Size: 170x120x100 mm
Packaging Weight: 390g
