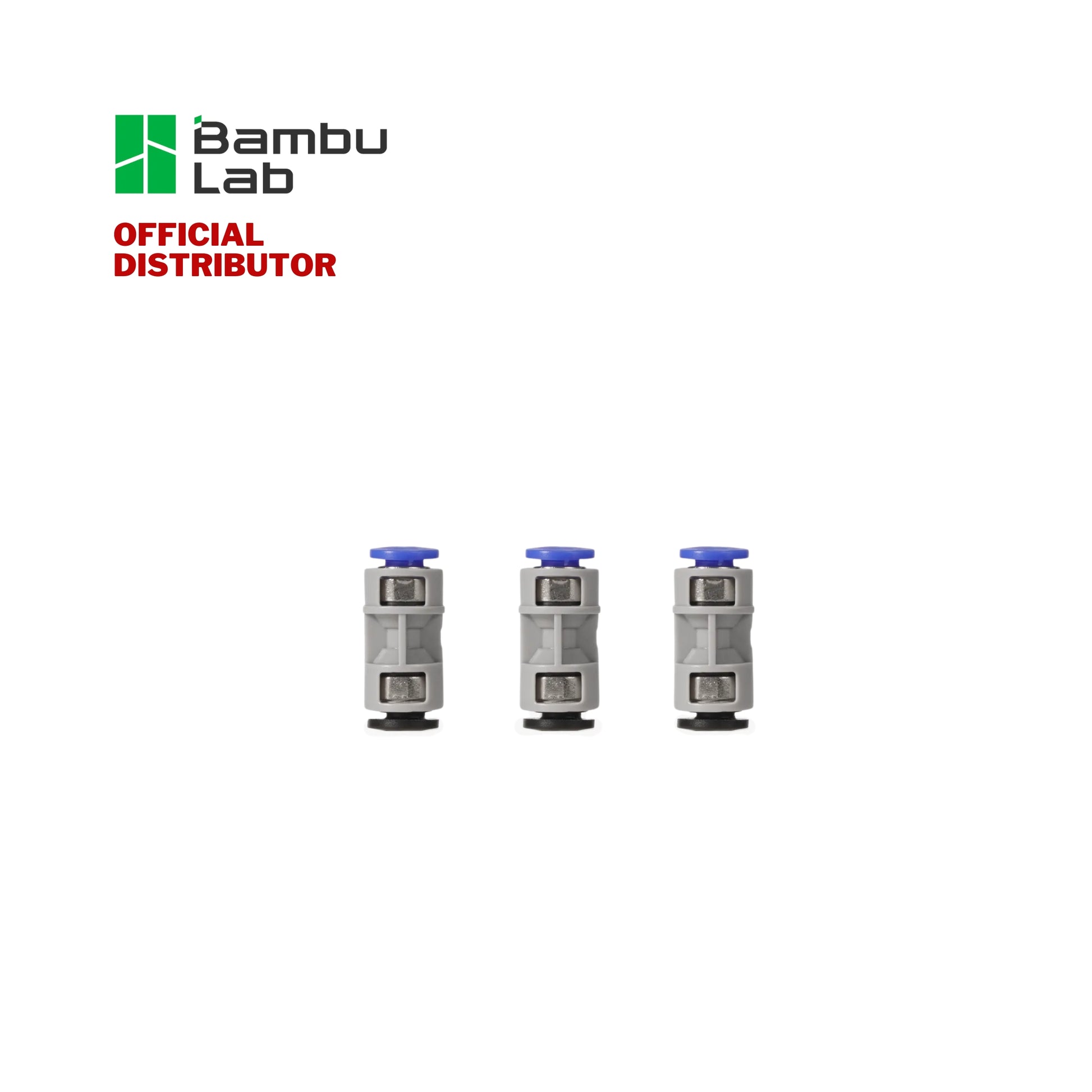

Bambu Lab PTFE TUBE Connector - X1 Series & P1S Series

Instructions for use

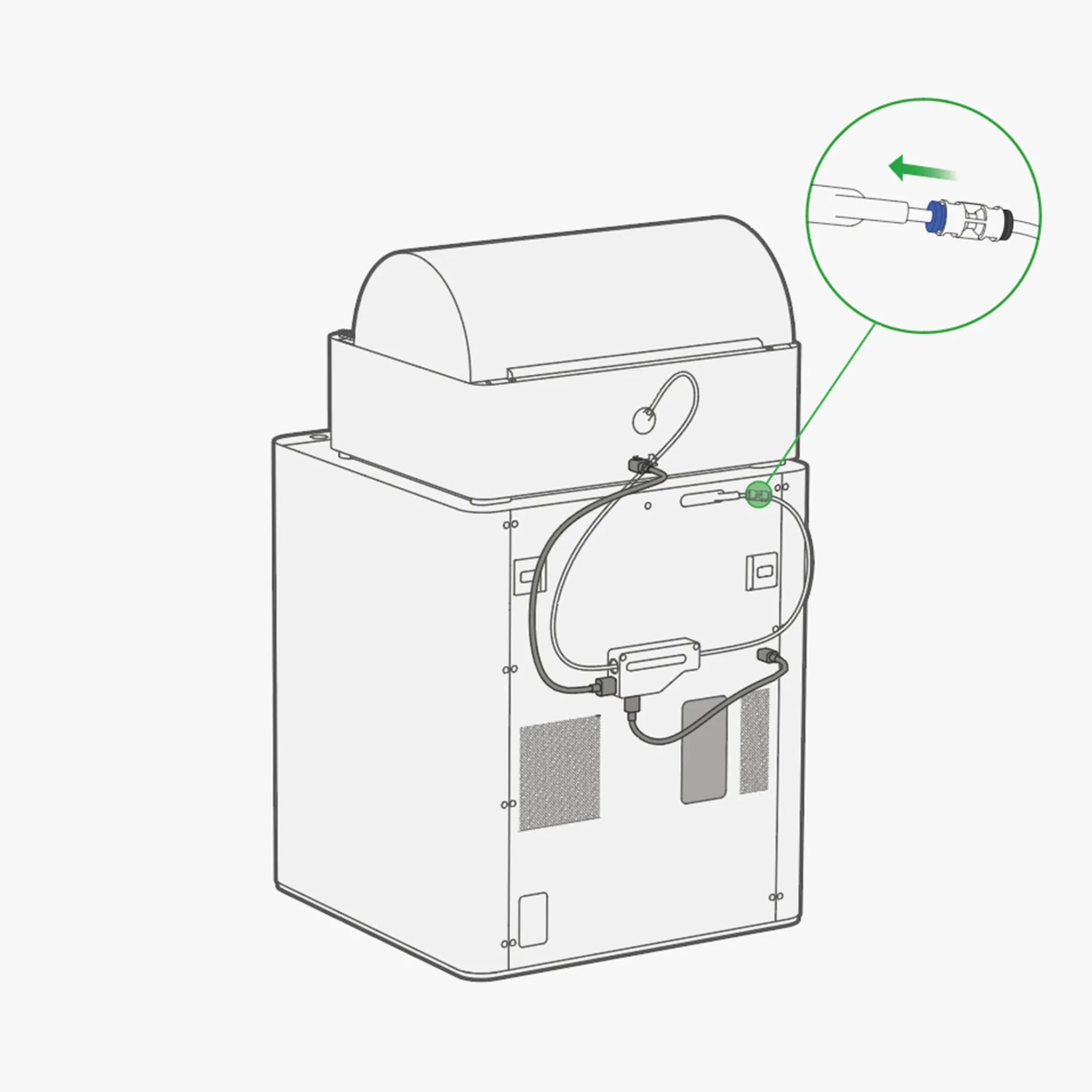

1. The PTFE Tube Connector is designed with a clear direction of use, as shown in the figure below. Connect the PTFE tube from the buffer output to the IN end, and the PTFE tube from the tool head to the OUT end. It is important to note that reverse connections may cause material blockage, so it is essential to ensure that the installation direction is correct.

2. When AMS is not being used, it is necessary to remove the feed tube connector from the OUT end, disconnect the connection between the feed tube connector and the PTFE tube of the tool head, and directly insert the consumable material wire into the PTFE tube of the tool head.
