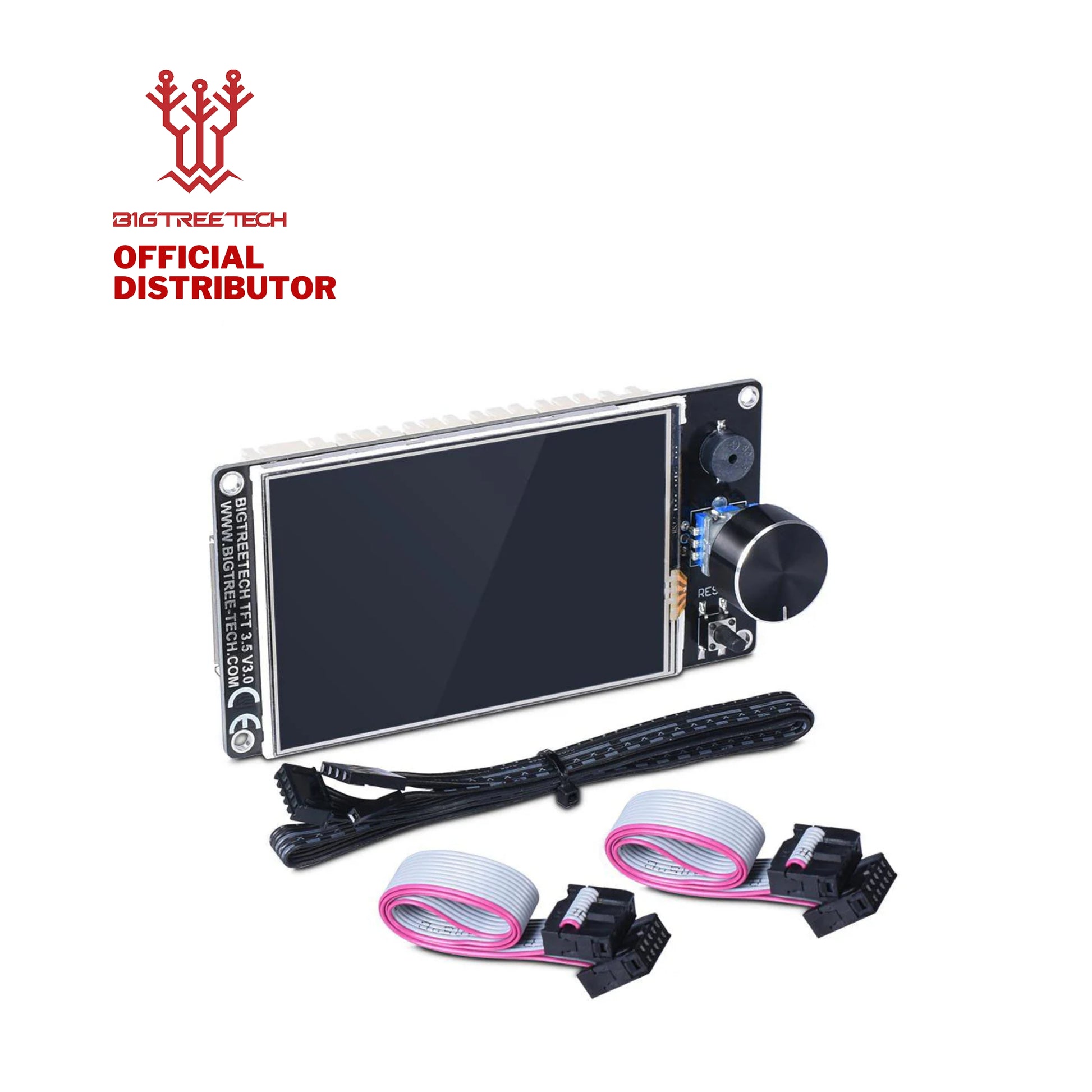

BIGTREETECH TFT35 V3.0 DUAL MODE LCD TOUCH SCREEN SMART DISPLAY FOR 32 BIT SKR BOARDS

Description:

The TFT35 Touch Screen features an ultra clear, 32 bit graphical interface on a 3.5" color display. It also packs a powerful 120MHz ARM Cortex microprocessor for quick and responsive input.

Dual Screen Modes:

Dual mode functionality offers two separate display options, serial touch screen mode and a 12864 text based simulator, which mirrors that of traditional 3D Printer screens. Press and hold the knob to rapidly switch between the two for maximum control.

Printing Methods:

While using serial screen mode, users can print from either a full sized SD card or a removable USB flash drive, both mount directly behind the screen.

Web Interface (WIFI)

Using an optional ESP-01S module (purchased separately), the TFT35 Touch Screen can also provide a wireless web based interface for remote management. Upload STL files, preheat the hotend and nozzle, or even send GCODE commands directly to the 3D Printer from any device.

Fits:

The BIGTREETECH TFT35 Touch Screen is fully compatible with any board that has a TFT serial port present. This includes (but is not limited to) the following...

• SKR 1.3
• SKR 1.4 Turbo
• SKR Mini E3 DLP
• SKR Mini E3 V1.2
• SKR Mini E3 V2.0
• SKR Pro 1.1
• MKS Gen L (and other RAMPS compatible boards)

Limited Compatibility:

Control boards without TFT support will be limited to using the 8 bit 12864 simulator over ribbon cable. These include (but are not limited to) the following...

• Creality Motherboards
• TH3D EZBoard Lite
