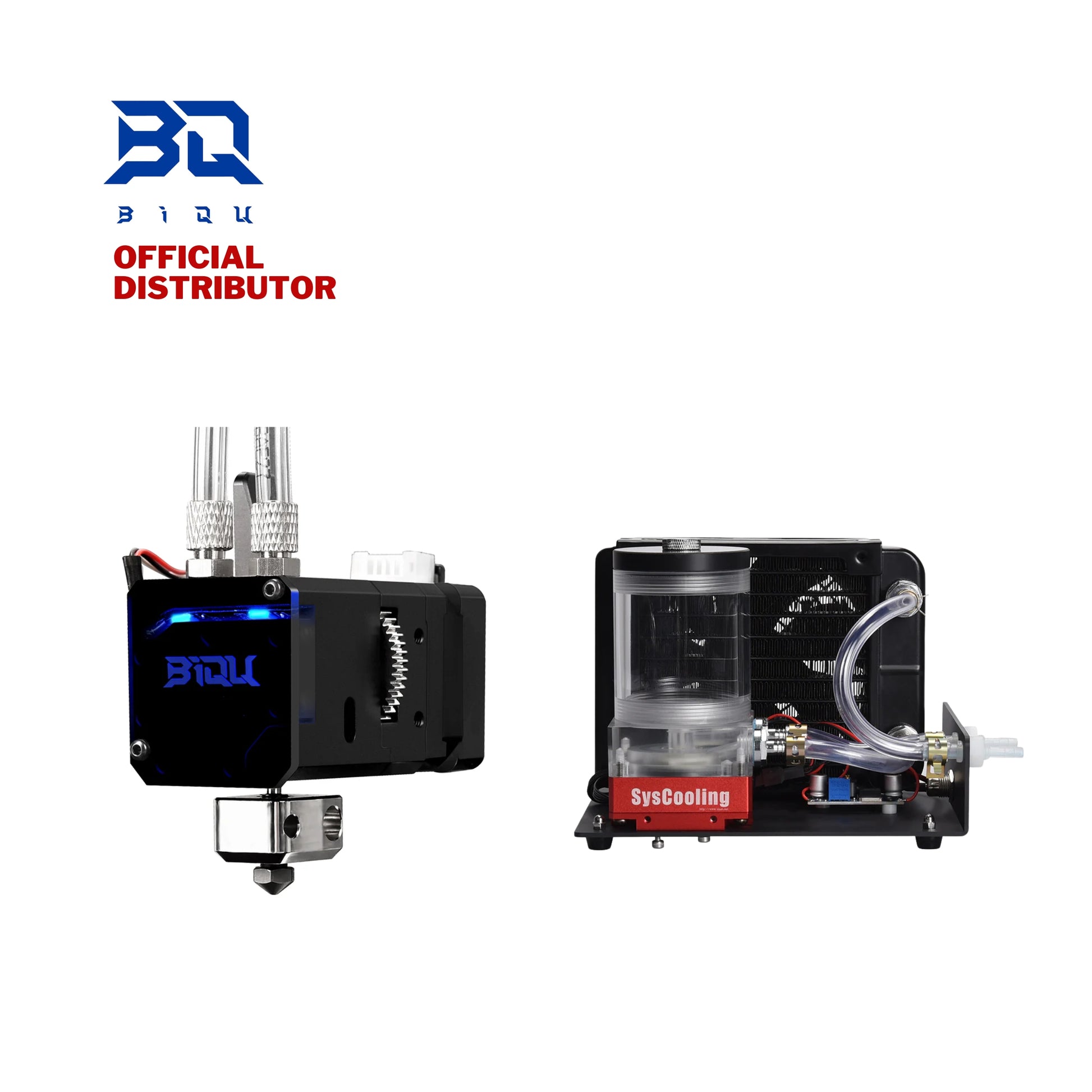

Biqu H2O Extruder / Water Cooling Kit for 3D Printer

BIQU

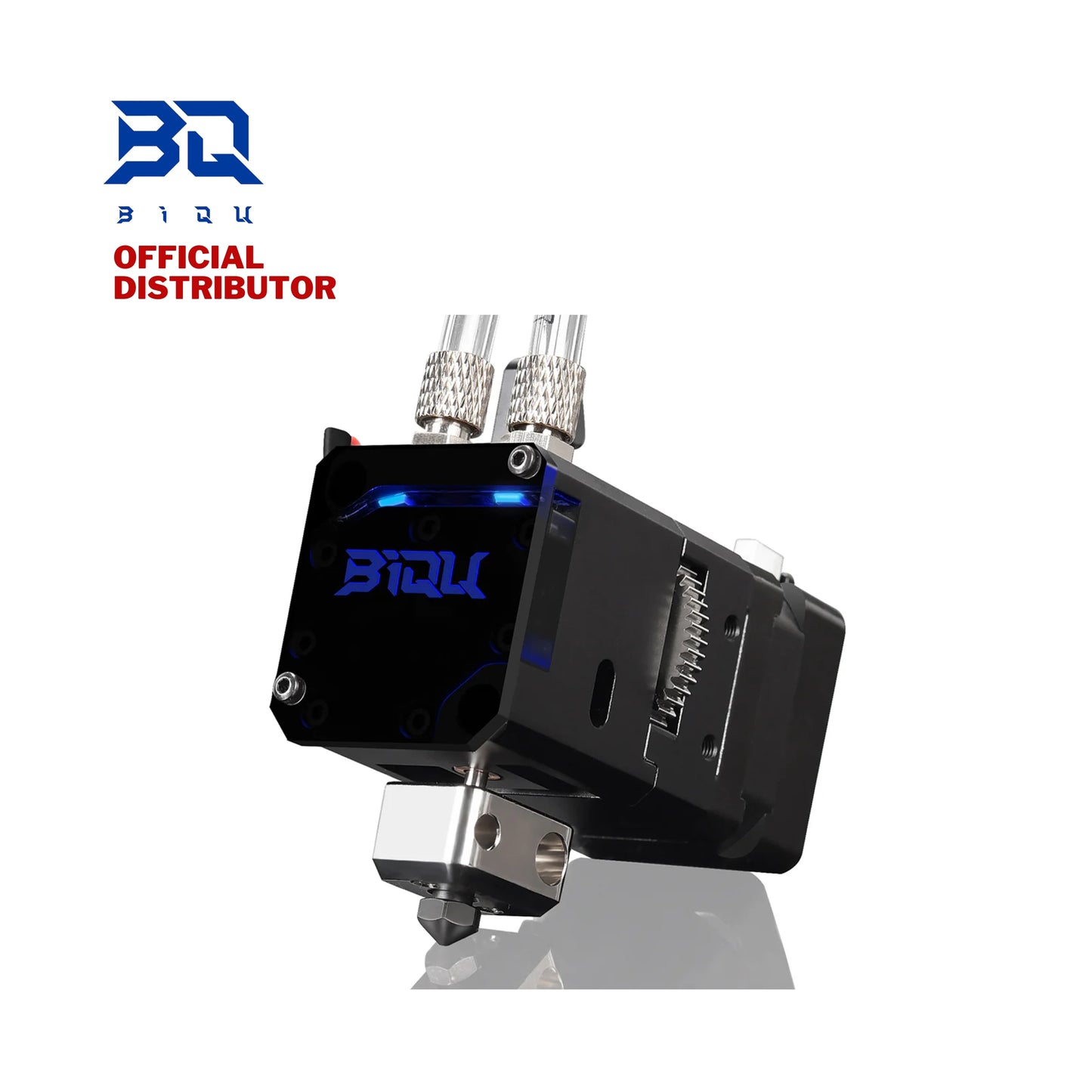

*H2O Extruder

Water-cooled extruder for temperatures up to 500 °C

Features & Advantages

• Temperatures up to 500 °C
• Requires Water Cooling Kit
• Fast, efficient cooling
• Accurate printing Product information & technical details

Manufacturers: BIQU

Content: 1 pc

Product types: Extruder

Filament Diameter: 1,75 mm

DESCRIPTION

The H2O extruder from BIQU is the water-cooled successor to the H2 V2.0 dual-gear extruder. The H2O Extruder can only be used with a water cooling system. BIQU offers the Water Cooling Kit for this purpose, the design of which also adapts perfectly to the H2O Extruder, but you can also use a different water cooling system.

500°C maximum nozzle temperature

Compact extrusion system

Resistant to high temperatures

Dual Gear Extrusion

Short filament path

More Cooling Power - Easier closed chamber printing

In connection with a water cooling system, the cooling can circulate better, the heat is distributed faster and the extruder is effectively protected.

Dual gear drive for best filament grip A dual-gear drive with two gears made of stainless steel ensures better filament grip and strong, even extrusion.

Features of the H2O Extruder:

Suitable for water pipes with an inner diameter of 4 mm and an outer diameter of 6 mm

The motor is temperature resistant up to 180 °C

Nice RGB mood light on the extruder Equipped with MAX31865 Board & PT100 Thermistor

Nickel-plated copper heating block with high hardness, durability and anti-corrosion

Heat Block Material Nickel-plated copper

Heatbreak material Titanium alloy

Gear material Stainless steel

Nozzle material High temperature - hardened stainless steel

Max heating temperature 500ºC

Temperature resistant motor 180℃

Temperature resistant fan 110ºC

Thermistor PT100 & MAX31865

Nozzle diameter 0.4mm

Number of extrusion gears 2

Diameter of the extrusion gears 7.8mm

Gear ratio 7:1

Quick release heatbreak Yes

Filament sensor No

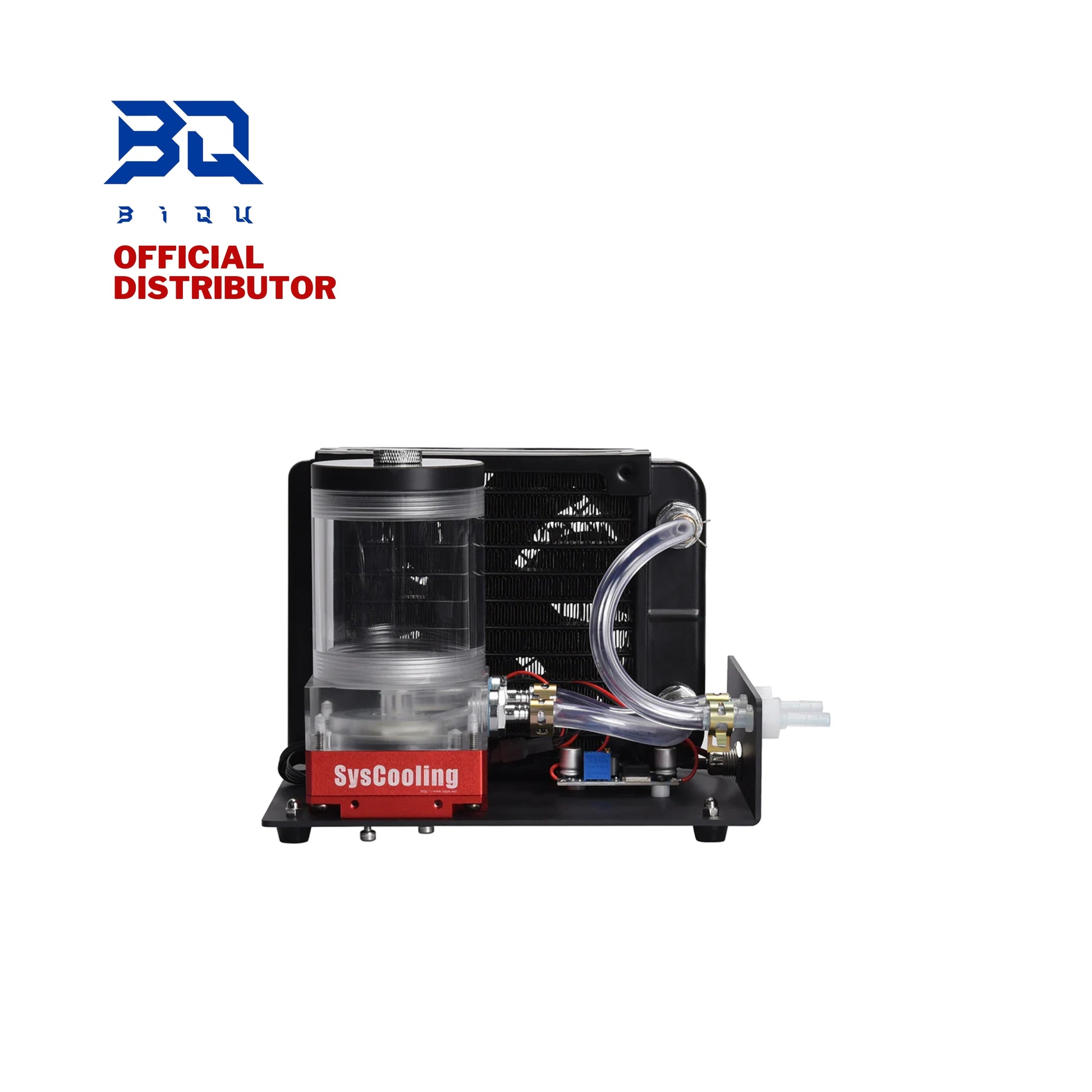

*Water Cooling Kit

The BIQU Water Cooling Kit is suitable for use with the BIQU H2O Extruder and other extruders. The water-cooling system with a 120 mm fan ensures better heat exchange and more efficient cooling, which allows extruders to develop their full performance even in closed chambers.

With the Water-Cooling Kit in conjunction with a suitable extruder, you no longer have to worry about insufficient cooling.

The Water Cooling Kit is 122 mm high at its highest point, 200 mm long and 145 mm wide overall.
